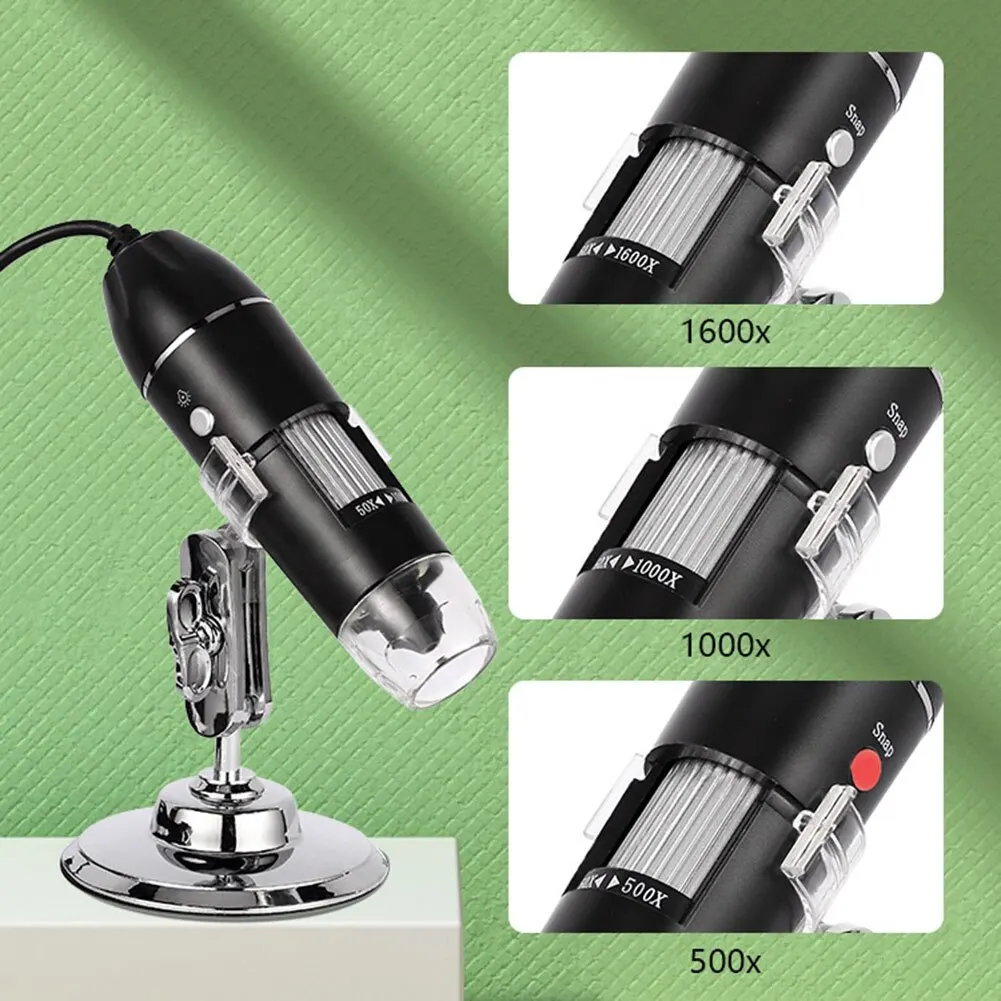

Digital Microscope Camera 3 in 1 C Type USB Portable Electron 500X, 1000X, 1600X for Soldering LED Magnifier Mobile Phone Repairing

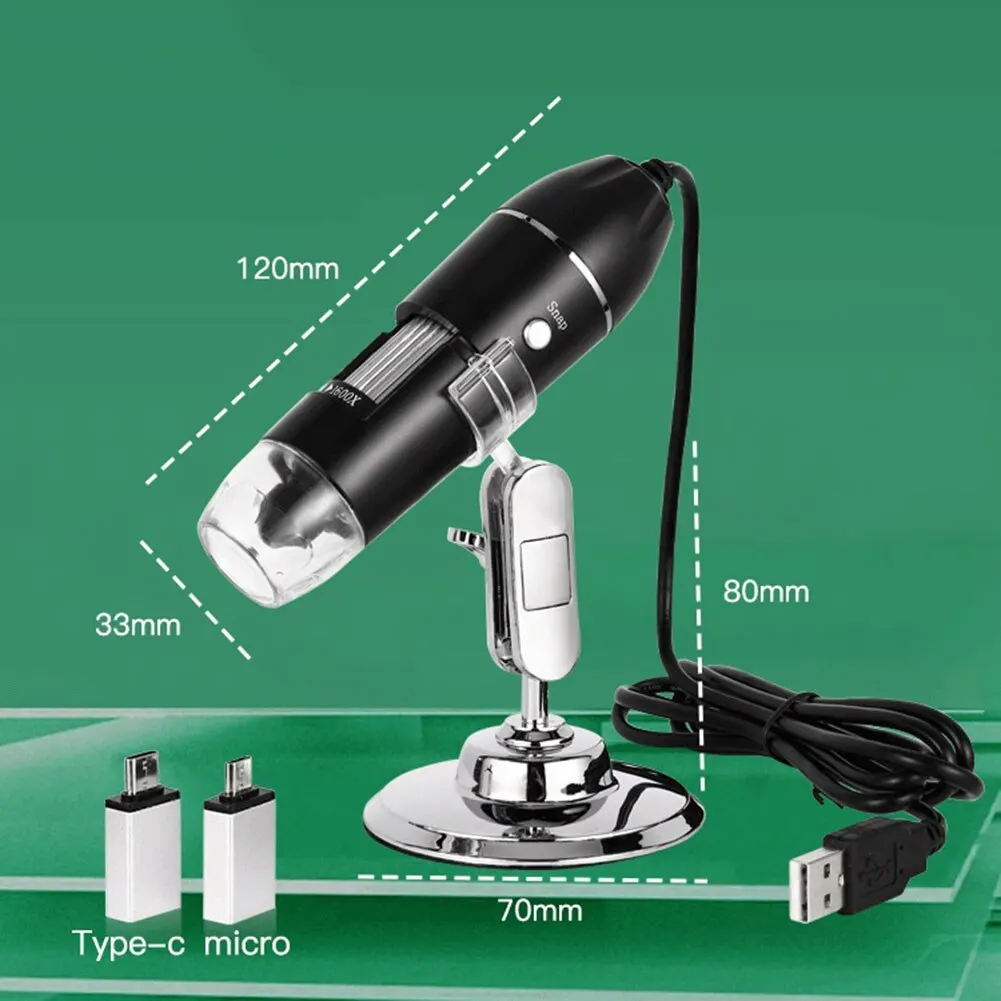

Included

1*Digital microscope body

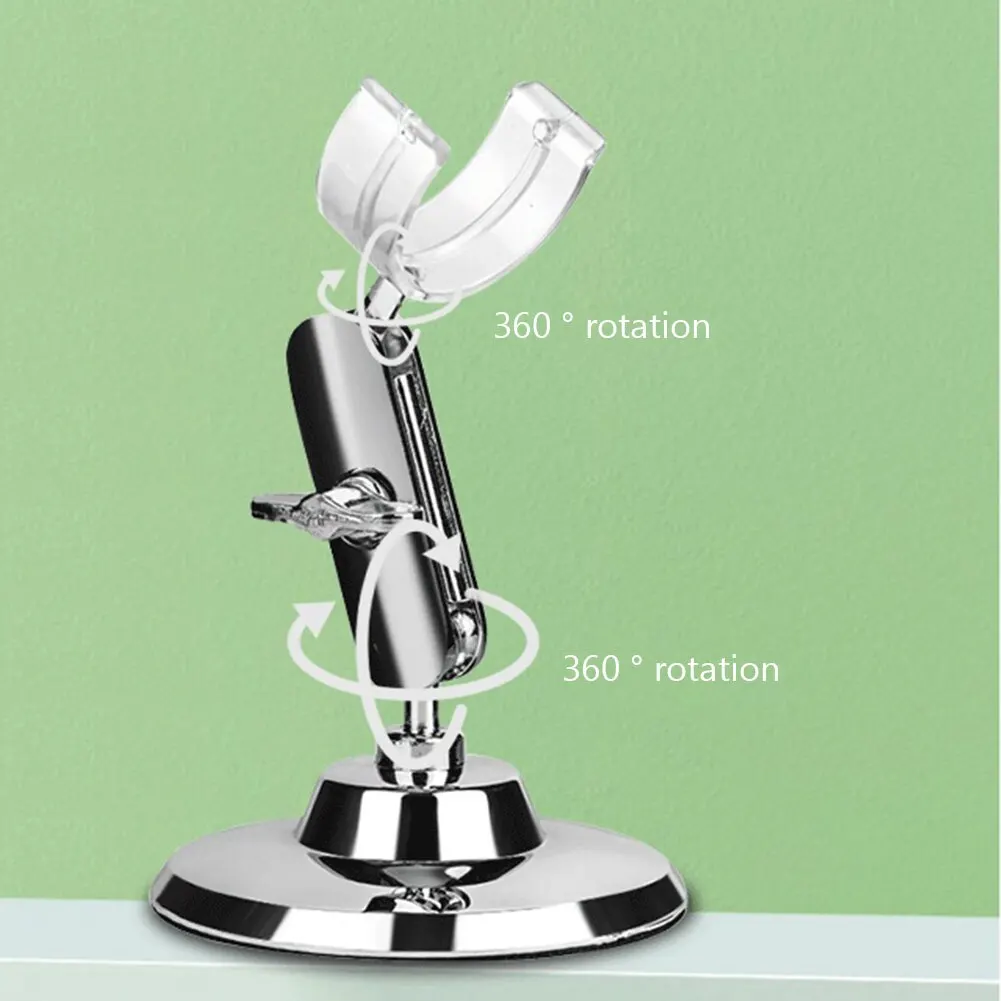

1*Bracket

2 * Adapter

1*Instruction

1*Calibration ruler

Product Manuals

1. Notices before use

Lens protection cover: at top of microscope lens, configured one piece lens protection cover, please must take down the protection cover and observe before use, otherwise, it will affect to observe.

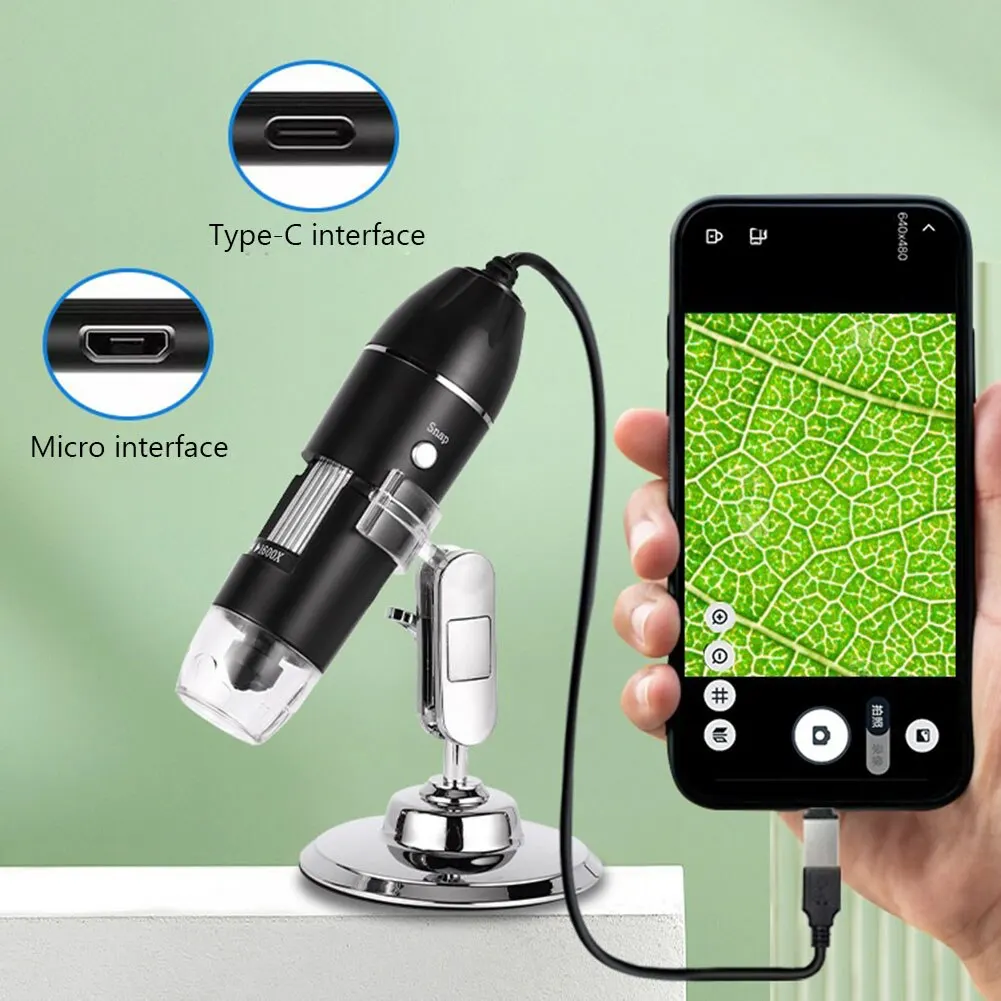

Need connect the TYPE-C tail joggle to power on through Micro joggle for the mobile phone which use TYPE-C joggl.

2. Mobile phone terminal operating guidance

2.1 APP download

Mobile phone scan the QR code and obtain the download link

2.2APP interface instruction and use Open DLscope APP, click “+” in the upper right corner, to select the device to be added “USB”, insert the TYPE-C/Micro into the phone, and follow the instructions. After the connection is successful, click “Next” to display the image.

2.3 Function instruction(Note: The picture only for reference because different mobile phone model and version)

Resolution: click to switch camera/video resolution.

Zoom in: click to enlarge the screen (used when the screen is too small).

Zoom out: click to zoom out the screen (used when the screen is too big, default is minimum each time you open it).

Mirror: mirror image.

Lock: click the lock screen button.

Rotate: click to rotate the screen.

Shoot: Photo fashion choose.

Video: choose video mode.

Film: click to view photos or videos that have been taken.

Shutter: camera shutter.

3. PC terminal operating guidance

①Search and download “HiView” in Microsoft Store/APP Store,

shown in fig

(Note: For PC operating systems: Windows 8,Windows 10, Mac OS X 10.5 or higher)

② For Windows 7 and Windows XP, download the software from the website

shown in fig

Note:
Only supports the use of for Android mobile phones with UVC function, and the OTG function switch needs to be turned on before it can be used normally.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Included: 1*Digital microscope body1*Bracket2*Adapter1*Instruction1*Calibration ruler
