YT08 Hydraulic Lifting Winch
4,822.61 $ Original price was: 4,822.61 $.4,726.16 $Current price is: 4,726.16 $.
Out of stock

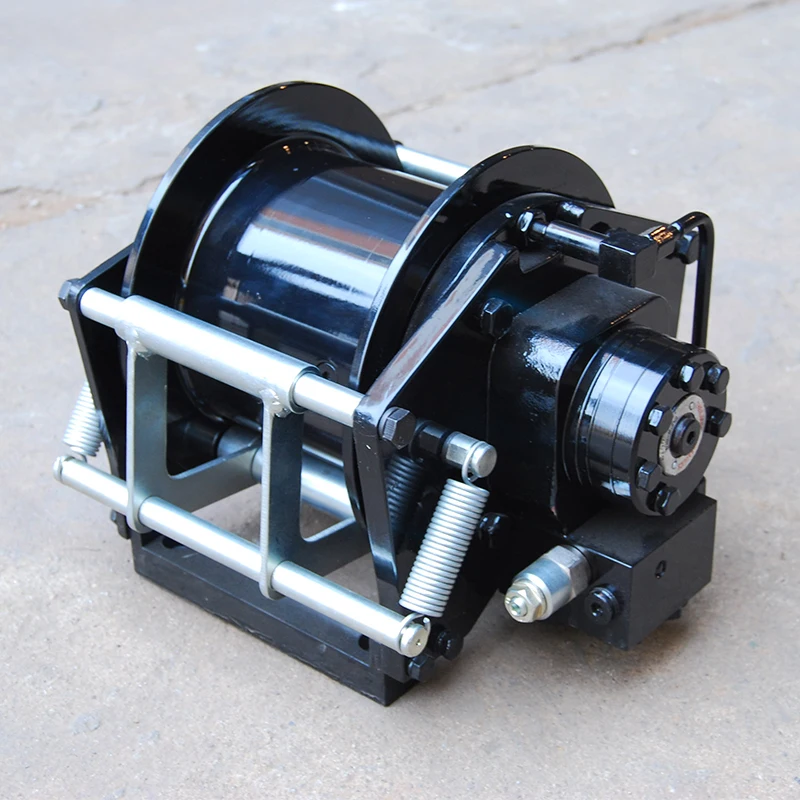

YT08 Hydraulic Lifting Winch
XINQI YT08 Hydraulic Lifting Winch

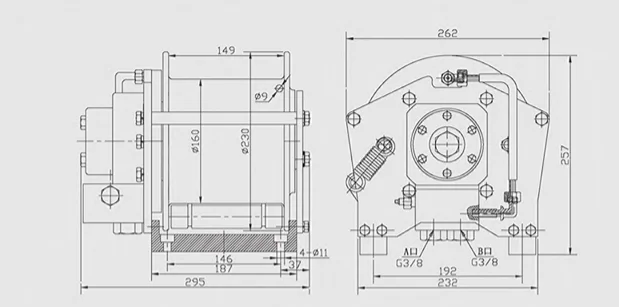

Product Structural Drawing
Product Features
1.Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2.Adopt multidisc-typed normally-closed brake makes torque larger, safer and reliable.
3.The product is featured by its small size,compact compact construction and high transmission effciency.
4.The installtion bracket can be manufactured according to the customer’s requirement.
5.According to the requirement of customers,manufacture the balance valve and shuffle valve.
Product Performance
Weight | 33 kg |
---|---|
Dimensions | 33 cm |
Brand Name |
NoEnName_Null |
Origin |
Mainland China |
Place of Origin |
Zhejiang, China |
Model Number |
YT08, YT08 |
Power Source |
Hydraulic |
Application |
CRANES |
Capacity |
8KN |
Product name |
XINQI YT08 Hydraulic Lifting Winch |
Line Speed(1st layer) |
35m/min |
oil pressure |
15Mpa |
Line Speed |
40m/min |
Drum diameter x Bottom diameter |
230x160x149 |
Drum capacity |
43m |
wire rope diameter |
8mm |
Net Weight |
41kg |
