Woodpecker DTE Dental Ultrasonic Scaler Tips Scaling Endo Tip Dentistry Instruments Medical Accessories Fit EMS Satelec NSK

Woodpecker DTE Dental Ultrasonic Piezo Scanner Tips for EMS DTE/NSK SATELEC Ultrasonic Scanner Handpiece

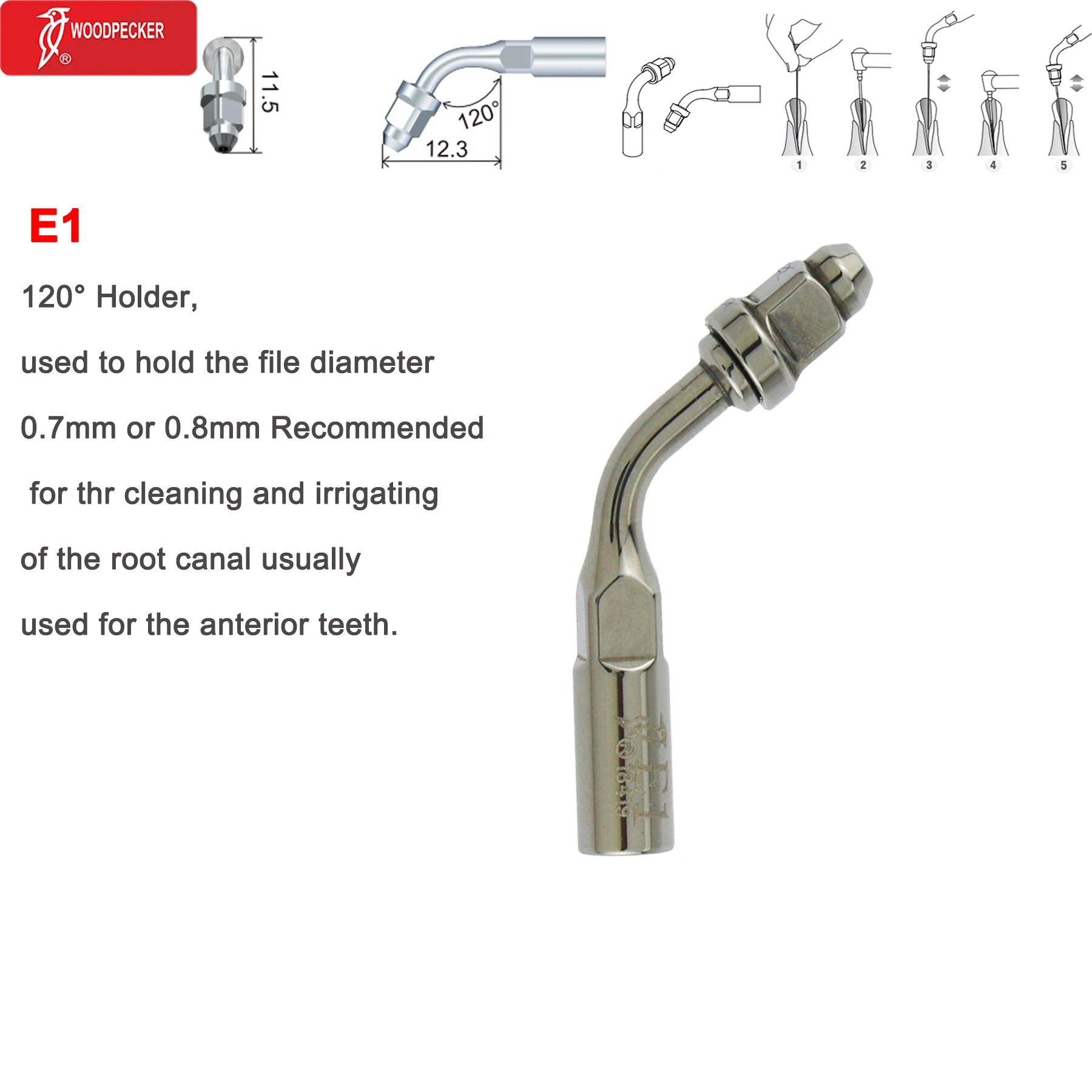

E1

•120° Holder, used to hold the file diameter 0.7mm or 0.8mm
•Used for cleaning and irrigating of the root canal, usually used for the anterior teeth.

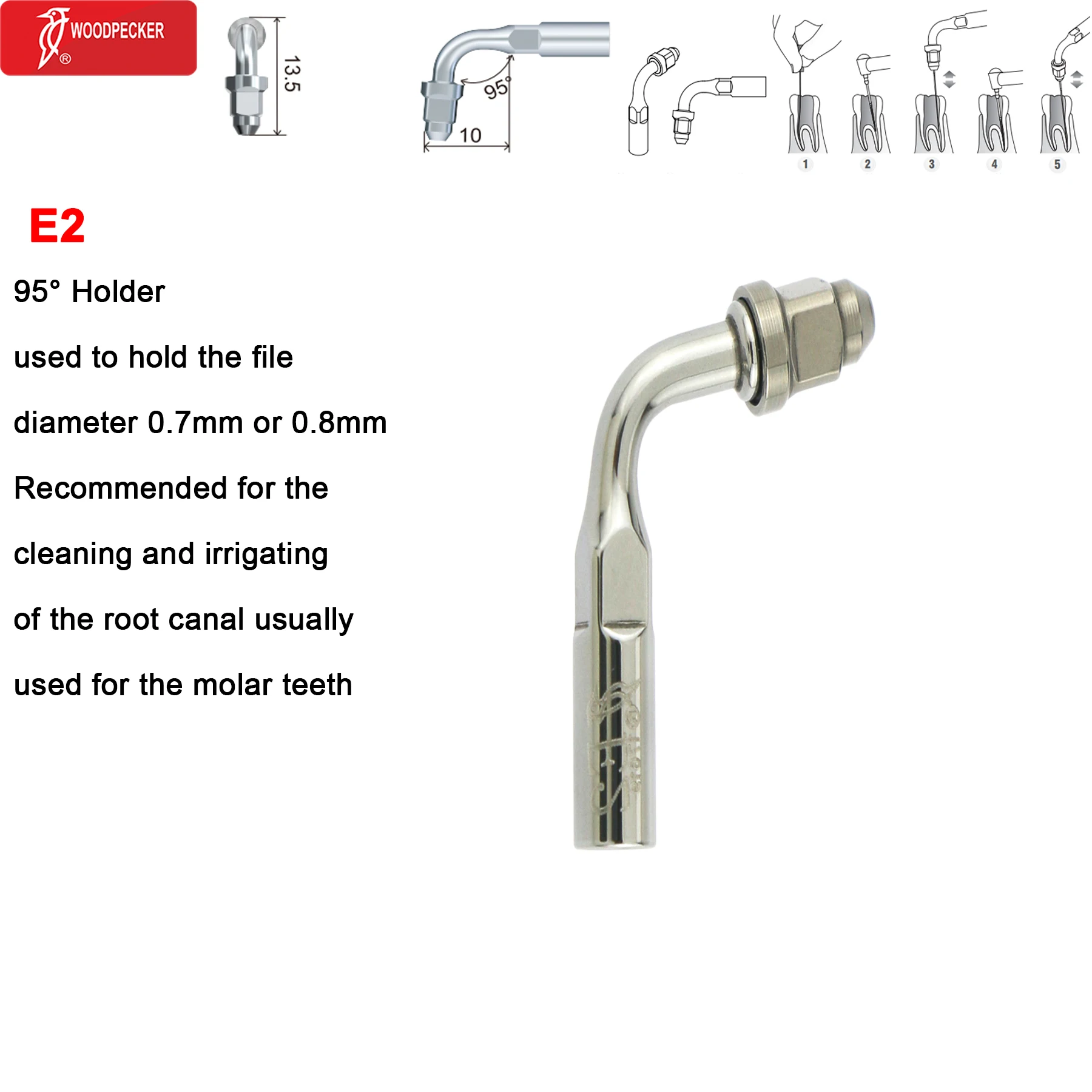

E2

•95° Holder, used to hold the file diameter 0.7mm or 0.8mm
•Used for cleaning and irrigating of the root canal, usually used for the molar teeth.

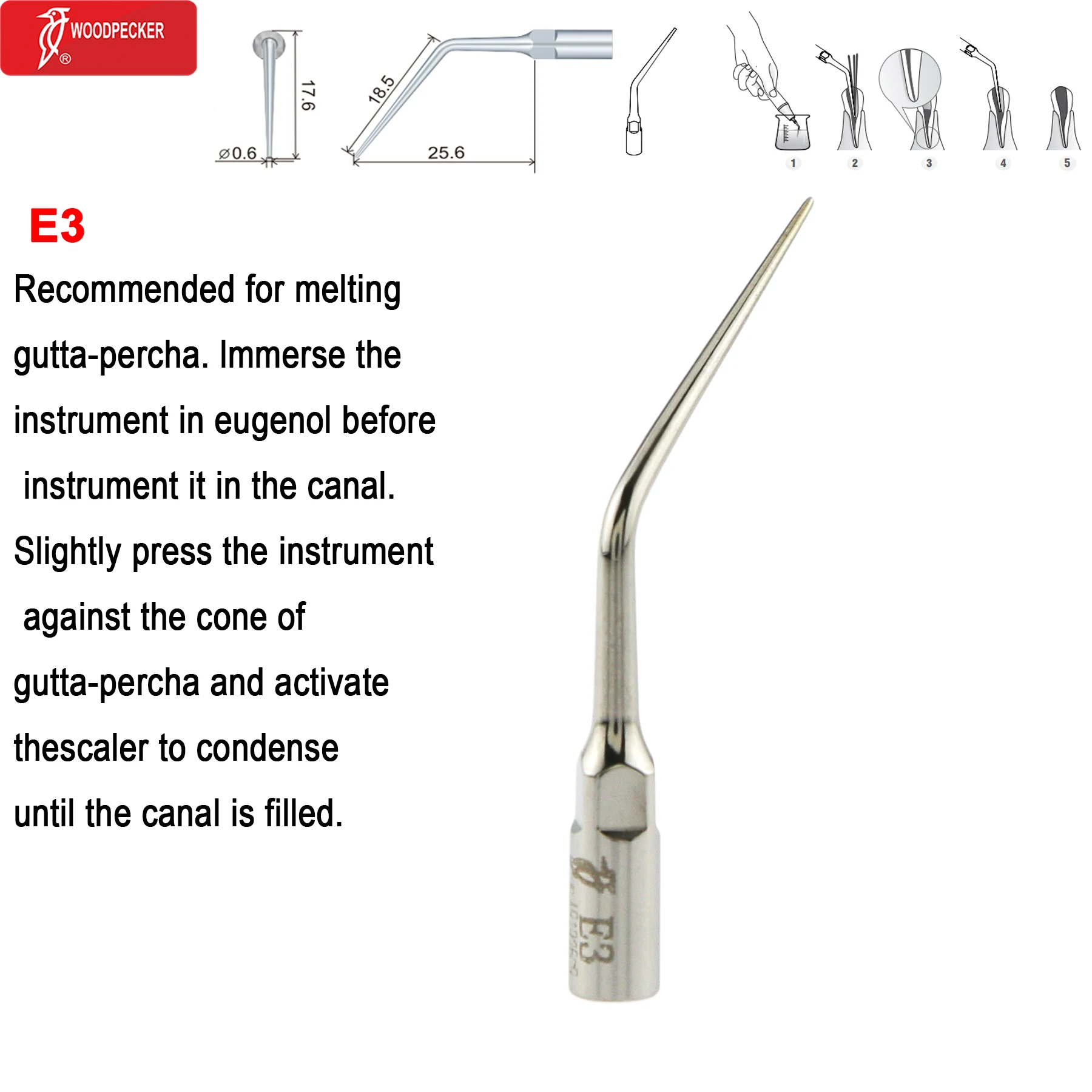

E3

•After root canal cleaning, using the mechanism and heat energy of ultrasonic vibration to intenerate the filling lateral condensation, making sure the top of the scaler tip touch the lateral condensation.

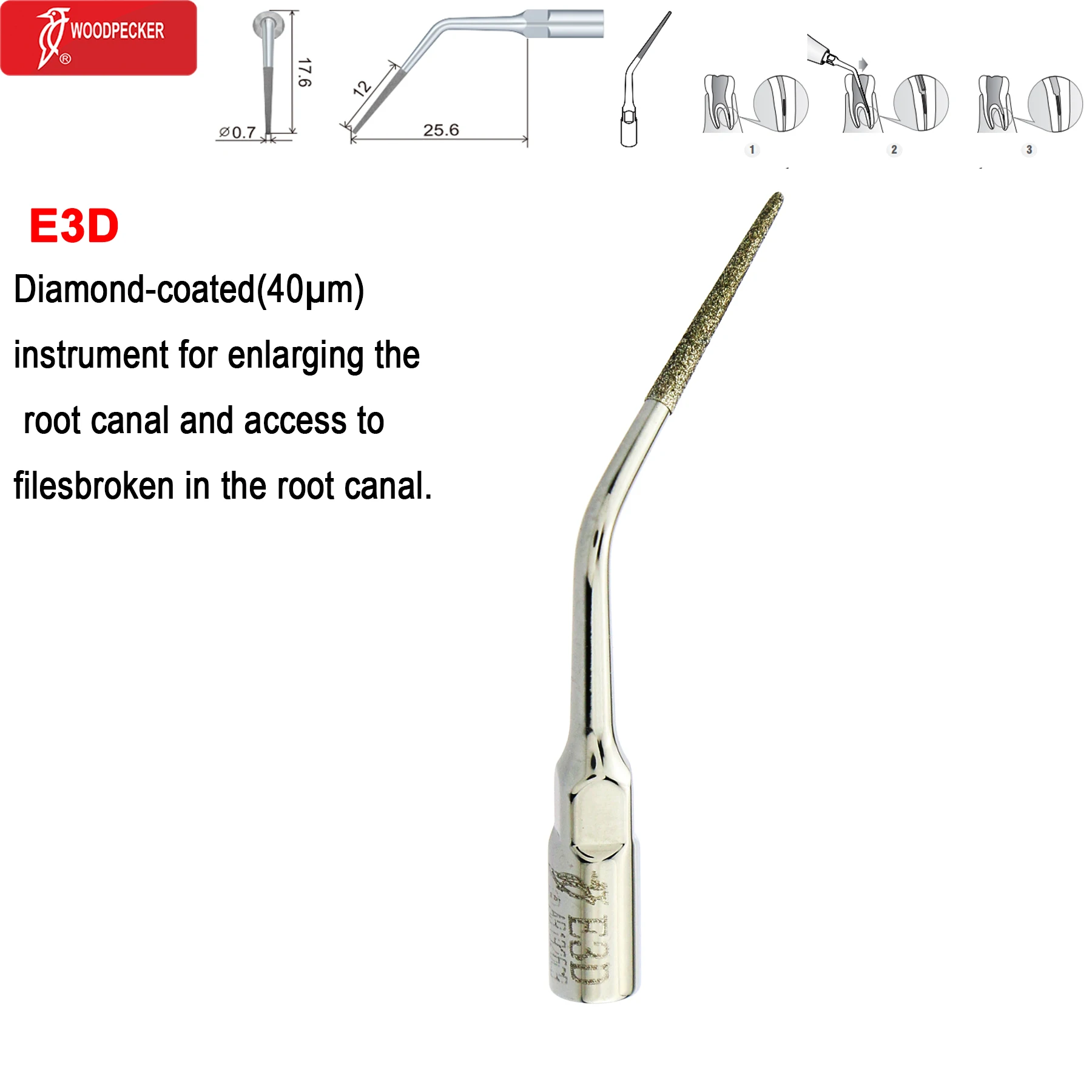

E3D

•Diamond coated 40 μm
•Used to remove the calcification and bad filling material of pulp cavity (diamond-coated)

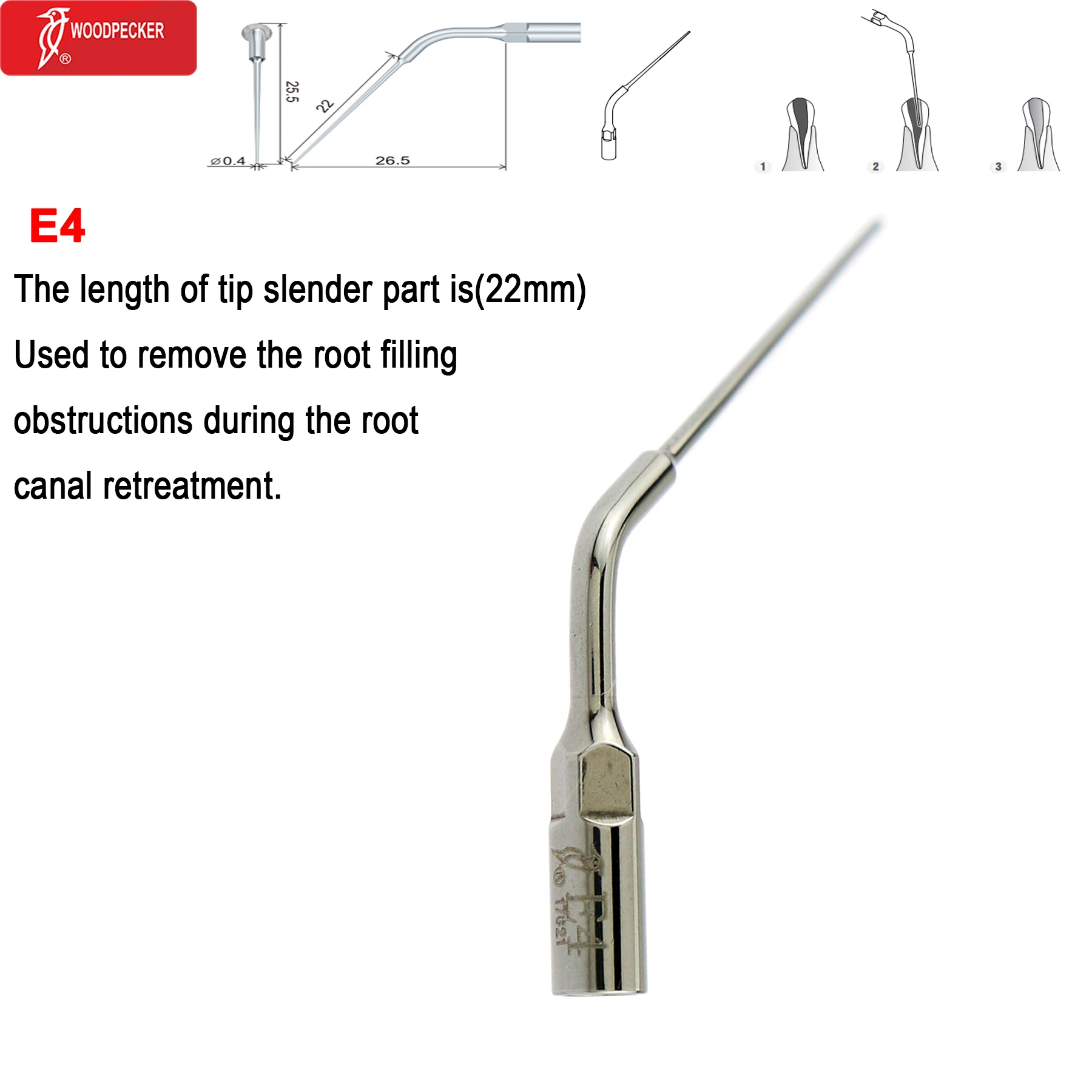

E4

•Used to remove the root filling obstructions during the root canal retreatment.
•The length of the tip slender part is (22mm).

E4D

•Diamond coated 40 μm
•Diamond-coated instrument for removing the calcification and bad filling materiel in the root canal during the root canal retreatment.
The length of the diamond-coated on tip is 15mm.

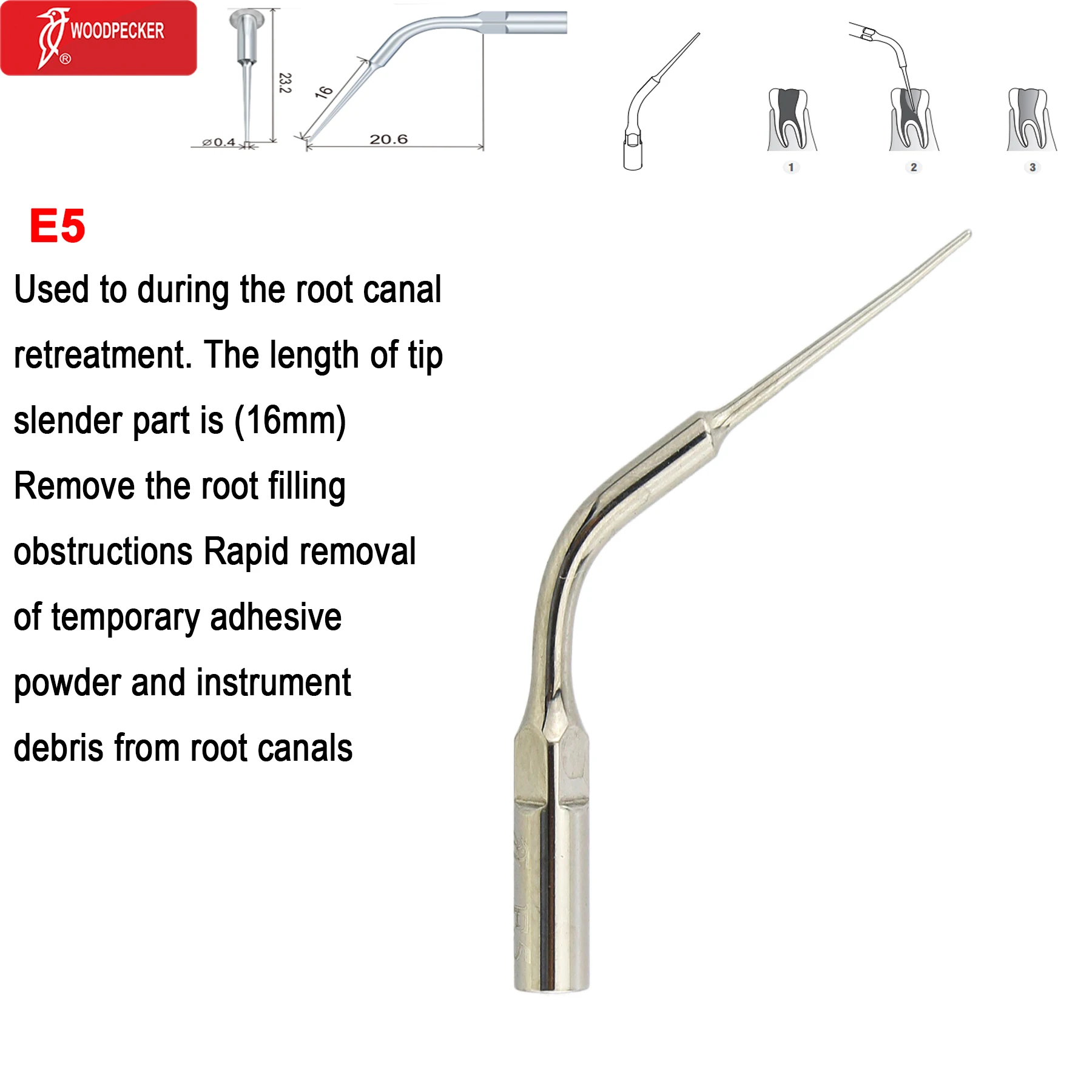

E5

•Used to remove the root filling obstructions during the root canal retreatment.
•The length of the tip slender part is (16mm)

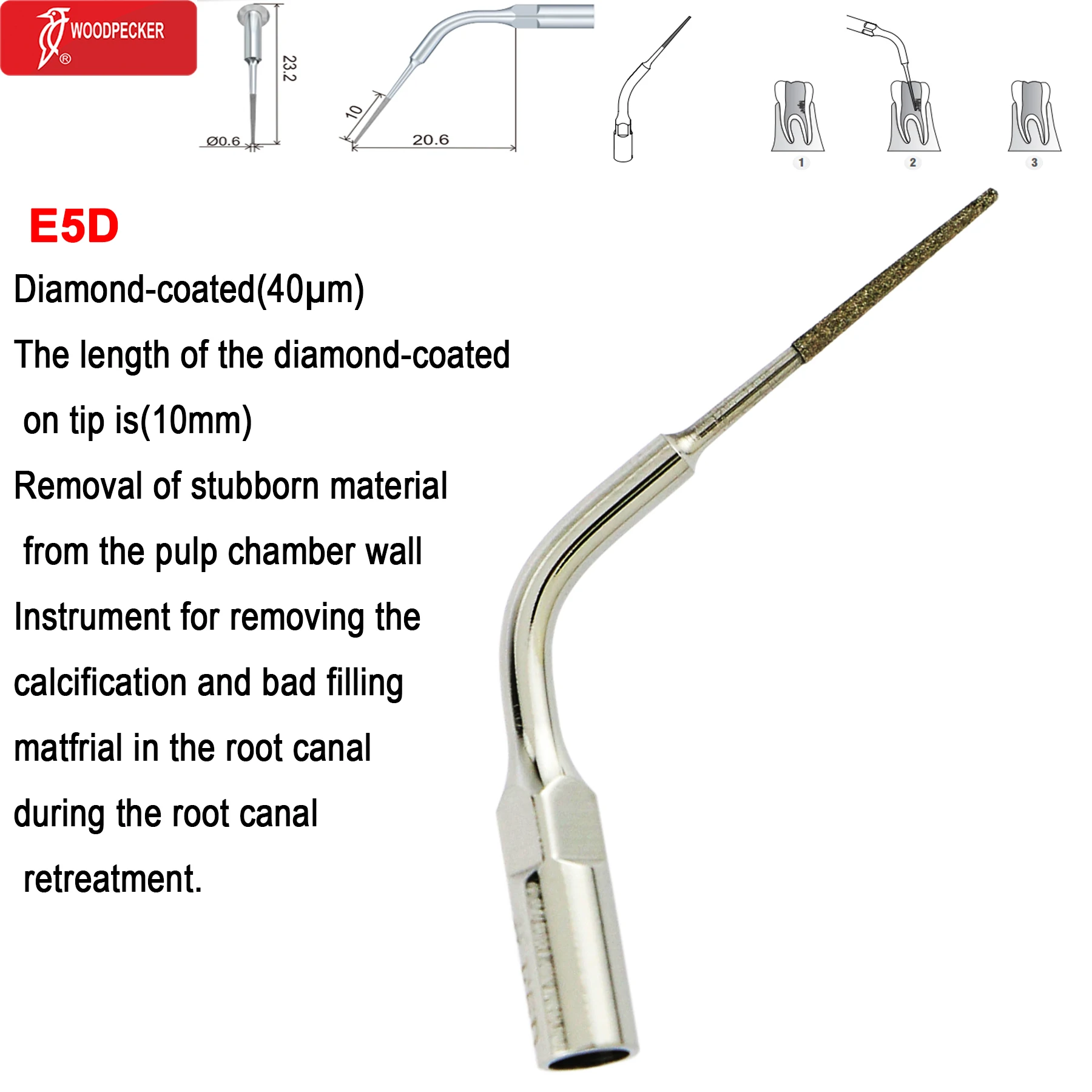

E5D

•Diamond coated 40 μm
•Diamond-coated instrument for removing the calcification and bad filling materiel in the root canal during the root canal retreatment.
•The length of the diamond-coated on tip is 10mm.

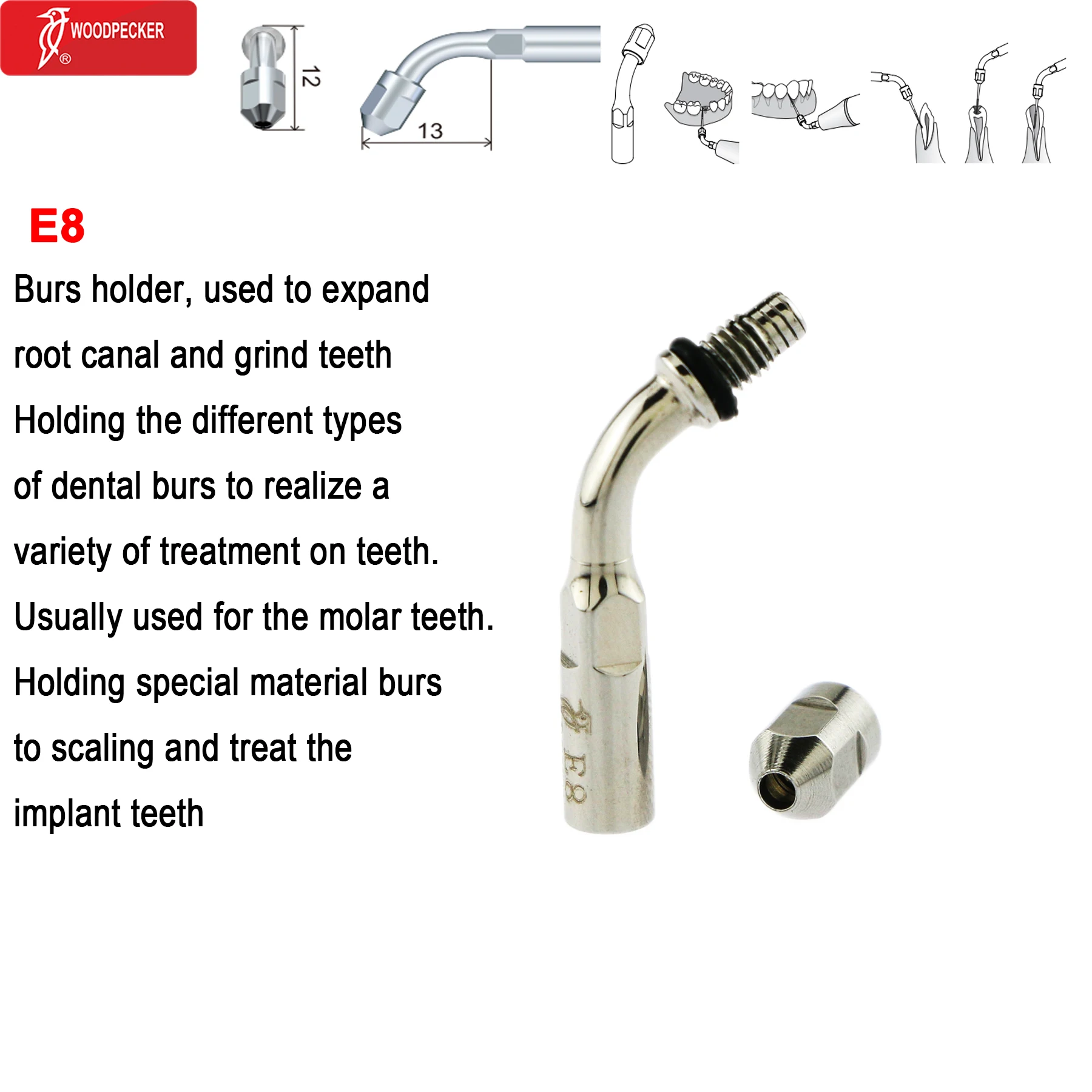

E8

•Burs holder, used to expand root canal and grind teeth
•Holding the different types of dental burs to realize a variety of treatment on teeth.
•Usually used for the molar teeth.
•Holding special material burs to scaling and treat the implant teeth

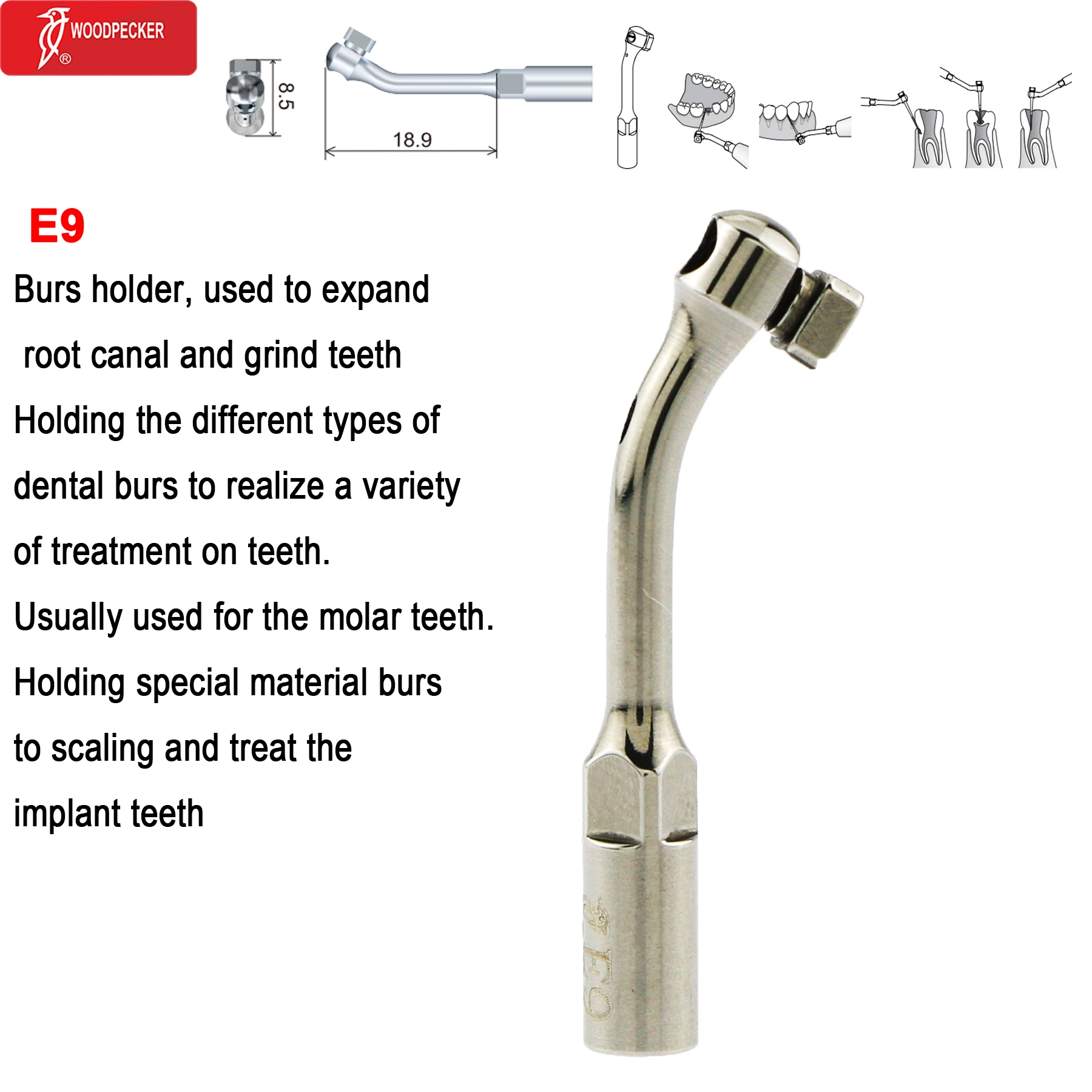

E9

•Burs holder, used to expand root canal and grind teeth
•Holding the different types of dental burs to realize a variety of treatment on teeth.
•Usually used for the molar teeth.
Holding special material burs to scaling and treat the implant teeth

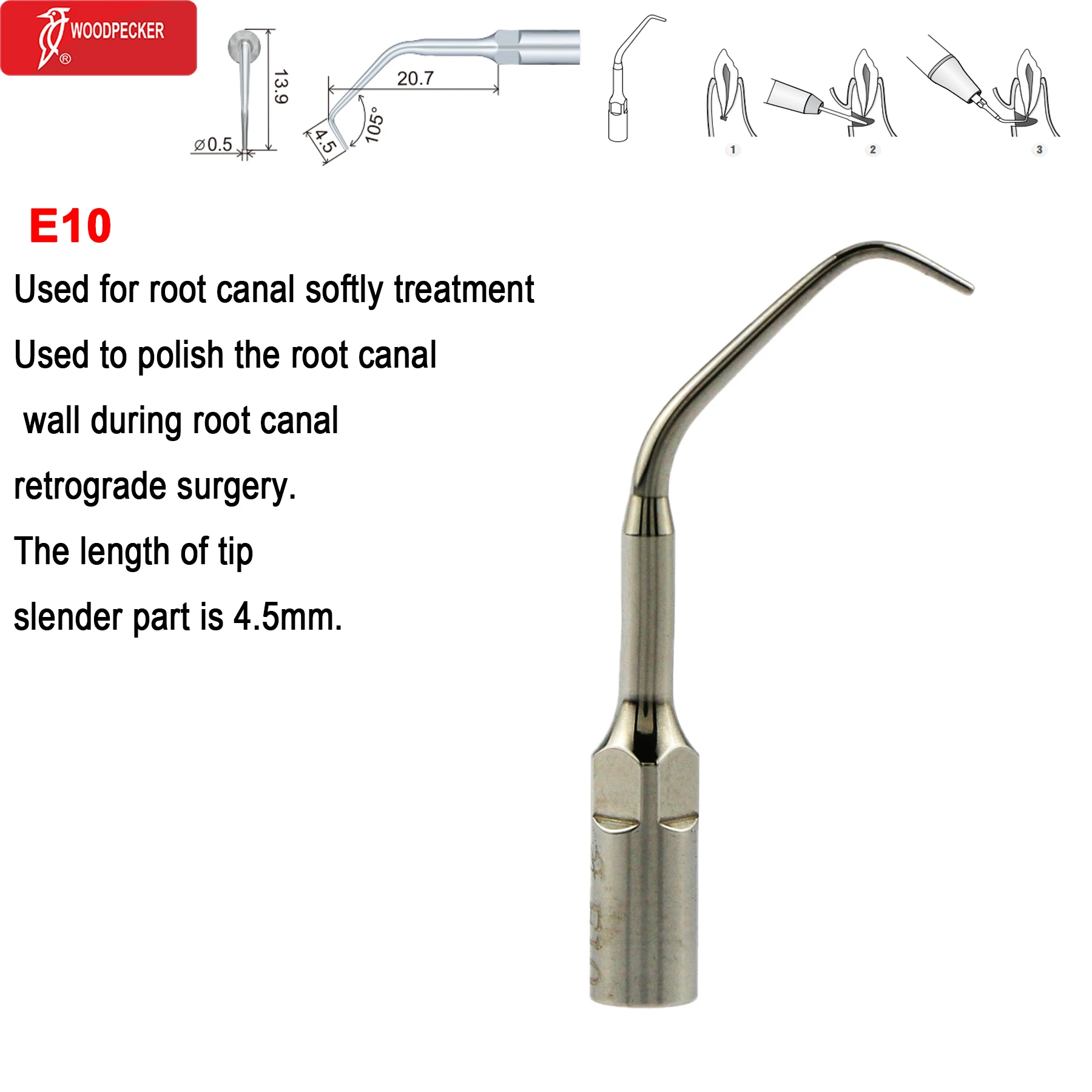

E10

•Used for root canal softly treatment
•Used to polish the root canal wall during root canal retrograde surgery.
•The length of tip slender part is 4.5mm.

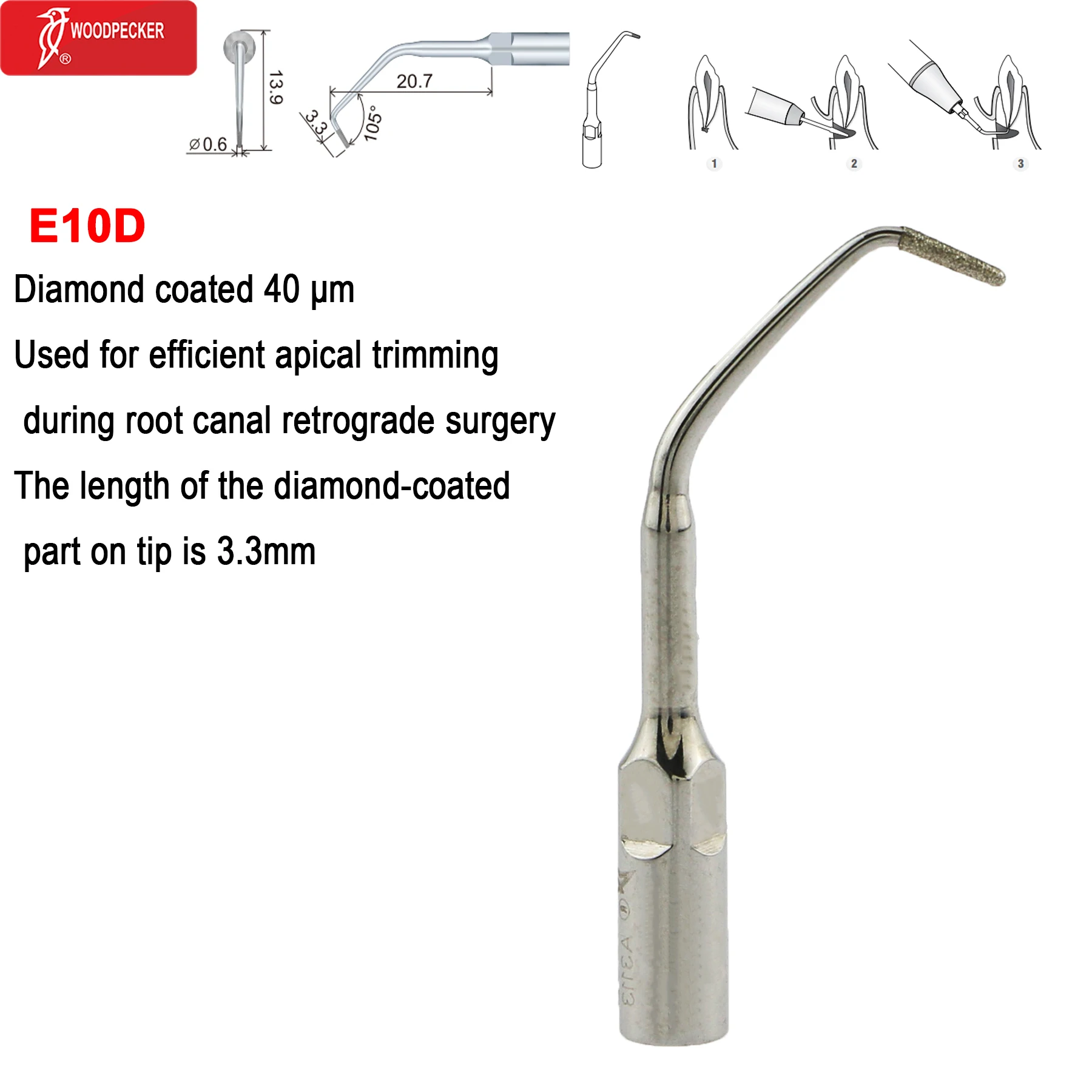

E10D

•Diamond coated 40 μm
•Used for efficient apical trimming during root canal retrograde surgery
•The length of the diamond-coated part on tip is 3.3mm

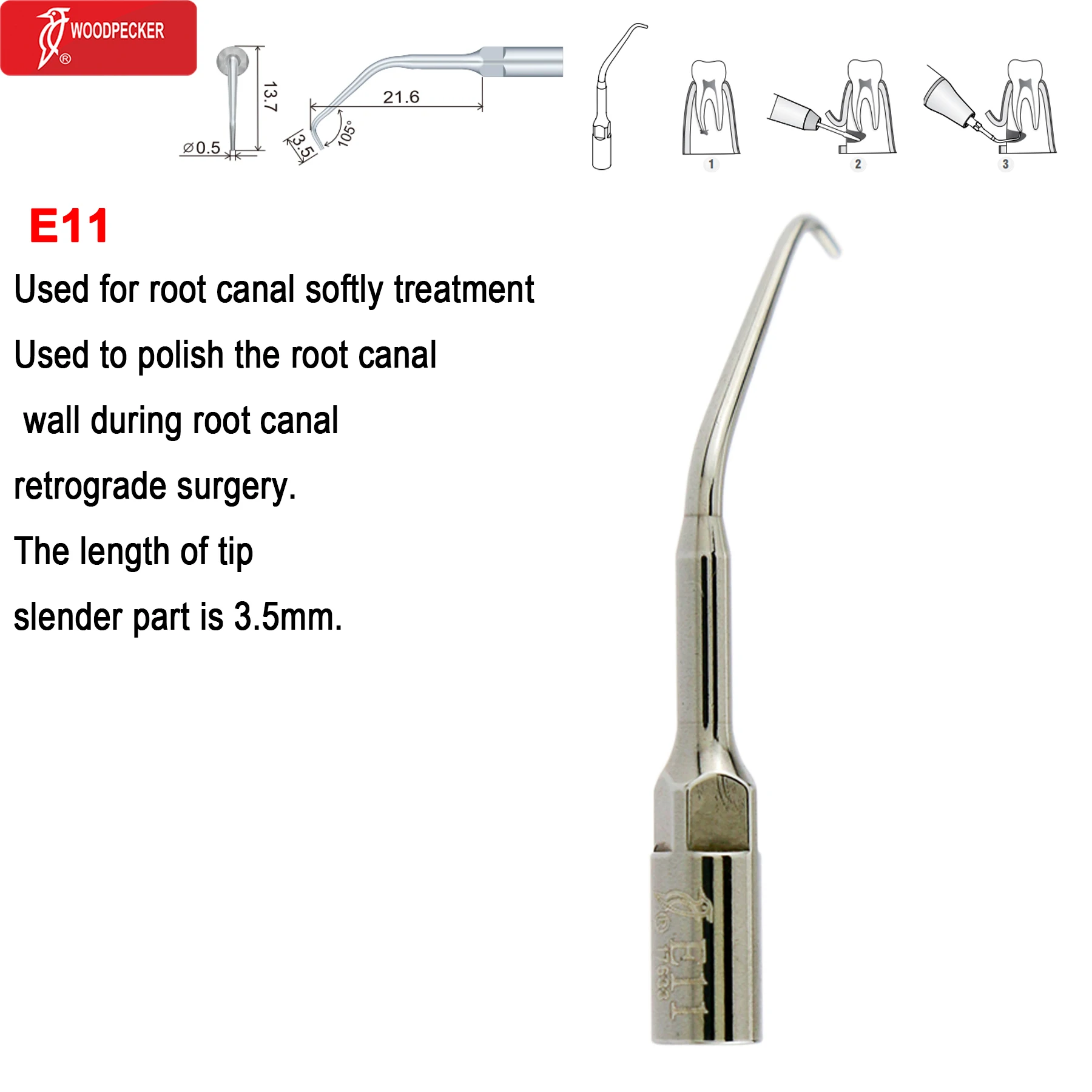

E11

•Used for root canal softly treatment
•Used to polish the root canal wall during root canal retrograde surgery.
•The length of tip slender part is 3.5mm.

E11D

•Diamond coated 40 μm
•Used for efficient apical trimming during root canal retrograde surgery
•The length of the diamond-coated part on tip is 2.2mm

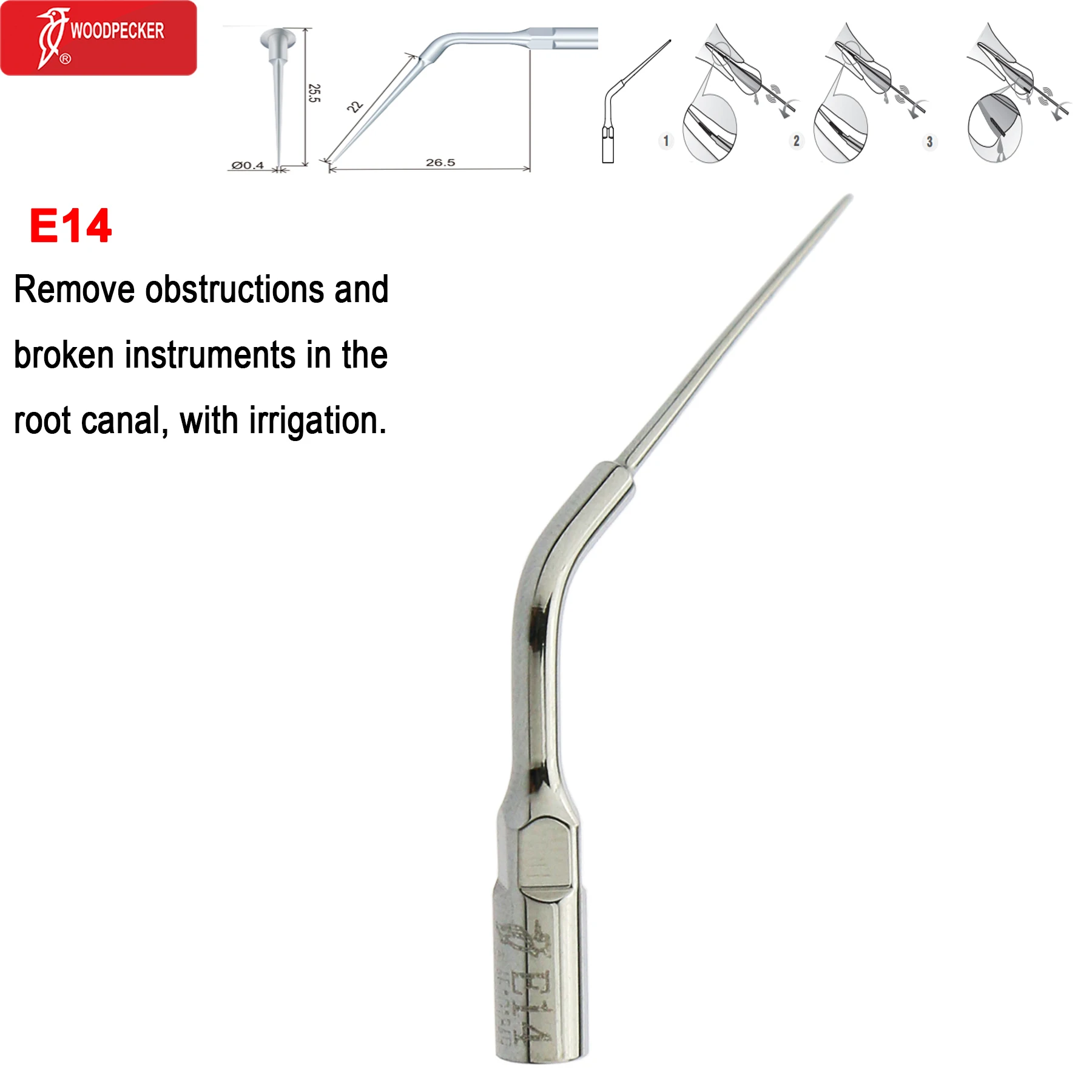

E14

•Remove obstructions and broken instruments in the root canal, with irrigation.

ED1

•(120° angle holder) for shank dia:0.57mm×0.57mm K files,usually use for anterior root canal cleaning, sterilizing and taking out the stem in root canal.

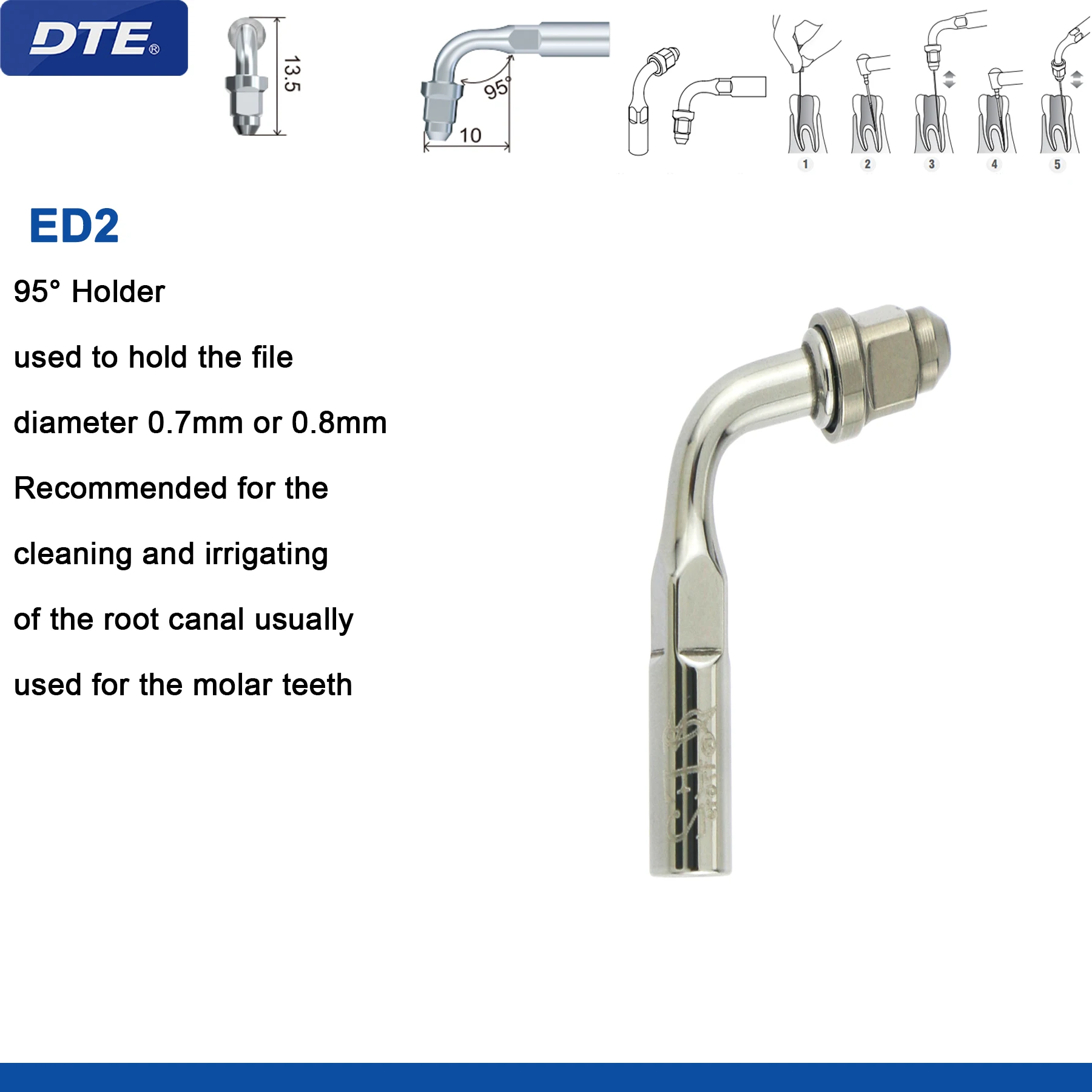

ED2

•(95° angle holder) for shank dia:0.57mm×0.57mm K files, usually use for anterior root canal cleaning, sterilizing and taking out the stem in root canal.

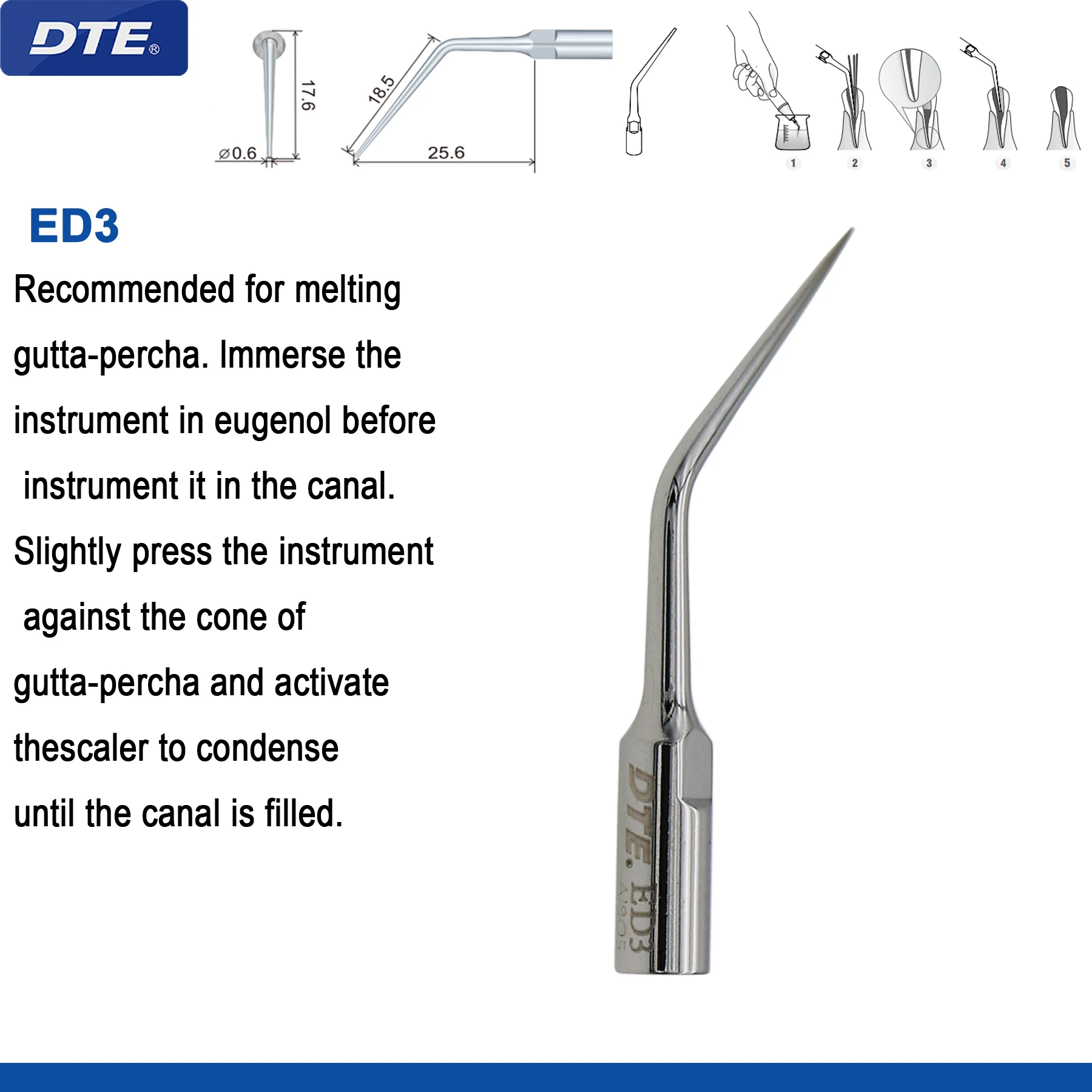

ED3

•After root canal cleaning, using the mechanism and heat engery of ultrasonic vibration to intenerate the filling lateral condenstation, to make sure the top of the scaler tip touch the lateral condensation

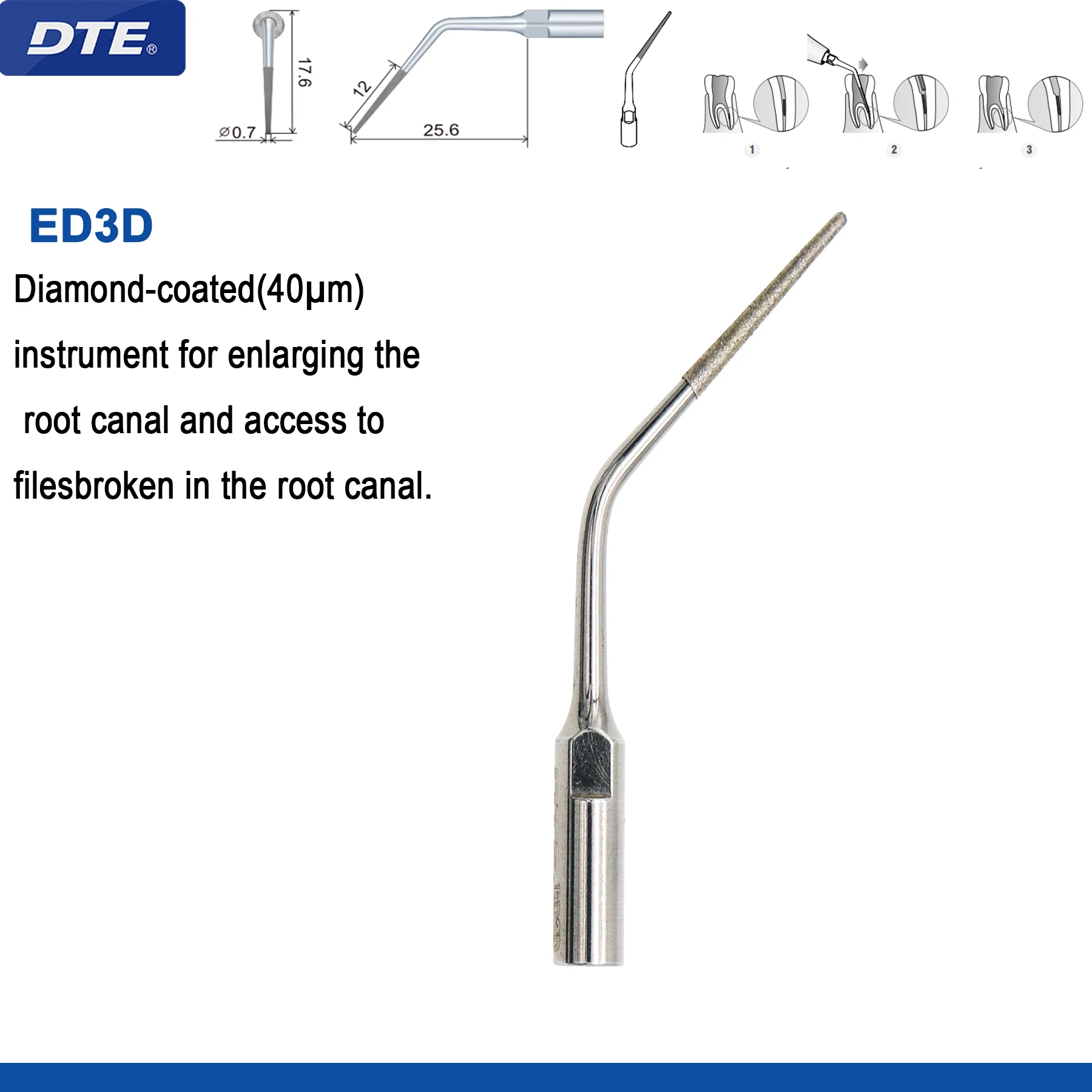

ED3D

•Diamond coated
•Remove the calcification and bad filling material of pulp cavity, overhang pulp chamber.

ED3T

•Recommended for melting gutta-percha.
•Immerse the instrument in eugenol before inserting it in the canal.
•Silghtly press the instrument against the cone of gutta-percha and activate the scaler to condense until canal is filled.

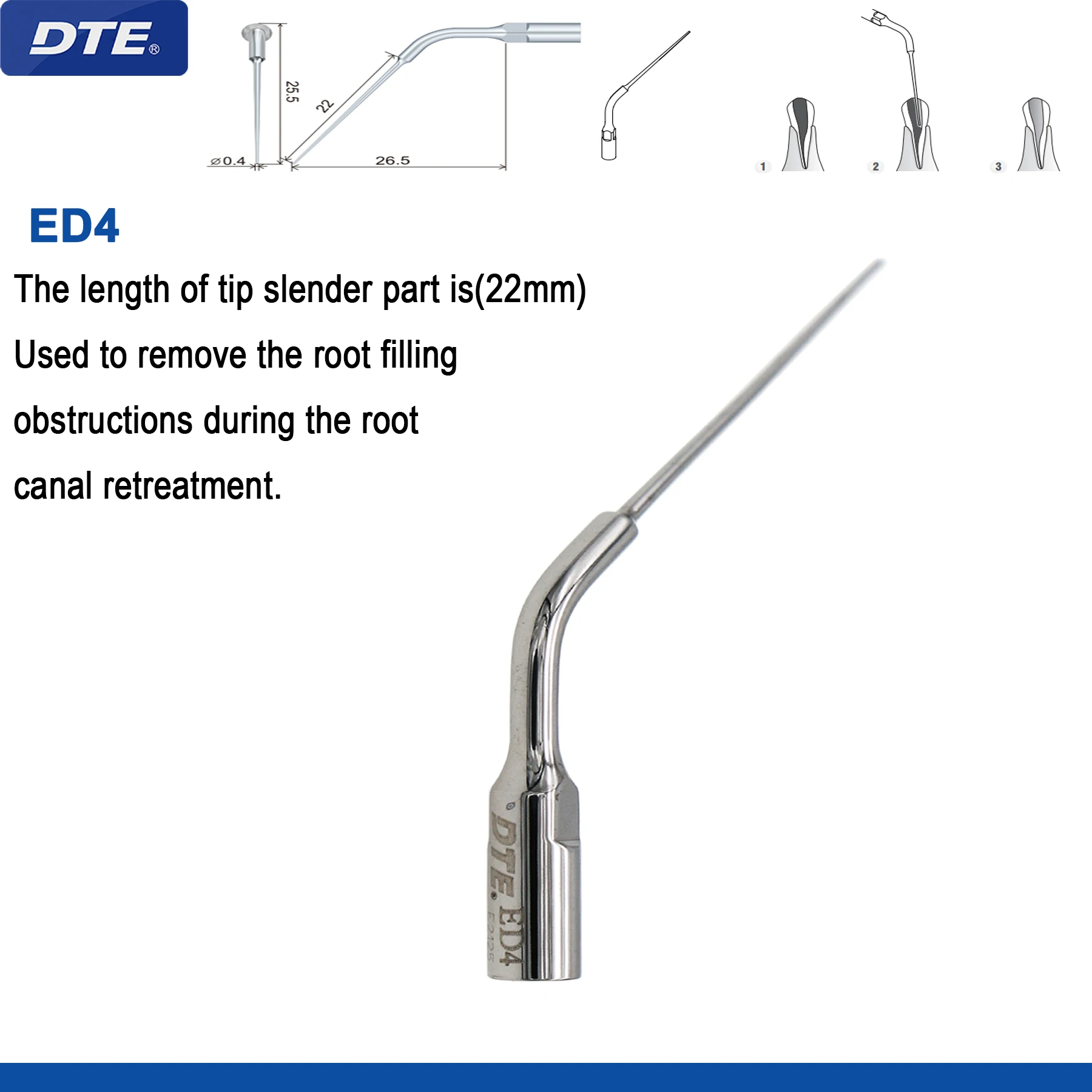

ED4

•Removal of filling and foreign material.(Tip end length:26mm)

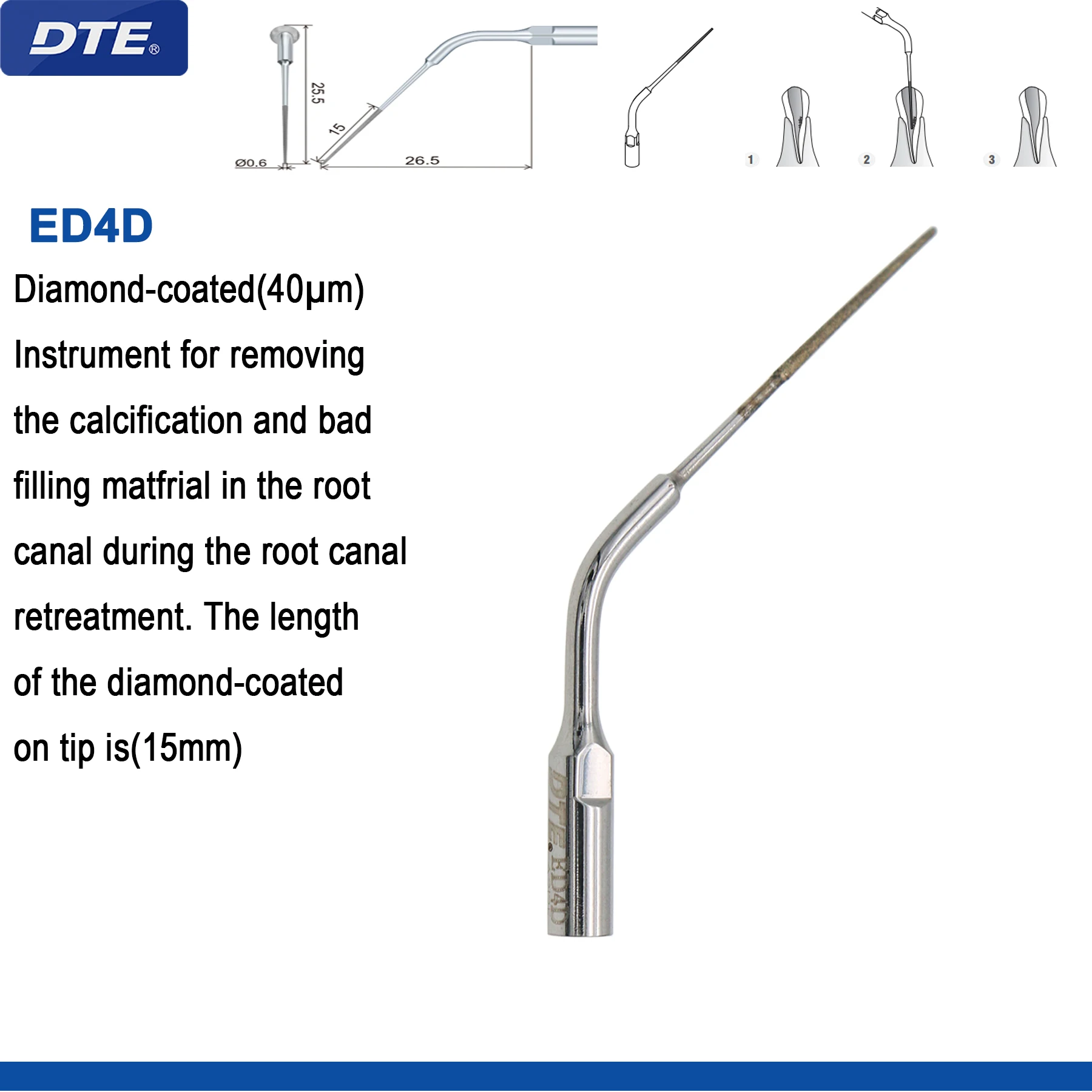

ED4D

•Diamond coated
•Enlargement of root canal wall.(Tip end with diamond of 23mm length)

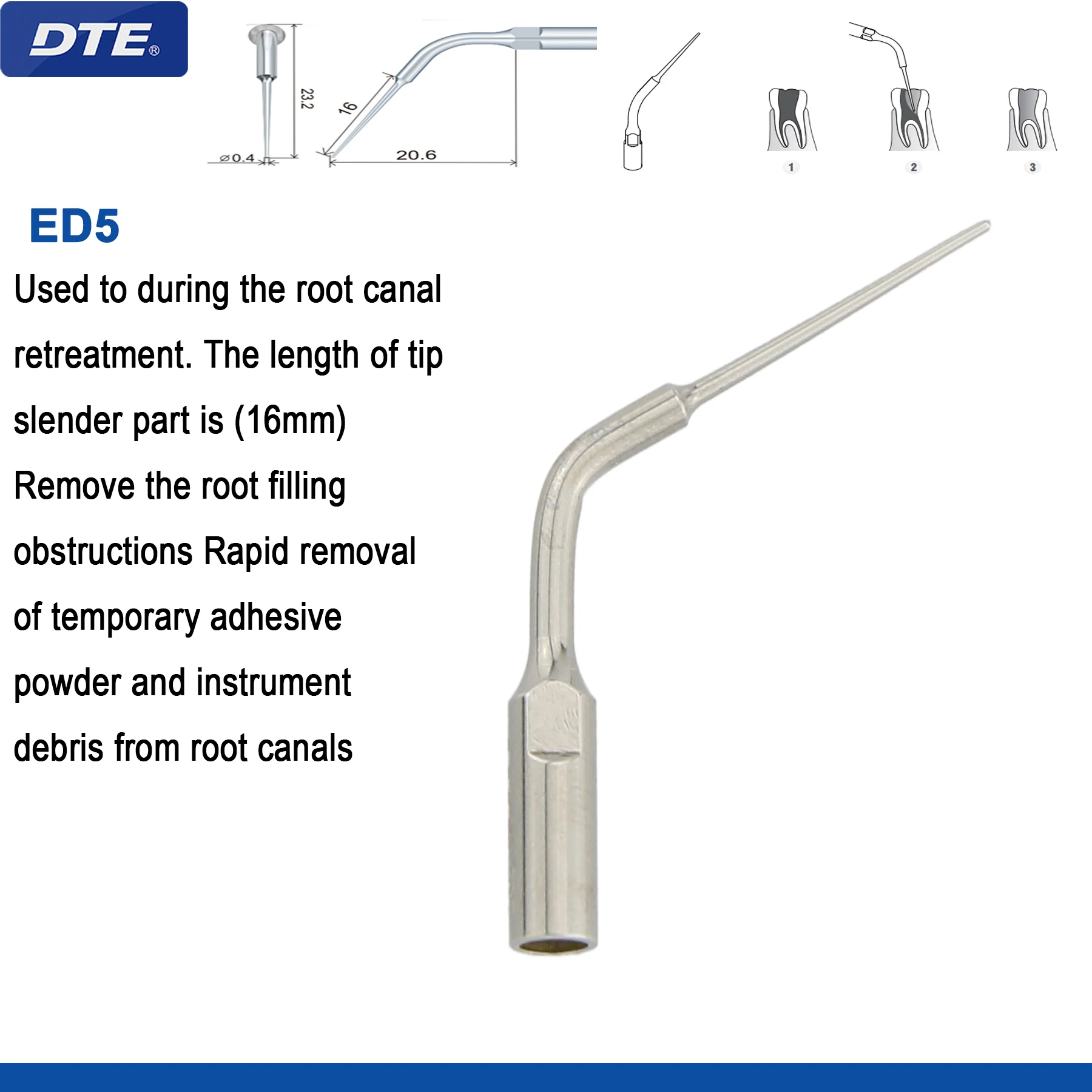

ED5

•Used to during the root canal retreatment.
•The length of tip slender part is (16mm)
•Remove the root filling obstructions Rapid removal of temporary adhesive powder and instrument debris from root canals

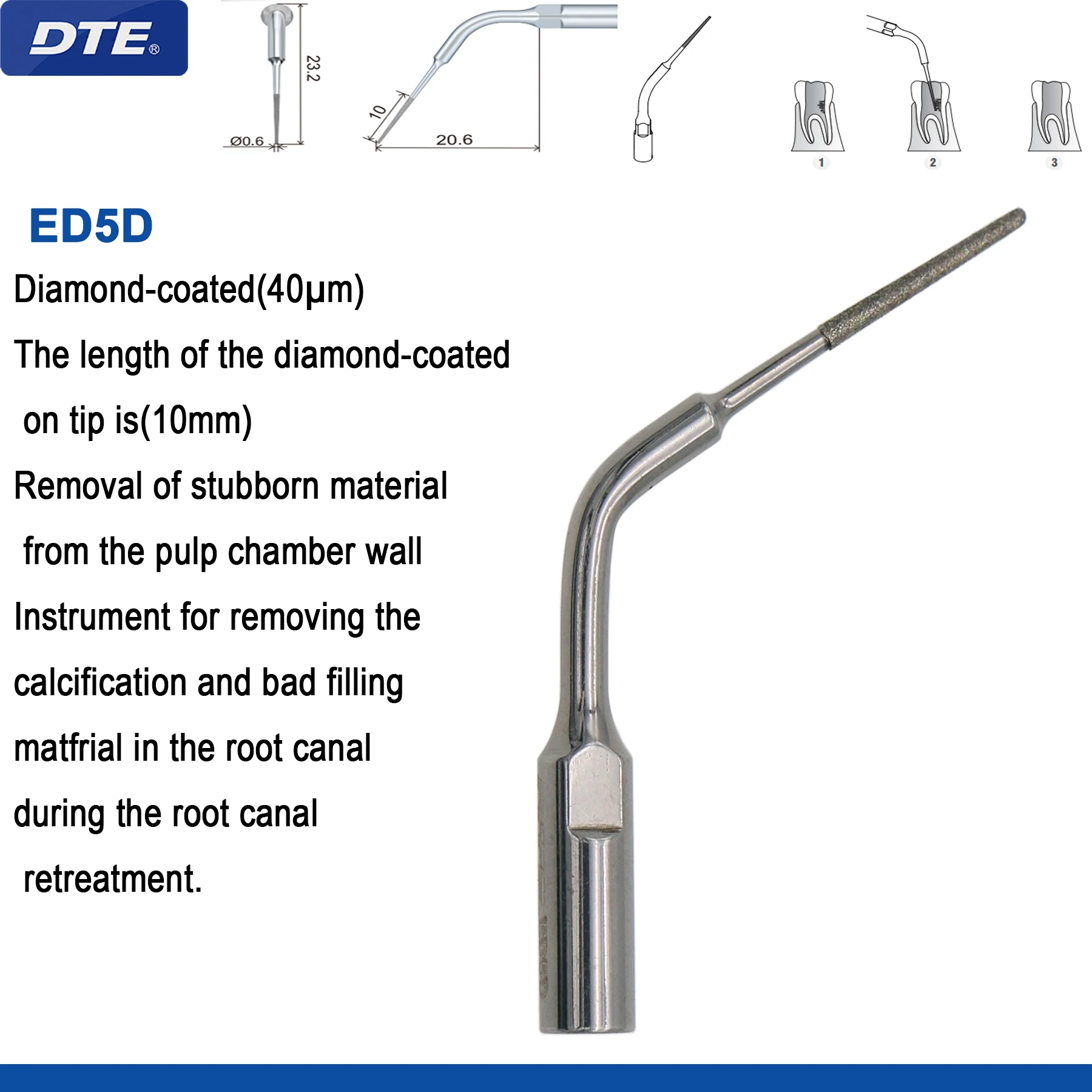

ED5D

•Diamond coated
•Enlargement of root canal wall.(Tip end with diamond of 13mm length)

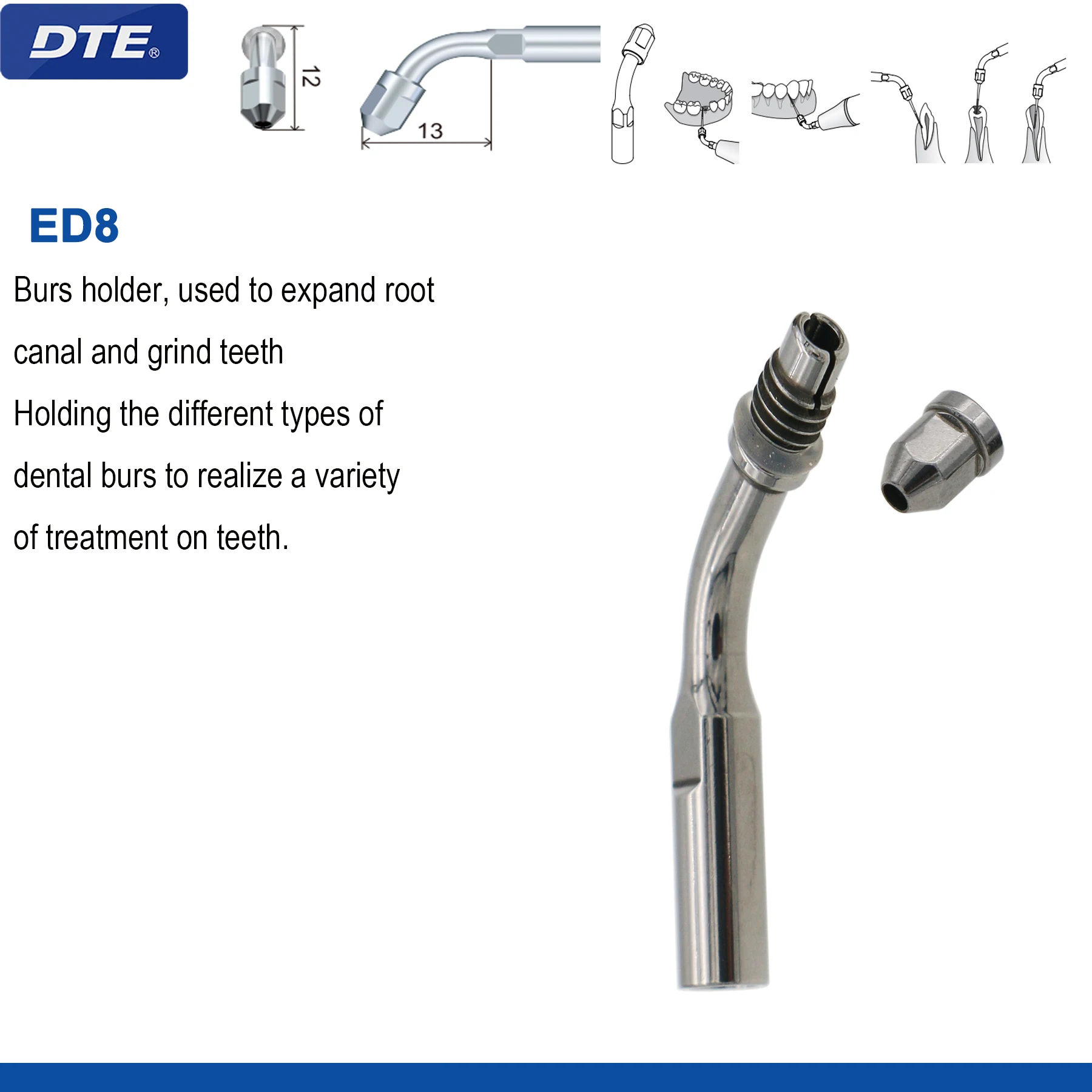

ED8

•Burs holder, used to expand root canal and grind teeth
•Holding the different types of dental burs to realize a variety of treatment on teeth.

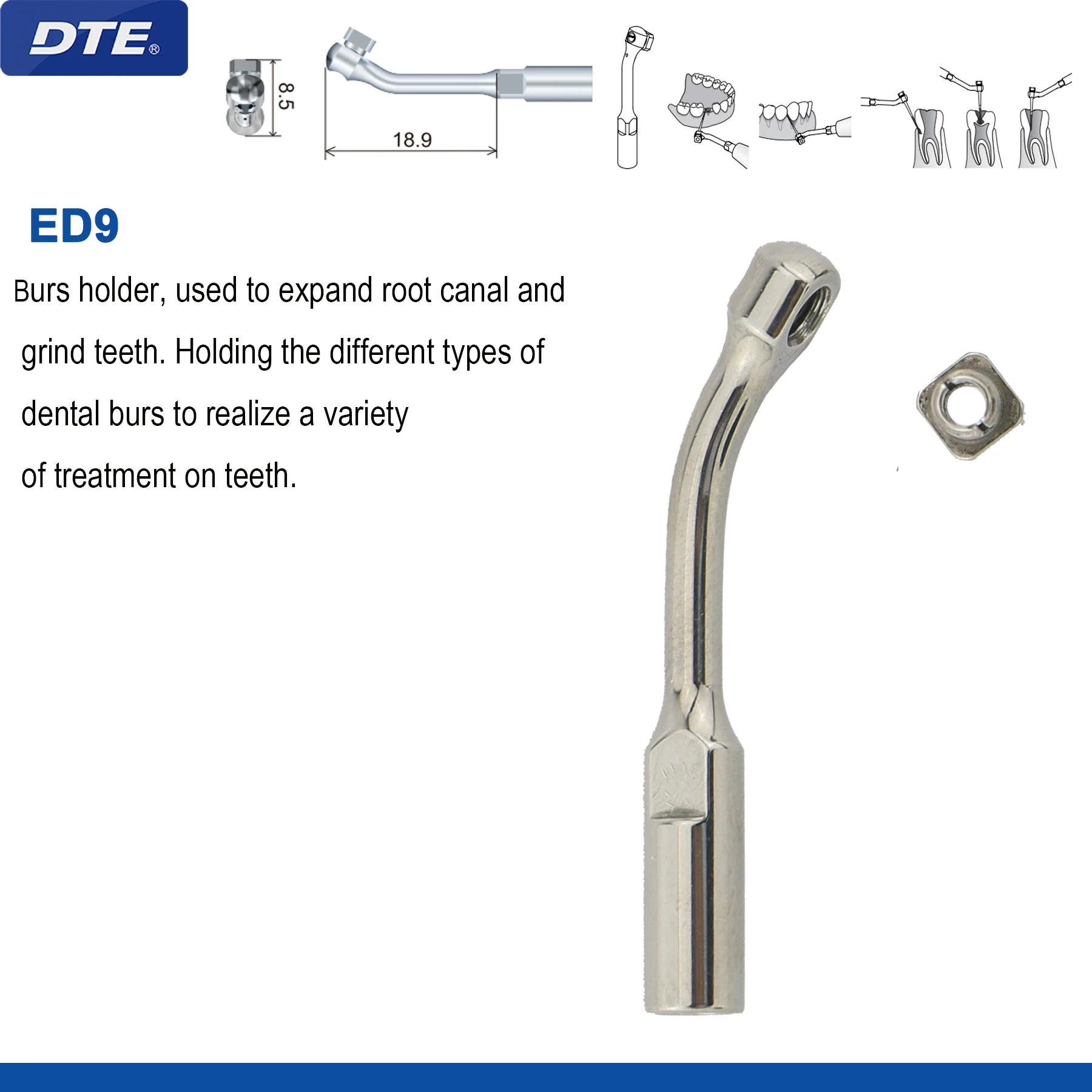

ED9

•Burs holder, used to expand root canal and grind teeth
•Holding the different types of dental burs to realize a variety of treatment on teeth.

ED10

•Used for root canal softly treatment
•Used to polish the root canal wall during root canal retrograde surgery.
•The length of tip slender part is 4.5mm.

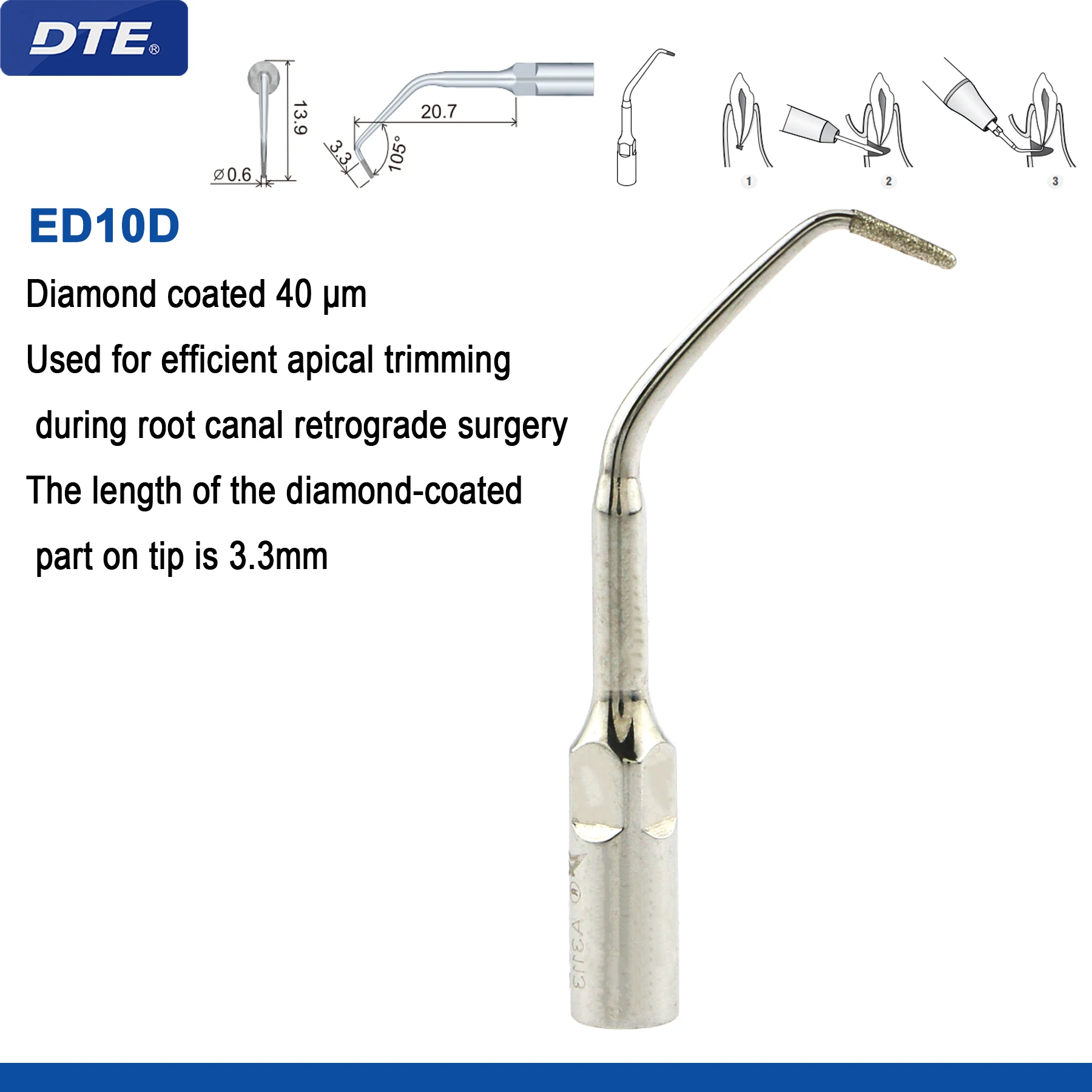

ED10D

•Diamond coated 40 μm
•Used for efficient apical trimming during root canal retrograde surgery
•The length of the diamond-coated part on tip is 3.3mm

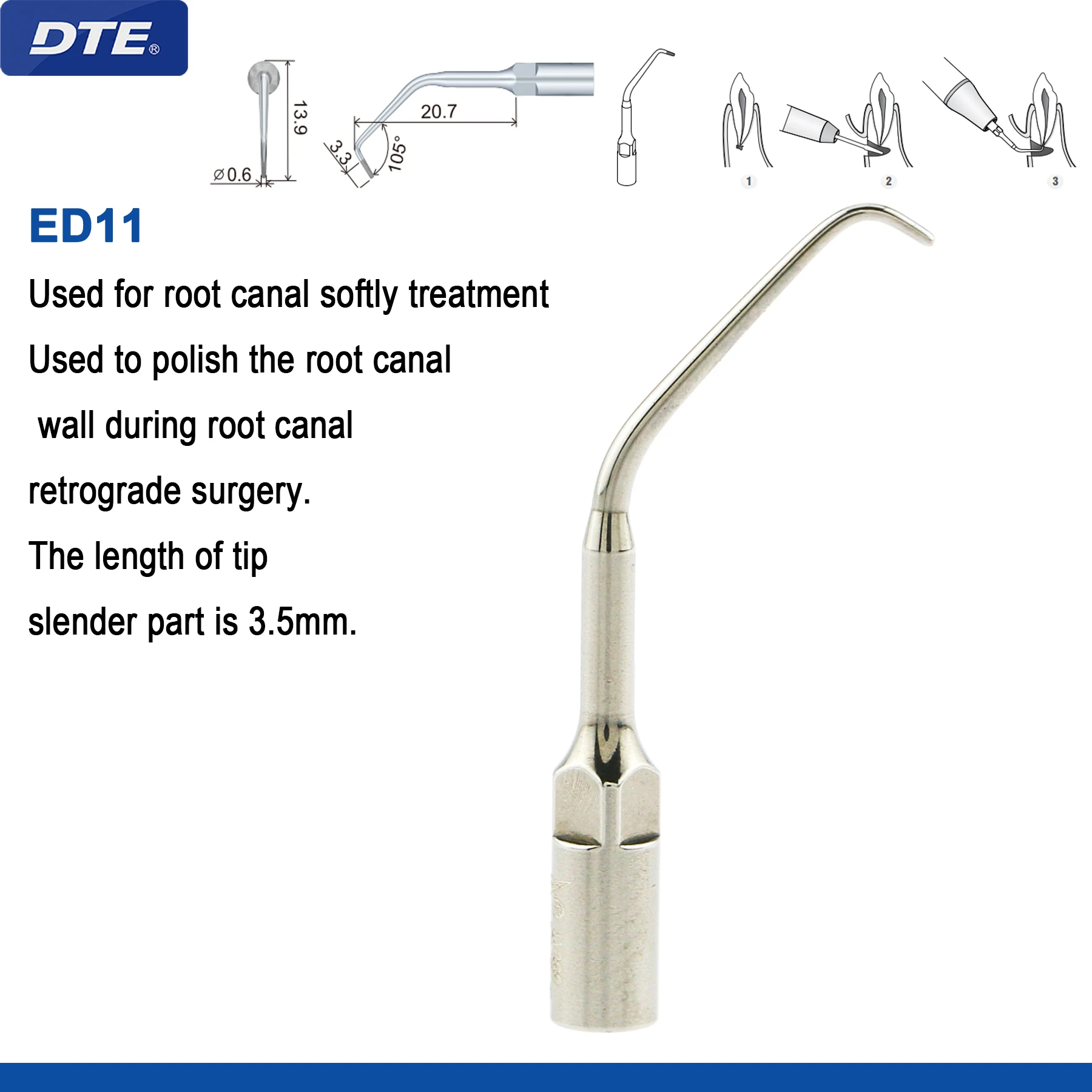

ED11

•Used for root canal softly treatment
•Used to polish the root canal wall during root canal retrograde surgery.
•The length of tip slender part is 3.5mm.

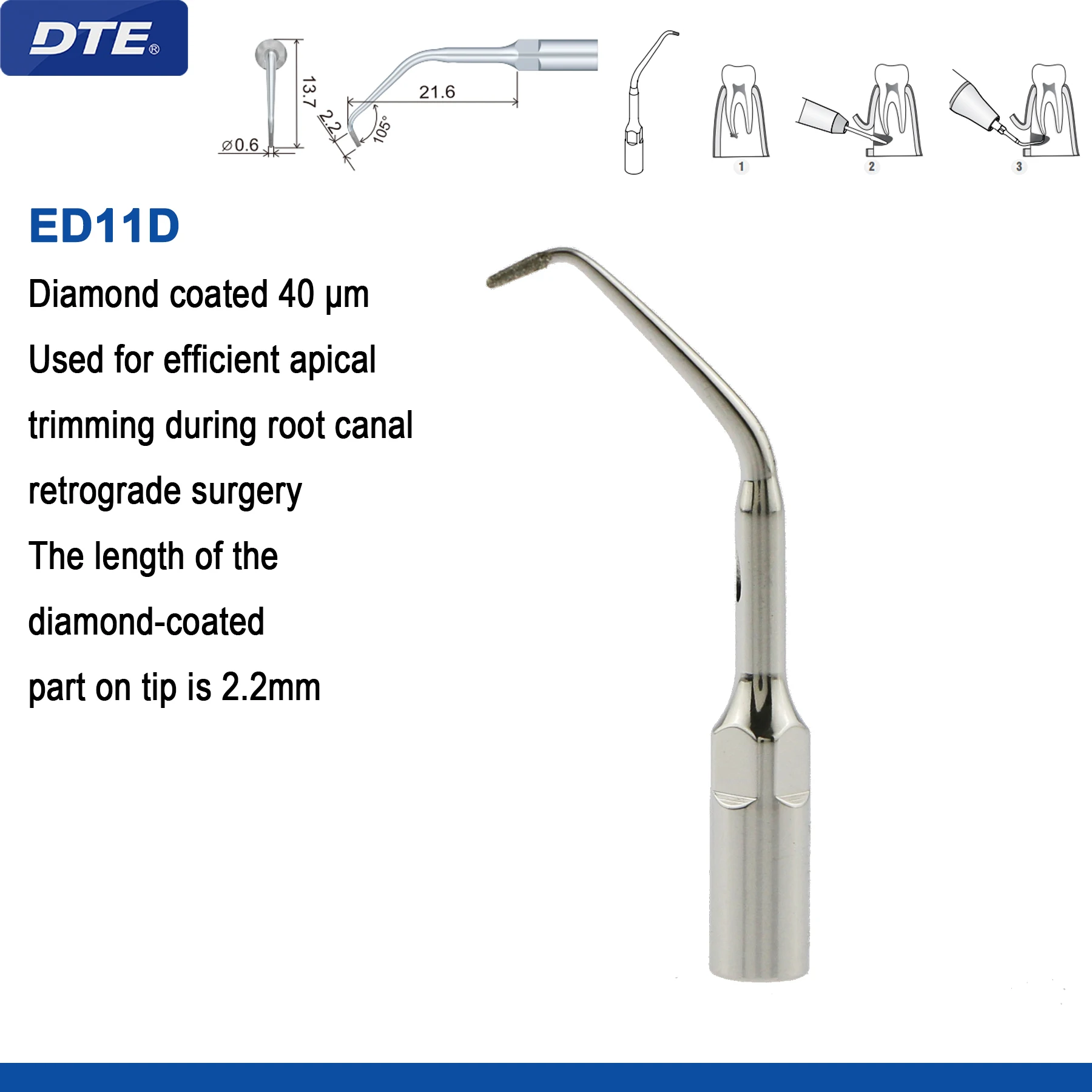

ED11D

•Diamond coated 40 μm
•Used for efficient apical trimming during root canal retrograde surgery
•The length of the diamond-coated part on tip is 2.2mm

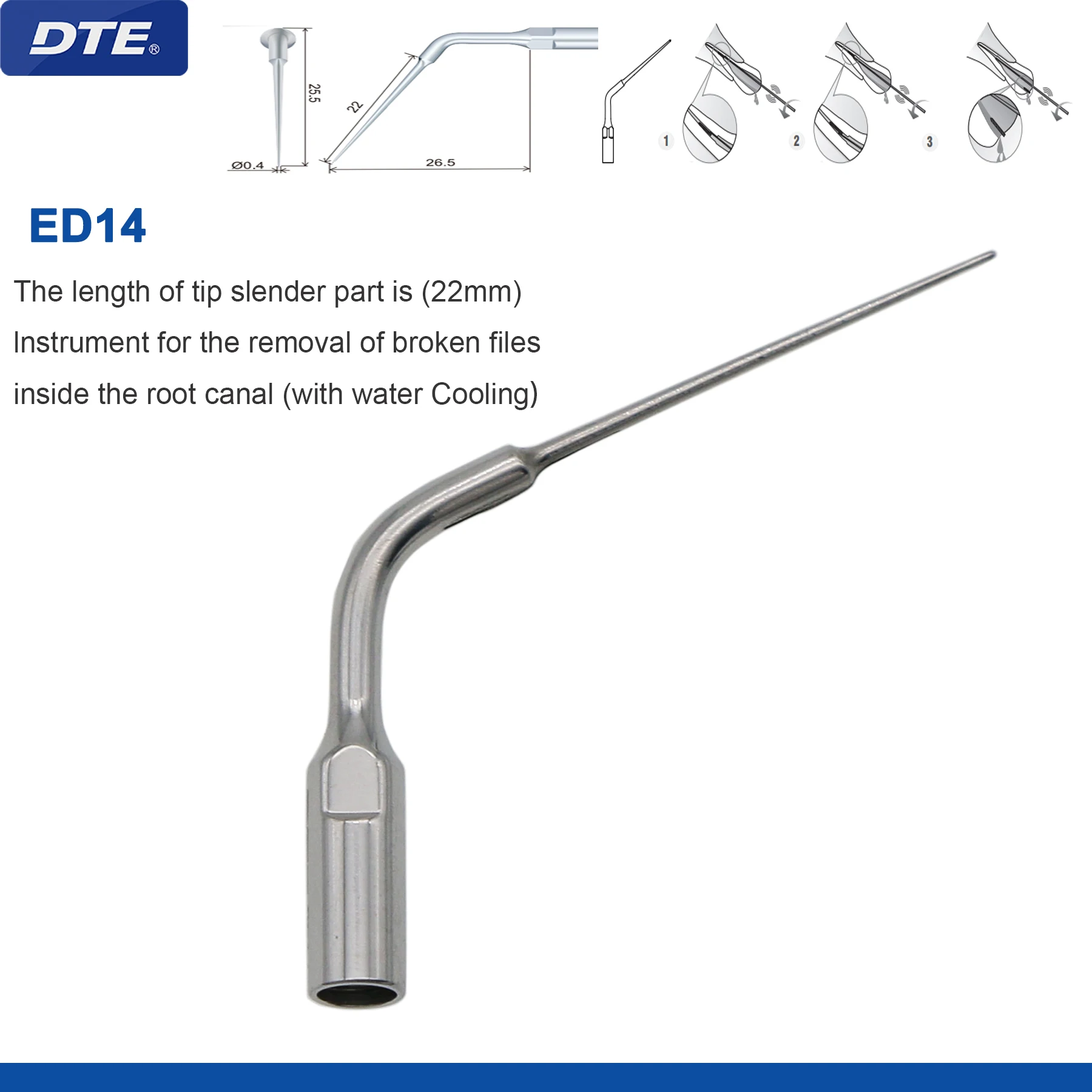

ED14

•Remove obstructions and broken instruments in the root canal, with irrigation;
•The length of the top slender part: 22mm
