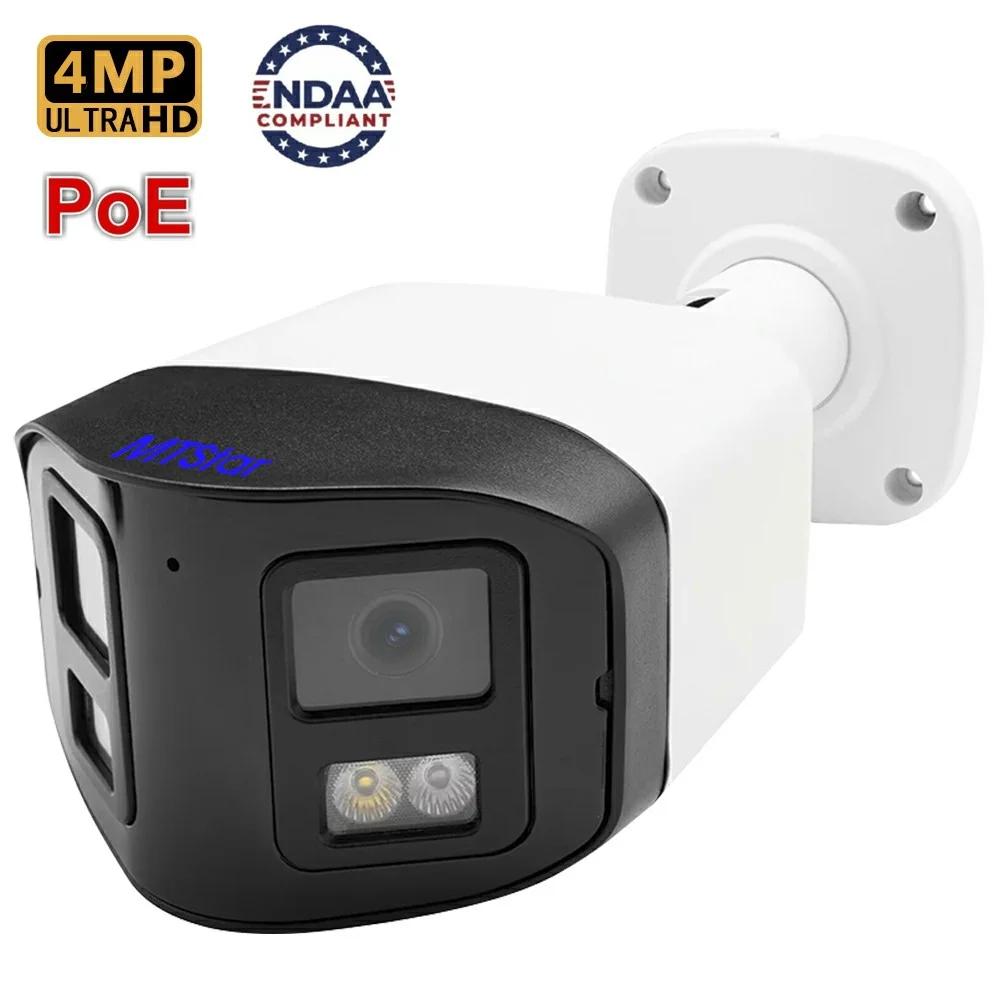

Model: ASIH20-BW28-40
4MPdual-lens dual-light Two-way Audio Human and Vehicle Detection IP Camera
Features:
Ø 1/2.9″ CMOS sensor
Ø 4MP wide-view resolution 3840 x 1080P (32:9)
Ø 180 °wide-angle
Ø Low illumination 0.01Lux
Ø Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter,
Ø D-WDR, Mirror , Defogging
Ø Multiply Style OSD Overlay, Motion Detection, Privacy Mask
Ø RTSP and Onvif 17.06 compatible with many third-party NVR
Ø H.264/H.265 dual-stream media server
Ø Easy-to-use P2P Cloud service
Ø Support user authentication, video data encryption
Ø Support Alarm Snapshot to Email and FTP
Ø Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
Ø RJ45 100mbps network port, IEEE802.3af PoE
Ø Lightning protection 4000V
Ø Strong water-proof housing, IP66
Ø 2 pcsWarm light + 3 pcsIR led distance 20-30 meters
Ø F1.6 4mm fixed lens
Ø Built-in Mic and speaker two-way audio
Technical Specifications:
|
Model |
ASIH20-BW28-40 |
|
Camera |
|
|
Image Sensor |
1/2.9″ GC2063 CMOS x2 |
|
Effective Pixels |
4 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3DDNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265/H.265+ |
|
Video Resolution |
MainStream:20fps@3840x1080P Sub stream: 20fps@1280×360 |
|
Video Bitrates |
512Kbps – 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes Two-way audio |
|
Smart Detection |
HumanDetection |
|
Led |
|
|
Led |
2pcswarm-light Led + 3pcsIR Led |
|
Distance |
20-30M |
|
Lens |
|
|
Focal length |
F1.6 4 mm fixedlens |
|
FOV |
180° |
|
OtherFunction |
|
|
PoE，Reset, SD-Slot |
|
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps,POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
<10W |
|
Operating Temp. |
–30℃-(+60)℃, 10%-90%RH |
