Copper Pneumatic Fittings Air Fitting OD 4 6 8 10 12 mm Thread 1/8 3/8 1/2″ 1/4″BSP Quick Connector For hose Tube Connectors

Product Information：

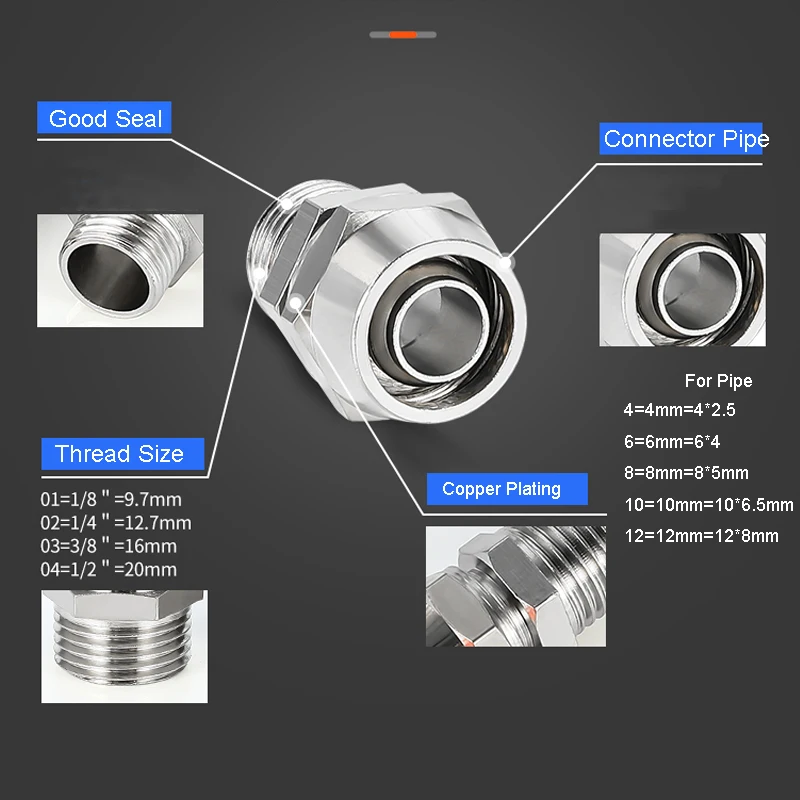

OD 4mm: For Pipe OD 4* ID2.5

OD 6mm: For Pipe OD 6*4

OD 8mm : For Pipe OD 8*5

OD 10mm : For Pipe OD 10*6.5

OD 12mm : For Pipe OD 12*8

Tips：

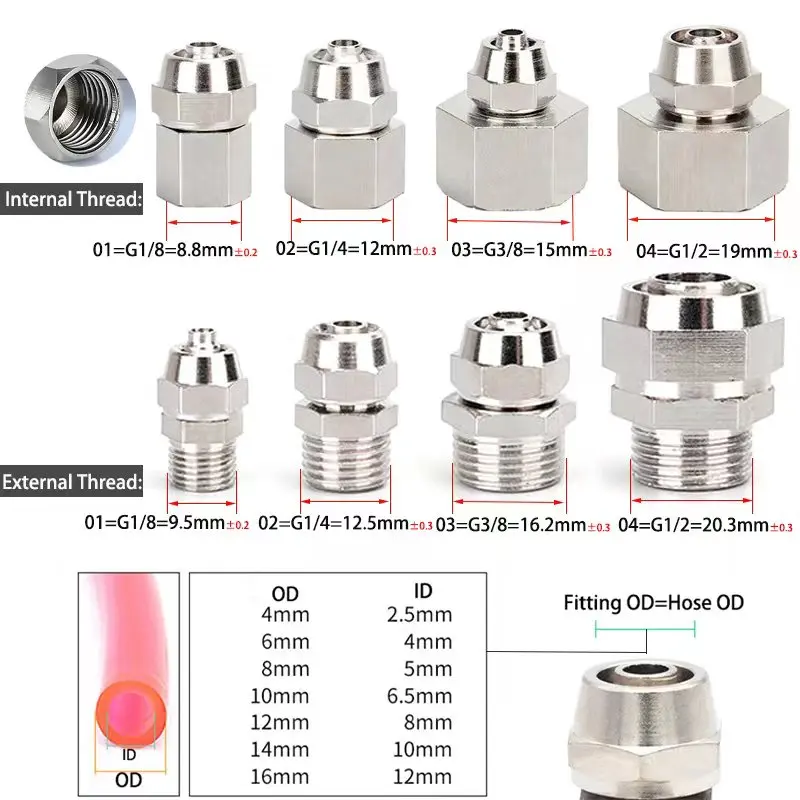

Male Thread Size: 1/8″, 1/4″, 3/8″, 1/2″BSP

01=1/8″ Threaded≈9.7mm

02=1/4″ Threaded≈12.7mm

03=3/8″ Threaded≈16mm

04=1/2″ Threaded≈20mm

Material: Nickel plated copper

Fluid : Clean compressed air, vacuum

Max working pressure: 1.32Mpa(12.5kgf/cm²)

Pressure range: 0~0.9Mpa (0~9.2kgf/cm²)

Environment and fluid temperature: 0~60℃

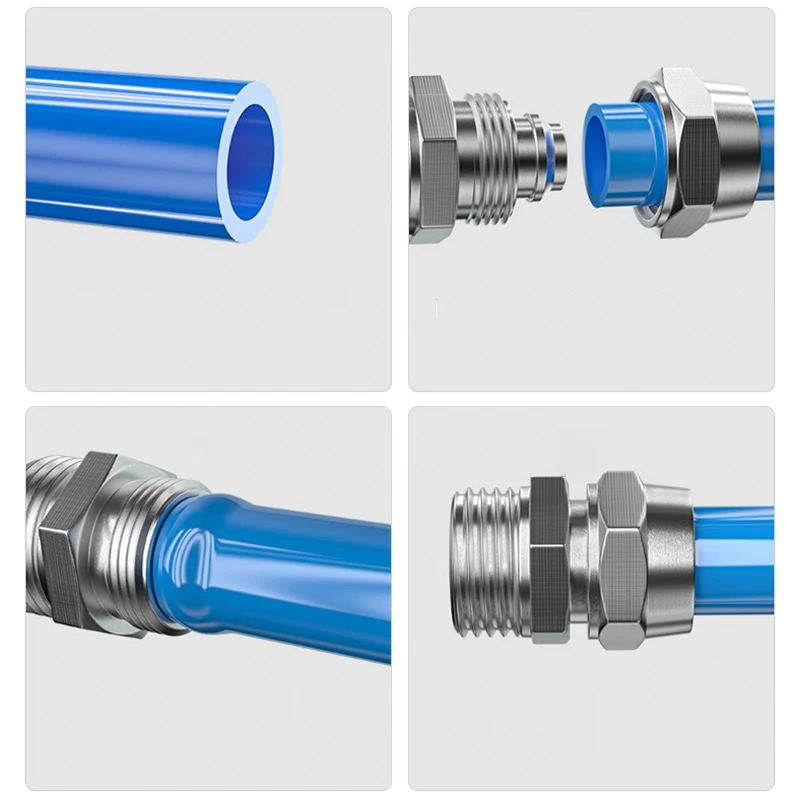

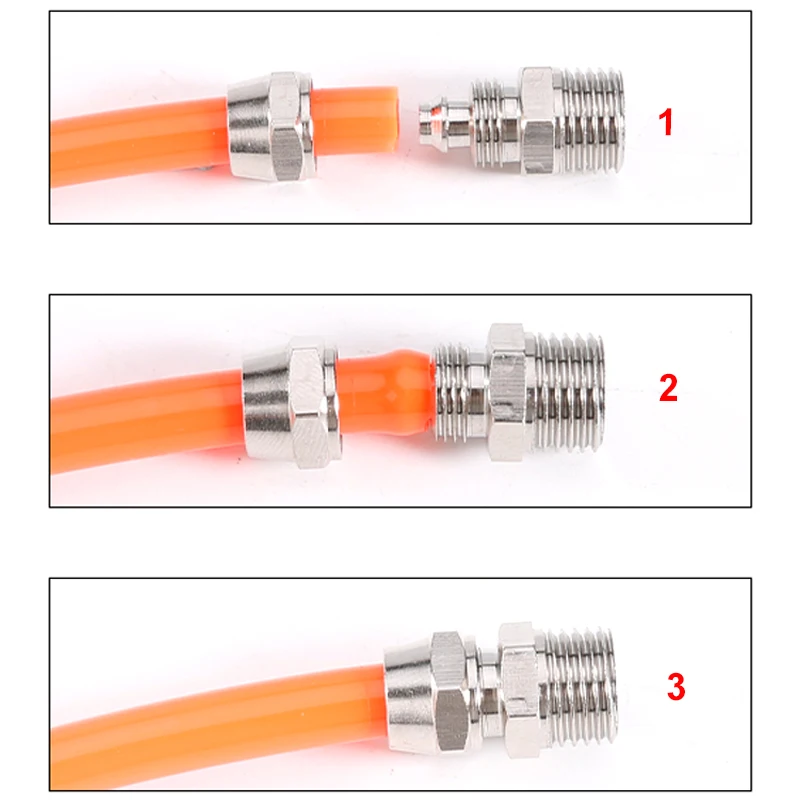

Use hose: PU Tube, Nylon tube

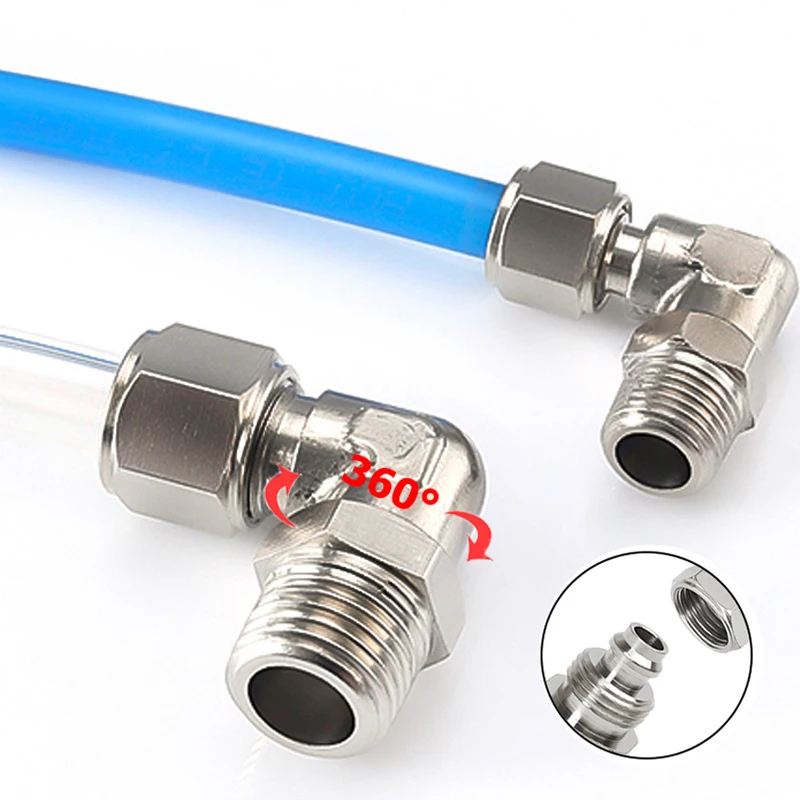

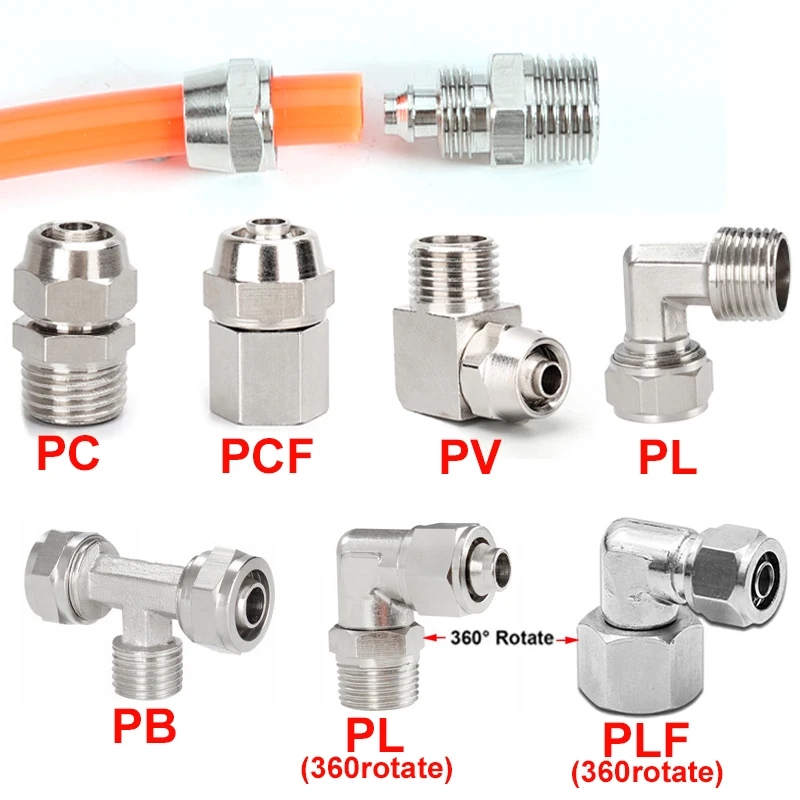

Type: PC/PCF/PL/SL/PB

Note:
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package Content: 1pc Quick Fitting
