Adjustable DC power supply 30V, 10A, 60V, 5A Lab Bench Power Source Stabilized Power Supply Voltage Regulator Switch 220V

55.56 277.56

APS3010H 30V10AAPS605H 60V5ADPS3010U 30V10ADPS605U 60V5AGPS3010D 30V10ANPS3010W-3 30V10ANPS3010W-4 30V10ANPS3010W3 30V10ANPS3010W4 30V10ANPS306W-3 30V6ANPS306W3 30V6AWPS3010B 30V10AWPS3010H 30V10A
brazilCHINAPolandRussian FederationspainUnited States
Clear
Description

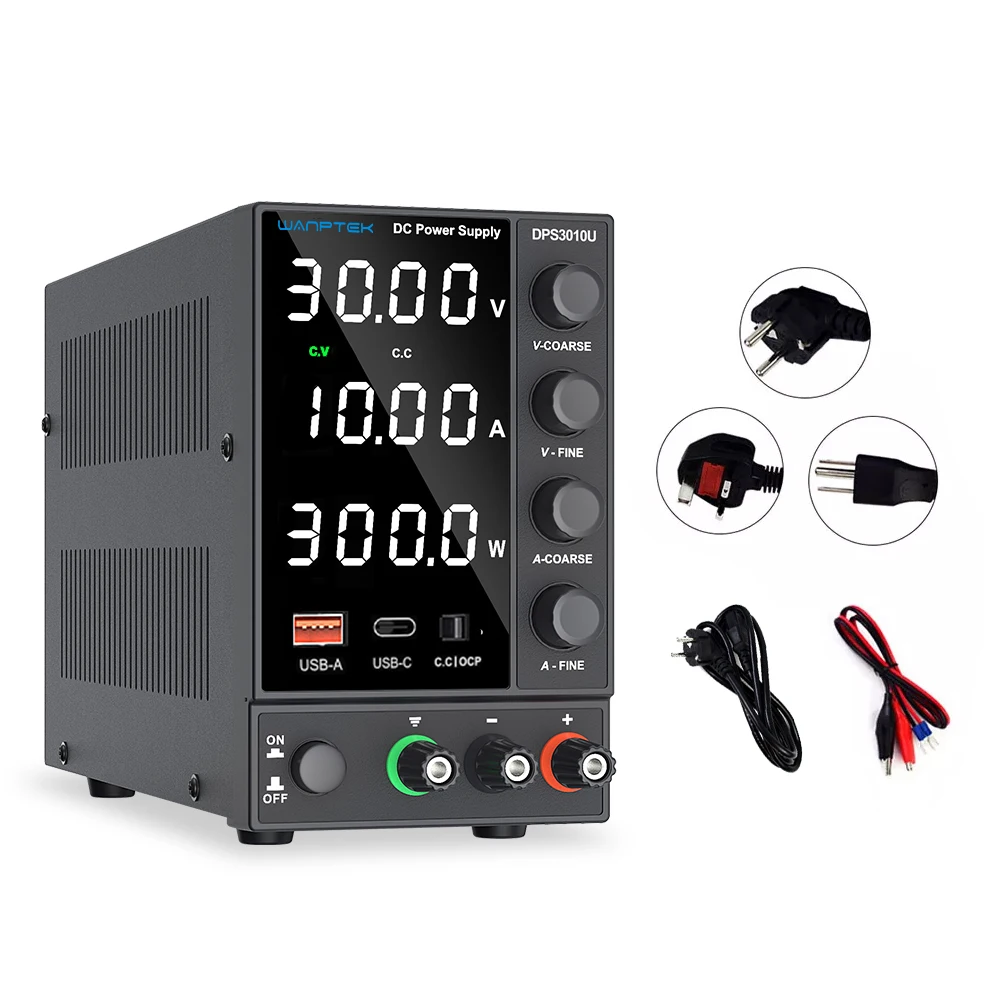

This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Encoder adjustment (With memory storage function) (Optional) DC power supply
FCC & CE certified product
【STORAGE AND RECALL MEMORY FUNCTION】: Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.
Memory Function
1) Rotate the Knob to set the value you want to save.
2) Long press the “M1” button until the indicator is on, which means the value saved in the “M1” button successfully.
3) Press the “M1” button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3 button works essentially the same way).

Output Power

150W/300W/320W/360W

Output voltage

0~30V/60V/120V/160V

Output current

0~2A/3A/5A/10A

working environment



input voltage: AC 230V/115V±10%;50Hz/60Hz

Working temperature:0℃~40℃;relative humidity:<80%RH

Storage temperature:-10℃~70℃;relative humidity:<70%RH

Constant voltage CV



Voltage stability:0.1%±3mV

Load stability: 0.2%±3mV

Ripple voltage:≤0.5% Vp-p

0 to rated voltage continuously adjustable

constant current CC



Current stability:0.1%±3mA

Load stability: 0.2%±3mA

Ripple current:≤0.5% Vp-p

Recovery time:≤500μS

Temperature coefficient:≤100ppm/℃

0 to rated current continuously adjustable

display



LED digit display

Display accuracy:0.5%±digits

Display resolution: voltage  0.1V, current  0.01A,voltage  0.01V, current  0.001A,

1. Production line test.

2. Mobile phone maintenance, computer maintenance, electrical appliance maintenance, Car DVD, car audio.

3. Product aging, electroplating, such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching, factory, maintenance power supply. School laboratories scientific research and production line use

6. All other occasions requiring DC power supply.

1x DC power supply

1x power cord (EU,US,UK,AU)

1x Test line

1x Instructions

Additional information
Weight 10 kg
Dimensions 10 cm
Brand Name

wanptek

Origin

Mainland China

Output Frequency

50HZ 60HZ

Output Type

single

Output Current

0-10A

Model Number

WPS3010H APS3010H

Output Power

201 – 300W

is_customized

no

Certification

CE

Features1

Gold-plated metal power supply

Features2

Metal Anodizing Power Supply

Features3

laboratory power supply

Features4

WPS3010H

Features5

APS3010H

Features6

NPS3010W

Features7

DPS3010U

Features8

NPS306W
