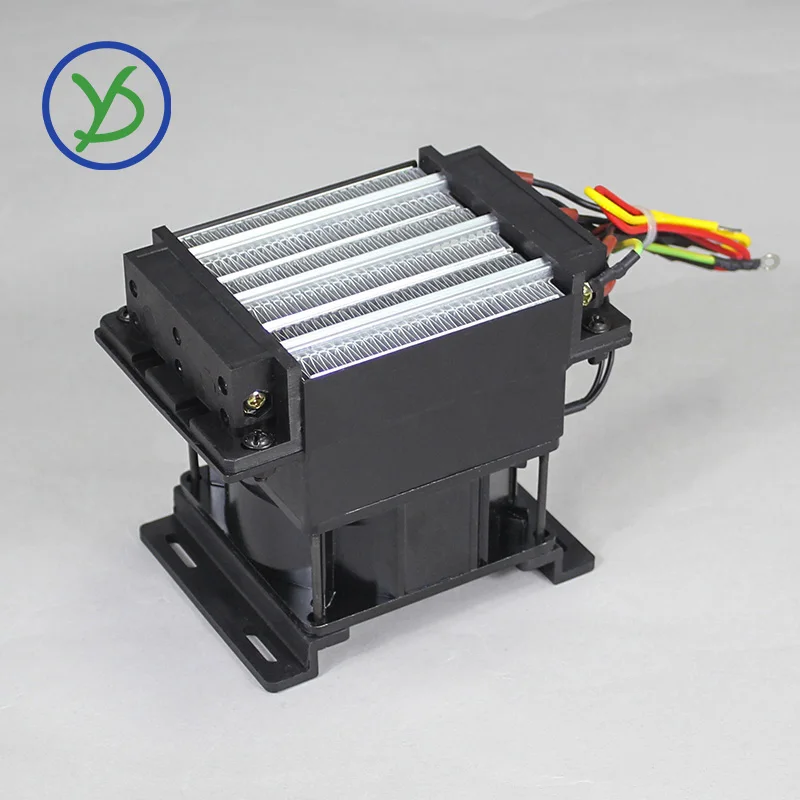

220V AC, 400W, 500W Thermostatic Electric Heater PTC Fan Heater Incubator Industrial Heating Element Surface Insulation

1. introduction:

• input voltage: 220V AC
• power: 400W~500W

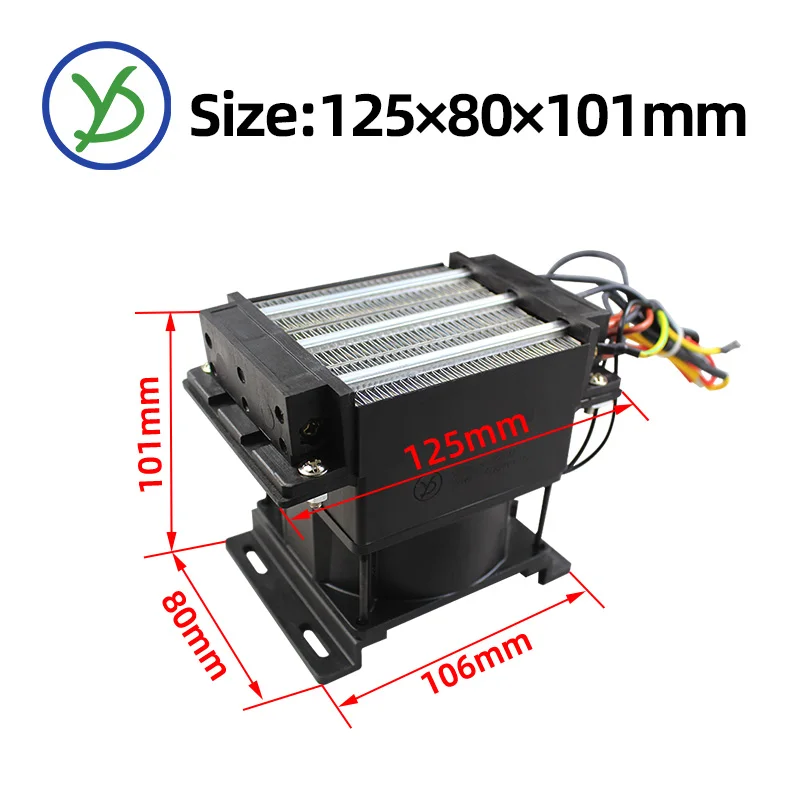

• size: 125 x 80 x101mm
• heat material: PTC Thermistor
• heat methods: heat radiation by air flow
• lead wire: high temperature line
• the length of lead wires : 200mm
• the length of bare wires : 10mm
• surface insulate: YES
• use: this PTC part is used for heating air or solid. the PTC material has a characteristic that it is constant temperature on the surface.
• notice: the power is reference value. the better the dissipation is, the bigger the power is.In different working environments, power will have a plus or minus 20% tolerance.
  If you have strict requirements on power accuracy, this product is not suitable for you.

2. advantage:

• Safety, surface insulation.
• Heat up quickly, long service life.
• self-control temperature
• small sound

3.application:

• equipment
• incubator
• General electric appliance
• Air curtain machine

PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.
