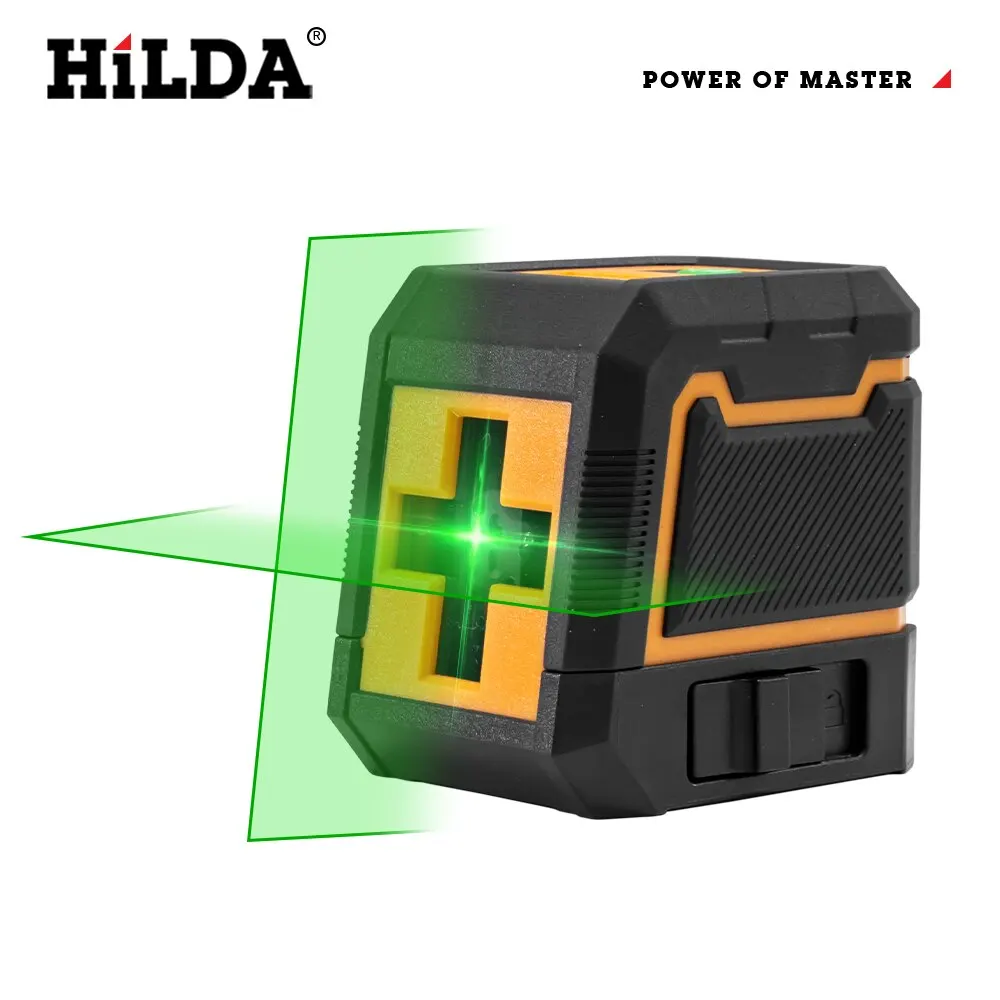

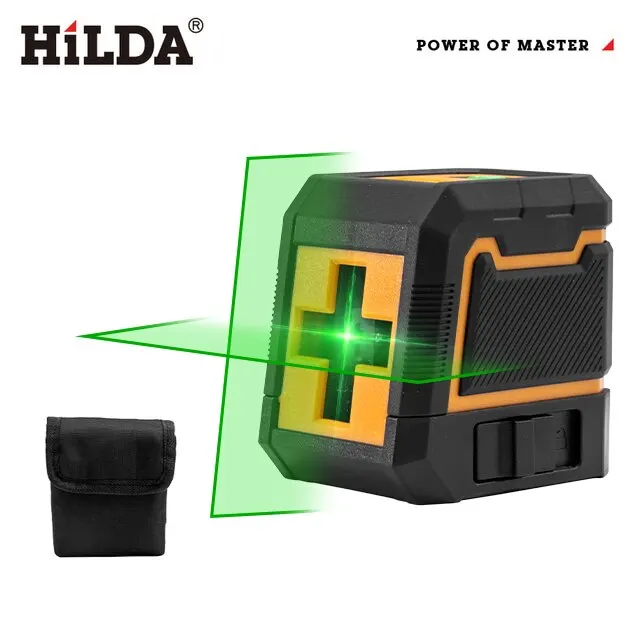

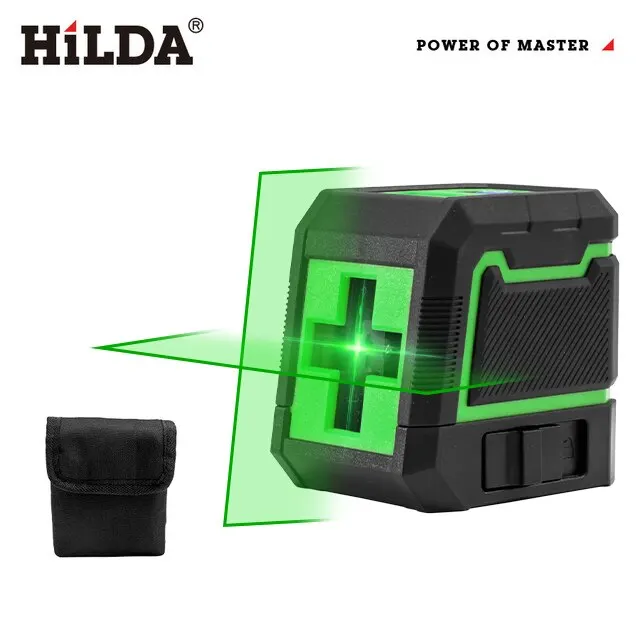

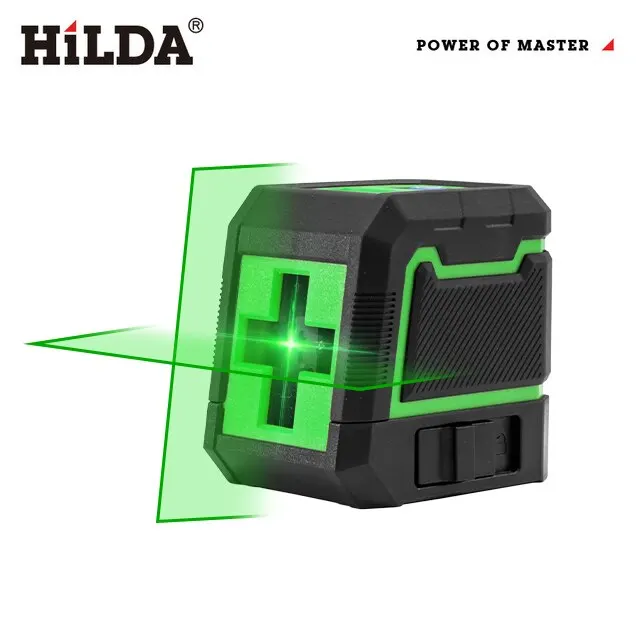

2 Lines Laser Level Self-Levelling Horizontal And Vertical Cross Super Powerful Green Laser Beam Line

With advanced laser level technology.

Laser Level Benefits:

Full-layout: horizontal levelling, vertical alignment, squaring, and plumb point transfer.

Use for simultaneous levelling and alignment, and squaring right angles.

Smart pendulum system: self levels and indicates out-of-level condition.

Technical specifications:

Laser class: Class 2

Laser wavelength: 535 nm

Working distance inside (line): 10-20 m

Power source: single charge, 5 hour service

Laser type: 2 lines green beam

Instructions for use:

This laser level does not contain a battery. Please pay attention to the position of the positive and negative electrodes when using the battery. Placing the wrong battery can cause the machine to be unusable. The black button on the side is a switch

Note:

WARNING Emits Laser Radiation – Avoid direct exposure of the laser beam to the eyes.

The Crossline Laser Level Kit is the perfect product for many projects around the house including putting up shelves, pictures, mirrors, curtain rails & kitchen cabinets as well as wallpaper and floor or wall tiles

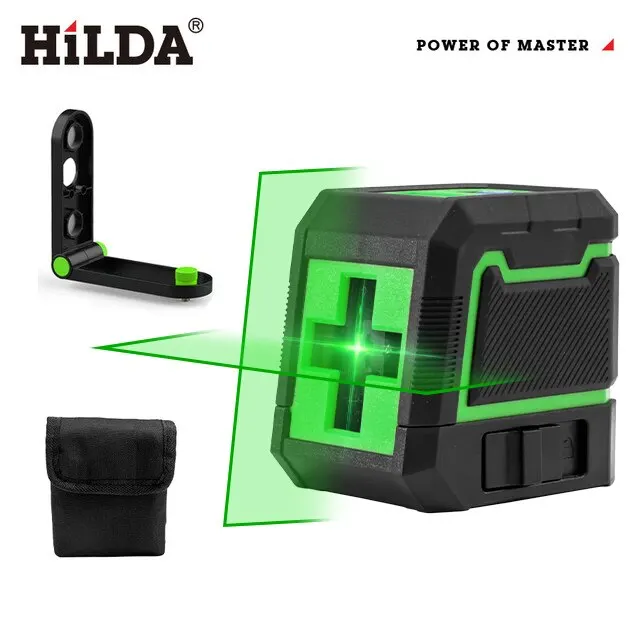

The self-levelling cross generates an accurate horizontal and vertical line, and when used in conjunction with Octopus bracket (not included), allows you to attach it directly to metal surfaces or using the 3 pin holes, it can be hooked on objects or simply hung on a nail.

The laser requires 2 AA Alkaline batteries (not included)

INSTRUCTIONS

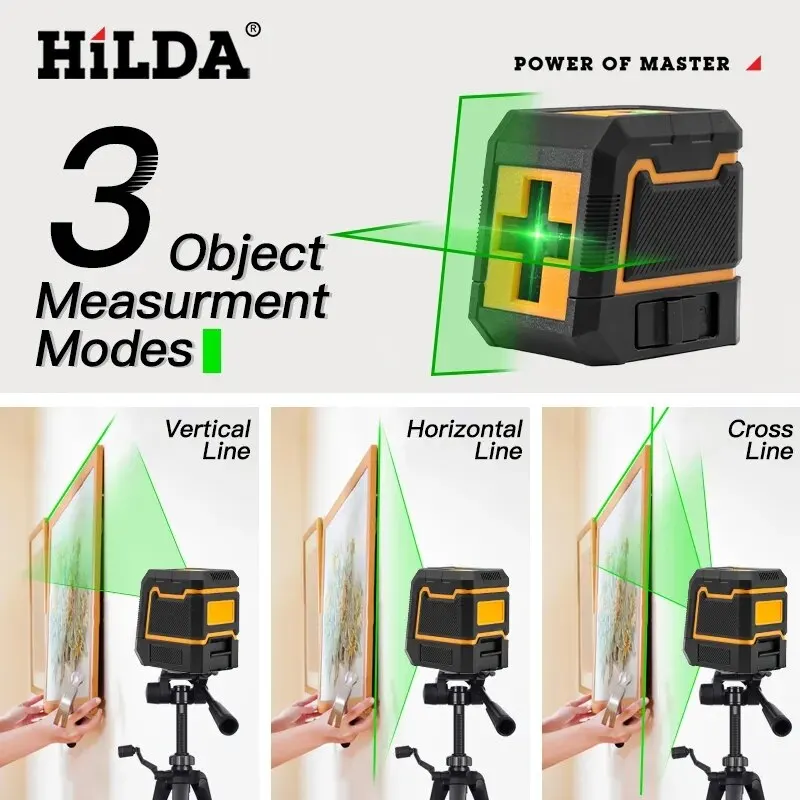

The laser can be used in 2 modes.

1. Pressing the button on the top of the laser will turn the laser on in angle lock mode, the laser will project in affixed position allowing for a cross to be generated and then tilted allowing for marks to be made at an angle. While the laser is in angle lock mode, the laser will flash every 5 seconds to remind you that it is in angle lock mode and is not self-levelling

To turn off the laser while in angle lock mode, press and hold the button on the top for 5 seconds.

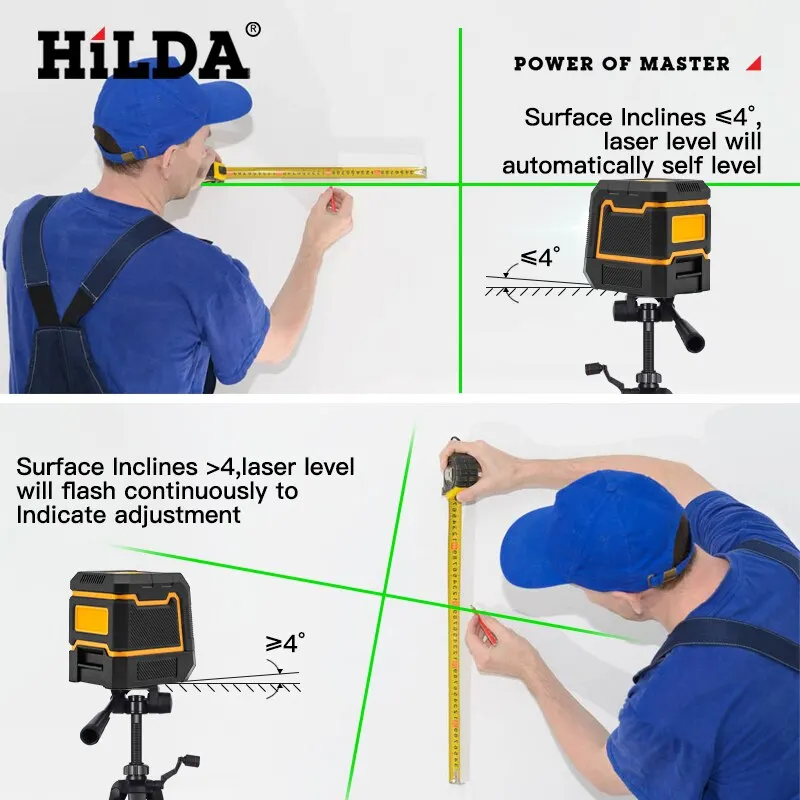

2. Sliding the side power button to on engages

self-levelling mode, the laser will now level to a straight horizontal and vertical line, if the laser is placed on a surface that has more than a 3° slant, the laser will

rapidly flash. To correct it, move the laser to a flat surface, or adjust the surface accordingly.

Slide the side power button back to turn the laser off.

WARNING – Do not look directly into the laser.

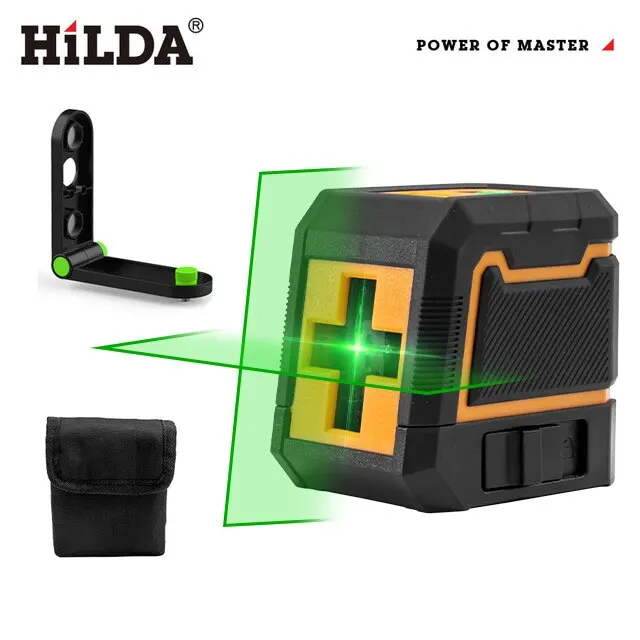

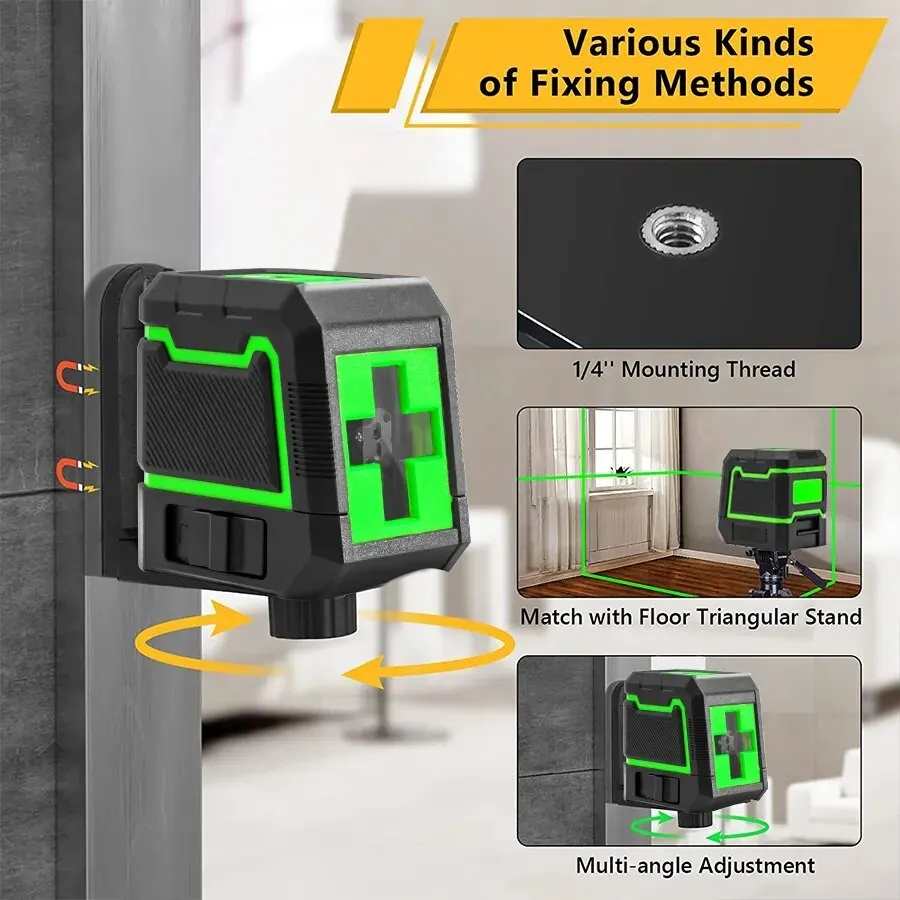

When the laser is used in conjunction with Octopus bracket (not included), the laser can then be attached onto any metal surface using the back magnets or the

holes in the bracket can be hooked onto a structure.

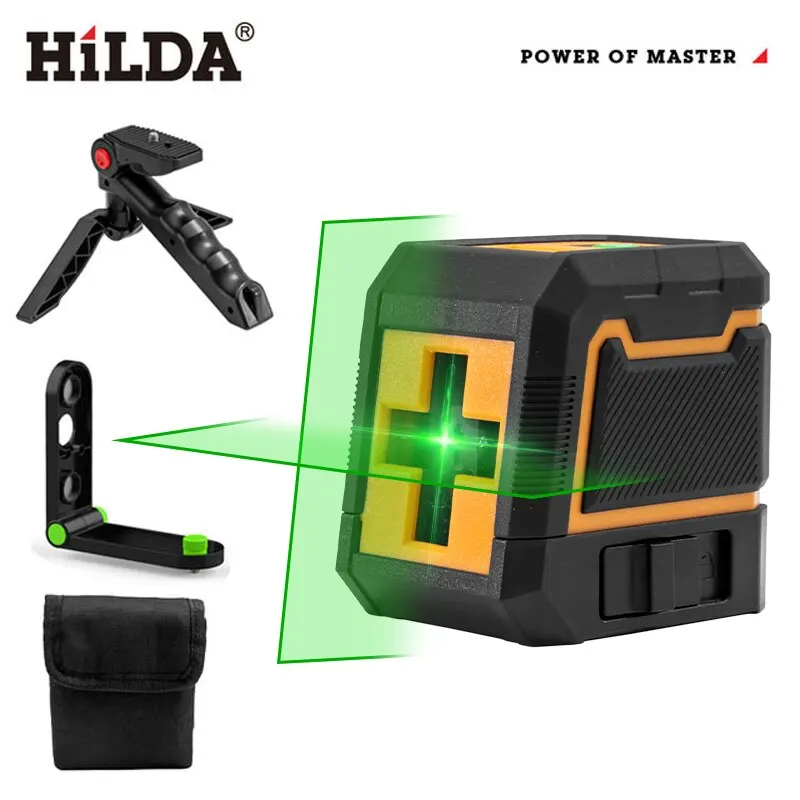

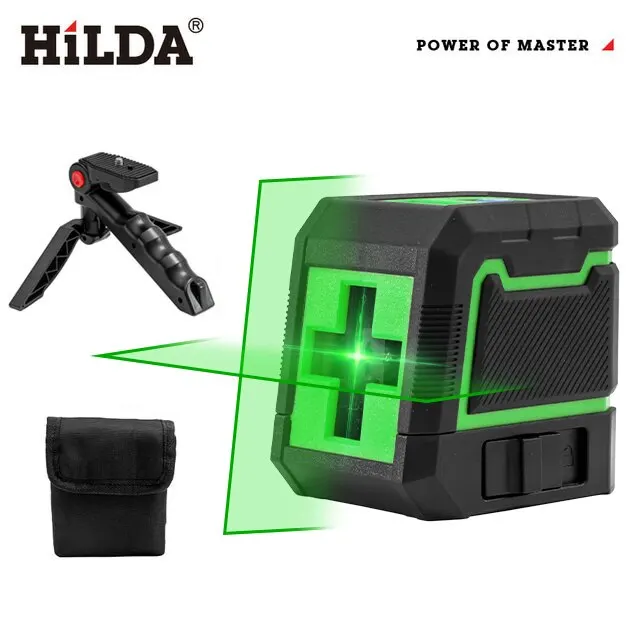

The laser can be directly mounted on to laser accessories such as small tripods or spider clamps using the 1/4″ thread on the bottom of the laser, this can also be adapted to fit larger tripods using the 1/4″ to 5/8″ adaptor (Not included).
