1/220/60, 5hp, MTC-6000N, Cold Room Control System Cold Storage Room Power Temperature Defrost Controller Customized Electric Controller
680.44 €
Out of stock
Description
1/220/60, 5hp, MTC-6000N, Cold Room Control System Cold Storage Room Power Temperature Defrost Controller Customized Electric Controller
Specification
Main Function MTC-6000N temperature controller is designed to control temperatures in cold room. It features various control functions such as cooling,defrost,fan,auxiliary output and RS-485 communication. It also has the functions of temperature measurement, display,control and calibration,high/low temperature alarm,over range alarm and sensor failure alarm If used as a control terminal connected to a relay module and accessing network,the controller will obtain remote monitoring and setting functions.

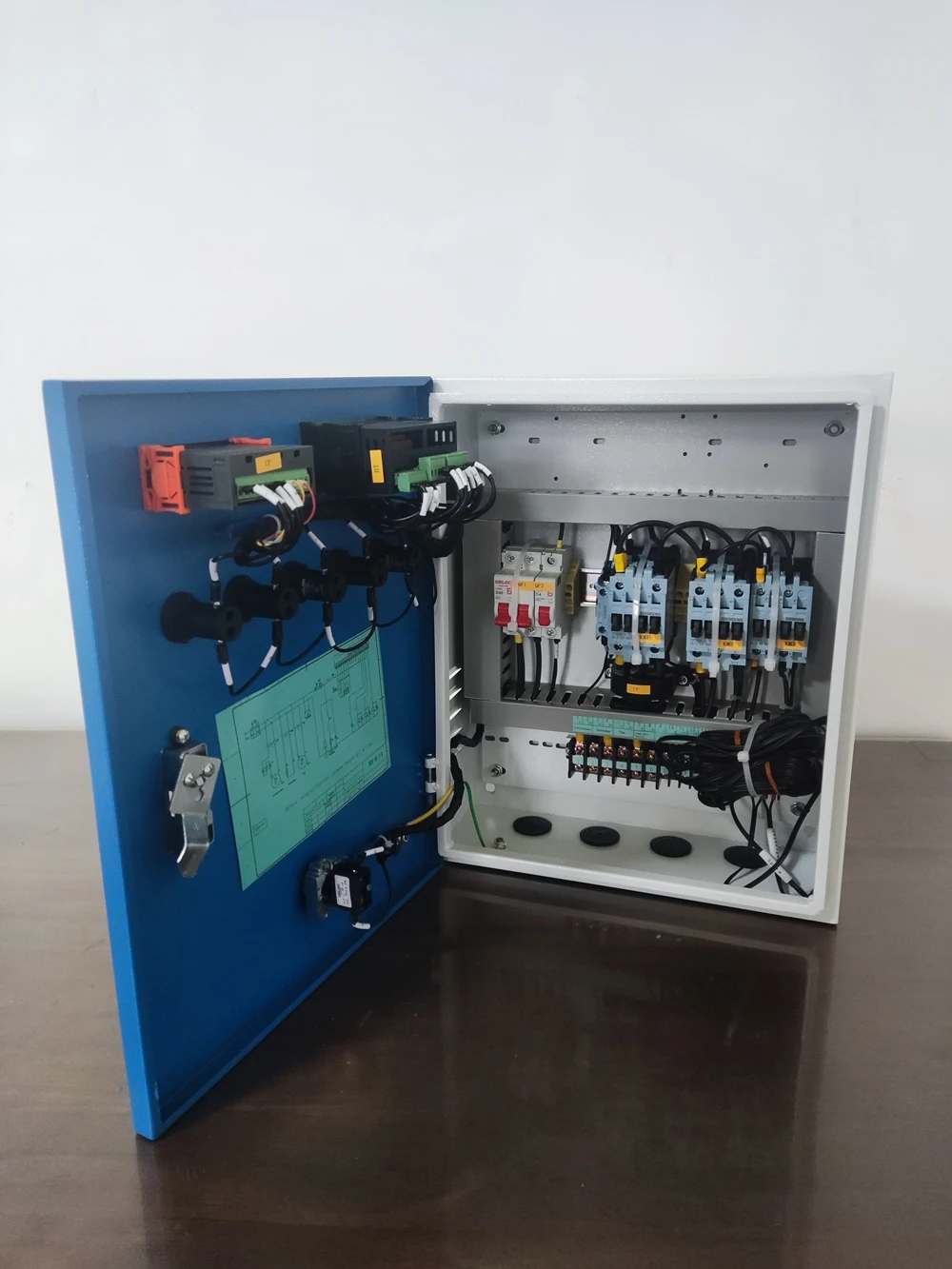

Electrical Control Panels are designed & customized to perfection and specialty for cold rooms & cold storage.
|
◆Product Name
|
MTC-6000N Microcomputer Controller
|
|
◆Custom
|
Custom on demand
|
|
◆AC contactor
|
Schneider, SIEMENS
|
|
◆Power supply
|
220VAC+10%,50Hz/60Hz
|
|
◆ Temperature measuring range
|
-50°C~50*C
|
|
◆Temperature control range
|
-50°C~50*C
|
|
◆Temperature accuracy
|
±1°C(-40°C~50°C),±1.5C(others)
|
|
◆ Temperature resolution
|
0.1℃
|
|
◆ Sensor cable length
|
2m (probe length included)
|
|
◆Storage temperature
|
-30℃~75℃
|
|
◆Operating ambient temperature
|
0℃~60°C
|
|
◆Sensor type
|
NTC(10K/25C,B value=3435K)
|
Product Description
|
Name
|
Model and specification
|
quantity
|
|

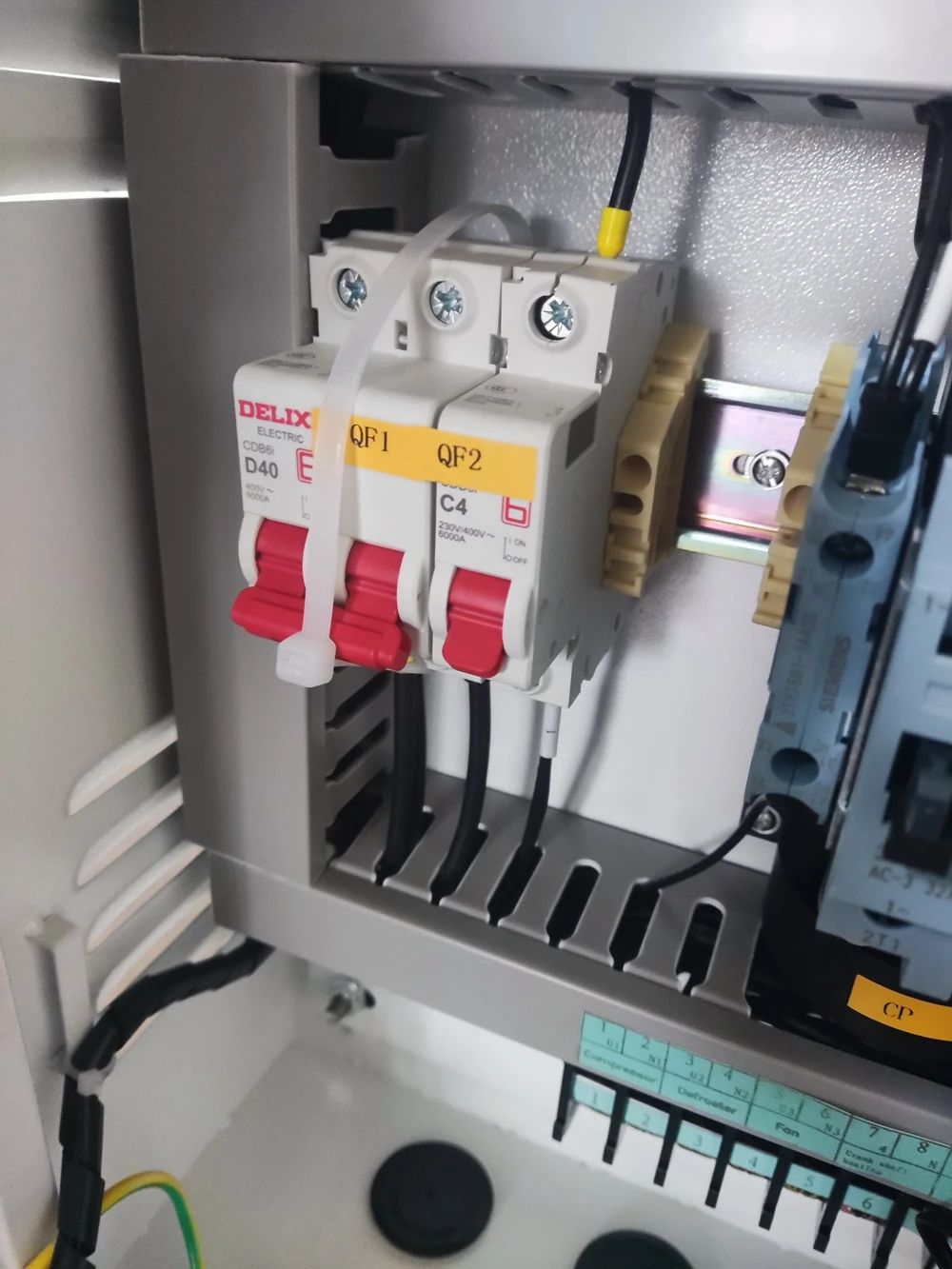

Circuit breaker
|
CDB6i, 2P, D40A, Delixi NR
|
1
|
|
Circuit breaker
|
CDB6i, 1P, C4A, Delixi, NR
|
1
|
|

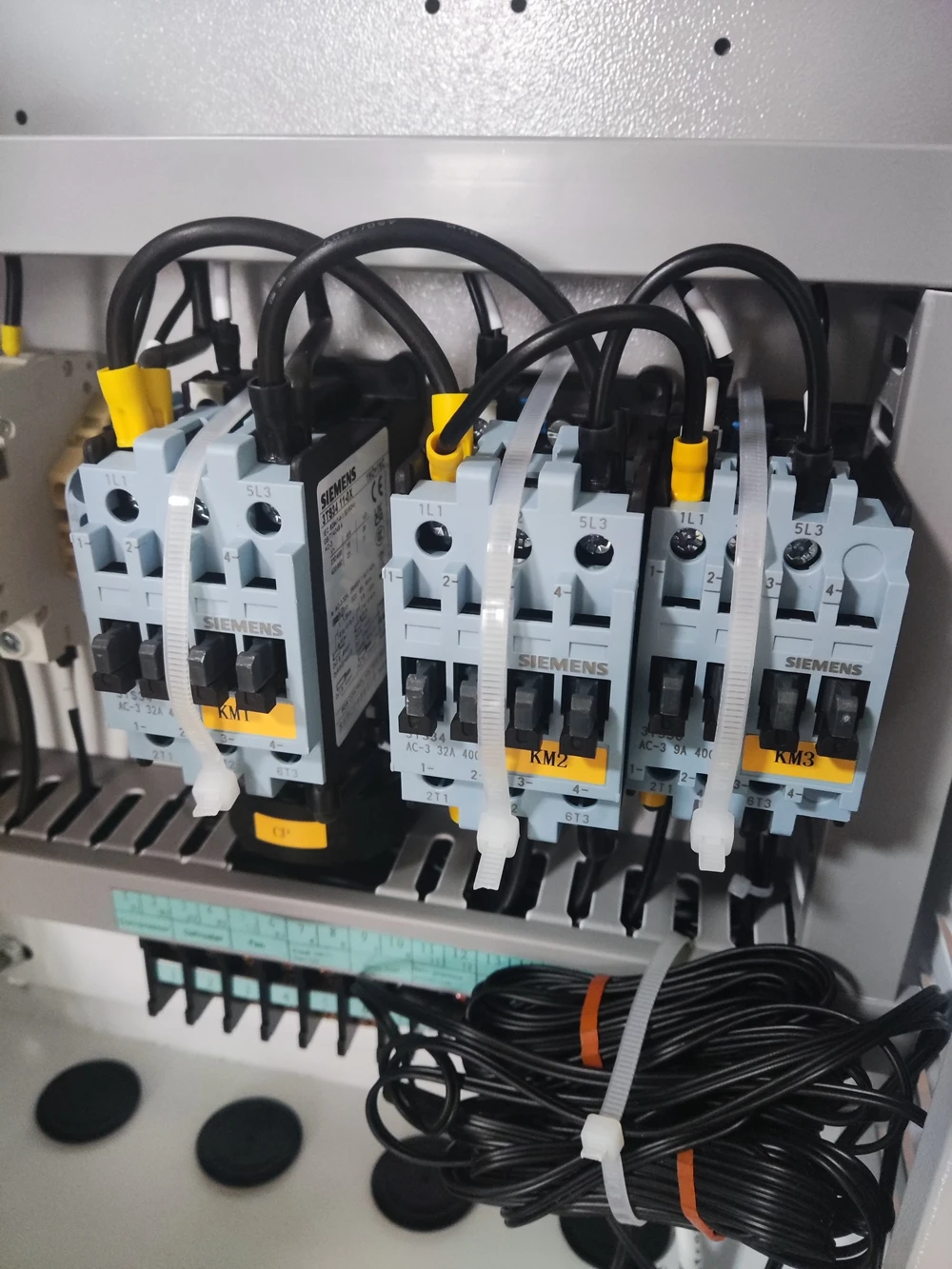

AC contactor
|
3TS30000XM0.9A. None, 220V 50Hz, Siemens
|
1
|
|
AC contactor
|
3TS3400XM0,32A. None, 220V, 50Hz, Siemens
|
1
|
|
AC contactor
|
3TS34110XM0,32A, 1NO1NC, 220V, 50Hz, Siemens
|
1
|
|
Push button switch
|
LAY5s-BD21, 2-position self-locking, 1NO, Delixi, NR
|
1
|
|
Terminal
|
TBC-30,NR
|
9
|
|
Terminal
|
TBC-10, NR
|
11
|
|
Indicator light
|
LAY5sZSM3, green, Delixi, NR
|
2
|
|
Indicator light
|
LAY5sZSM5. Yellow Delixi NR
|
2
|
|
Indicator light
|
LAY5sZSM4. Red, Delixi NR 1
|
1
|
|
Temperature (humidity) sensor
|
JXW-0221-245A103. Full plastic sealing tape LOGO. 8m
|
3
|
|
Zero row
|
five holes, black base, NR
|
1
|
|

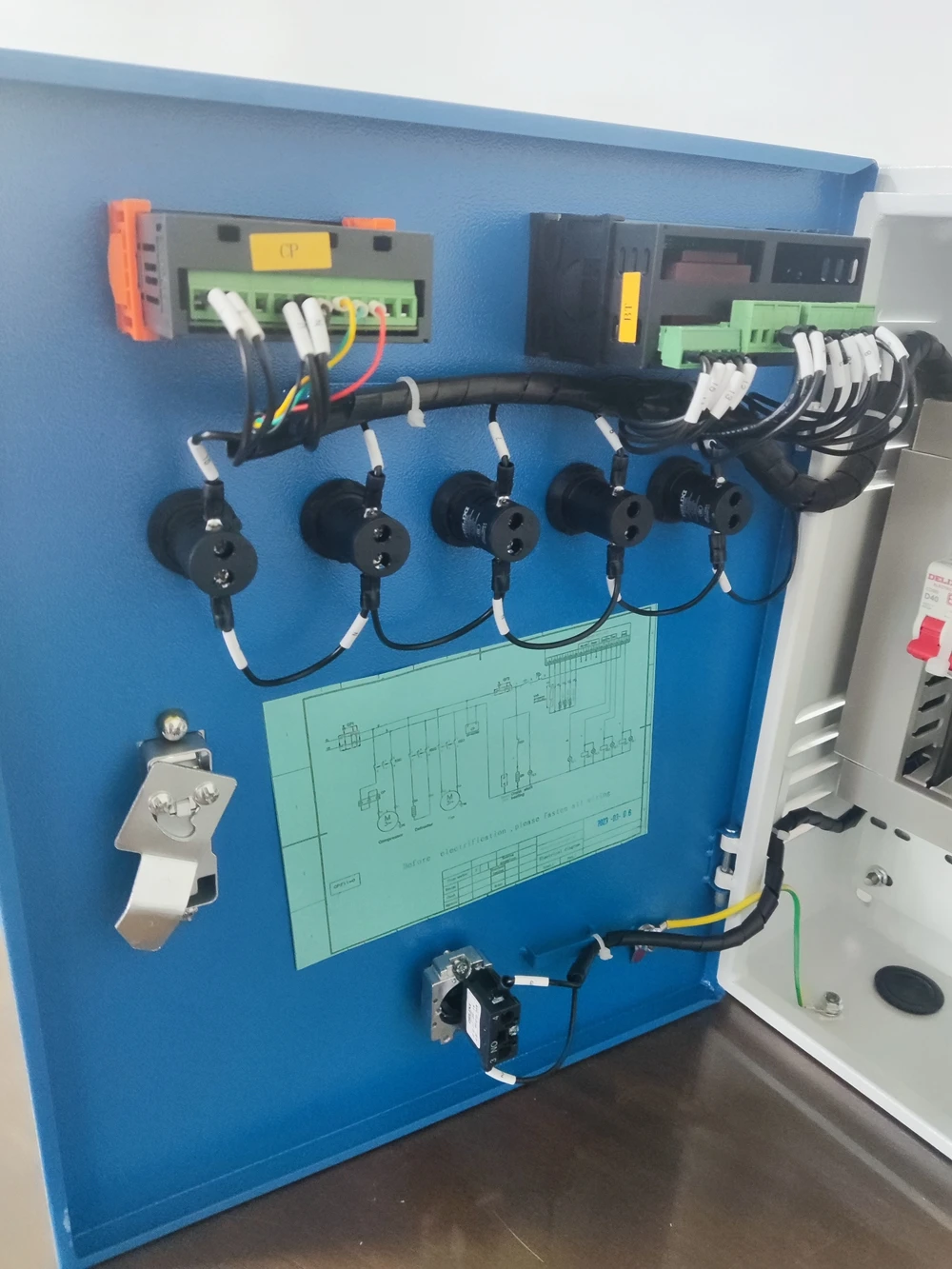

Metal box
|
ECB-5080S, 340 * 420 * 135, blue and white, NR
|
1
|
|
Corrugated box
|
BZX-WLX-ECB-5080S | L408 * W208 * H496-3-20/130/160-B-JC-X
|
1
|
|

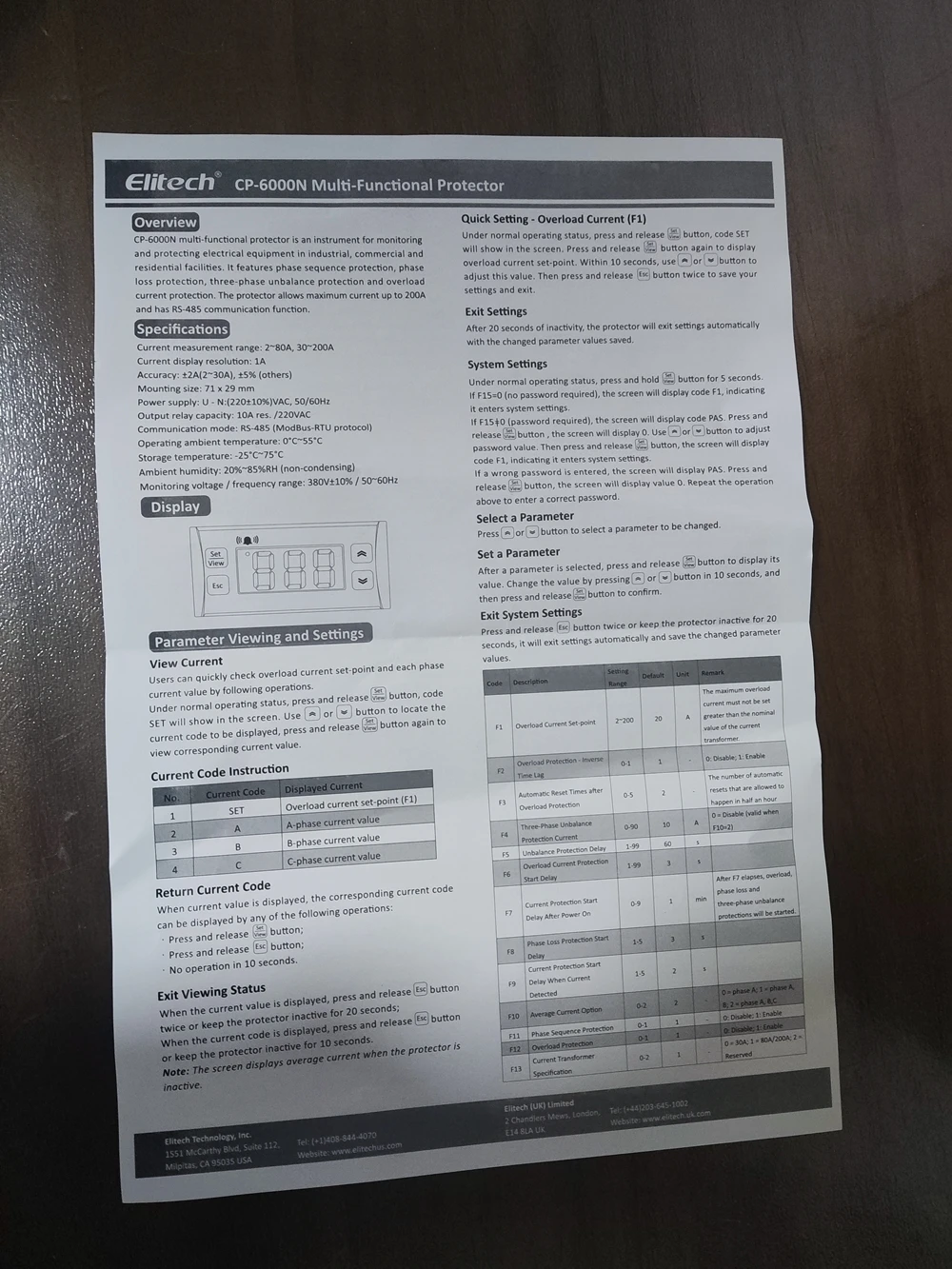

Integrated protector
|
CP-6000N (R7FOC901B2DNP) special for electric control box
|
1
|
|
Cold storage controller
|
MTC-6000N WiFi (STM32G070RBT6) dedicated to electric control box
|
1
|
|
Current transformer
|
KD-3CTGM-2.0.40A. 2000: 1.10mm.lm0. Three phase
|
1
|

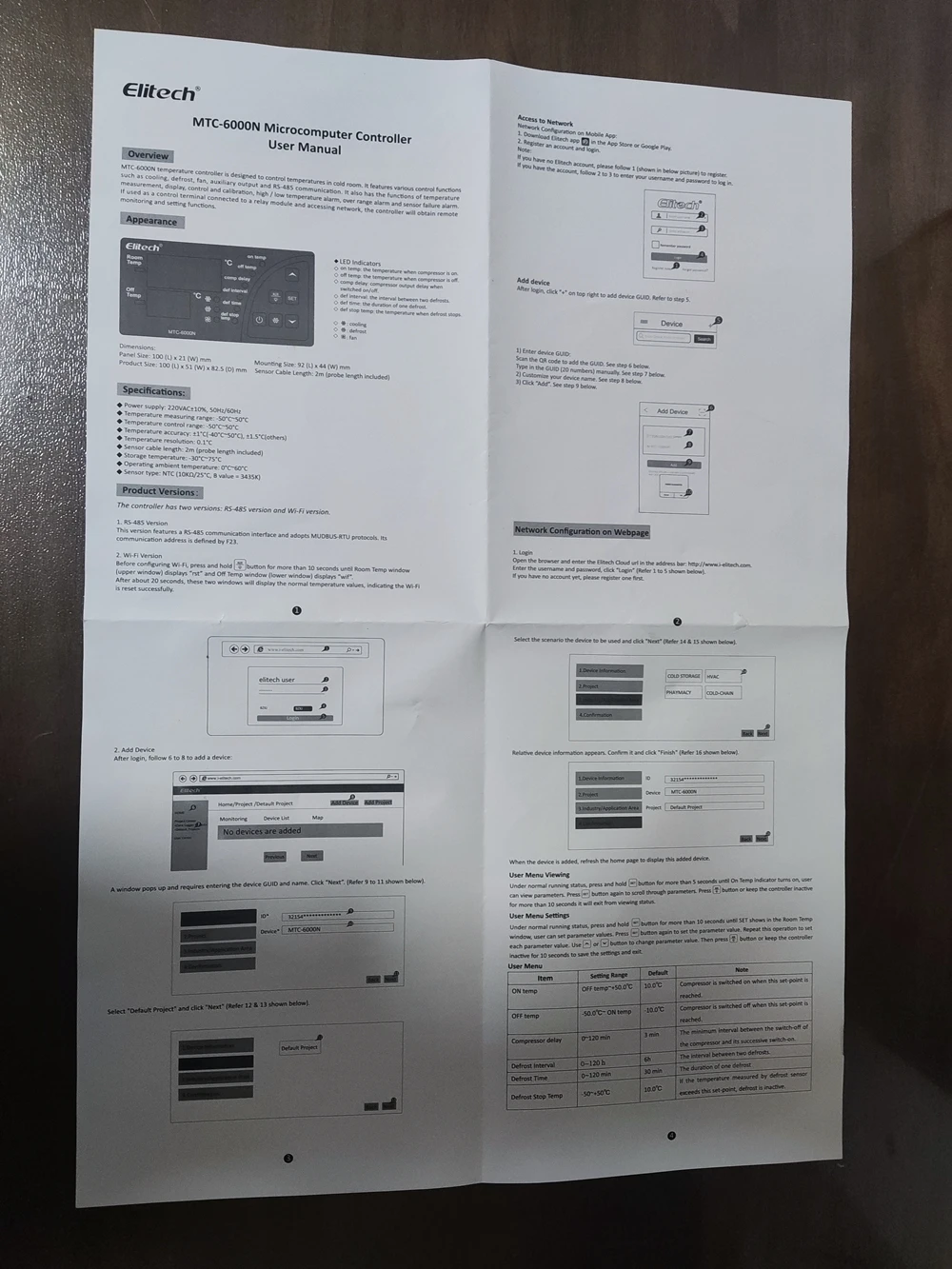

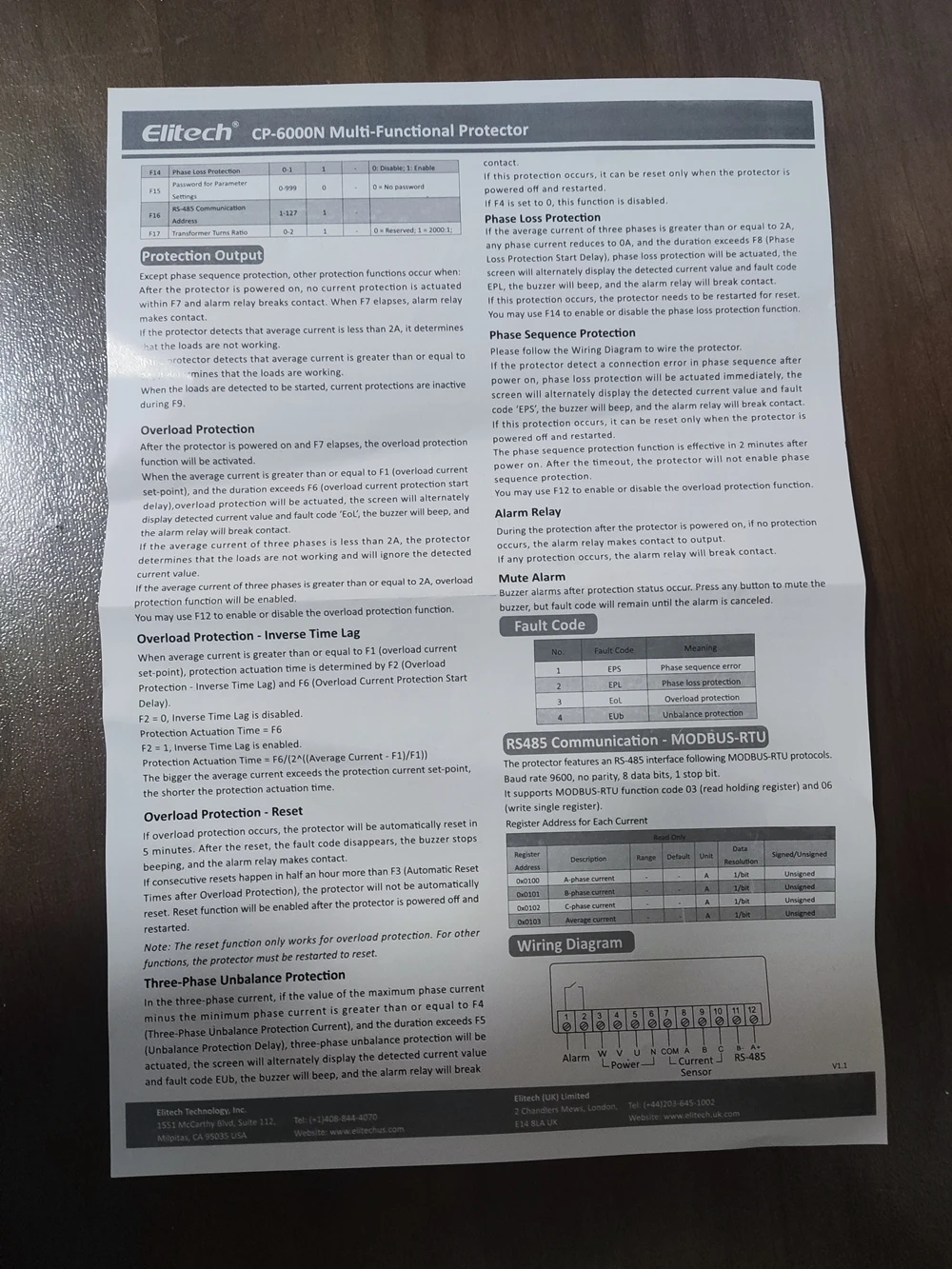

Instruction manual
Packing & Delivery
Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 51 cm |
| Brand Name | NoEnName_Null |
| Type | Other |
| Origin | Mainland China |
| Place of Origin | Zhejiang, China |
| Model Number | MTC-6000N |
| Color | Gray |
| Voltage | 220v-380v |
| Current | 220v-380v |
| Name | MTC-6000N Microcomputer Controller |
| Power supply | 220VAC+10%,50Hz/60Hz |
| Temperature measuring range | -50°C~50*C |
| Temperature control range | 50°C~50*C |
| Temperature accuracy | ±1°C(-40°C~50°C),±1.5C(others) |
| Temperature resolution | 0.1℃ |
| Sensor cable length | 2m (probe length included) |
| Storage temperature | -30°C~75℃ |
| Operating ambient temperature | 0°C~60°C |
| Sensor type | NTC(10K/25C,B value=3435K) |
