Fixed speed cold room compressor unit 3HP Monoblock condensing system cooling room chiller
4,081.97 €
Out of stock
Description
Fixed speed cold room compressor unit 3HP Monoblock condensing system cooling room chiller
|
1~3HP Fixed Speed Compressor
|
||||||||
|
Model#
|
MT-YTCN10EL
|
MT-YTCN20EL
|
MT-YTCN30EL
|
|||||
|
Voltage(Volt)
|
220V/50Hz
|
|||||||
|
Compressor Power
|
1HP
|
2HP
|
3HP
|
|||||
|
Refrigerant
|
R404a
|
R404a
|
R404a
|
|||||
|
Evap. Temp. range
|
-40℃~ -5℃
|
|||||||
|
Work Frequency
|
30Hz~80Hz
|
|||||||
|
Max. Work Current
|
|
5
|
9
|
13
|
||||
|
Condensing Fan
|
Power
|
120
|
150
|
120
|
||||
|
Condensing Fan
|
Quantity
|
1
|
1
|
2
|
||||
|
Evaporator Fan
|
Power
|
80
|
120
|
80
|
||||
|
Evaporator Fan
|
Quantity
|
1
|
1
|
2
|
||||
|
External Dimension
|
LxWxHmm
|
600*710*710
|
720*890*825
|
925*890*825
|
||||
|
Cooling Capacity
|
Cooling Capacity: W ; Ambient Temp:32℃
|
|||||||
|
Evaporator Temperature ( ℃)
|
-5
|
2250
|
4280
|
6850
|
||||
|
-15
|
1650
|
3050
|
4350
|
|||||
|
-25
|
820
|
230
|
3230
|
|||||
|
-35
|
760
|
1250
|
2050
|
|||||
|
Rated Power( W )
|
780
|
1550
|
2260
|
|||||
Product features:
1. Sanyo low-temperature compressor, Sanhua electronic expansion valve.
2. Integrated control panel, built-in cabinet temperature and defrost temperature probe.
3. Liquid crystal display screen panel. 4. Multiple defrosting modes optional, which can be timed, automatic, or hot fluoride frost. 5. The whole machine has multiple protection, automatic detection and reset. 6. One-piece embedded installation, it can run after power on.

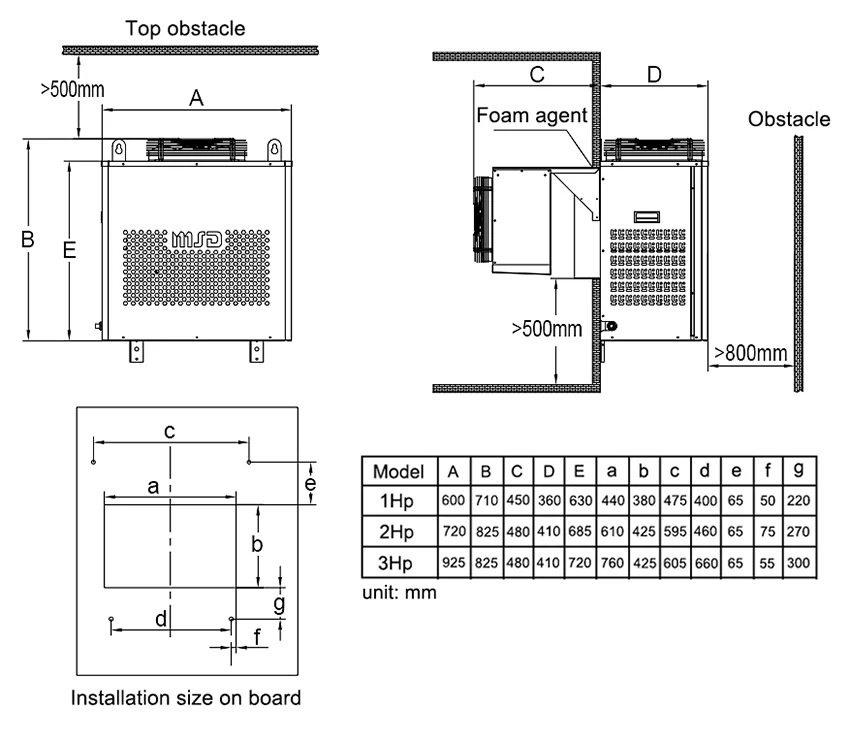

Installation Instructions
Additional information
| Weight | 70 kg |
|---|---|
| Dimensions | 70 cm |
| Brand Name |
NoEnName_Null |
| Origin |
Mainland China |
| Condition |
New |
| Weight (KG) |
120 |
| Showroom Location |
china |
| Video outgoing-inspection |
Provided |
| Machinery Test Report |
Provided |
| Warranty of core components |
1 Year |
| Core Components |
Motor, compressor, condenser, fan, copper pipe |
| Type |
cold room chiller |
| Place of Origin |
Henan, China |
| Warranty |
1 Year |
| Defrost Type |
automatic, timed or hot fluoride optional |
| Temperature Control |
Microcomputer |
| climate type |
N-ST |
| color |
customized/optional |
| cooling system |
air cooled |
| Compressor |
Sanyo DC Inverter 3HP |
| Certification |
CE , CCC , ISO9001 |
| Power supply |
220V/50Hz/single Phase |
| Refrigerant |
R404a |
| Product name |
Cold Room Condenser Unit |
| Marketing Type |
New Product 2020 |
