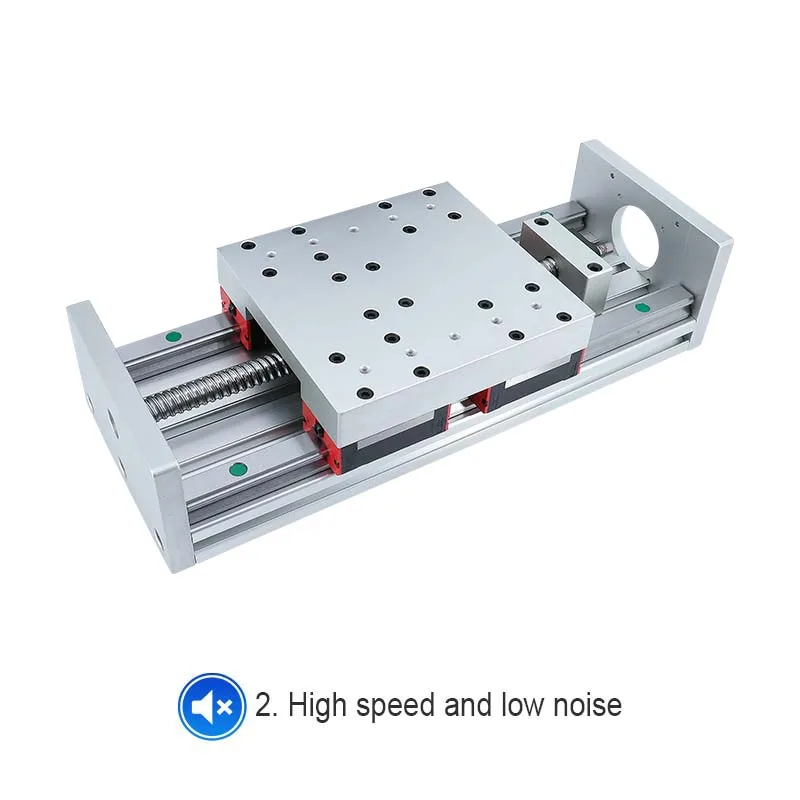

Z Axis Linear module Sliding Table HGR20 Linear Guide SFU1605 Ball Screw Linear Stage Suit For Nema23 Nema34 Stepper Motor CNC
699.04 $ – 905.86 $Price range: 699.04 $ through 905.86 $
SKU:
1005005767745162
Categories: Hardware, Home Improvement and Lighting, Linear Guides
Description
Z Axis Linear module Sliding Table HGR20 Linear Guide SFU1605 Ball Screw Linear Stage Suit For Nema23 Nema34 Stepper Motor CNC
PACKING LIST: 1pc HGR20 SFU1605/1610 Sliding table(optional for stepper or servo motor adapt board).






Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 15 cm |
| Brand Name |
HLTNC |
| Origin |
Mainland China |
| Model Number |
GX150 |
| Guide Width or Diameter |
20mm |
| Certification |
CE |
| ball screw |
SFU1605 / SFU1610 |
| linear guide |
HGR20 |
| Driving method |

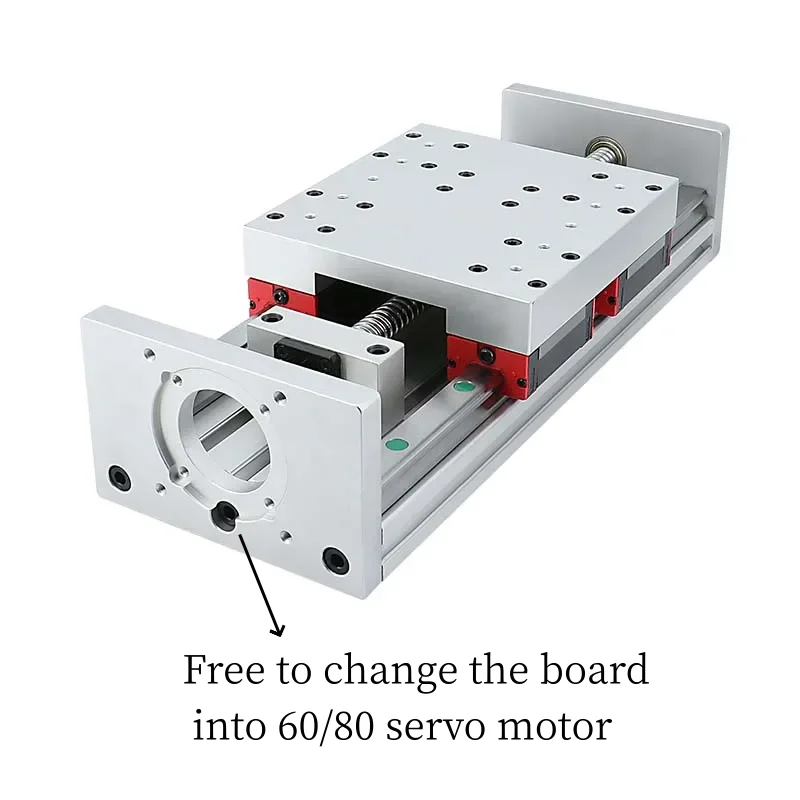

Suitable for 57/86 stepper motor or 60/80 servo motor |
| ball screw diameter |
16mm |
| effective stroke |
100mm – 2500mm |
| Precision |
0.03-0.05mm per 300mm |
| Maximum Load (horizontal) |
150kg |
| Maximum Load (vertical) |
50kg |
| 1 |
sliding table |
| 2 |
linear module |
| 3 |
CNC Router |
