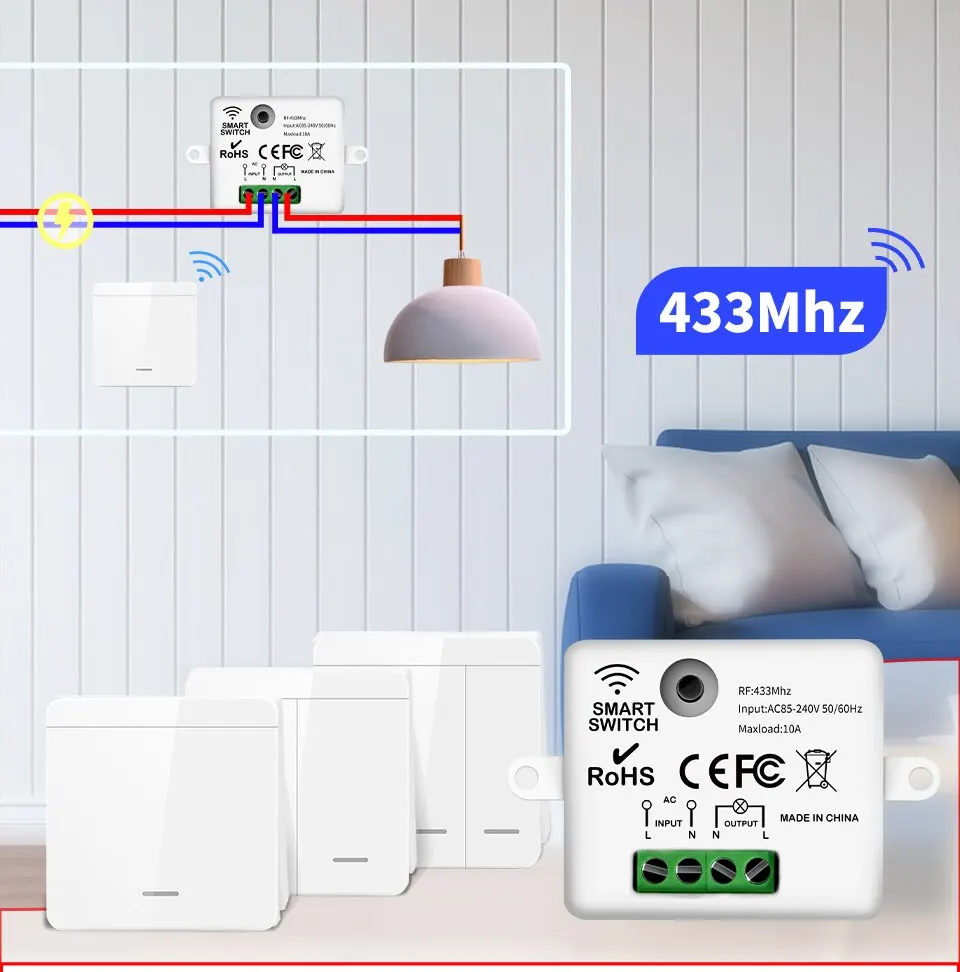

Wireless Light Switch 433MHz Remote Control 1/2/3Gang Interrupter Wall Smart Lighting Switch 10A 110V 220V For Lamp LED

1/2/3 gang wireless light switch smart RF 433MHz remote control 86 wall panel push button 10A 110V 220V Receiver for LED/fan

Features:

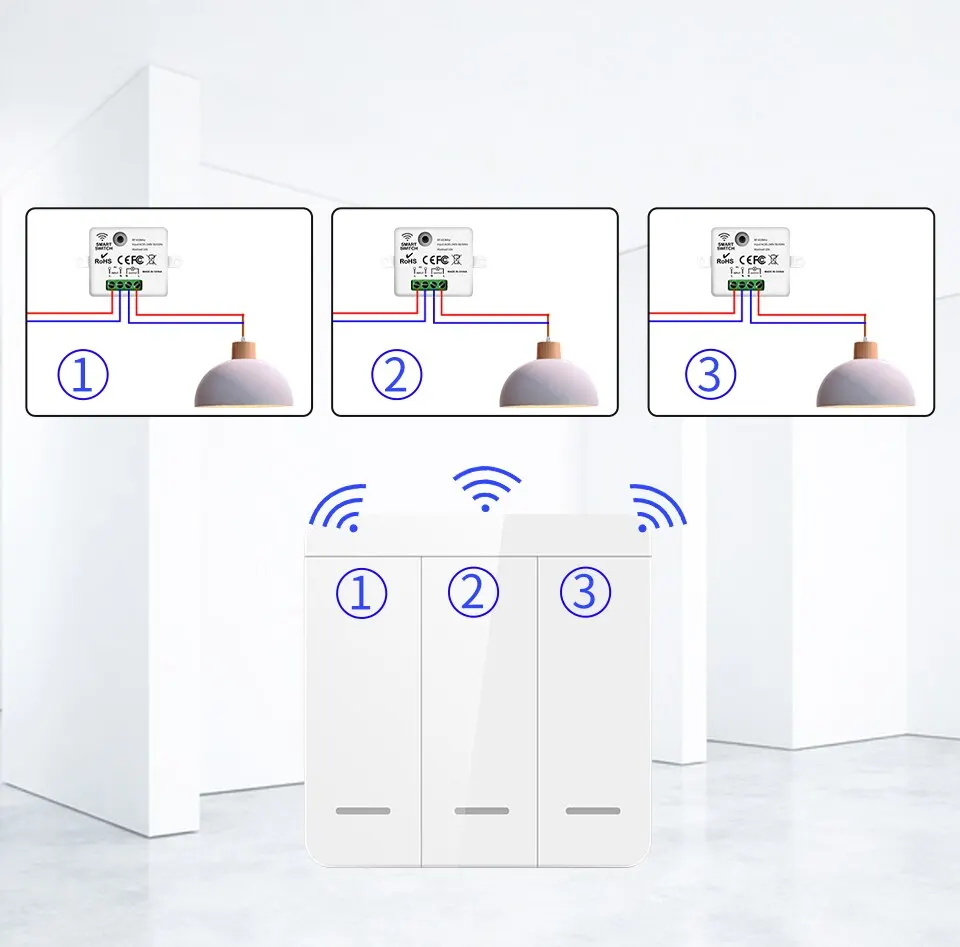

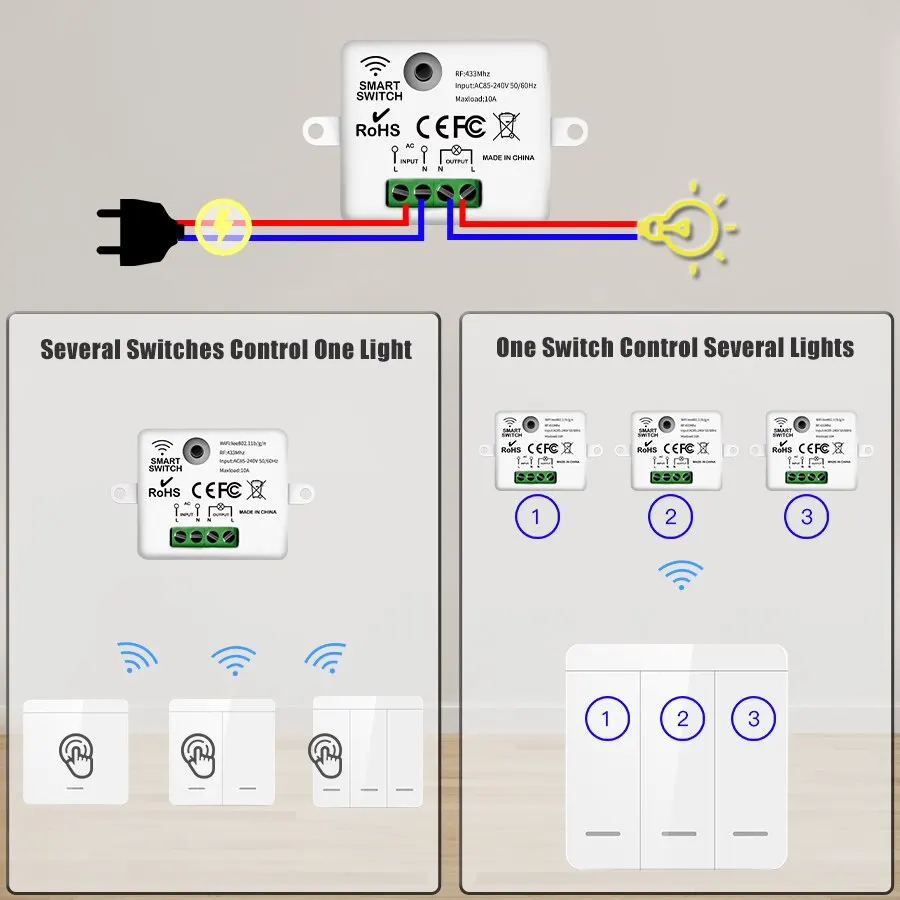

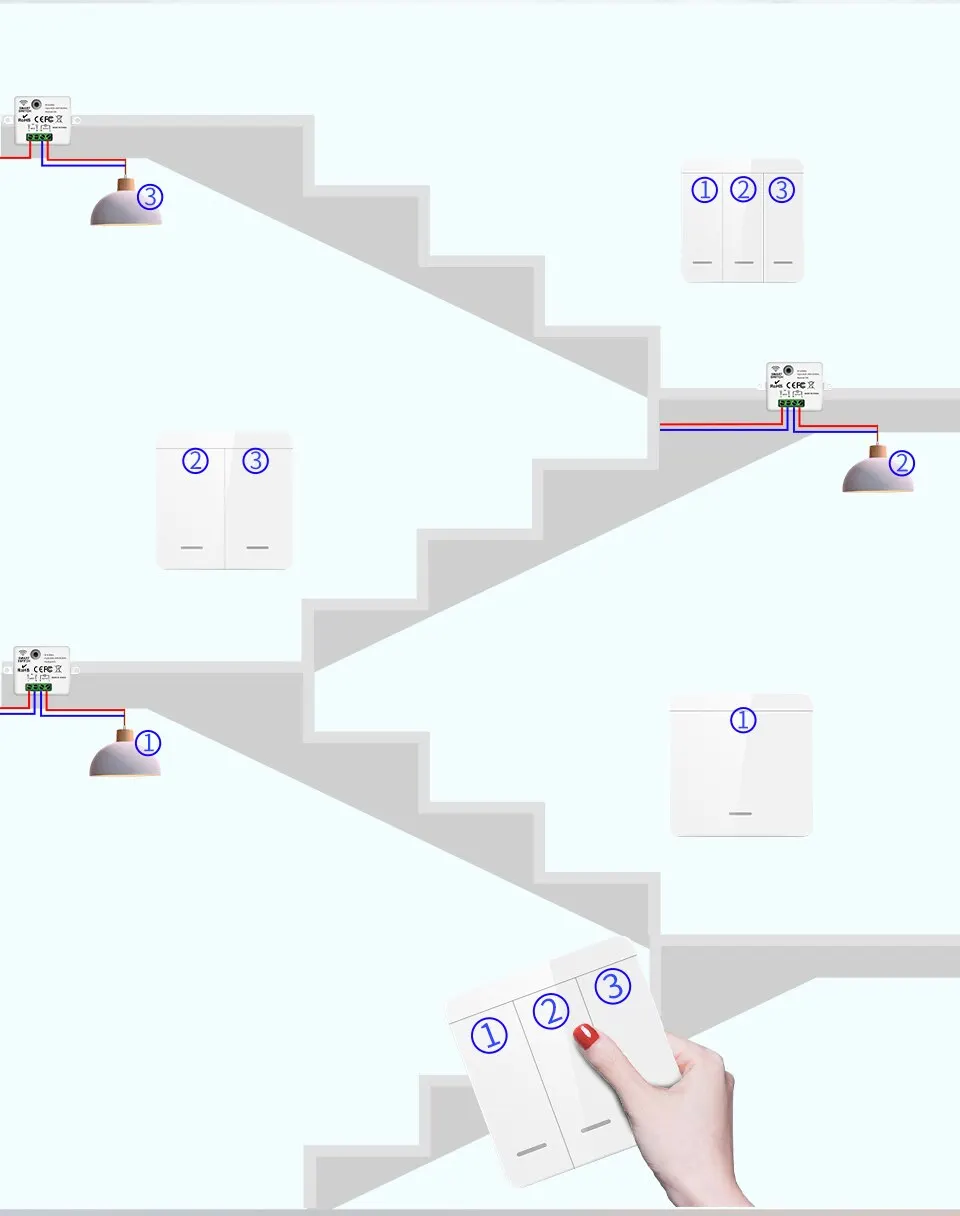

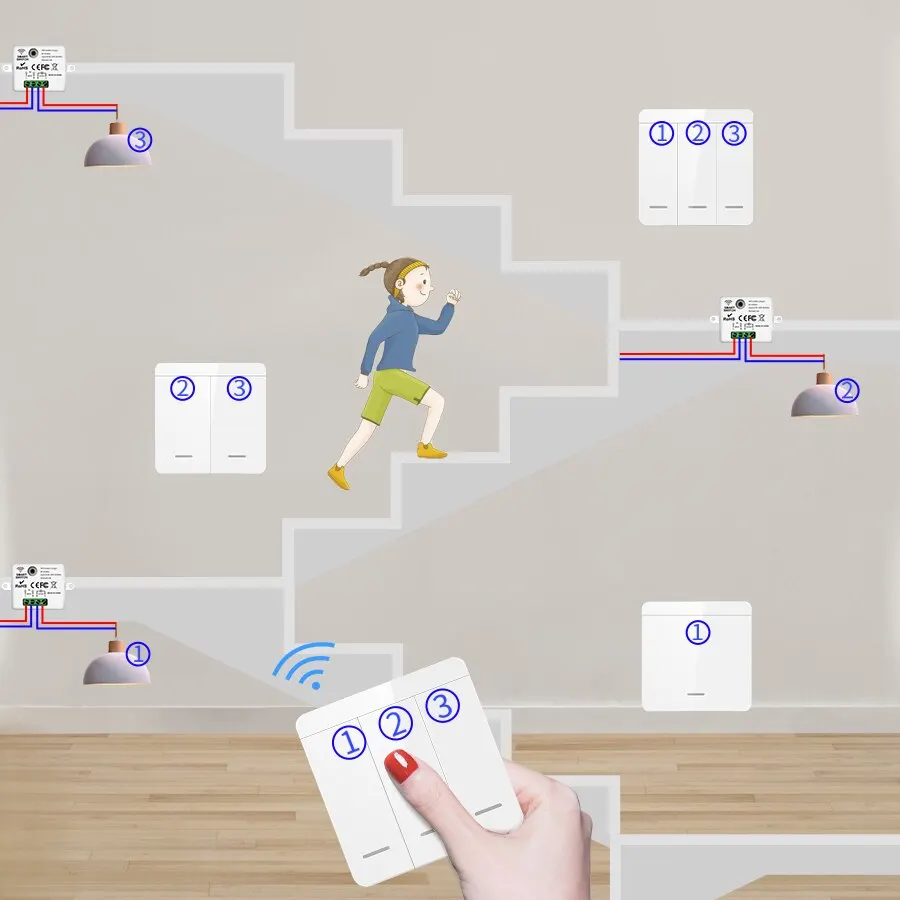

1.Multi switches can control different receivers. Save energy, avoid darkness.

2.Working with all kinds of Lights and Ceiling Fan. LED, CFL, Fluorescent lamp can load 300W,other can load 2500w.

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

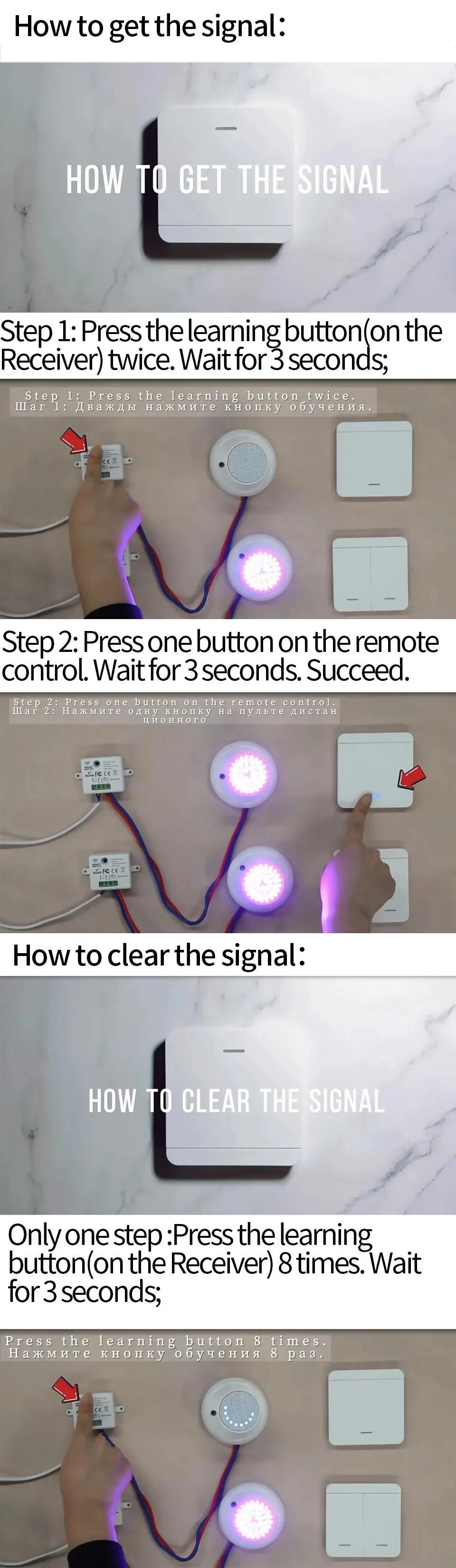

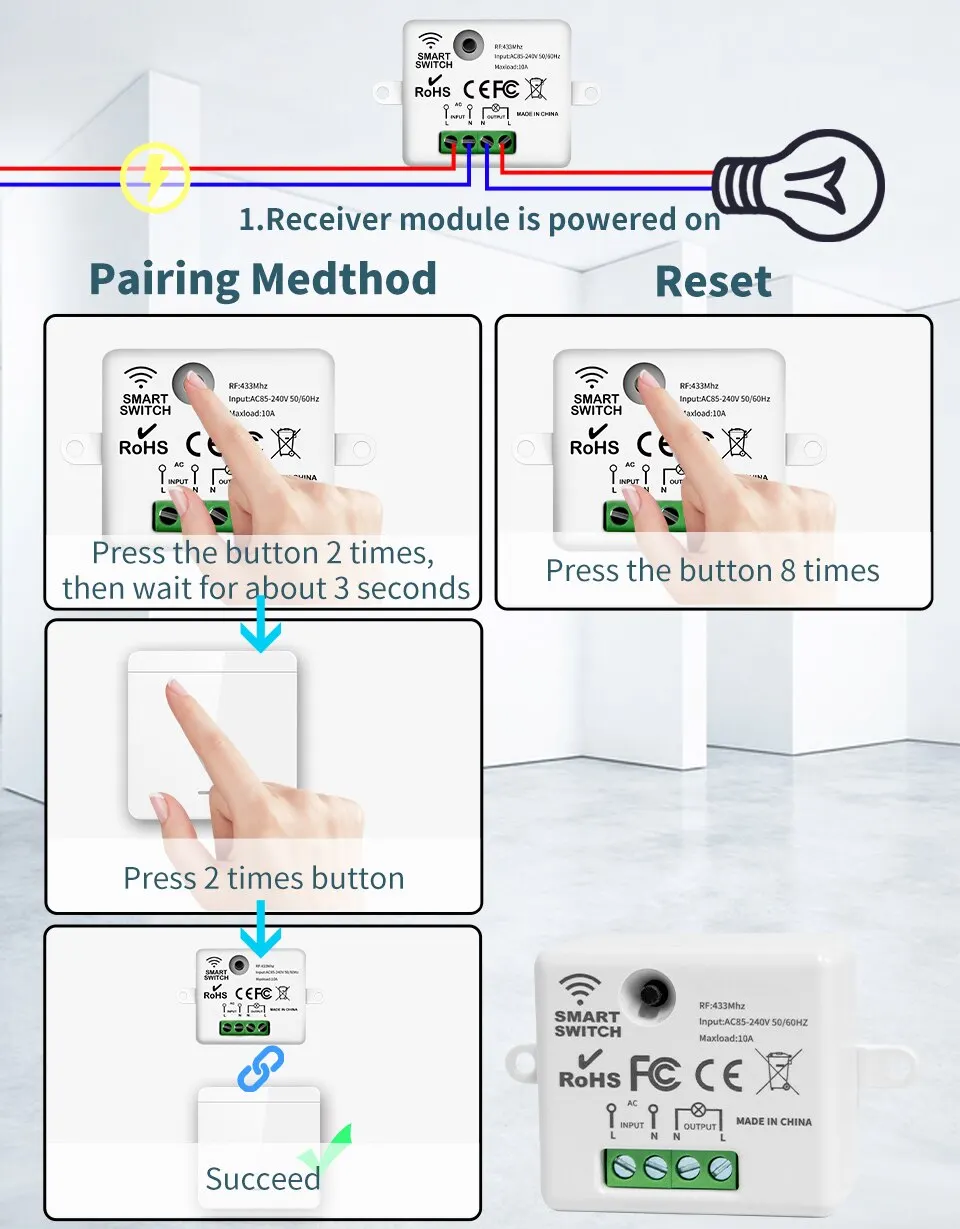

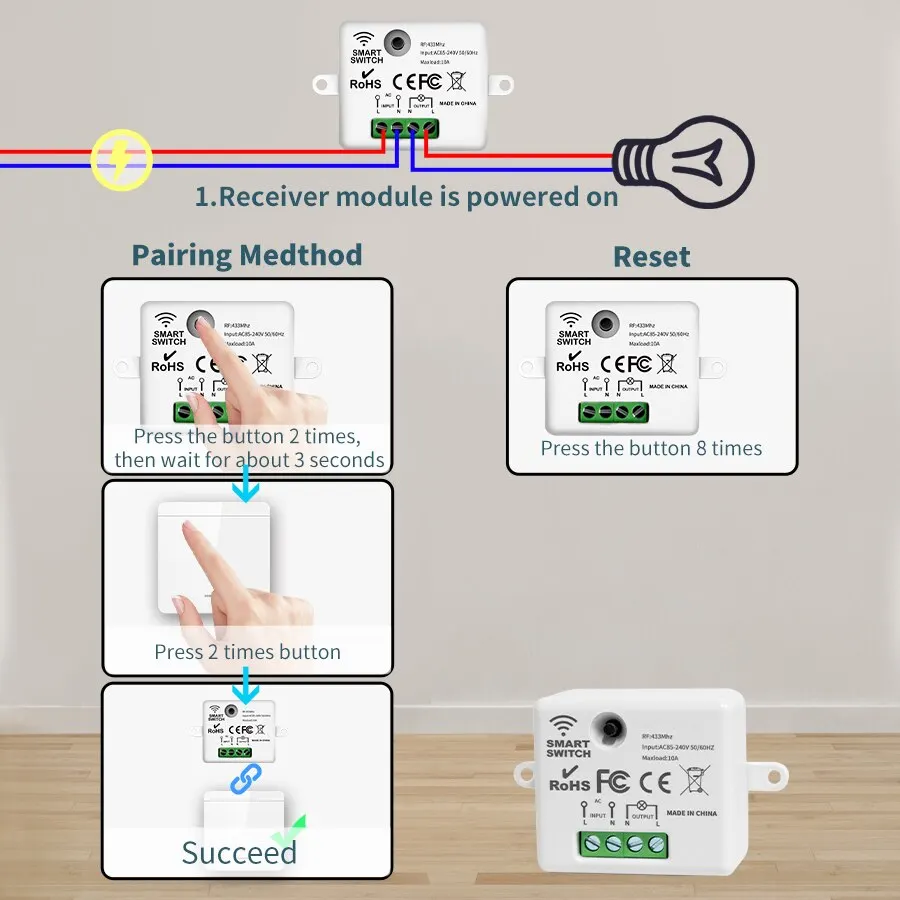

How to get the signal

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;

Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

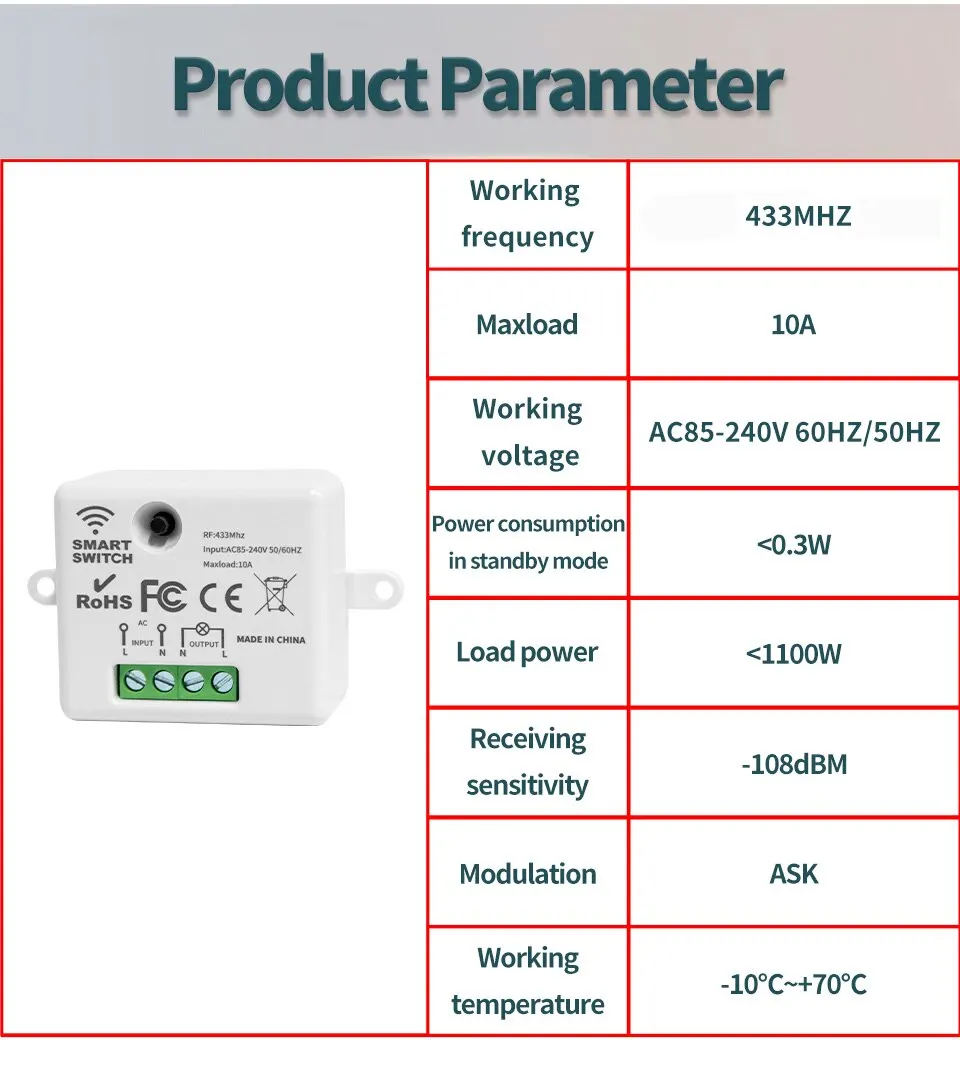

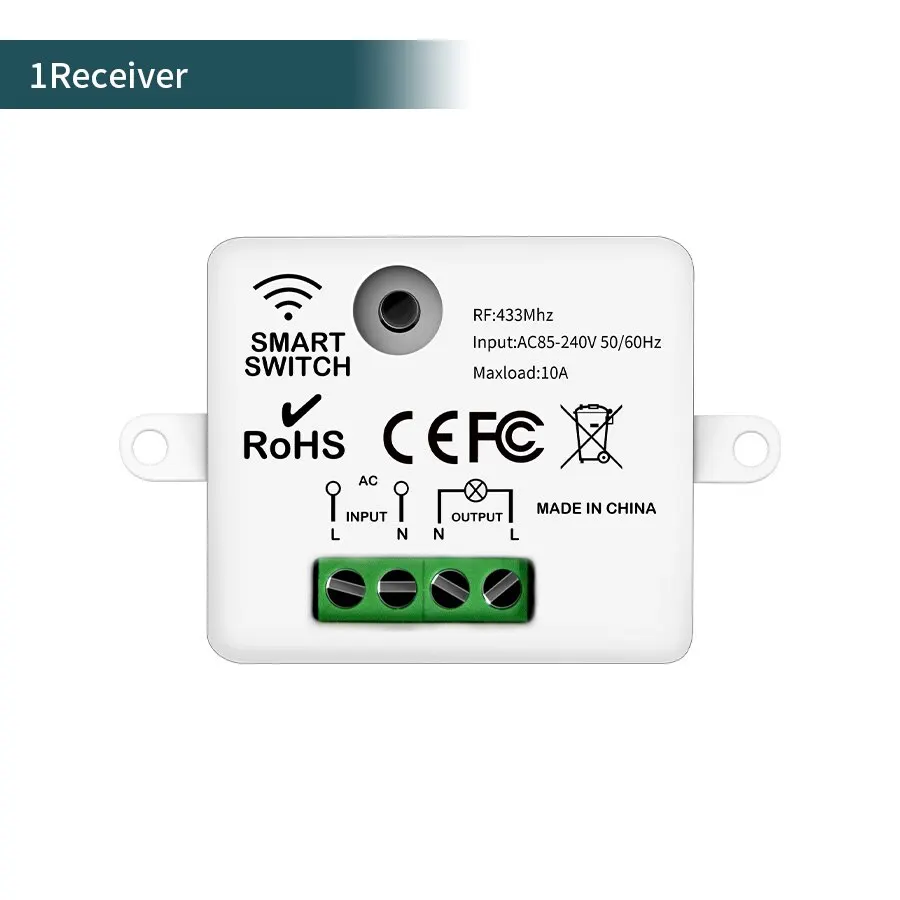

RF433 controller (Receiver) data
1)Workingvoltage:AC85-240V60HZ/50HZ
2)Workingfrequency:433MHZ
3)Power consumption in standby mode:<0.3W
4)Load power:<1100W
5)Receiving sensitivity:-108dBM
6)Working way: wireless control
7)Coding way: learning code
8)Modulation: ASK
9)Working temperature:-10*C~+70″C

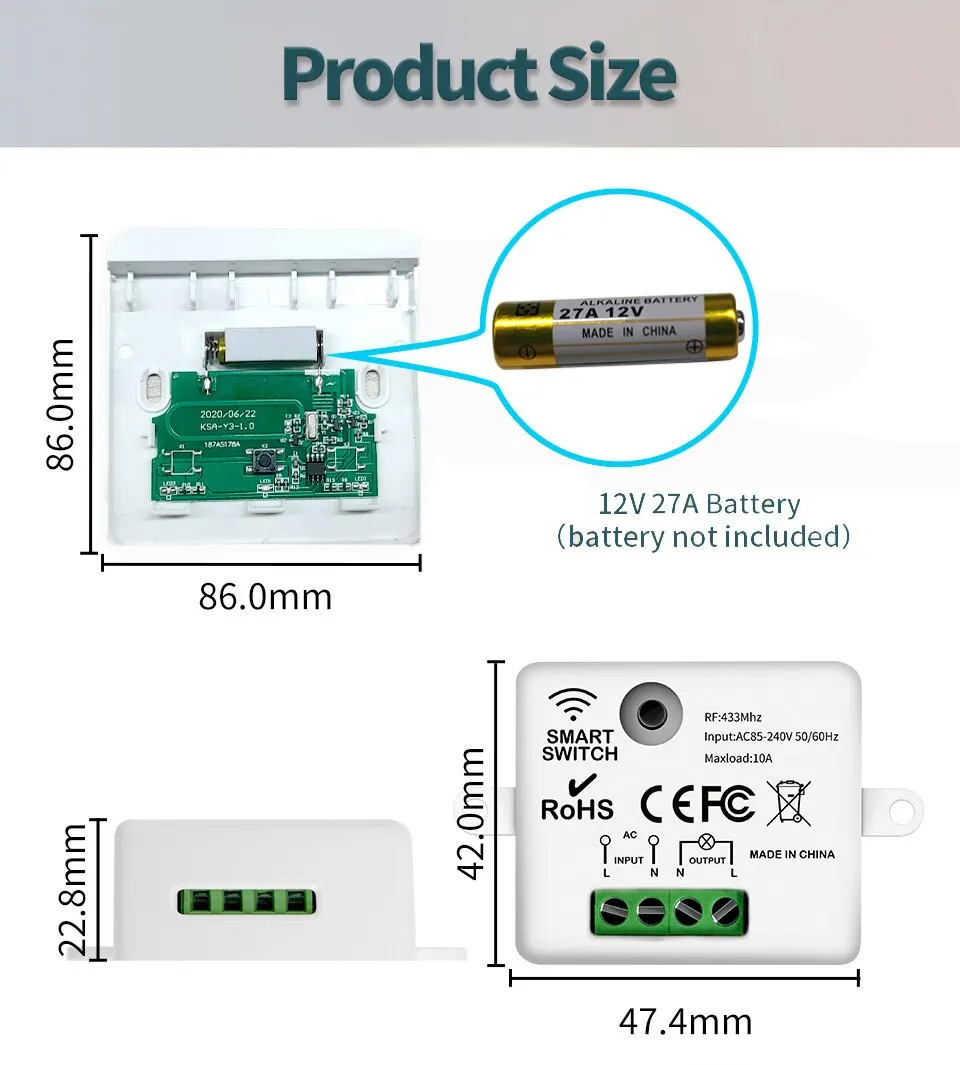

10)Size:47.4*42*22.8(mm)

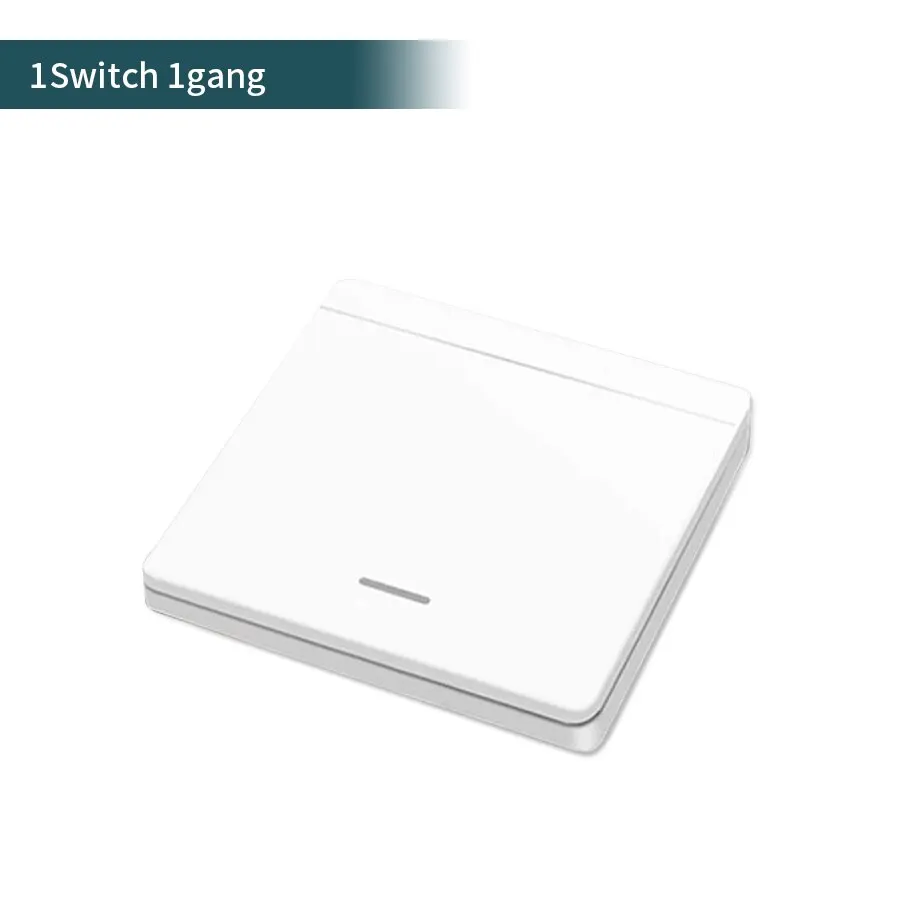

86 Panel data

Wireless wall switch

Size:86mm * 86mm

Type: Wireless Wall Panel Switch-work with your 433mhz receiver, remote
control your device

Frequency:433MHZ

Type of wireless communication: RF

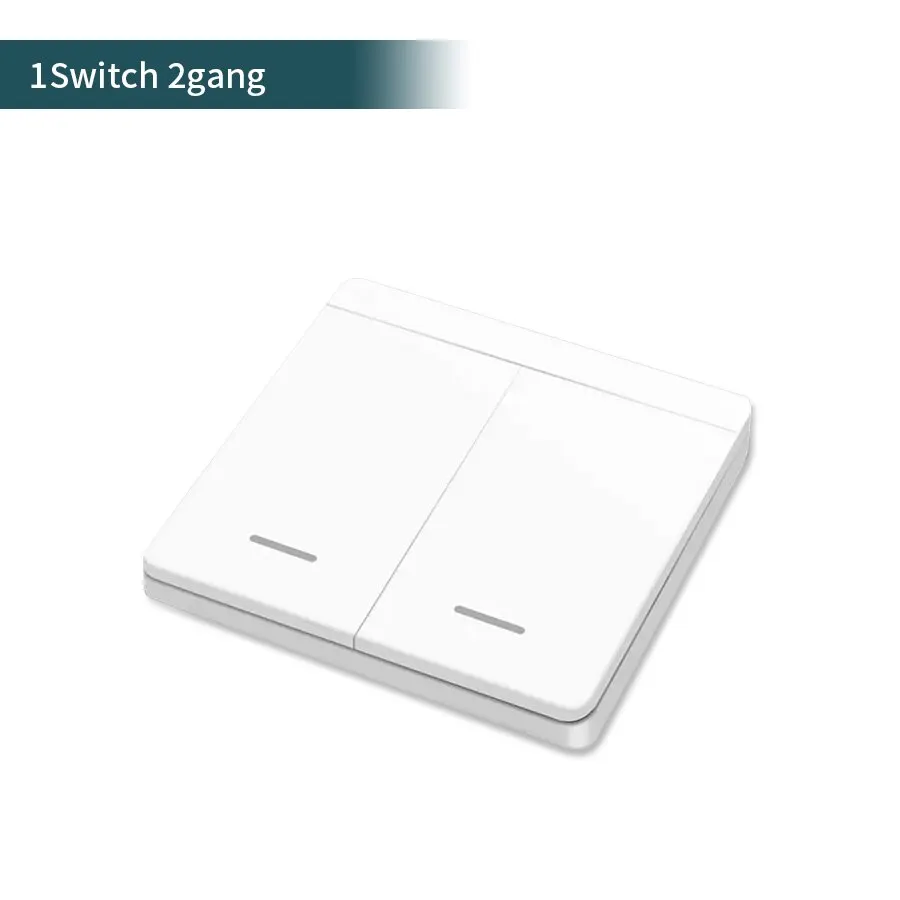

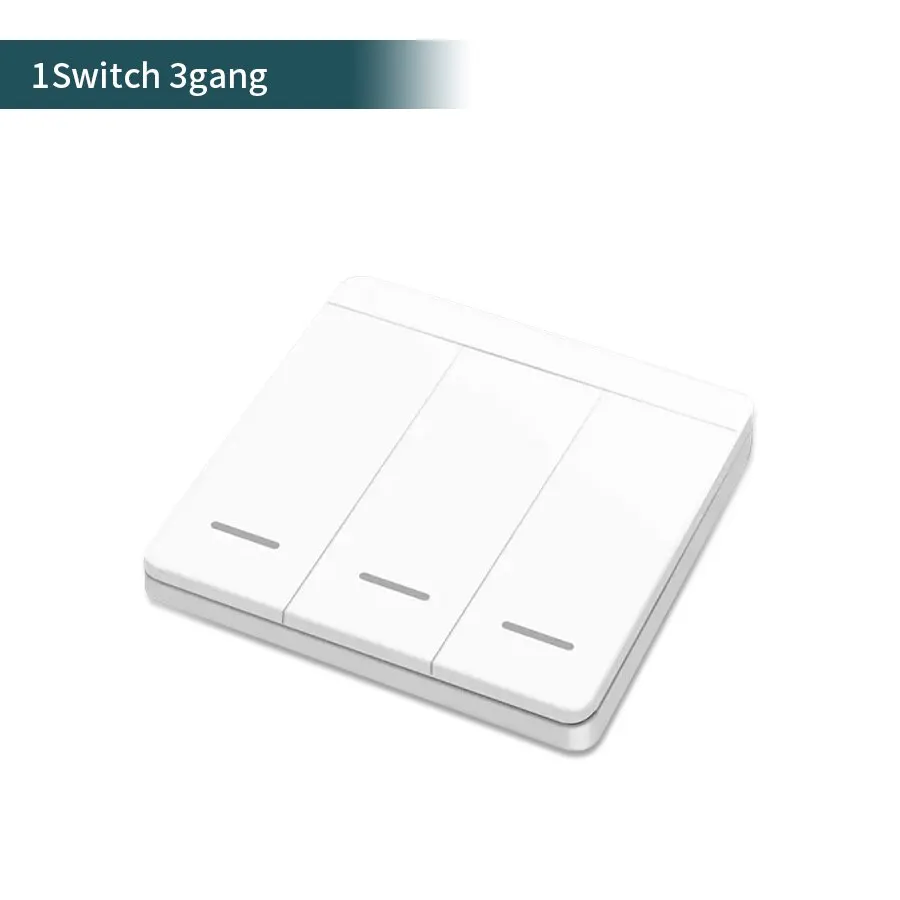

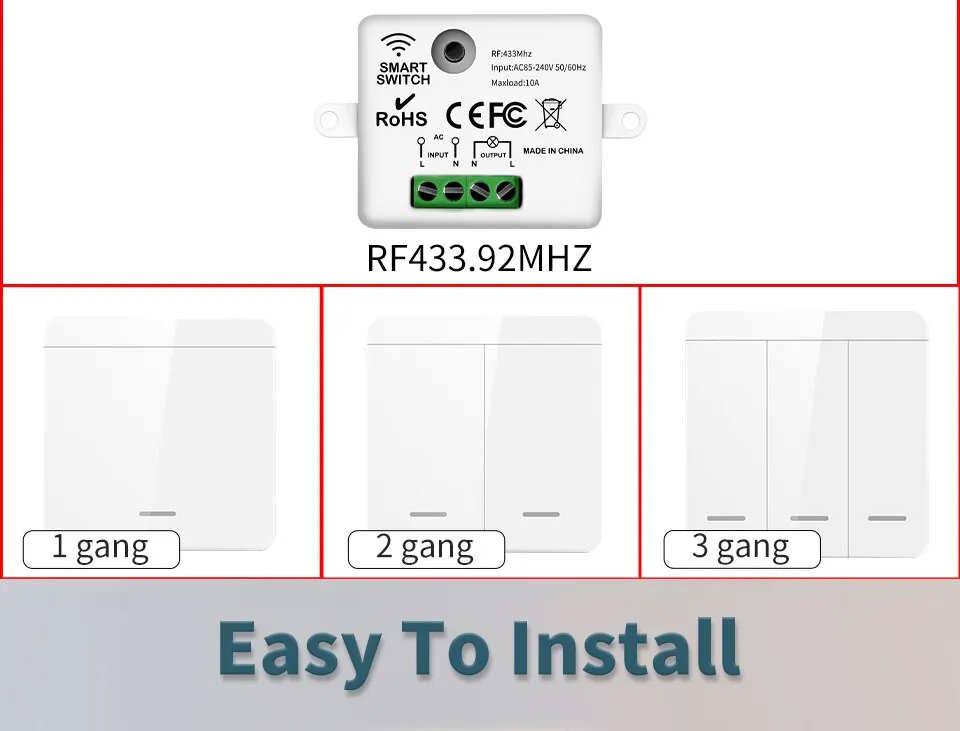

Channel: 1-gang/2-gang/3-gang(depends on your choice)

NOTE: This won’t work if you just buy the wireless switch, needs to be used with your 433mhz receiver

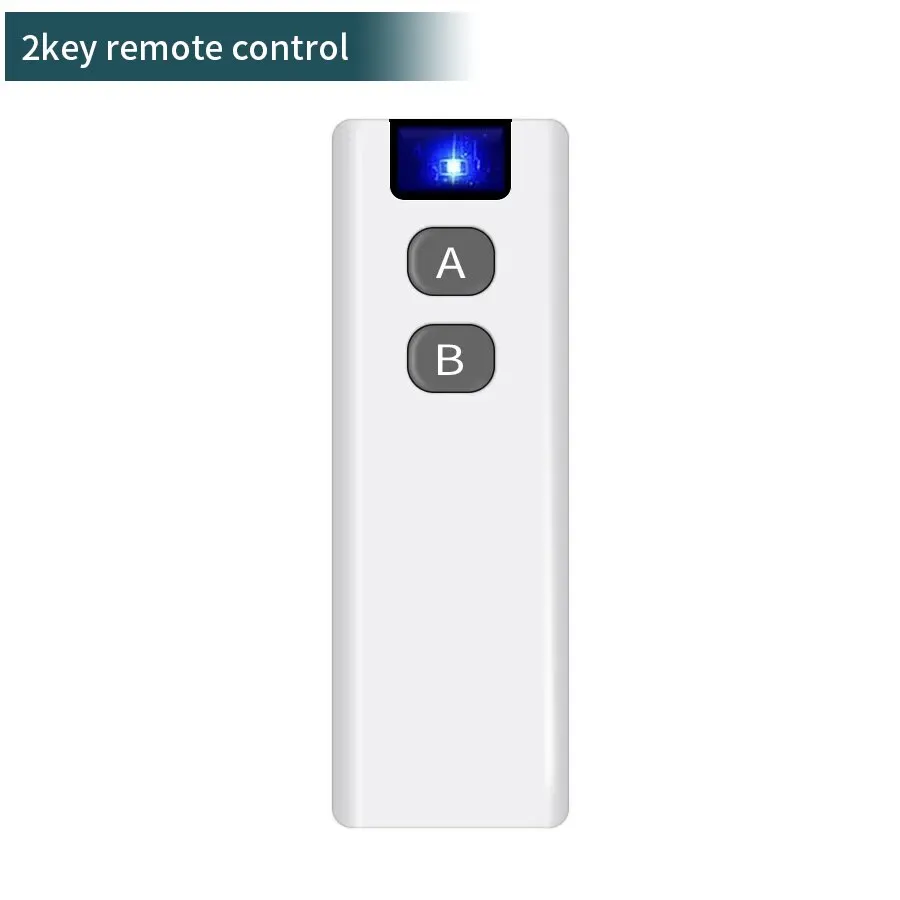

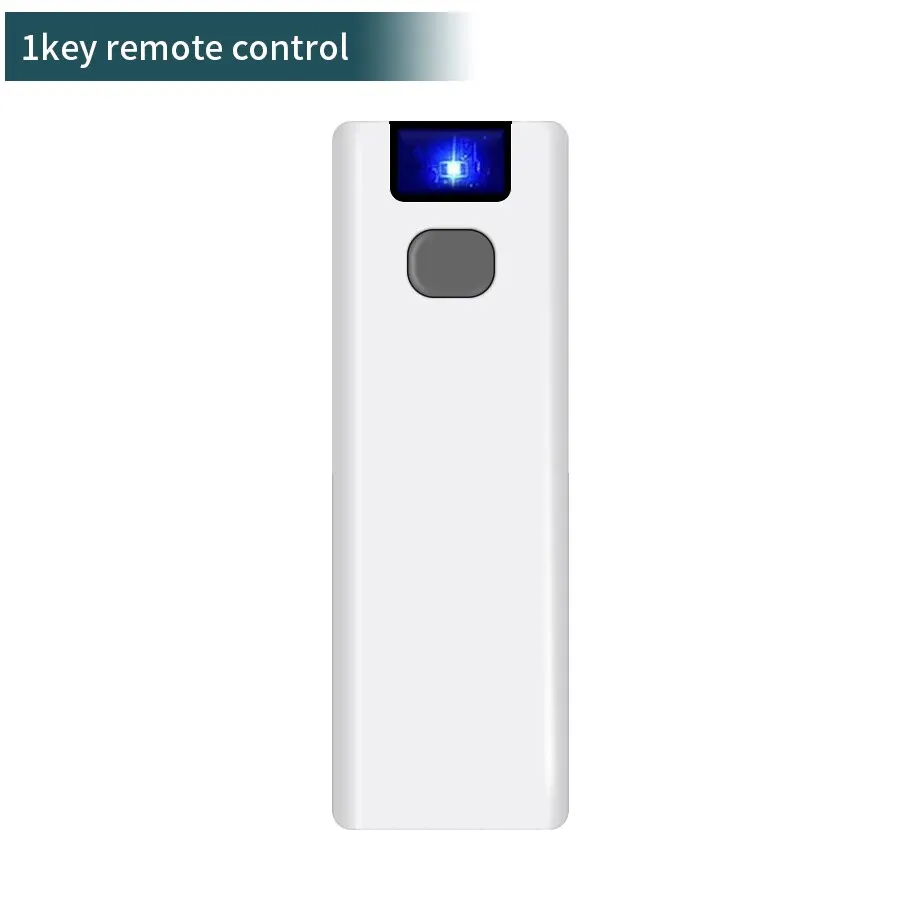

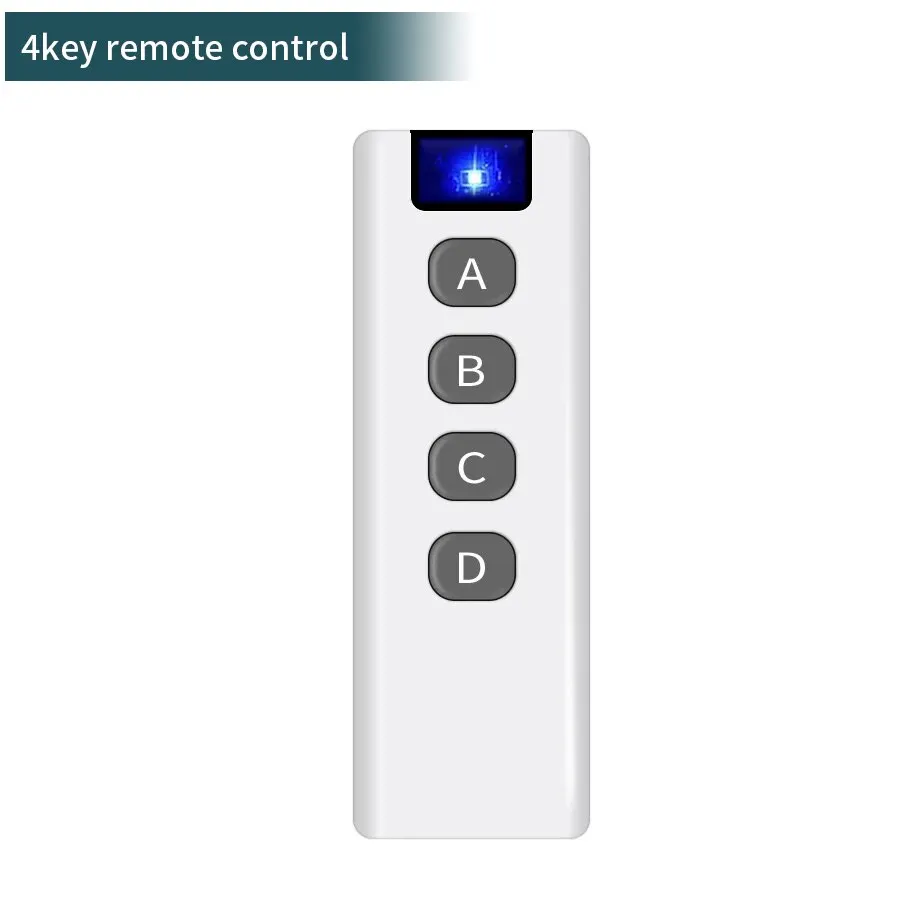

433 MHz RF remote control data:

1 Working voltage: DC 12V

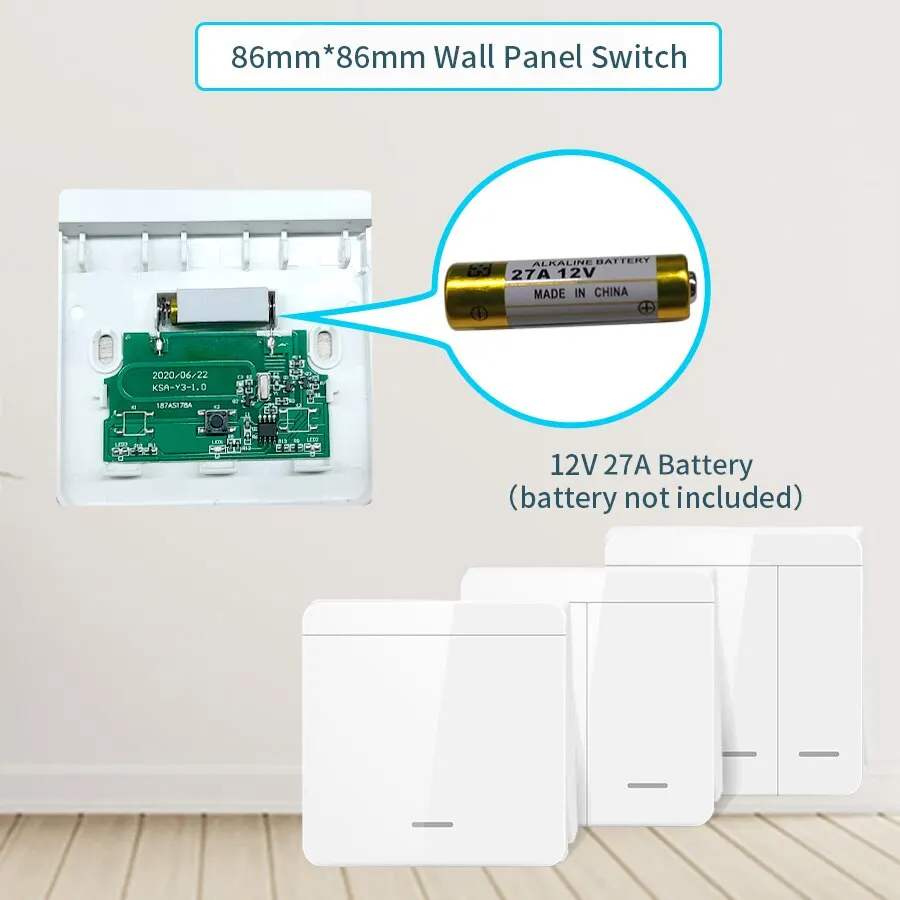

2 Power Supply: 23A 12V Battery(not include)
3 Working current: ≤ 10mA
4 Radiation power: ≤ 10mW
5 Timing resistor: 4.7M
6 Modulation mode: ASK (Amplitude modulation)
7 Working Frequency: 433mHz
8 Transmission Distance: 50m (It is the theory distance at the open field)
9 Encoder type: learning code 1527
10 remote control size: 110*38*15mm
11 Work with : 433mhz receiver

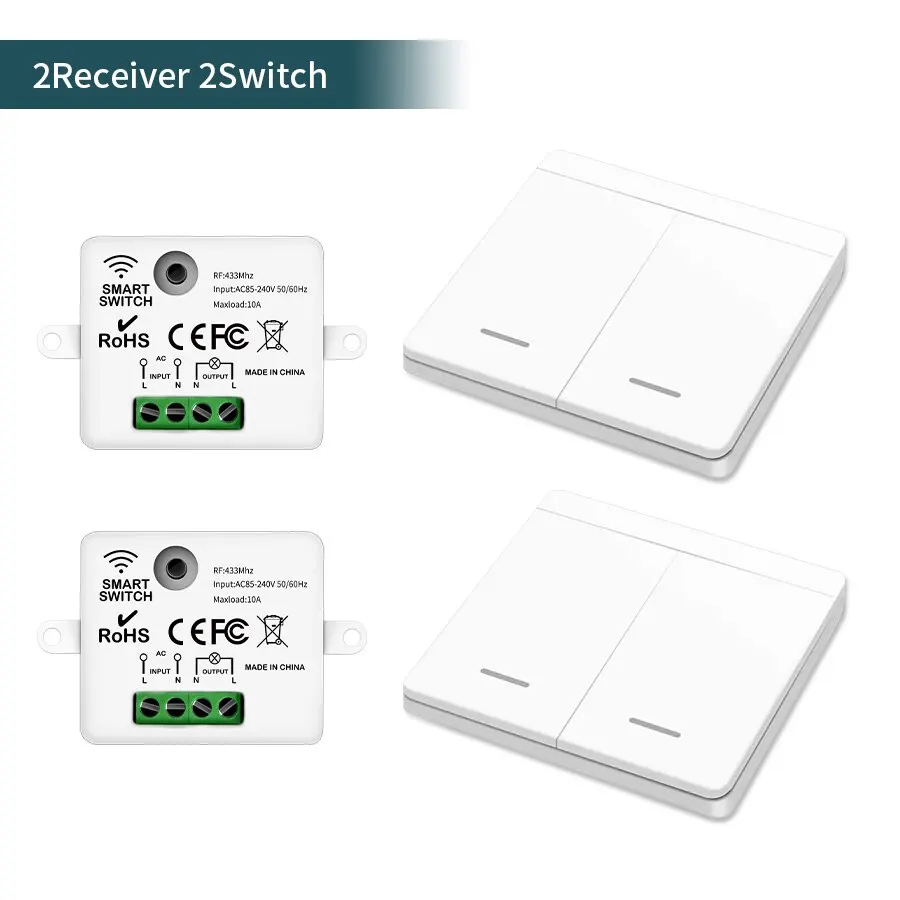

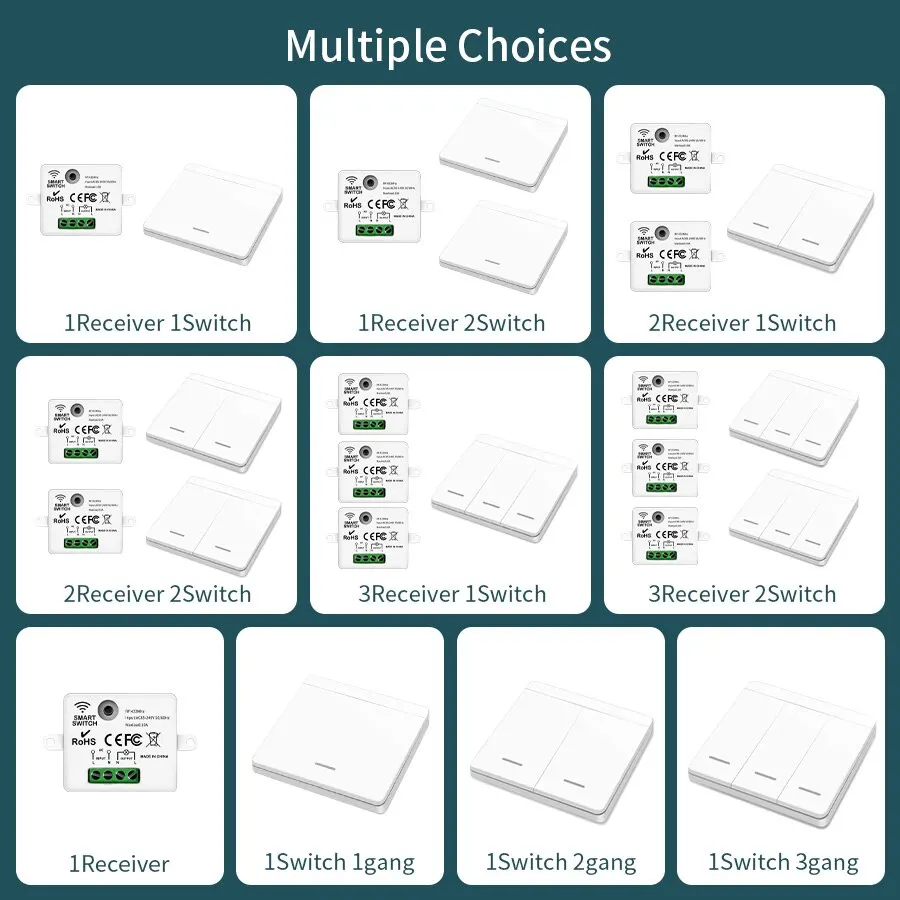

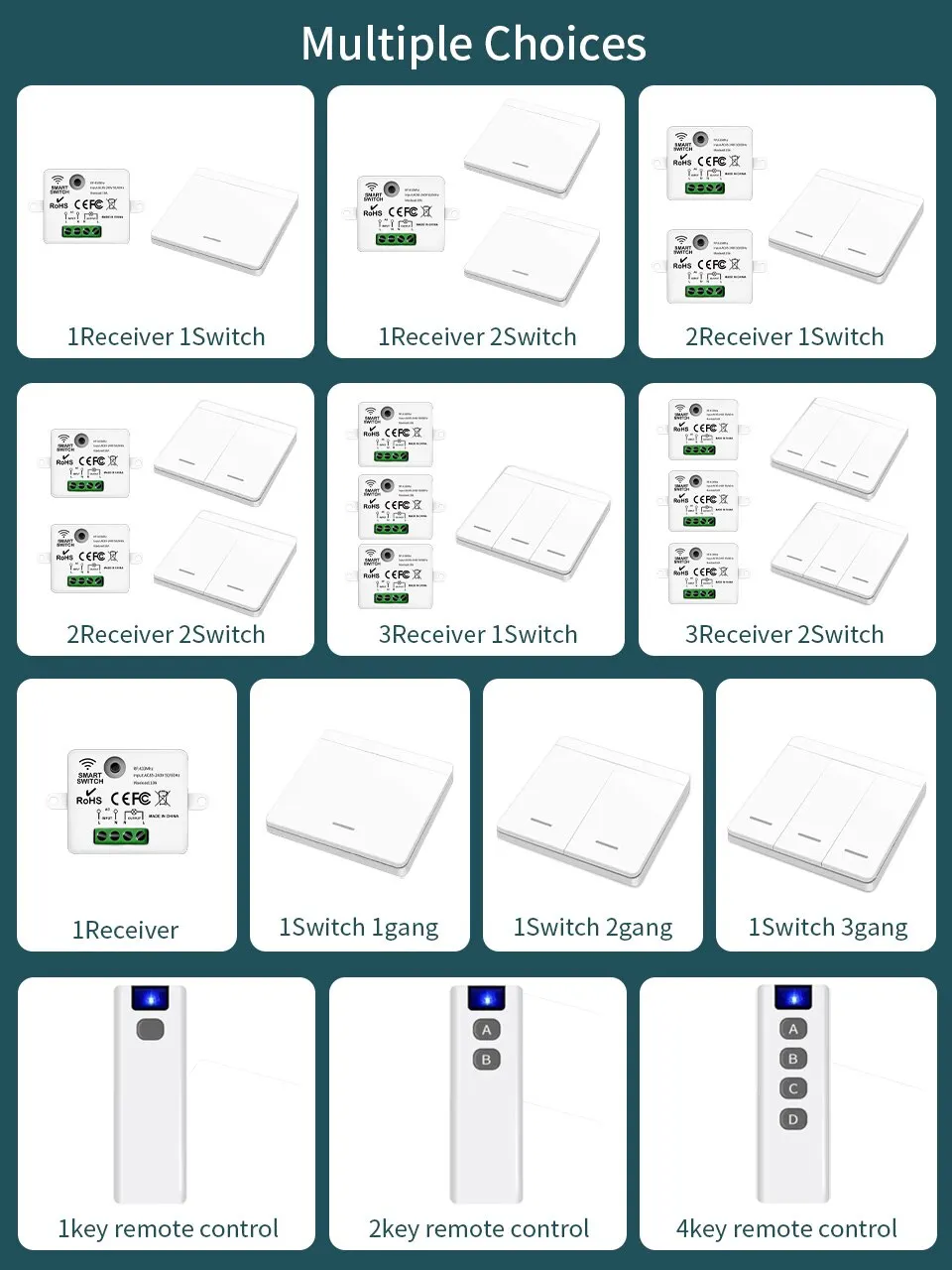

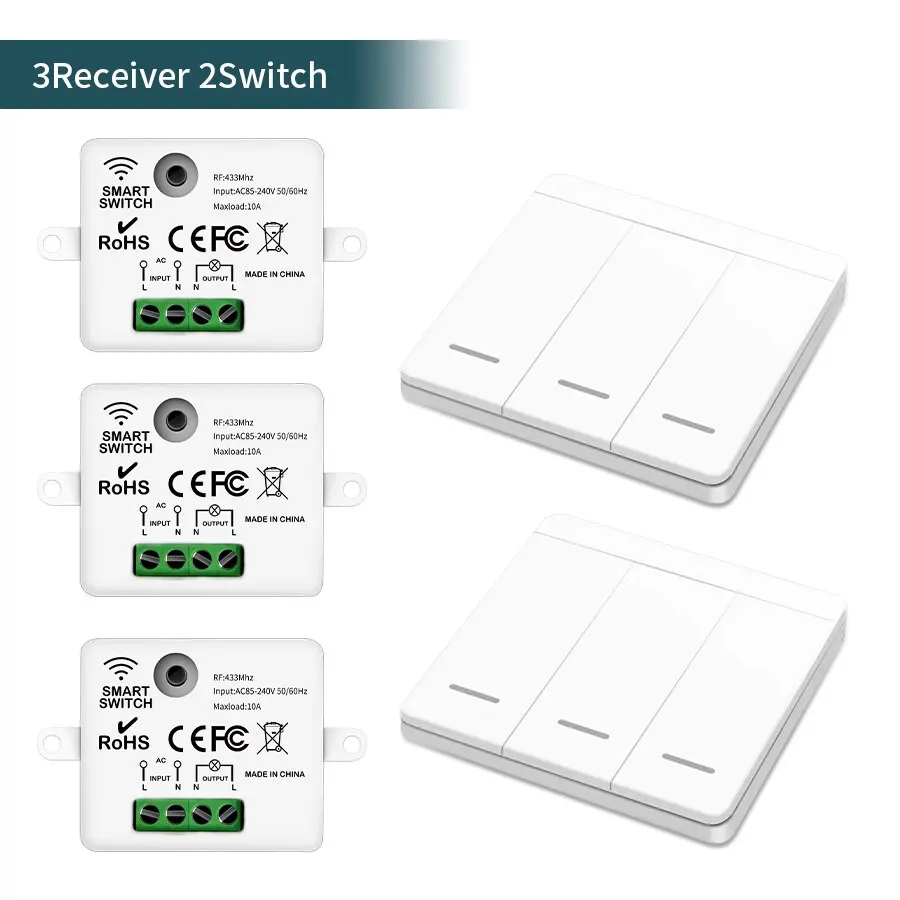

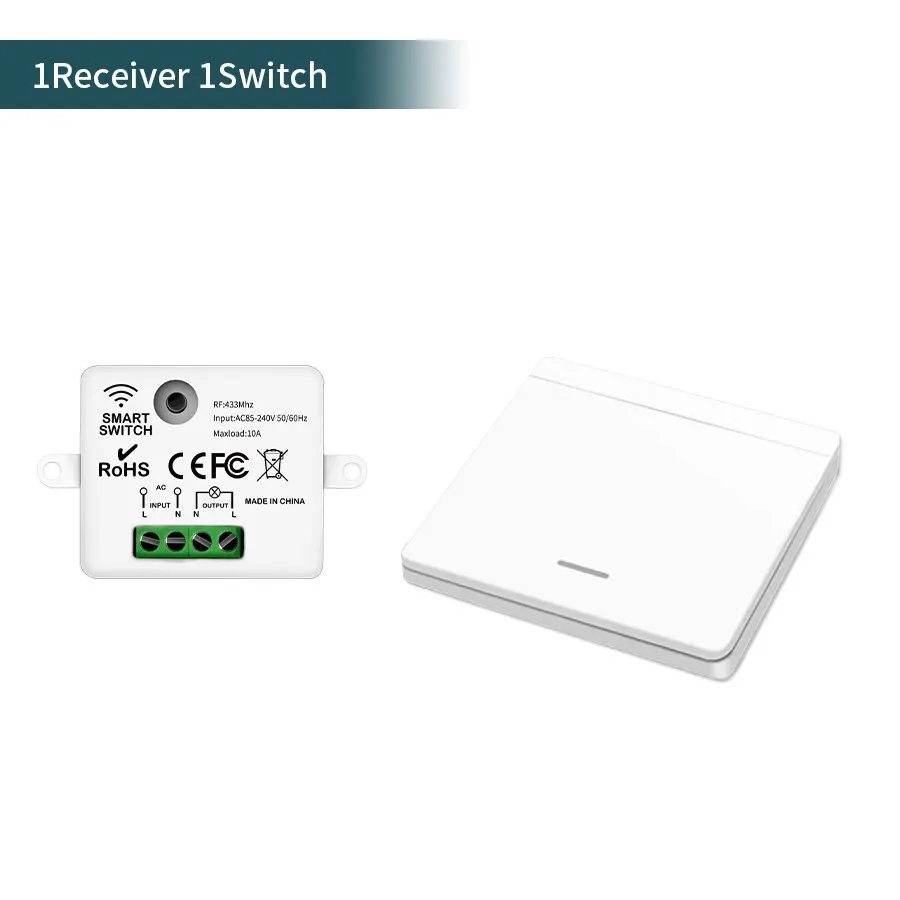

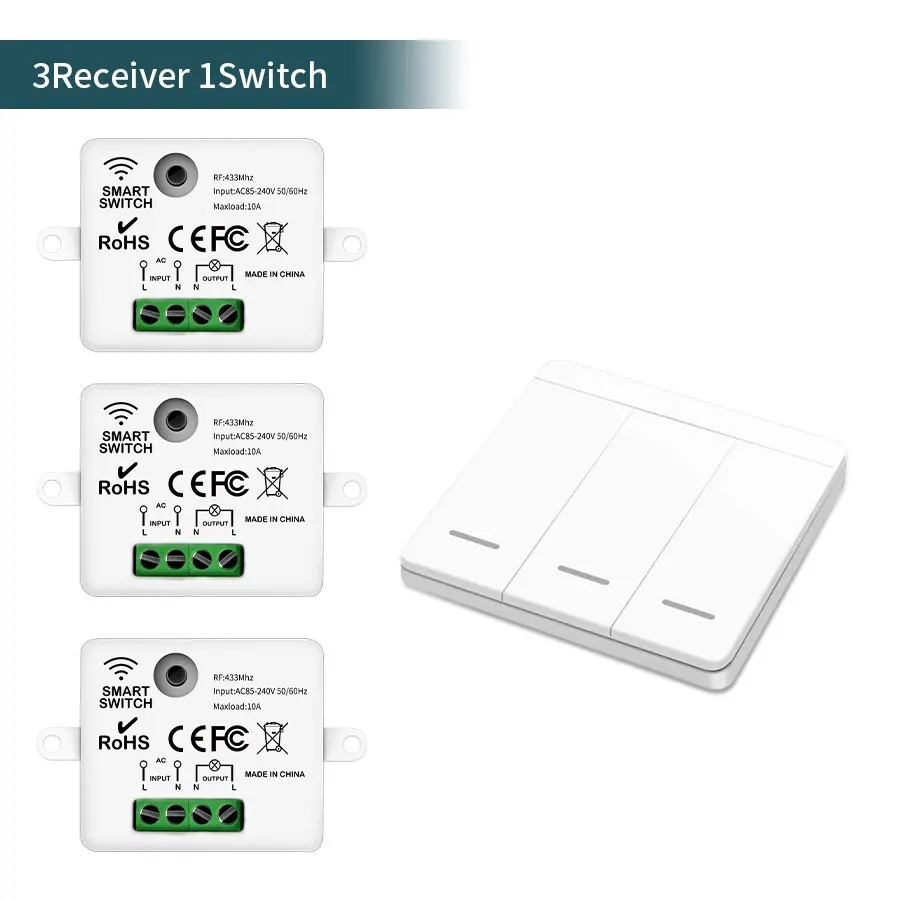

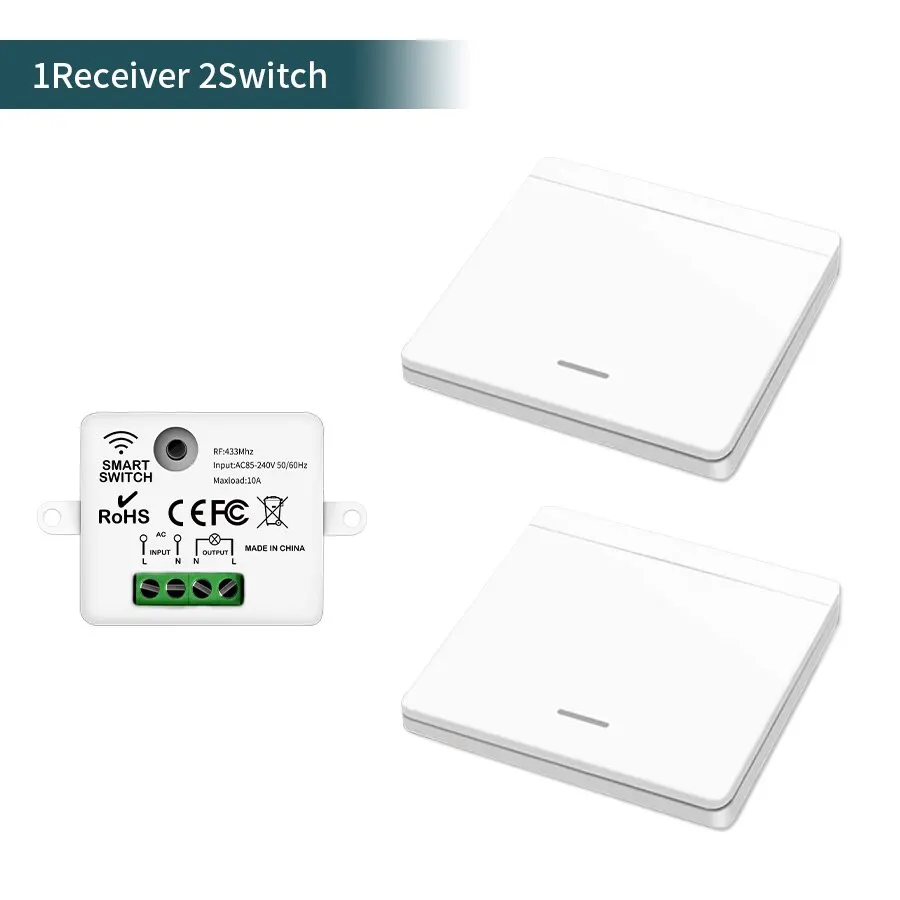

Multiple Choices:
There are various combinations in the options, which are convenient to use, please purchase according to actual needs.

User manual
