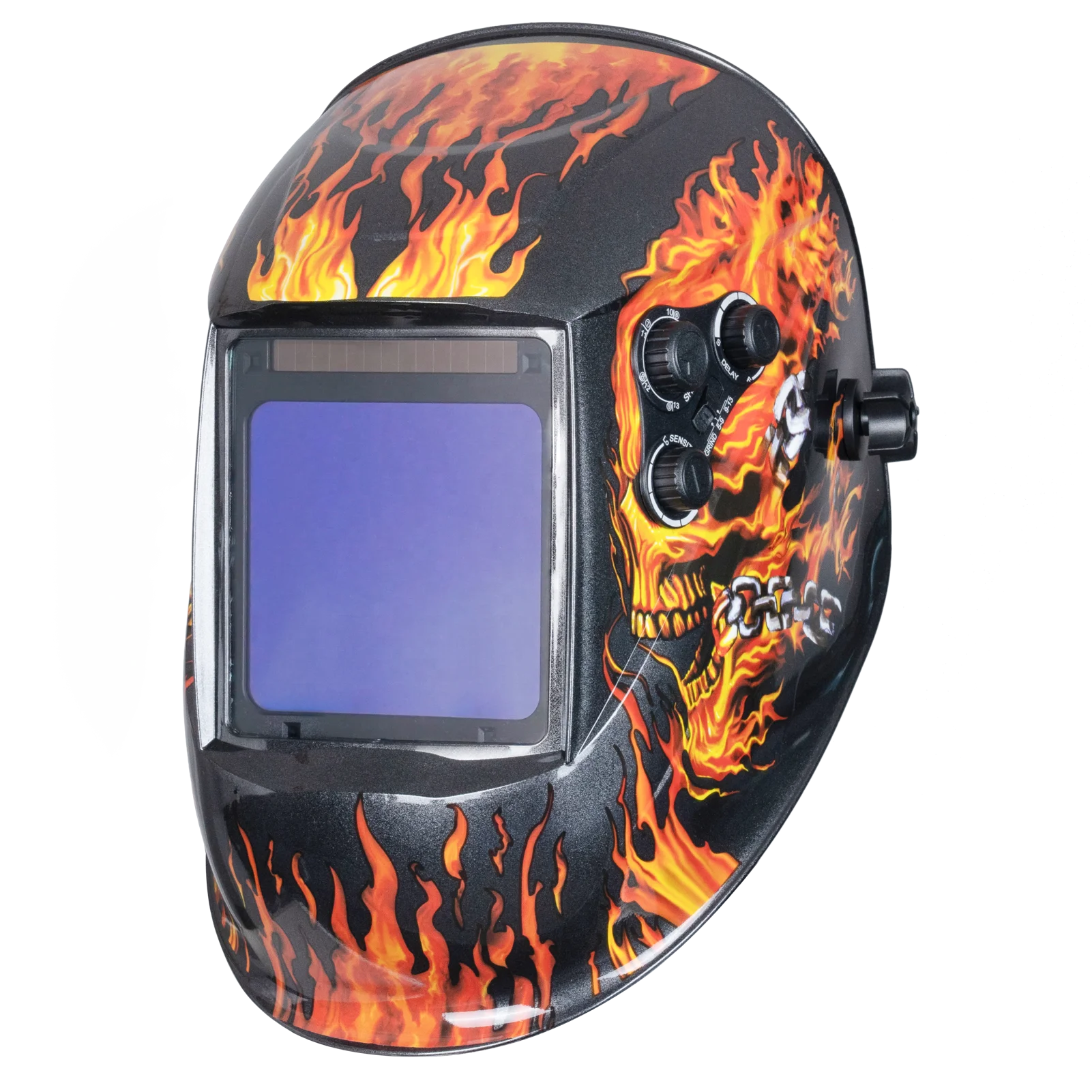

Welding Mask 1/1/1/1 Auto Darkening Welding Helmet 100x97mm Large View TRUE Color 4 Sensors for MIG, MAG, MMA Welder Machine
Price range: 54.88 $ through 67.77 $
Welding Mask 1/1/1/1 Auto Darkening Welding Helmet 100x97mm Large View TRUE Color 4 Sensors for MIG, MAG, MMA Welder Machine

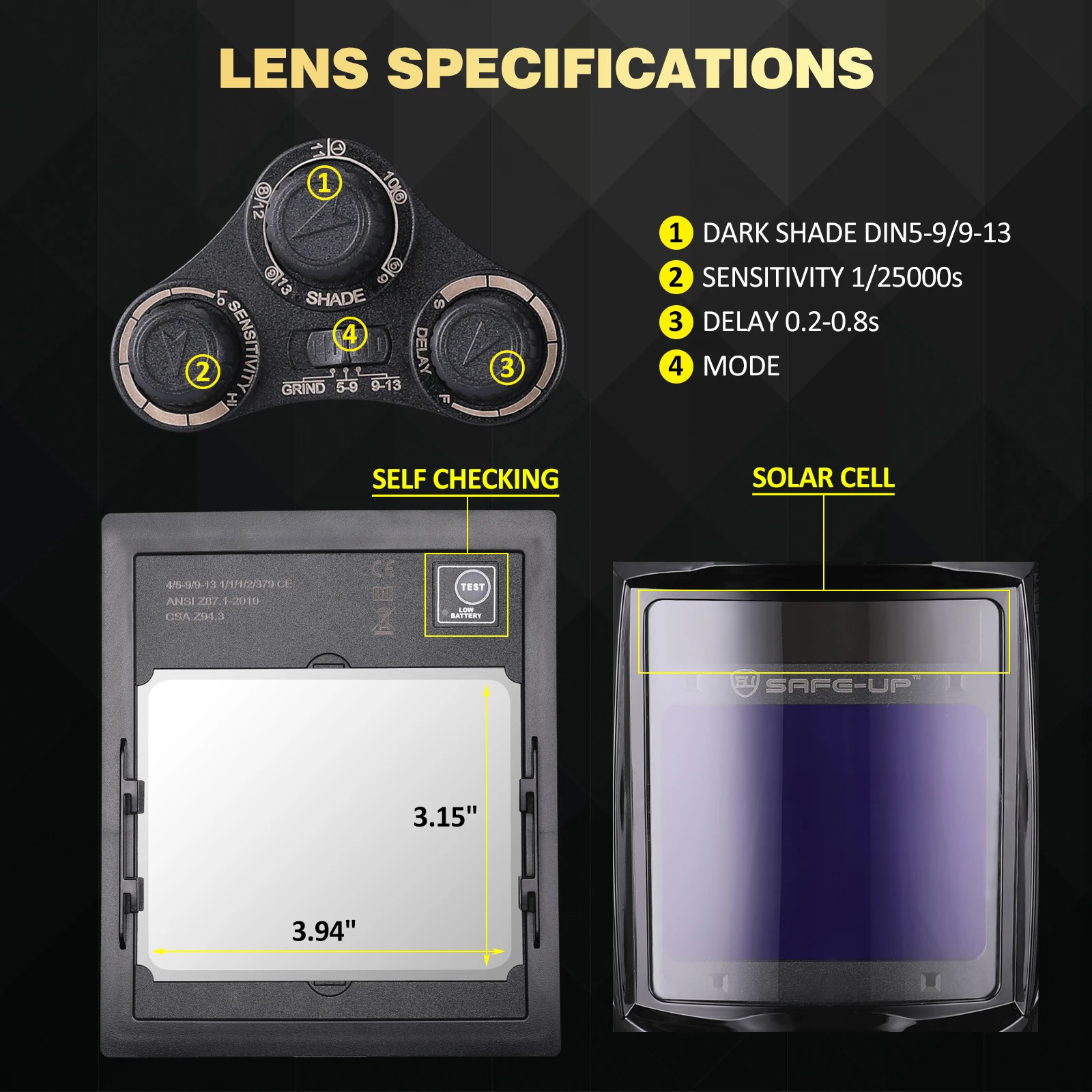

UN109 Specification:
Type: Welding Helmet
Optical Class:1/1/1/1
Filter size: 114×133×10mm
Viewing Area: 100×97mm
Light state: DIN.4
Dark state: DIN.5-8/9-13
Switch time: 1/25000s
Delay time: 0.2-0.8s adjustable
Power supply: Solar cells, CR2450 lithium batteries
Power on/off: Fully automatic
Shade knob: Out
Arc sensor: 4
Suitable for ARC, MIG, Spot, Micro, Wire, AC, DC, and Plasma Welders and Plasma Cutters.
UN106 Specification:
Optical class: 1/1/1/2
Viewing area (mm): 100*60
Size of the cartridge (mm): 114*133*10
UV / IR Protection: DIN16
Light / Dark state: DIN4/5-9/9-13
Arc Sensors: 4
Power Supply: Solar cells + Replaceable CR2032 lithium battery
Replace Battery: YES
Switching time: 1/30000s
Delay time (dark to light): 0.1-1.0S Variable adjusted by an internal knob
Low TIG amps rated: 5 amps (DC/AC)
Grinding: YES
Features:
Large Viewing Screen & True Color:
The auto darkening welding helmet provides large viewing screen 3.94″X3.81″ with 4 Premium Sensors and adopts the latest True-Color technology to restore every detail of working conditions.
1/1/1/1 optical clarity:
This welding helmets features is improving visibility and reduces eye strain by minimizing the traditional lime green color in the view screen.
Ultimate eye protection:
The SAFEUP welding helmet auto-darkening function goes from light to dark in 1/25,000 seconds; high-quality liquid crystals and optical coatings protect against UV and infrared radiation as well as glare, in accordance with DIN5-9/9-13 protection standards.
4 Arc Sensors:
The SAFEUP welding mask includes 4 intelligent arc sensors that adapt to different environments and task durations; whether for grinding or welding applications, the welding mask is ideally suited for MIG, MAG, MMA and ARC welding processes.
1x Welding Helmet(with battery)
1x Headband
1x Manual
| Weight | 24 kg |
|---|---|
| Dimensions | 23 cm |
| Brand Name |
SAFEUP |
| Helmet Material |
PP |
| Origin |
Mainland China |
| Sensitivity |
1/25000s |
| Power Supply |
Solar cells, CR2450 lithium battery |
| Auto-Darkening |
YES |
| Certification |
CE |
| Solar Powered |
YES |
| Is Smart Device |
no |
| View Area |
100x97mm |
| Switch Time |
0.2-1.0s adjustable |
| Cartridge Size |
114x133x10mm |
| Model Number |
UN109 |
| Type |
Welding Mask Professional |
| Optical Class |
1/1/1/1 |
| Light state |
DIN.4 |
| Dark state |
DIN.5-8/9-13 |
| Power on/off |
Fully automatic |
| Shade knob |
Out |
| Protect Grade against UVB |
DIN 16 |
| Operating Temperature |
– 5℃-+ 55℃ |
| Arc sensor |
4 pieces |
| With cutting function |
Yes |
| Self-test function |
Yes |
| Low battery alert |
Yes |
| Choice |
yes |
