ETFE 32-90
Material: Monocrystalline silicon
Maximum Power(Pmax): 90W±5%
Voltage at Maximum Power (Vmp): 18.50V
Maximum Power Current (Imp): 4.86A
Open-Circuit Voltage (Voc): 23V
Short-Circuit Current (Isc): 5.1A
Nominal Operating Cell Temp.(NOCT): -45 to 80℃
Maximum System Voltage: DC1000V
Maximum Series Fuse: 15A
Dimension: 885mm(L)*535mm(W)*2.5mm(H) Equal To 34.84Inch(L)*21.26inch(W)*0.09inch（H）
Package Weight: 1.95kg
Package Dimension: 900mm*570mm*40mm
(The above data is based on the laboratory standard test environment)
For field connections, use minimum No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.
Advantages of ETFE Solar Panels
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durable With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:

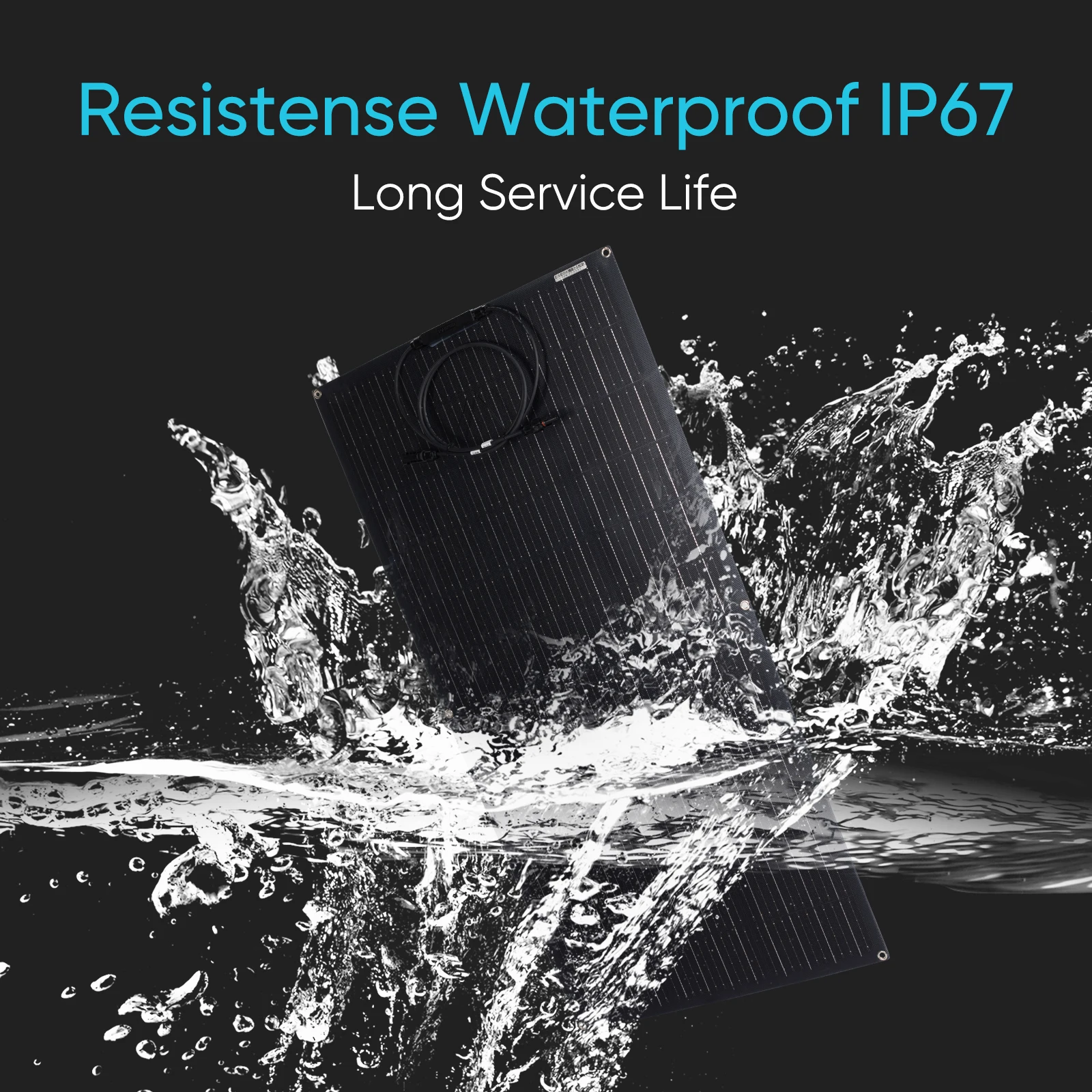

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5mm, 2 cables with connectors comes with the panel automatically, Cable Length with About 900mm.
The back has 6 drill holes that can be quickly installed.
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Voltage at Maximum Power (Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Solar Cell: 33pcs 166mm*90.5mm; 12BB Solar Cell or
36pcs 166mm*83.5mm; 12BB Solar Cell （randomly shipment）
Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch（H）
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections, use minimum No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。
