UV 5R Plus Walkie Talkie Portable Am Fm Two Way Radio Commutator VHF Station K5 Receiver Ham Wireless Set Long Range

UV 5R Plus Walkie Talkie Portable Am Fm Two Way Radio Commutator VHF Station K5 Receiver Ham Wireless Set Long Range

• Long Range :Communicate over a distance of up to 5km with this walkie talkie, making it perfect for outdoor activities and emergency situations.

[ 200 Channel ] – [ Cross-Band Intercom ]

[ 1750HZ Call Tone ] – [ Program On Site ]

[ Emergency Alert ] – [ Reverse Frequency Function ]

[ 10-Group Scrambler ] – [ Multi-Scan ]

[ CTCSS/DCS ] – [ 10 Emergency Weather Channels ]

[ PC Programmable ] – [ Busy Channel Lock ]

[ VOX ] -[ Frequency And Channel Mode Shift ]

[ Time-Out-Timer ] – [ Wireless Radio Replication ]

[ Large LCD Display ] – [ Voice Prompt ]

[ Reminding Switch ] – [ Remote Kill/Revive ]

[ Power-on Password Protection(By PC Programmable)]

[ AM/FM Aviation Band Receiving ] – [ FM Radio ]

[ Charger-Base Charging ] – [ Wide/Narrow Bandwidth ]

[ Offset Frequency Direction Set ] – [ Reset ]

[ Squelch Level Adjustable ] – [ Dual-watch operation ]

[ Offset Frequency Setting ] – [ Channel Scan And Add ]

[ Automatic Signaling Search ] – [ Multi Step Frequency ]

[ One Key Call Channel ] – [ Keypad Lock ]

[ Backlight Auto Off Time Selective ]- [ Jacklight]

[ DTMF Calling ] – [ DTMF ANI ]

[ DTMF Select Call (single call, group call, all call) ]

[ Repeater Forwarding Confirmation Function ]

[ Multi Display Of Channel No./Channel Frequency/Channel Name ]

[ H (High)，M (Medium)，L (Low) Output Power Selective ]

[ Multi-Band Transmitting & 50∽600MHz Receiving ]

[ Receive/Transmit Code Setting Separately ]

[ High Capacity Battery Long Standby Time ]

[ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

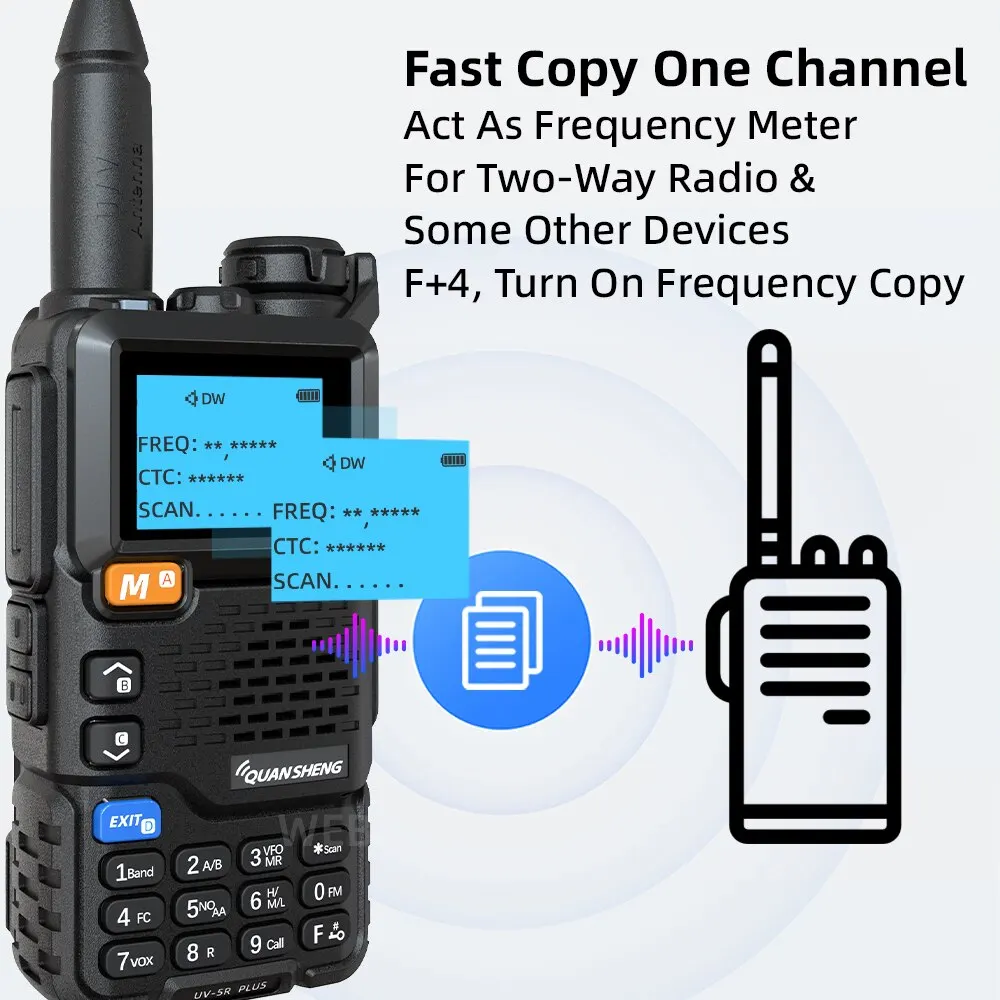

Fast Copy Frequency .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

F+4, Turn On Frequency Copy .

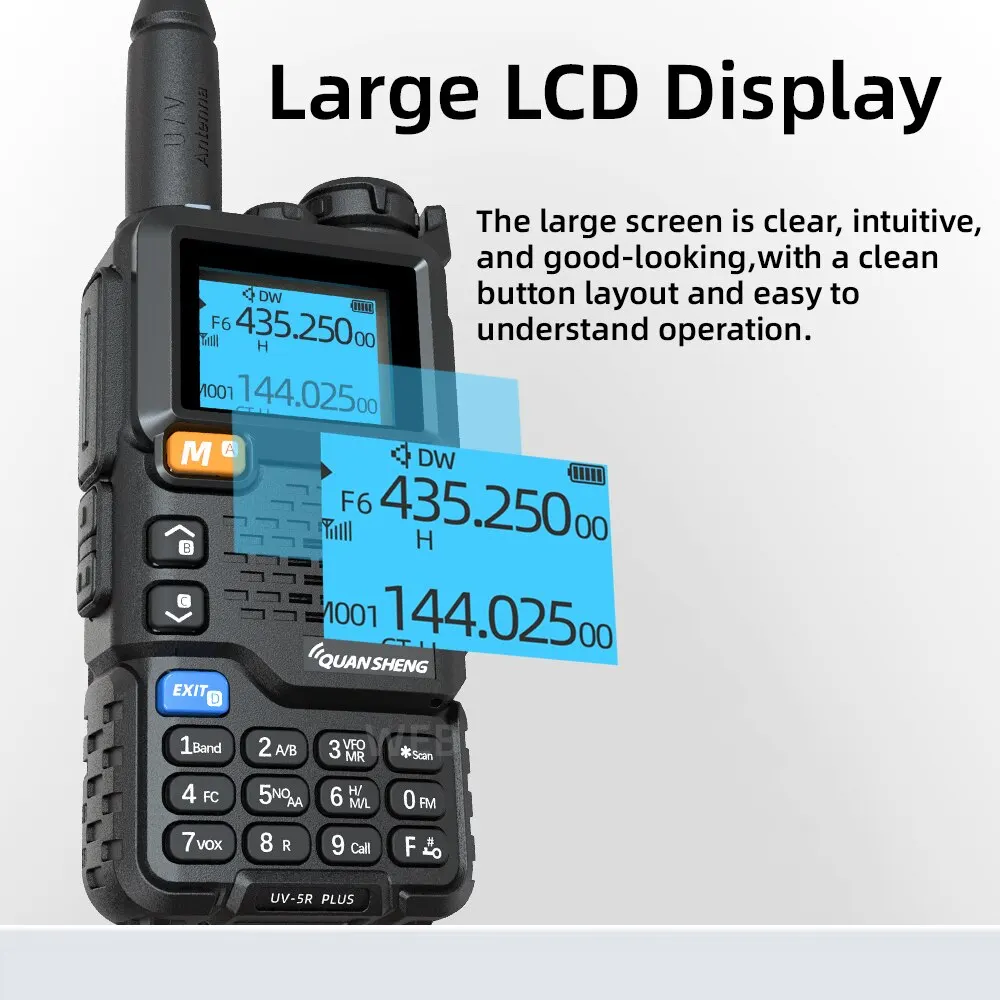

Large LCD Display.

The large screen is clear, intuitive,and good-looking,with a clean button layout and easy to understand operation.

AM/FM Aviation Band Receiving .

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

10-Group Scrambler .Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection （By PC Programmable）.

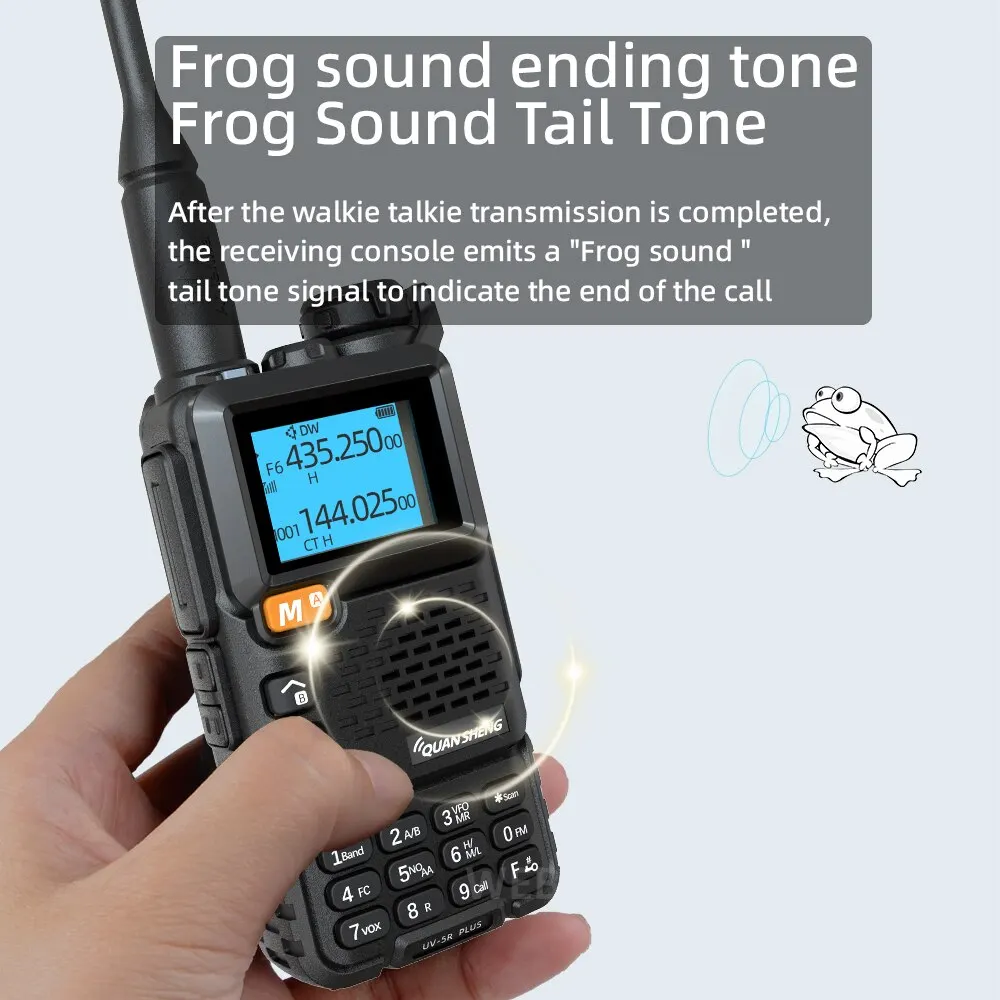

Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a “Frog sound ” tail tone signal to indicate the end of the call .

DTMF.

Dual tone multi frequency signal , Simple fast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode: FM: 11K / F3E(25KHz);

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Keys: 20 inches

Antenna Impedance:50 Oh?

RECEIVING:

Sensitivity:FM(12dB SINAD);

F1(50 ∽ 76):-121dBm

F2(108 ∽ 135.9975):-121dBm

F3(136 ∽ 173.9975):-123dBm

F4(174 ∽ 349.9975):-123dBm

F5(350 ∽ 399.9975):-123dBm

F6(400 ∽ 469.9975):-123dBm

F7(470 ∽ 599.9975):-121dBm

WFM(20dB SINAD):

AM(10dB S/N):F2(108

Audio Frequency：≥0.5W

Audio Distortion: < 10%

TRANSMITTING:

Output power: ≤ 5W;

Emissions current: ≤1.5A;

Maximum frequency Deviation: ≤ 5KHz (25 KHz), ≤ 2,5 KHz (12,5 KHz);

Distorzzjoni tal-modulazzjoni: <5%;

For the purposes of this Regulation, the following definitions shall apply:

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB；
