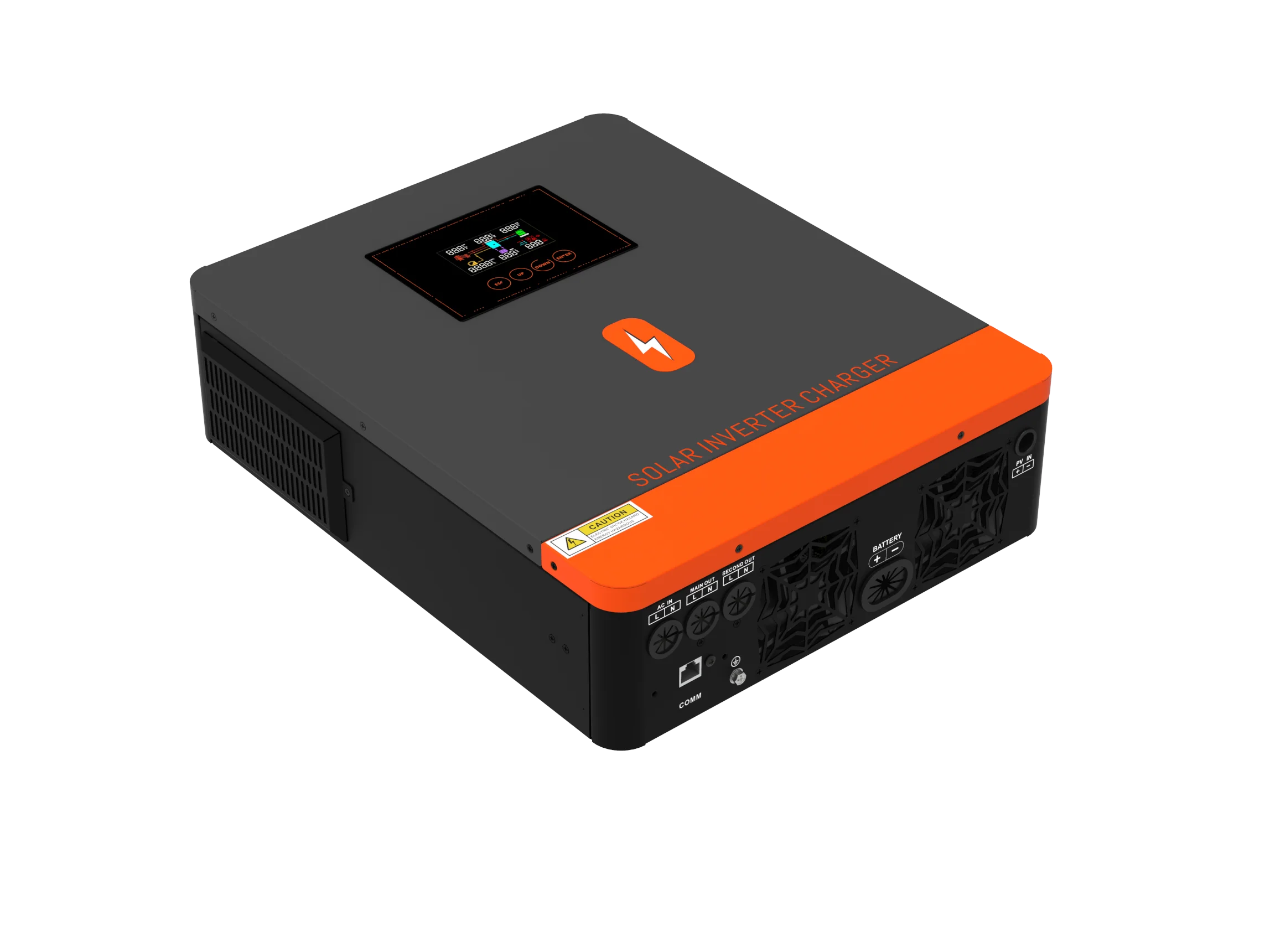

6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave Inverter 24V 48V 230V Dual Output with MPPT 120A Solar Charger

INVERTER MODEL

POW-HVM4.2M-24V-N

POW-HVM6.2M-48V-N

Line Mode Specifications

Input Voltage Waveform

Pure Sine Wave(Utility or Generator)

Nominal Input Voltage

230Vac

Max AC Input Voltage

300Vac

Efficiency(Line Mode)

>95%( Rated R load,battery full charged)

Transfer Time

10ms typical(UPS);20ms typical(Appliances)

Inverter Mode Specifications

Rated Output Power

4.2KW

6.2KW

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Output Frequency

50HZ

Peak Efficiency

0.93

Overload Protection

3s@≥150% load;5s@101%~150% load

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

24Vdc

48Vdc

Cold Start Voltage

23.0Vdc

46.0Vdc

No Load Power Consumption

30W

50W

Charge Mode Specifications

Charging Algorithm

3-Step

AC Charging Current (Max)

100A

100A

Max. PV Array Power

6200W

6500W

Nominal PV Voltage

240Vdc

360Vdc

PV Array MPPT Voltage Range

60Vdc~450Vdc

(Battery Connected)

120Vdc~450Vdc

(Battery Disconnected)

90Vdc~500Vdc

(Battery Connected)

120Vdc~500Vdc

(Battery Disconnected)

Max. PV Array Open Circuit Voltage

500Vdc

Max Charging Current(AC charger plus solar charger)

120A

120A

Grid-Tie Operation

Nominal Output Voltage

220/230/240VAC

Feed-in Grid Voltage Range

195-253VAC

Feed-in Grid Frequency Range

49-51±1Hz/59-61±1Hz

Nominal Output Current

18.2A

26.9A

Maximum Conversion Efficiency(DC/AC)

97%

Two Load Output Power

Full Load

4200W

6200W

Maximum Main Load

4200W

6200W

Maximum Second Load(battery model)

1400W

2066W

Main Load Cut Off Voltage

26VDC

52VDC

Main Load Return Voltage

27VDC

54VDC
