Description
2PCS Linear Guide Rails SBR12, SBR16, SBR20, SBR25, 800-2200mm and 4PCS UU Bearing Blocks Smooth Motion for DIY Mills CNC Parts
SBR Linear Guide Rail
High-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminium guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.
Aluminium SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.
Features & Details
- 【SBR Linear Guide Rail Set】:
- SBR12-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR12 guide rails and 4 x SBR12UU slide blocks. Dynamic Load Per Block: 372 N, Static Load Per Block: 549 N.
- SBR16-800 mm Linear motion guide rail includes 2 x 31.5 in/800 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
- SBR16-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
- SBR16-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
- SBR16-2000 mm Linear motion guide rail includes 2 x 78.7 in/2000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.
- SBR20-800 mm Linear motion guide rail includes 2 x 31.5 in/800 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR20-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR20-1800 mm Linear motion guide rail includes 2 x 70.9 in/1800 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR20-2200 mm Linear motion guide rail includes 2 x 86.6 in/2200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- SBR25-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200mm mm length SBR25 guide rails and 4 x SBR25UU slide blocks. Dynamic Load Per Block: 980 N, Static Load Per Block: 1570 N.
- 【Durable & Long-lasting】: The linear rail is made of carbon steel and aluminium with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminium slide blocks and ball bearings for smooth and unobstructed sliding.
- 【Low Noise Sliding】: Aluminium SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- 【High Precision】: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminium base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- 【Wide Application】: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

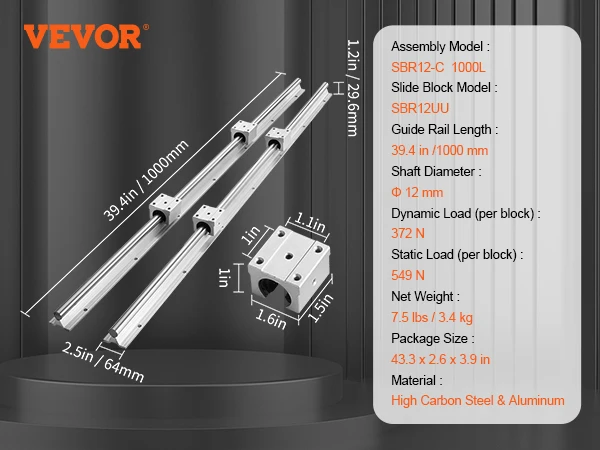

SBR12 1000MM

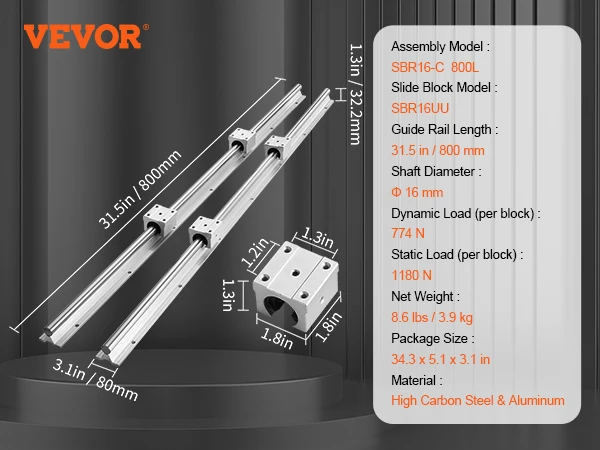

SBR16 800MM
SBR16 1000MM

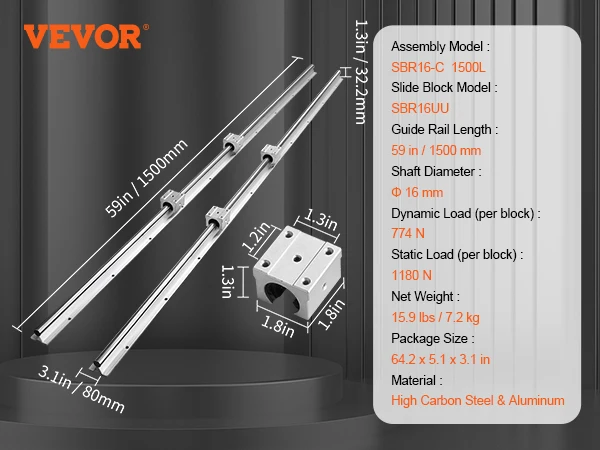

SBR16 1500MM
SBR16 2000MM

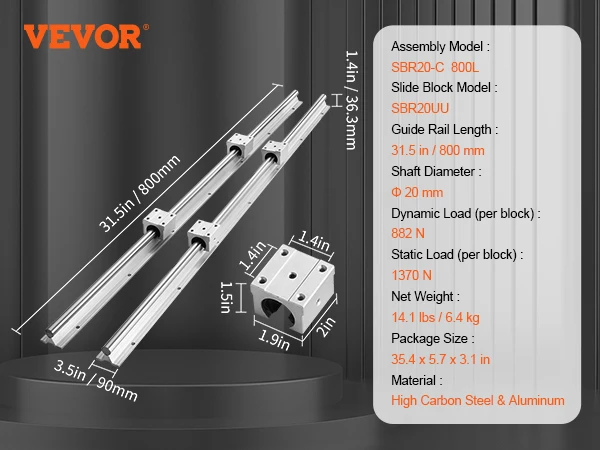

SBR20 800MM
SBR20 1000MM

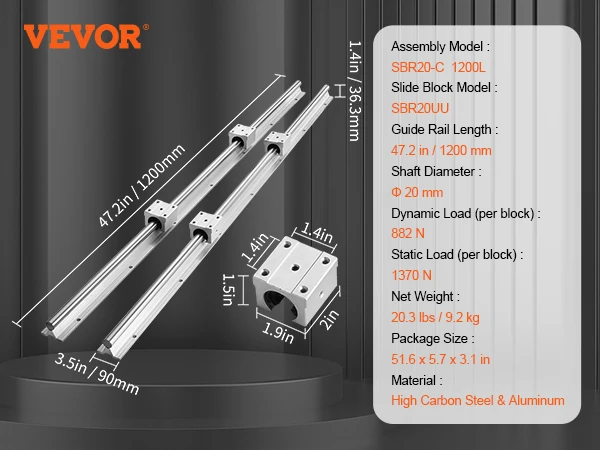

SBR20 1200MM
SBR20 1500MM

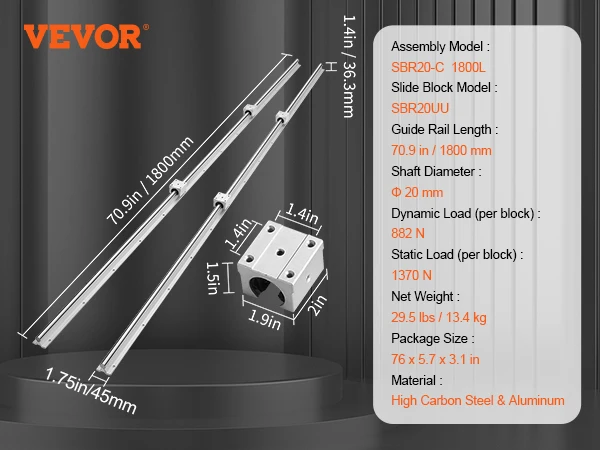

SBR20 1800MM

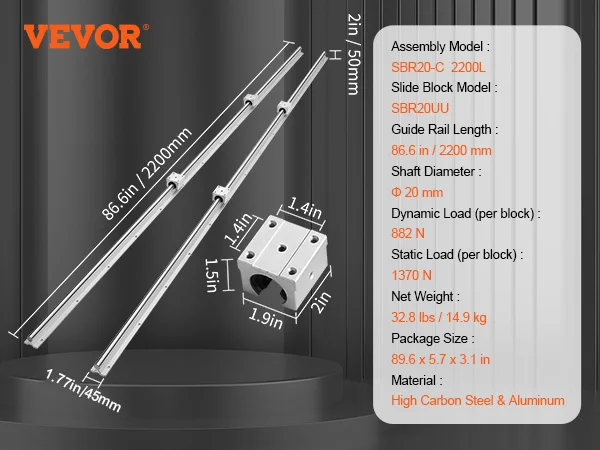

SBR20 2200MM

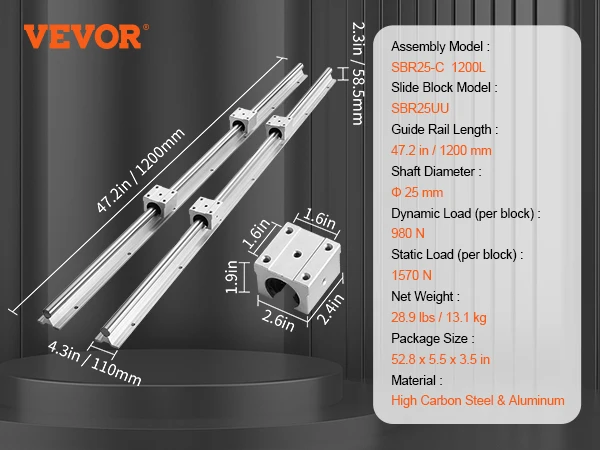

SBR25 1200MM
Additional information
| Weight | 11 kg |
|---|---|
| Dimensions | 8 cm |
| Brand Name |
VEVOR |
| Origin |
Mainland China |
| Certification |
CE |
| Product |
SBR 2PCS Linear Guide Rails |
| Feature |
High Precision Smooth Motion |
| Performance |
Little Noise |
| Rail Shafts |
SBR12/SBR16/SBR20/SBR25, 800-2200mm |
| Material |
High Carbon Steel & Aluminum |
