T-type CNC Sliding Table Rail Linear Stage Transport Guide Platform Stepper Motor Drive Kit Mini Slide Table XYZ Axis Table
Price range: 77.23 $ through 132.79 $
T-type CNC Sliding Table Rail Linear Stage Transport Guide Platform Stepper Motor Drive Kit Mini Slide Table XYZ Axis Table

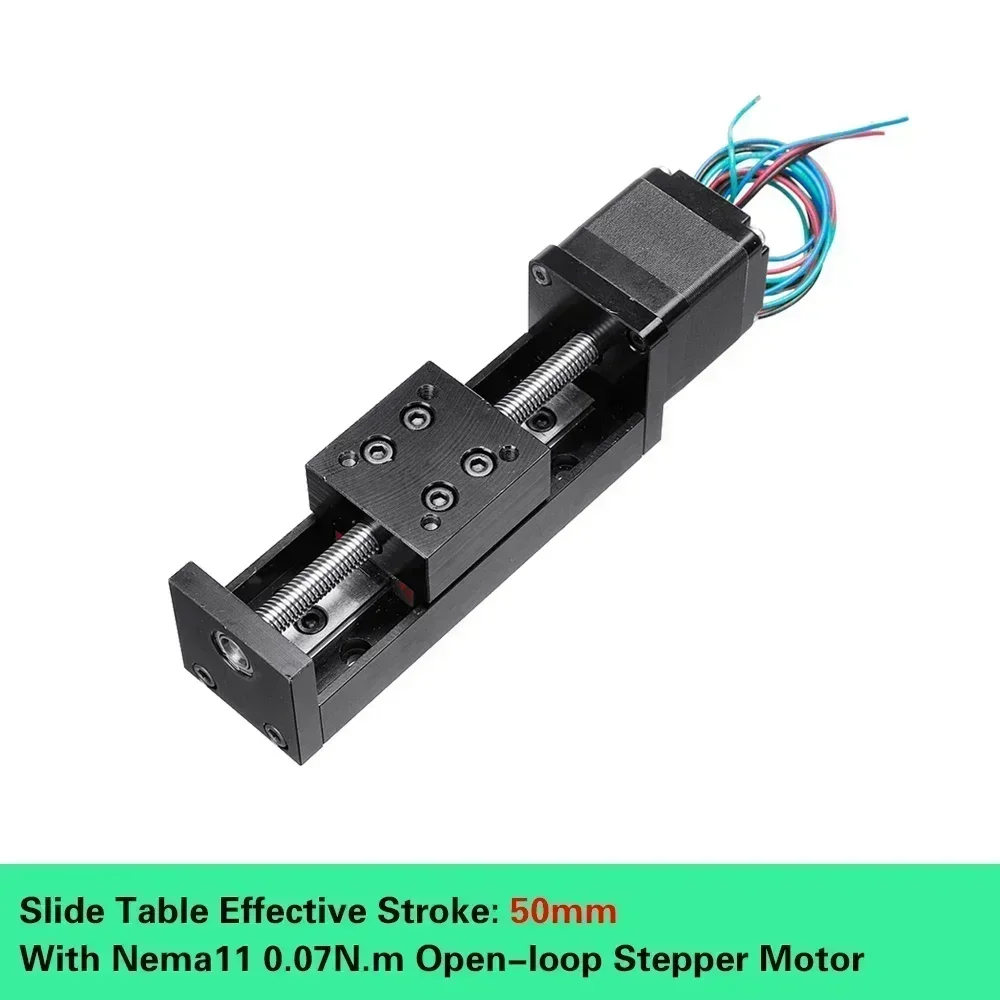

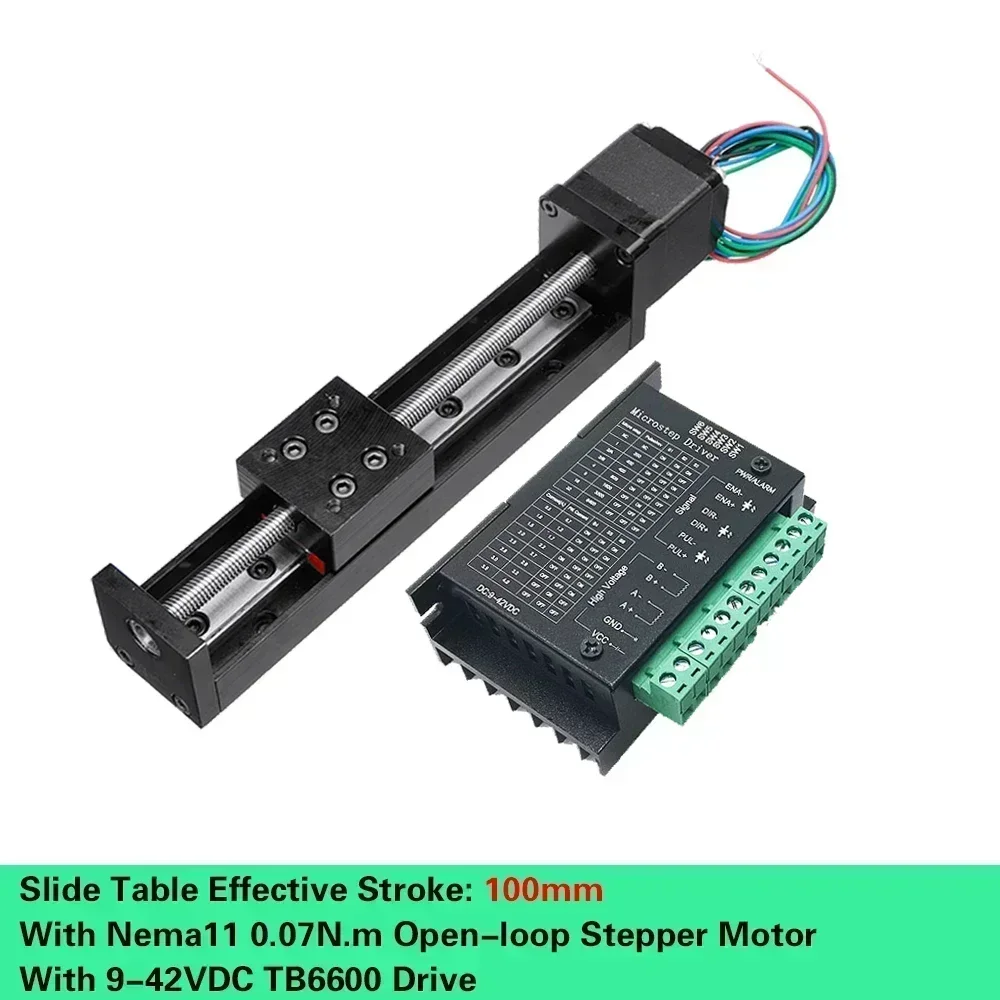

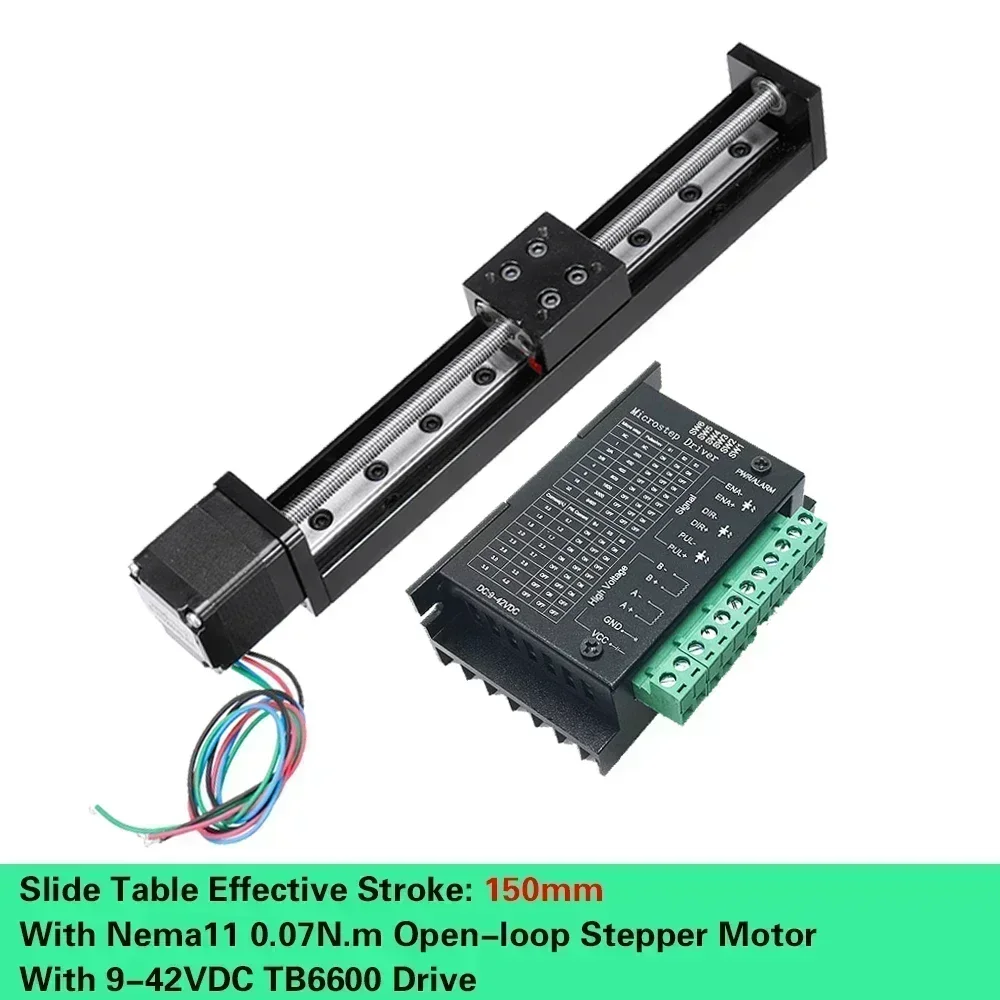

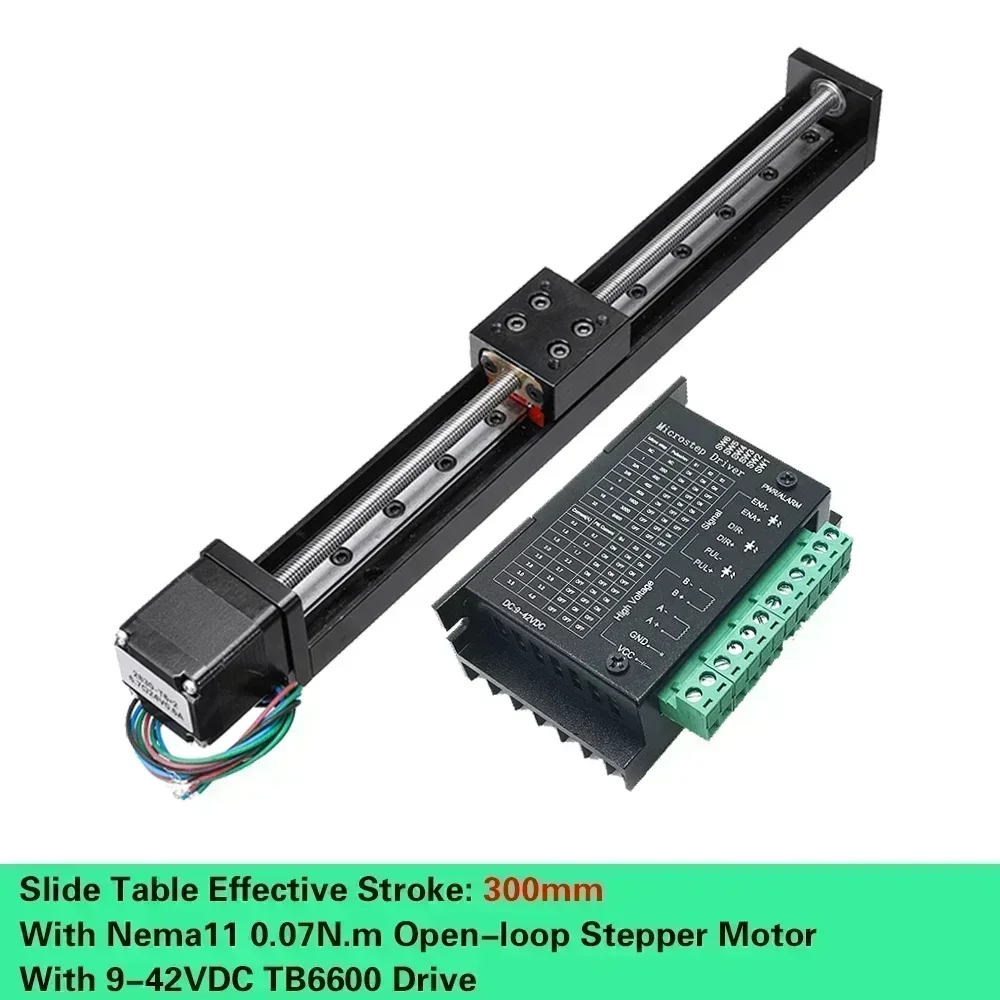

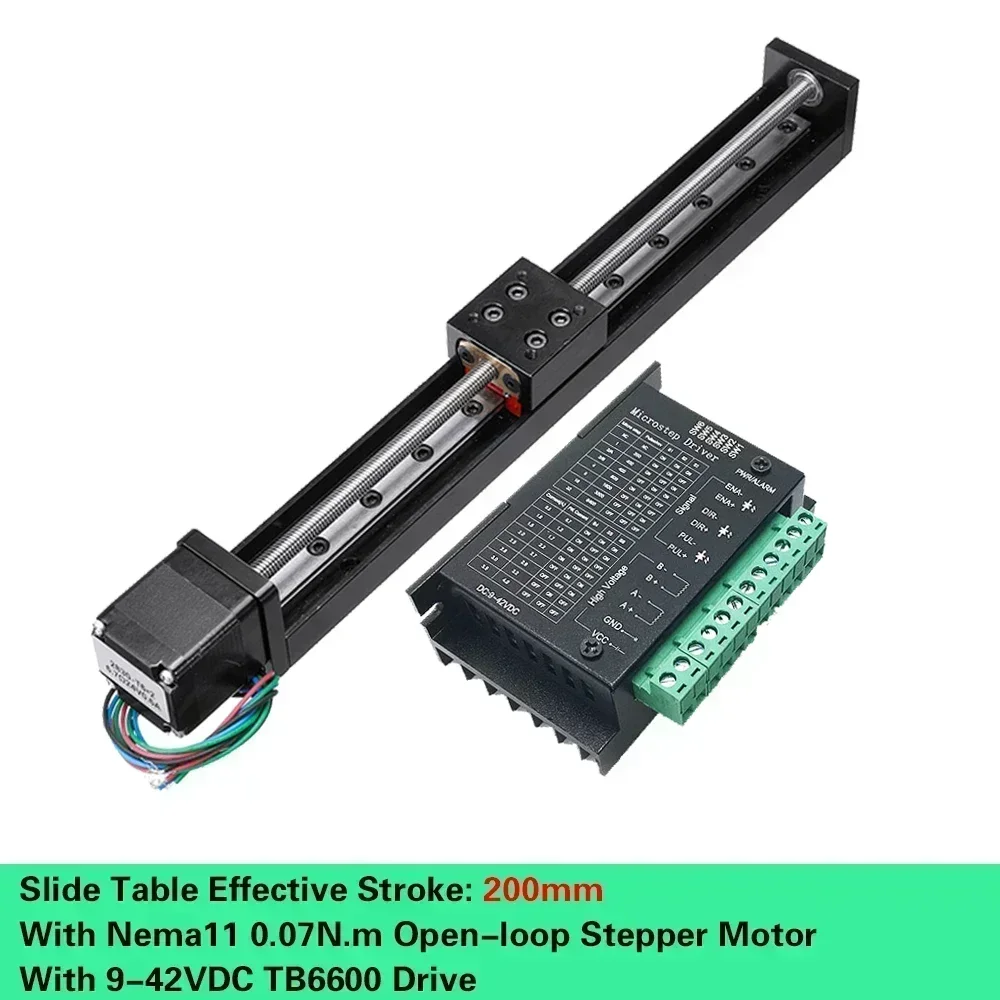

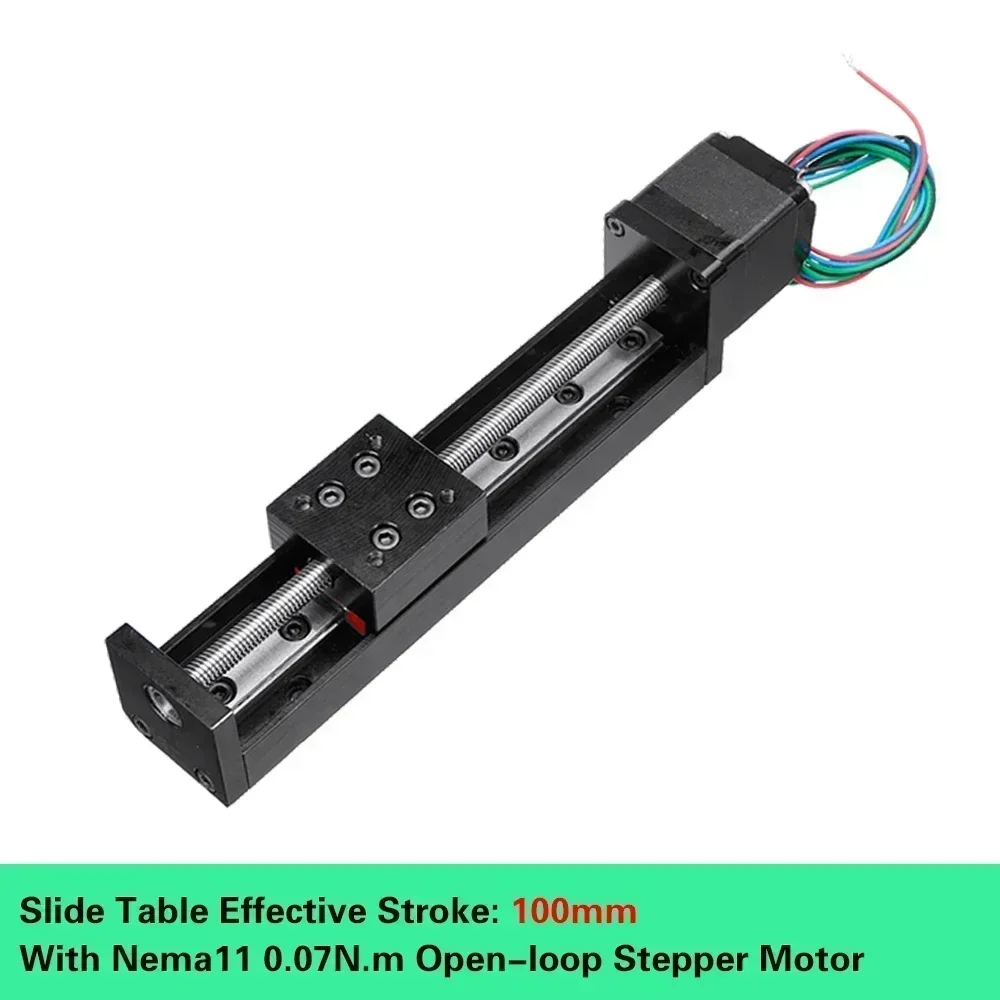

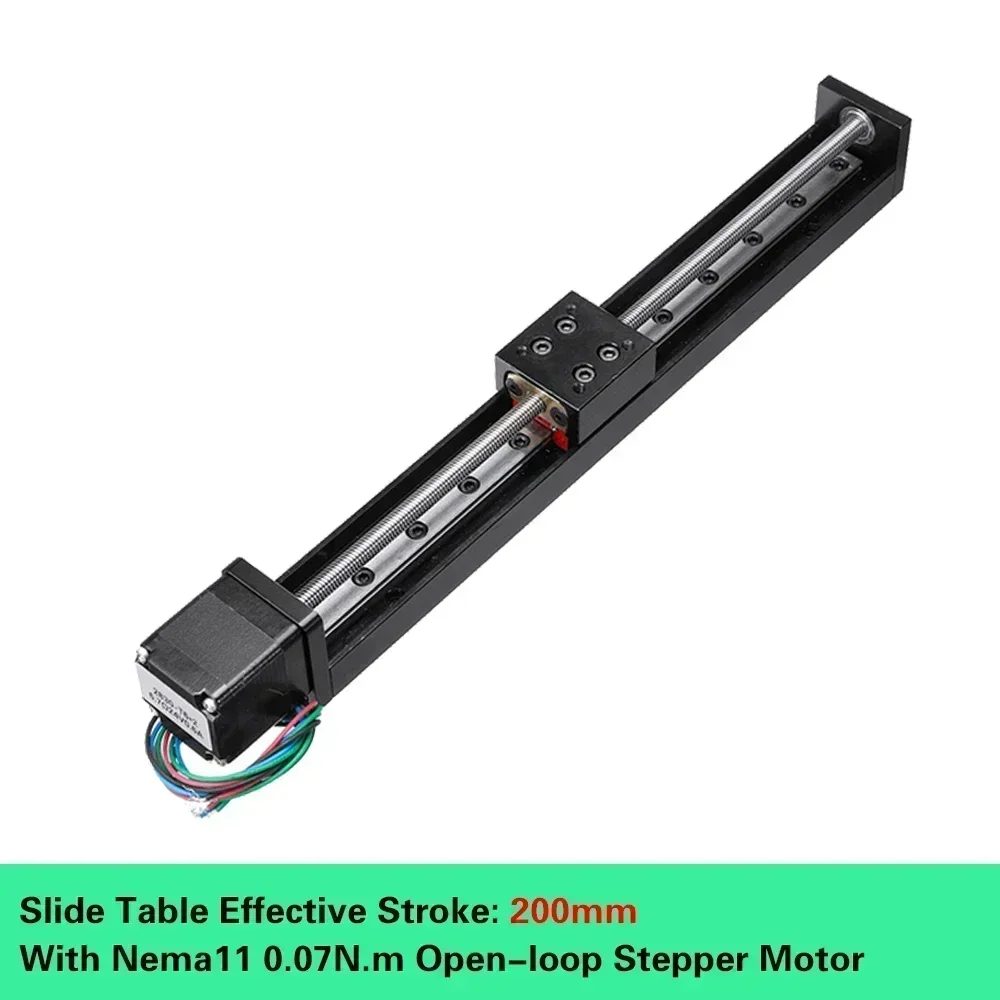

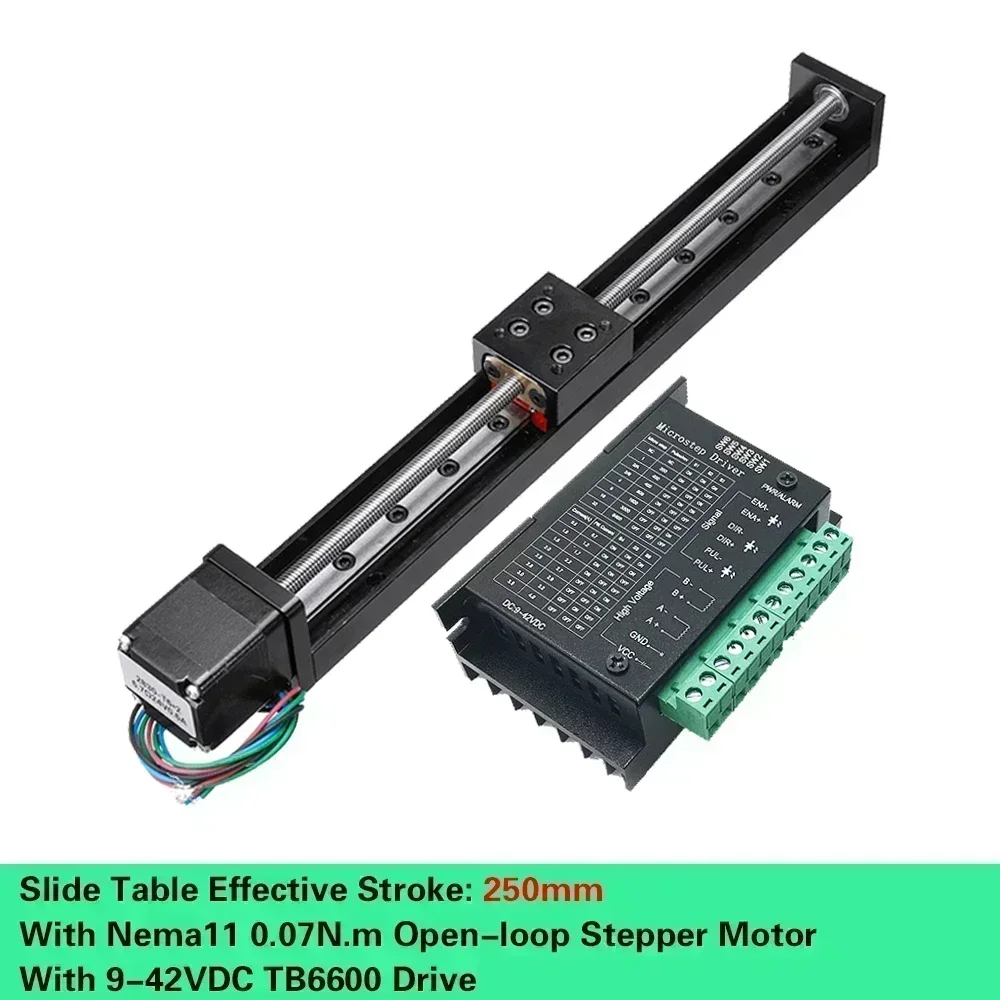

1* Sliding Table
1* Nema11 Open-loop Stepper Motor
Sliding Table
Specifications:
Model: T06
Slide type: Trapezoidal screw slide table
Horizontal load: 5KG (Max)
Vertical load: 1KG (Max)
Effective stroke: 50-300mm
Total Length: Effective Stroke+75mm
Mobile panel size: 30mm*32mm
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width: 6MM
Block: MGN8H
Screw Precision: C7
3D model: Click here to download
Pitch: 1mm/2mm/4mm/6mm/12mm (If the pitch your choose is 2mm, it means that the motor rotates once and the moving panel moves 2mm).
Stepper Motor Specifications :
Model: 28HB30-401A (Support customized 28HB40-401A motor)
Motor Flange Size: NEMA 11(28MM)
Holding torque: 0.07N.m
Body length: 30mm
Shaft diameter: 5mm
Type: Hybrid Motor
Phase: 2 Phase
Current : 0.6A
Certification: CCC,CE, ISO
Step angle: 1.8degree
Drive Specifications:
Model: TB6600
Input voltage: DC 9-42V
Input/ Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32
Operating environment temperature: -10～45℃
Storage temperature: -40℃～70℃
| Weight | 10 kg |
|---|---|
| Dimensions | 10 cm |
| Brand Name |
YUN DUAN |
| Origin |
Mainland China |
| Model Number |
T06 |
| Guide Width or Diameter |
12mm |
| Certification |
CE |
| Horizontal load |
5KG (Max) |
| Vertical load |
2.5KG(Max) |
| Screw Model |
Trapezoidal screw (T6) |
| Screw Pitch |
1mm/2mm/4mm/6mm/12mm |
| Motor Size |
NEMA11(28MM) |
| Holding torque |
6.5Ncm/0.065N.m |
| Mobile panel size |
30mm X 32mm |
| Repeat positioning accuracy |
0.02mm-0.03 |
| Maximum speed |
80mm/s |
| Rail width |
8MM |
| Block |
MGN8H |
| Stroke |
50MM/100MM/150MM/200MM/250MM/300MM |
| Product type 1 |
linear actuator table |
| Product type 2 |
linear stage |
| Product type 3 |
sliding table |
| Product type 4 |
stepper linear guide table |
| Product type 5 |
Mini slide table |
| Product type 6 |
Mini sliding table |
| Product type 7 |
Mini linear Stage table |
| Product type 8 |
XYZ axis linear guides table |
| Product type 10 |
motor linear rail table kit |
| Product type 11 |
T-type Sliding table |
| Product type 12 |
XY axis Sliding table |
| Product type 13 |
linear guide table |
| Product type 14 |
linear rail guide table |
| Product type 15 |
Z-axis sliding table |
| Product type 16 |
Mini linear rail table |
| Product type 17 |
T-type Sliding table |
| Product type 18 |
Mini linear guide table |
| Product type 20 |
T-type Sliding Table Rail Linear |
| Product type 21 |
Mini T-type Sliding Table |
