UV K5 (8) Walkie Talkie Portable Am Fm Two Way Radio Commutator Station Amateur Ham Wireless Set Long Range Receiver

UV K5 (8) Walkie Talkie Portable Am Fm Two Way Radio Commutator Station Amateur Ham Wireless Set Long Range Receiver

○ 200 Channel

○ Cross-Band Intercom

○ 1750HZ Call Tone

○ Program On Site

○ Emergency Alert

○ FM Radio

○ 10-Group Scrambler

○ Multi-Scan

○ CTCSS/DCS

○ Remote Kill/Revive

○ Keypad Lock

○ Jacklight

○ PC Programmable

○ Busy Channel Lock

○ VOX

○ Dual-watch operation

○ Time-Out-Timer

○ Reset

○ Large LCD Display

○ Voice Prompt

○ Reminding Switch

○ 10 Emergency Weather Channels

○ Power-on Password Protection（By PC Programmable）

○ AM/FM Aviation Band Receiving

○ Reverse Frequency Function

○ Type-C And Charger-Base Charging

○ Wide/Narrow Bandwidth

○ Offset Frequency Direction Set1

○ Wireless Radio Replication

○ Squelch Level Adjustable

○ Repeater Forwarding Confirmation Function

○ Frequency And Channel Mode Shift

○ Offset Frequency Setting

○ Channel Scan And Add

○ DTMF Calling

○ DTMF ANI

○ DTMF Select Call (single call, group call, all call)

○ Backlight Auto Off Time Selective

○ Automatic Signaling Search

○ Multi Step Frequency

○ One Key Call Channel

○ Multi Display Of Channel No./Channel Frequency/Channel Name

○ H (High)，M (Medium)，L (Low) Output Power Selective

○ Multi-Band Transmitting & 50∽600MHz Receiving

○ Receive/Transmit Code Setting Separately

○ High Capacity Battery Long Standby Time

○ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES)

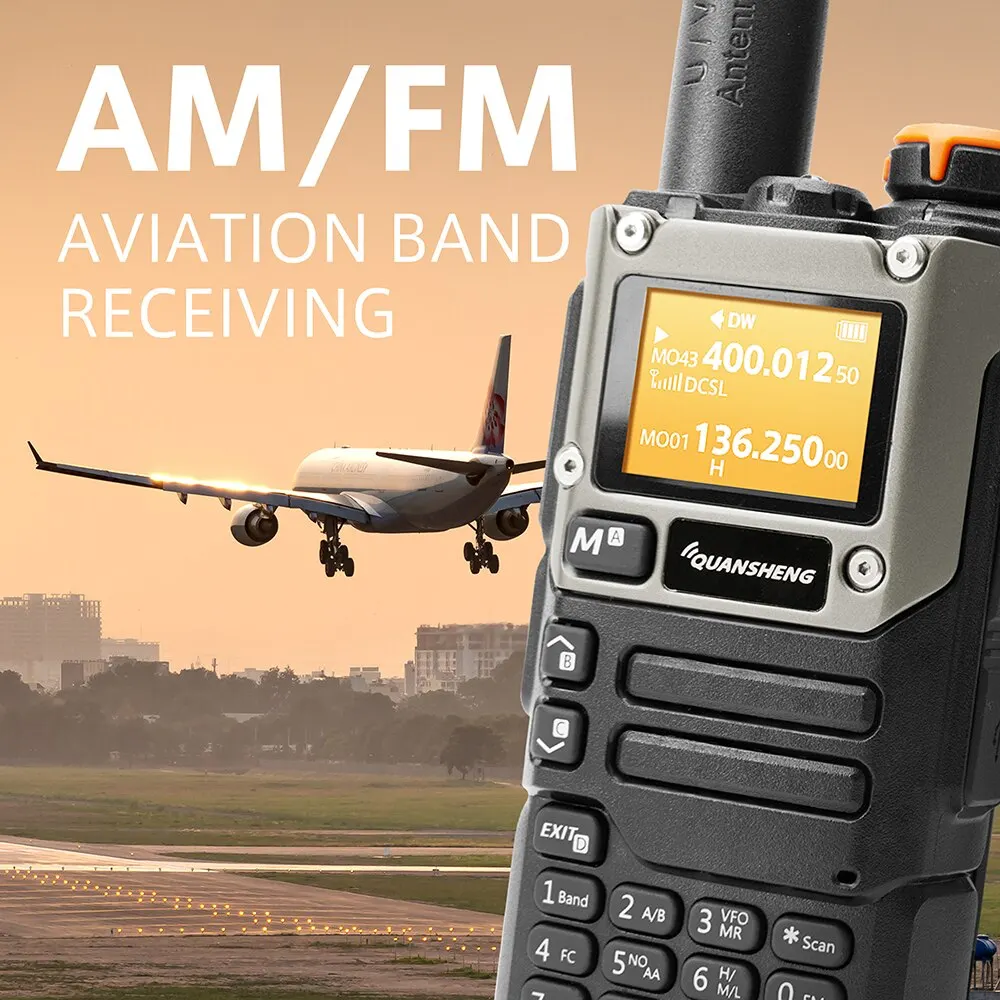

AM/FM Aviation Band Receiving .

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

10-Group Scrambler .Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection (By PC Programmable).

DTMF .

Dual tone multi frequency signal , Simplefast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .

Fast Copy Frequency .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

F+4, Turn On Frequency Copy .

Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a “Frog sound ” tail tone signal to indicate the end of the call .

Multiple charging methods .

TYPE-C/ Charger-Base Charging/charging bank/car charging/anytime, anywhere to continue charging.

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode：FM:11KΦF3E(12.5KHz),16KΦF3E(25KHz)；

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Operating Temperature：-20℃+60℃；

Antenna Impedance：50Ω；

RECEIVING:

Sensitivity：FM(12dB SINAD)；

F1(50∽76)：-121dBm

F2(108∽135.9975)：-121dBm

F3(136∽173.9975)：-123dBm

F4(174∽349.9975)：-123dBm

F5(350∽399.9975)：-123dBm

F6(400∽469.9975)：-123dBm

F7(470∽599.9975)：-121dBm

WFM(20dB SINAD)：WFM(76∽108)-110dBm

AM(10dB S/N)：F2(108∽135.9975)

Audio Frequency：≥0.5W

Audio Distortion：≤10%

TRANSMITTING:

Output Power：≤5W；

Emission Current：≤1.5A；

Max Frequency Deviation：≤5KHz(25KHz),≤2.5KHz(12.5KHz)；

Modulation Distortion：≤5%；

Stray Power：≤7.5uW；

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB
