New 48V 300Ah Battery Pack 51.2V 200Ah 120Ah 100Ah Lithium Battery 8000+ Cycles for Home RV Solar Off-Grid 48V LiFePO4 NO Tax

48V 50Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 2560Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 390*350*150mm /
Weight: Approx. 30kg
Terminal Type: Dual M6

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: Dual M6

48V 120Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 44kg
Terminal Type: Dual M6

48V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm /
Weight: Approx. 90kg
Terminal Type: Dual M8

48V 300Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity:300Ah/15360Wh
Composition:16S1P
Charging Cutoff Voltage:58.4V
Discharge Cut-off Voltage:40V
Max Charging Current: 200A
Instantaneous Discharge Current:400A
Display:LCD
Standard Charging Current:＜100A
Standard Discharge Current:200A
Charge Suitable Temperature:0℃~45℃
Discharge Suitable Temperature:-20℃~65℃
Battery Pack Size:480*451*726mm
Package Size:535*516*910mm
Net Weight of Battery Pack:124kg
Gross Weight of Battery Pack:138kg
Communication Interface:CAN/RS232/RS485

BATTERY DIMENSION

1. 16S200A Built-in BMS
2. Max Load Power 15.36kw
3. Max Energy 15.36kWh
4. 480mm*451mm*272mm

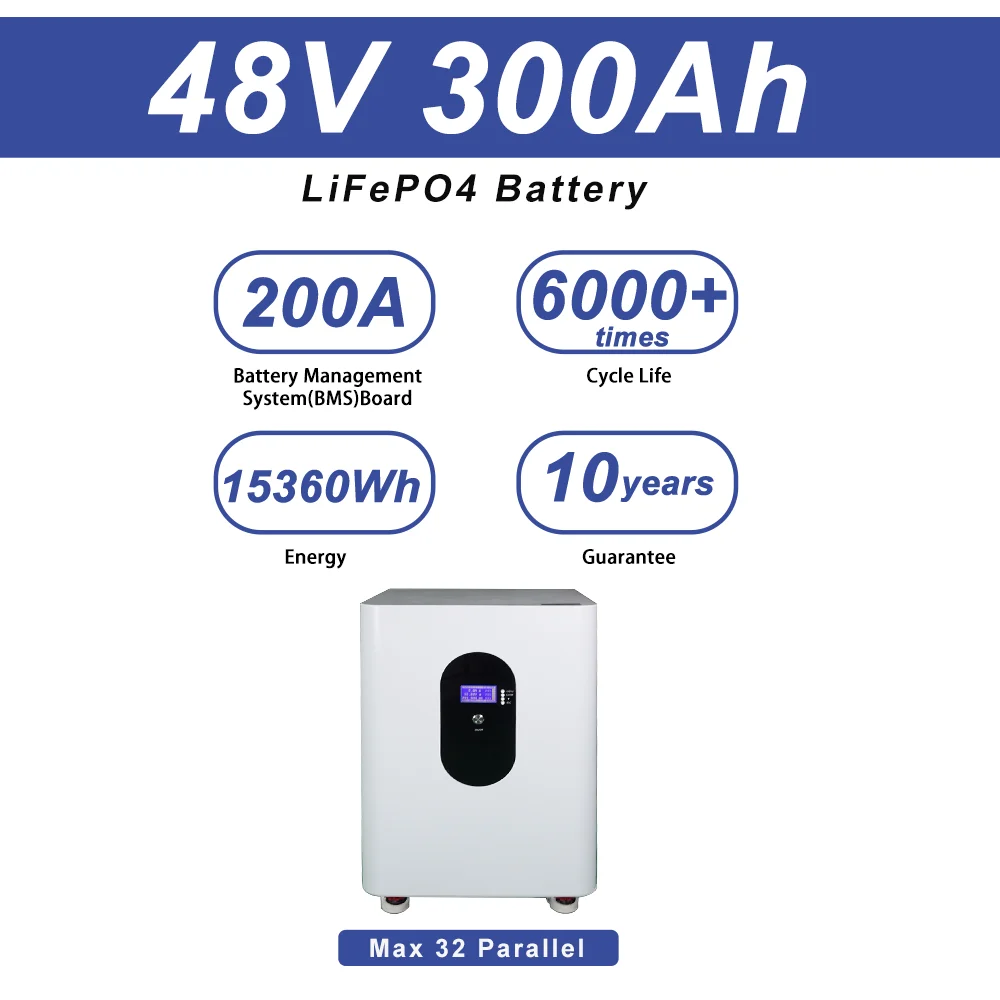

48V 300Ah Pack

With Smart 16S200A Built-in BMS
More 6000+ cycle times
15360Wh energy
10 Years quality warranty

Made Of New Grade A Cells

Made of 16S1P 300Ah Grade A Prismatic Cells
More 6000+ cycle times
15360Wh energy
10 Years quality warranty

Products Button Definition

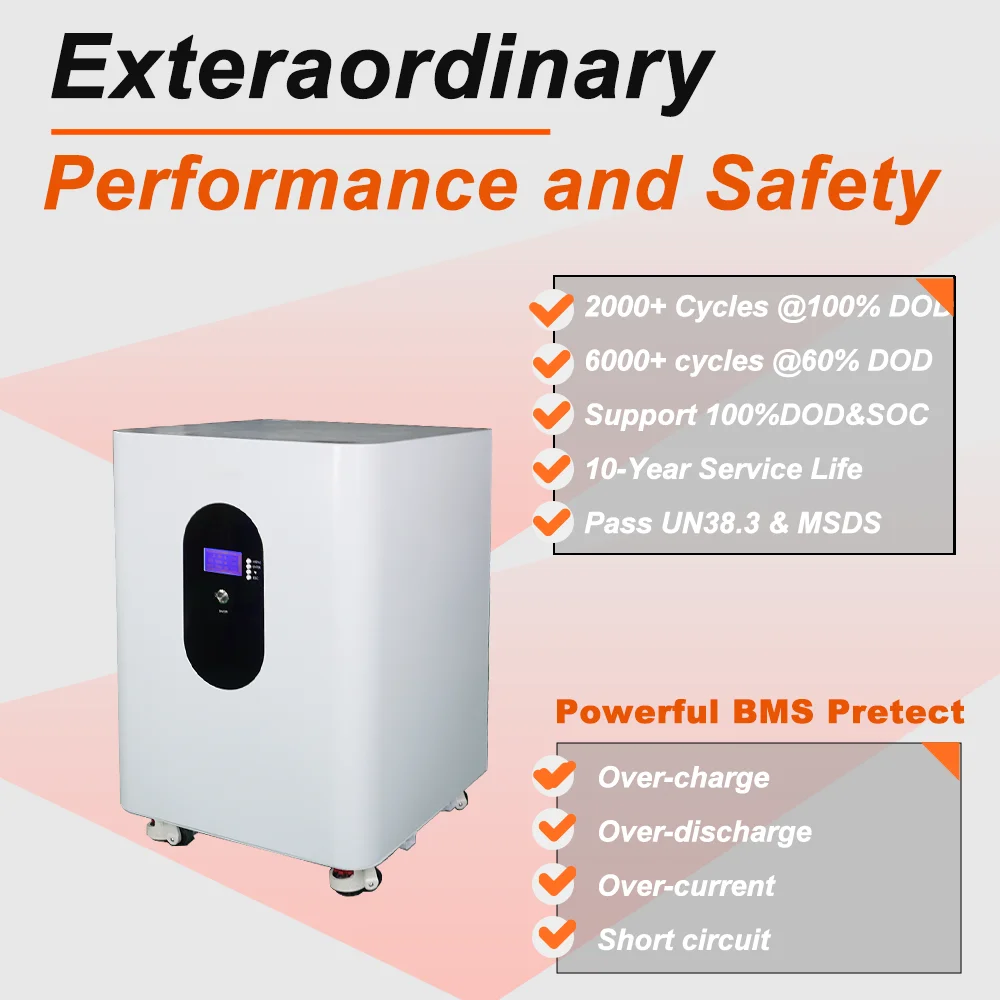

Powerful BMS Protect
overcharge protection
over discharge protection
over-current
short circuit

RJ45/USB PC Monitor

Support contact with PC monitor

10 Years Quality Warranty

We provide 10-Years Quality Warranty
