Lifepo4, 24v, 200ah, Battery 24V, lifepo4, 200AH, lithium battery 24v, 200AH Lithium iron phosphate battery for boat motor

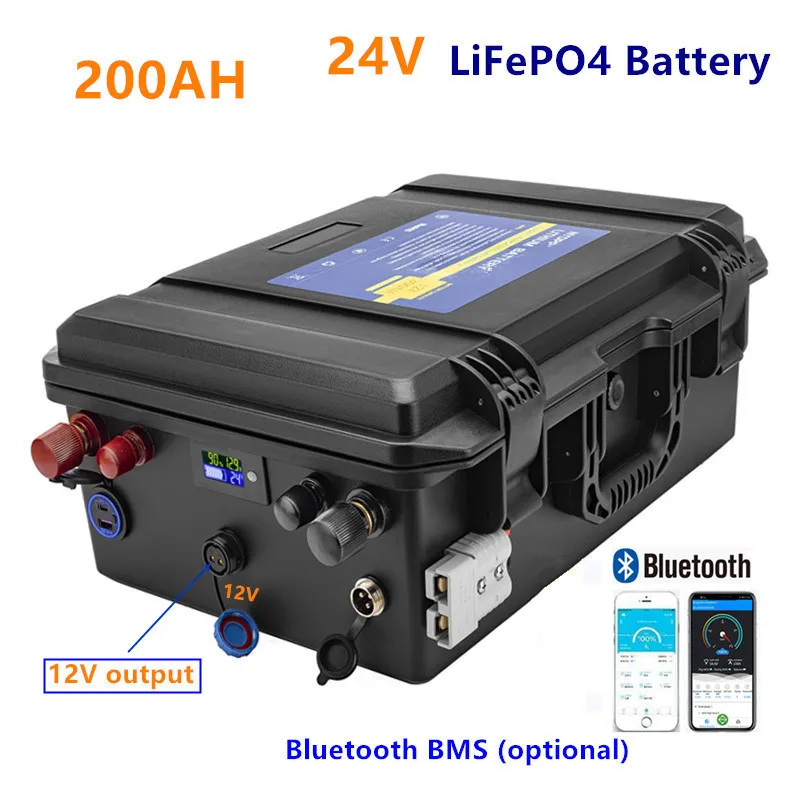

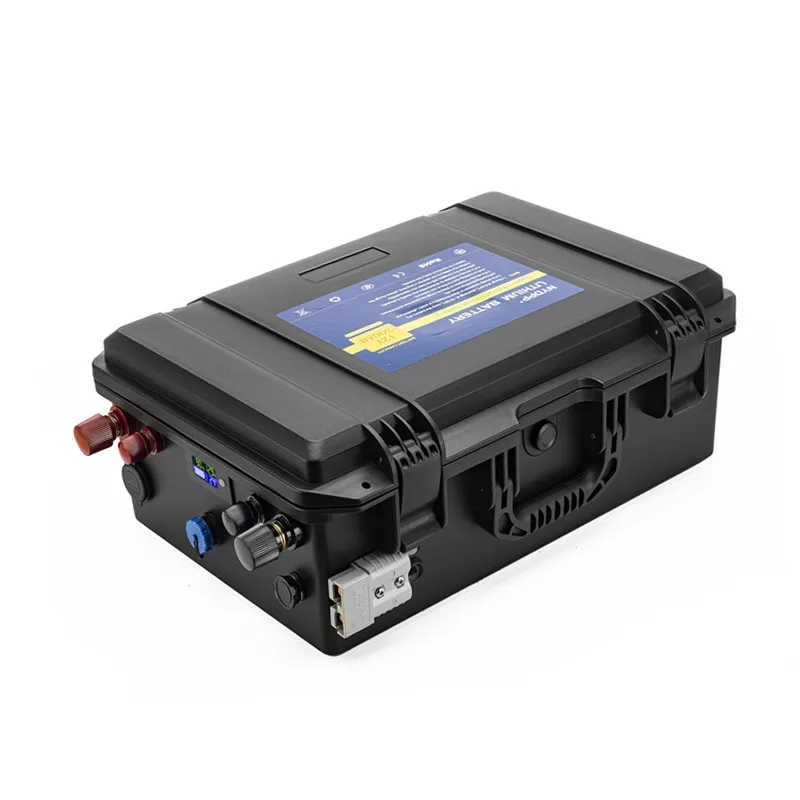

24V 200AH LiFePO4 Battery （Optional Bluetooth BMS）

About customs duties and other taxes:
Except for buyers whose delivery address is France (French buyers need to pay VAT directly), buyers from other countries do not need to pay any other fees such as customs duties.

About “-Bluetooth” in the purchase options:
“-Bluetooth” means that the battery is equipped with a Bluetooth BMS (all batteries are built-in BMS), you can connect to the APP on the phone through this Bluetooth, you can check the working status of the battery and control the battery charging and discharging from the APP, thank you!

Technical Parameters

1. Battery cell type: 24V LiFePO4 battery
2. Weight: 28kg

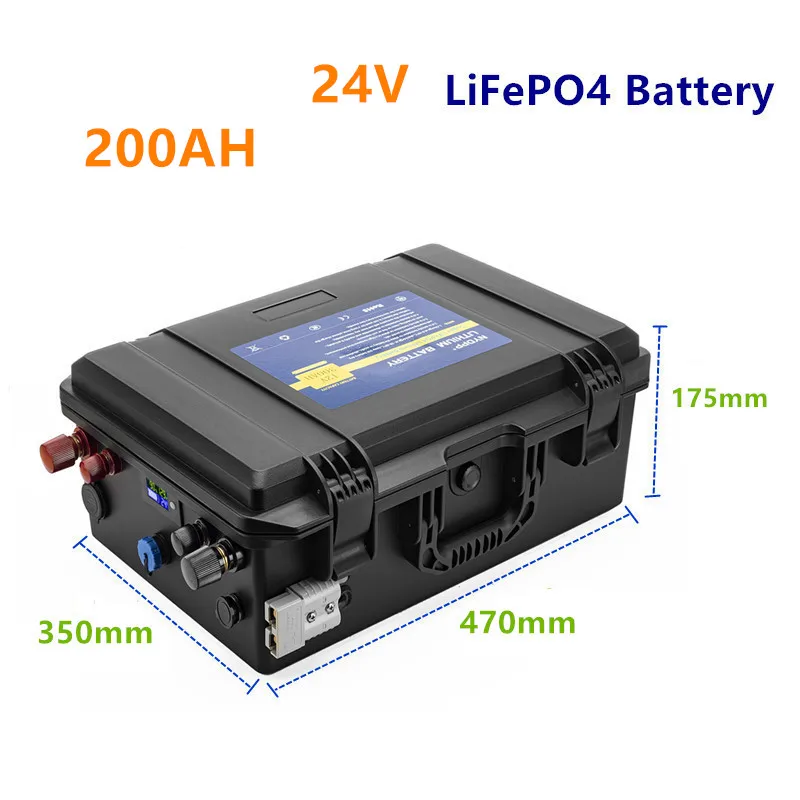

3. Size: 470*350*115 mm
4. Nominal voltage: 29.2V
5. Operating voltage range: 20V~ 29.2V
6. Maximum charging current: 80A
7. Charging voltage: 29.2V
8. Continuous discharge current: 150A BMS
9 Instantaneous discharge current: ≤ 300A
10. Service life: more than 3000 cycles
11. Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
12. Battery storage period: 90% power (6 months)
13. Battery warranty: 12 months (free warranty)

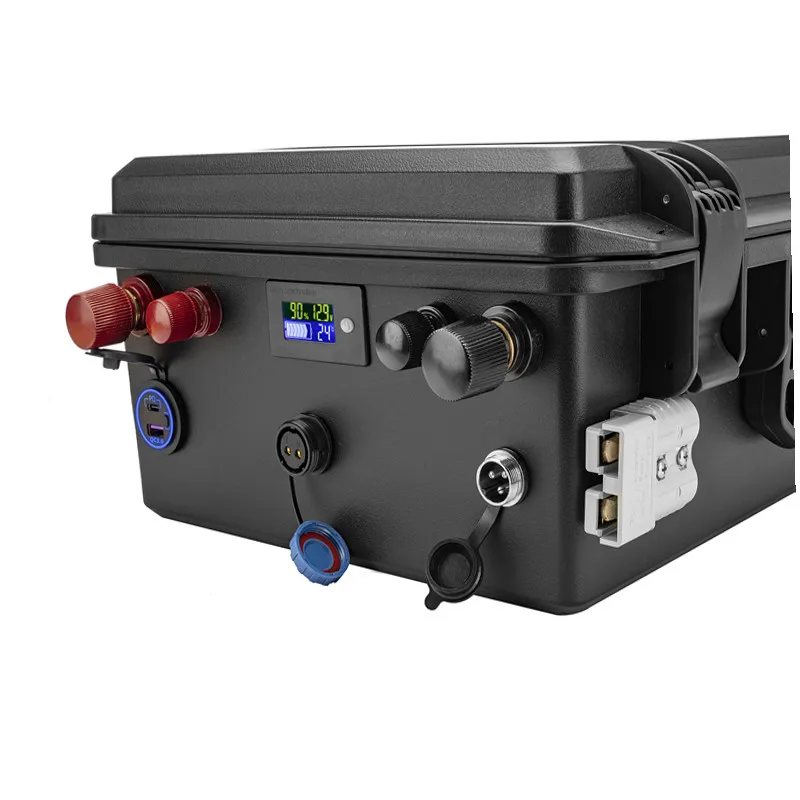

Interface Specification

Note: all interfaces can be charged and discharged!

① Charging socket (GX20, 3-pin airhead)
This interface is used by the charger to charge the battery, Its overcurrent is less than 20A.

② Waterproof plug (20A)
Please note that the output of this socket is stable 12V.

③ Anderson plug (120A)

④ 8mm terminal (Discharge/charge interface)
Its overcurrent is less than 100A, It is used for loads with power below 2000W.
Suitable for connection with 8 mm diameter copper nose
It can also be used for charging.

⑤ 10mm terminal (Discharge/charge interface)
Its overcurrent is less than 200A, It is used for loads with power below 4000W.
Suitable for connection with 10 mm diameter copper nose
It can also be used for charging.

⑥ USB charging interface (QC3.0)
This interface can charge mobile phone and other electronic devices, and support QC3.0 fast charging.

⑦ Battery power and voltage display
Display battery voltage, charge, temperature

Please note: The voltage display is not accurate when the battery is in charging or discharging state.The LiFePO4 battery’s voltage is unstable, so the display’s percentage of charge is not accurate.

Including 20A charger

20A charger with European standard or American standard or Australian standard or Australian standard plug (according to the standards of the buyer’s country)
1. Charging voltage: 29.2V
2. Charging current: 20A
3. Input voltage: 100v-240v
4. Charging time: about 12 hours

Application:

Boat propeller battery, Camper/scooter, golf trolley/carts, power tools…

Inverter, Solar and wind power system, RV, caravan…

Back-up system and UPS…

Torch LED light emergency light.

Battery type（Cell Type）

Adopts large single high power LiFePO4 battery. The current output is more stable and stronger.
LiFePO4 battery have higher safety, longer service life and a wider operating temperature range.

Built-in Bluetooth BMS(optional bluetooth BMS)

150A BMS (optional Bluetooth)

Our batteries are equipped with a BMS and an active equalizer.
(Bluetooth BMS can be selected in the purchase option)

Built in Bluetooth BMS (battery management system, functions)
1. over charge protection. 2. over current protection. 3. over voltage protection
4. discharge protection. 5. short circuit protection. 6. over power protection.
7. temperature protection.

About Bluetooth BMS features:
By connecting to the BMS of the battery through this APP, we can check the working status of the battery (battery voltage, current, voltage of each battery cell) on the APP, and also control the discharge and charging of the battery on the APP.

Please note:
The BMS image in the figure below is for reference only, we may change the BMS supplier, so the appearance of the BMS may be different.
