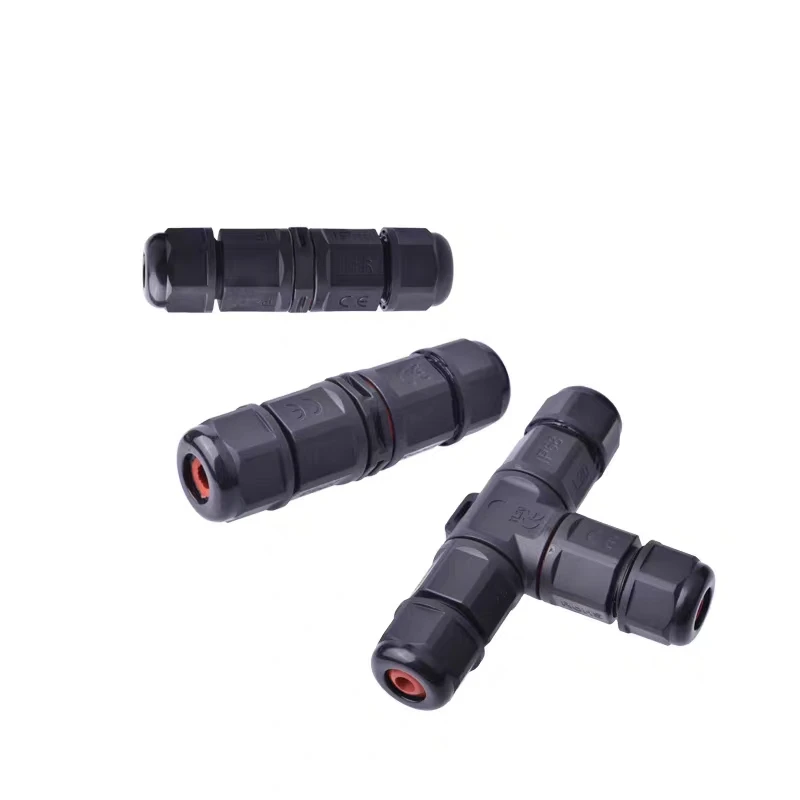

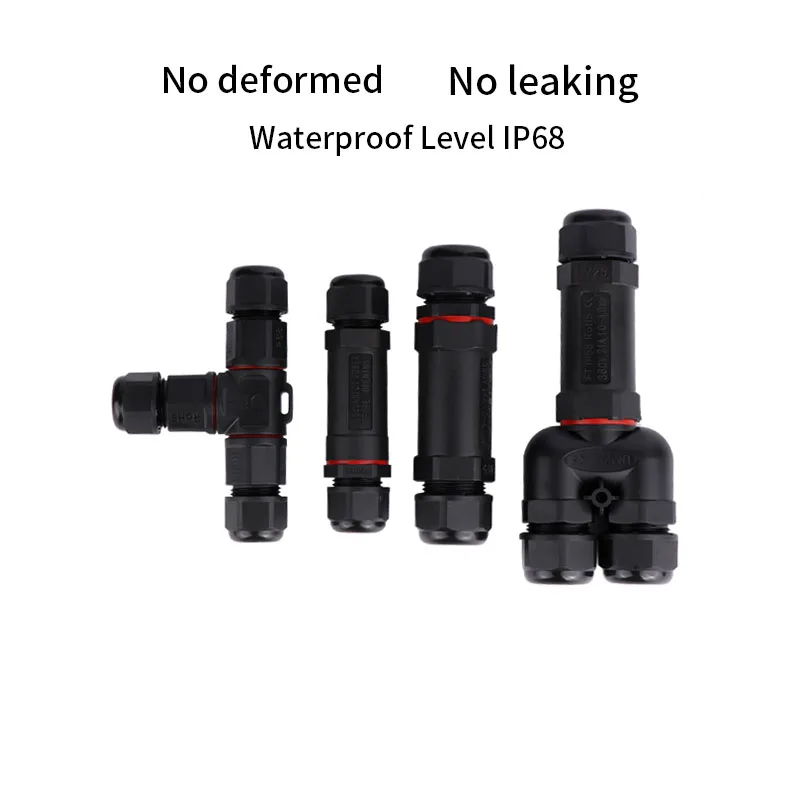

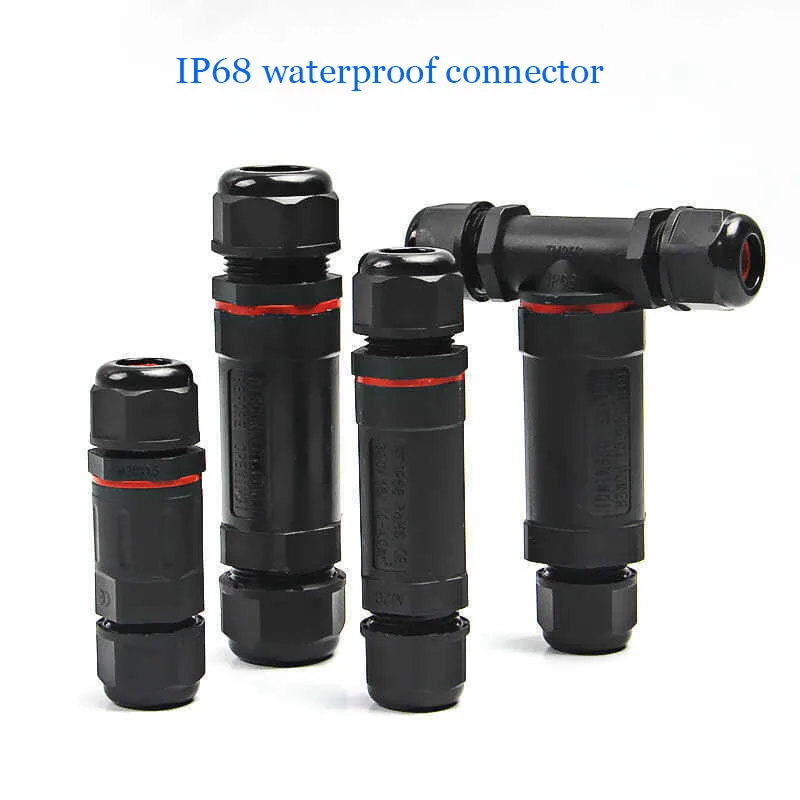

IP68 waterproof connector assembly type wire and cable quick connector 2/3/4/5PIN outdoor LED lighting sealed connector
product name :IP68 waterproof connector series
Working temperature -40℃~85℃
Applicable cable Φ3~7MM 6~12MM 10~16MM
Applicable material PA66 nylon flame retardant
Terminal material: brass nickel plated
Connection method: screw crimping
Rated voltage current: 450V-500V 20A-30A
Number of cores: 2 cores / 3 cores / 4 cores/ 5 cores
Wiring:

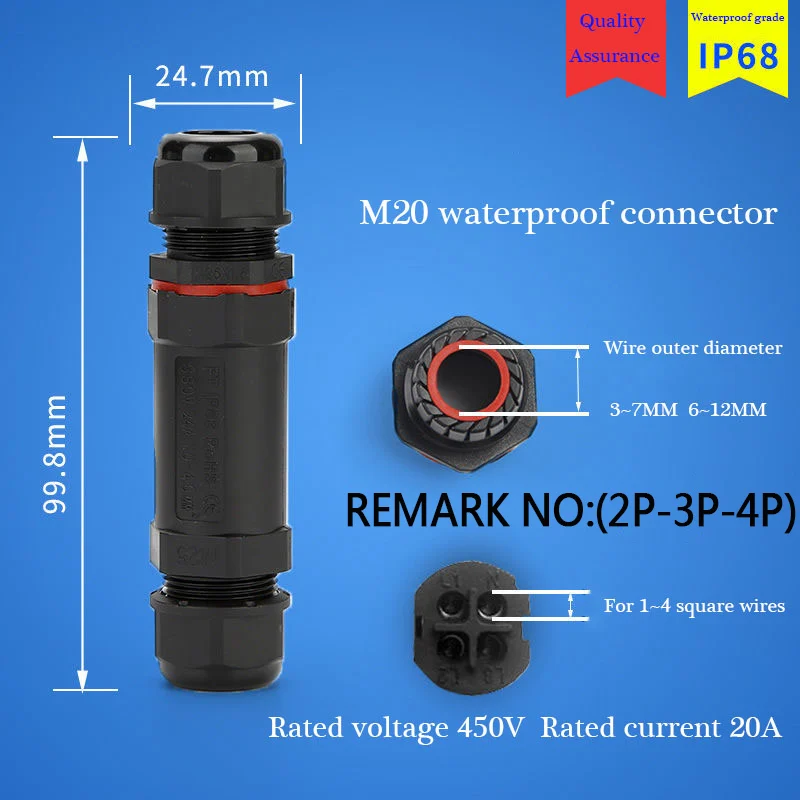

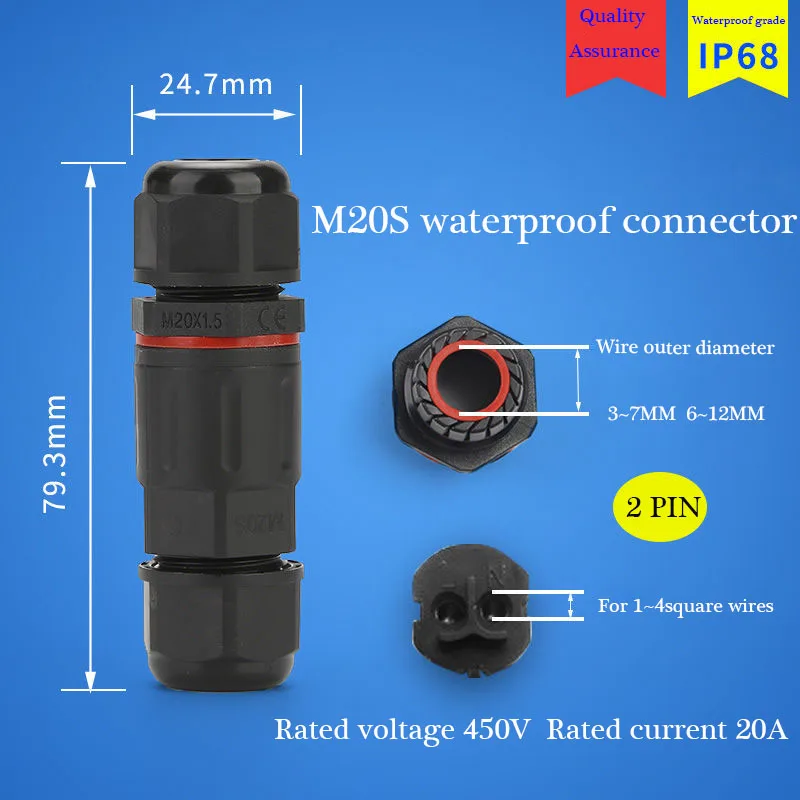

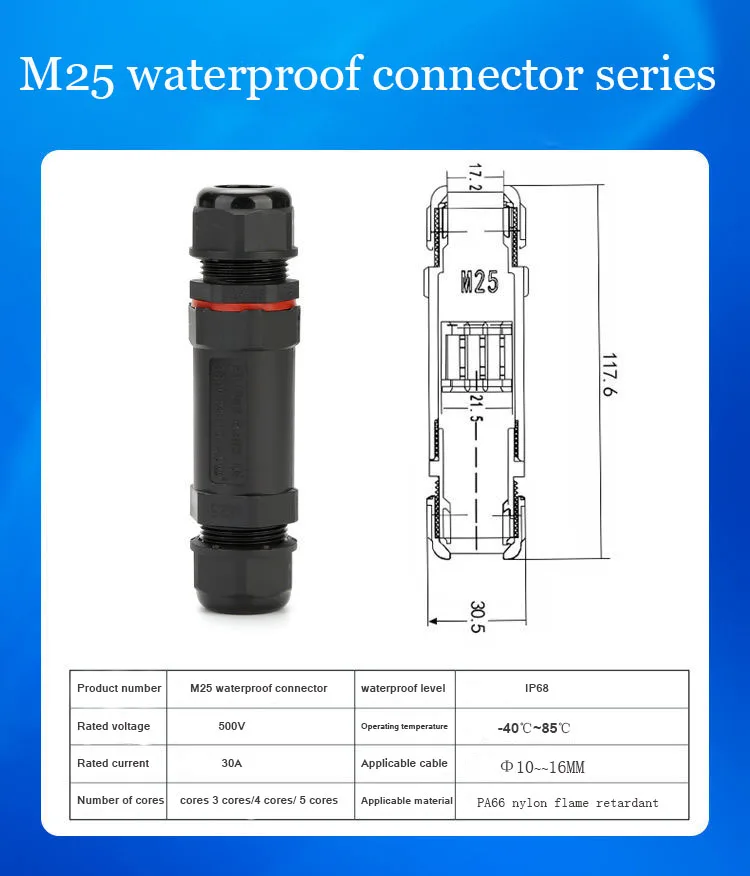

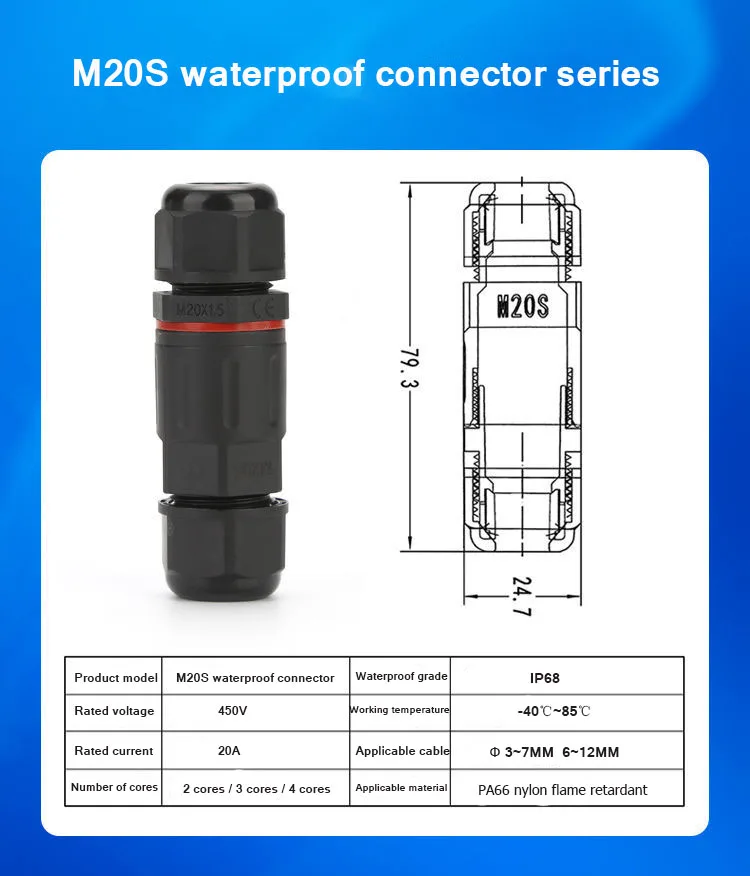

M20s2Pin0.3mm ⊃2;-4.0mm ⊃2; M25 3PIN1.5mm ⊃2;-6mm ⊃2;

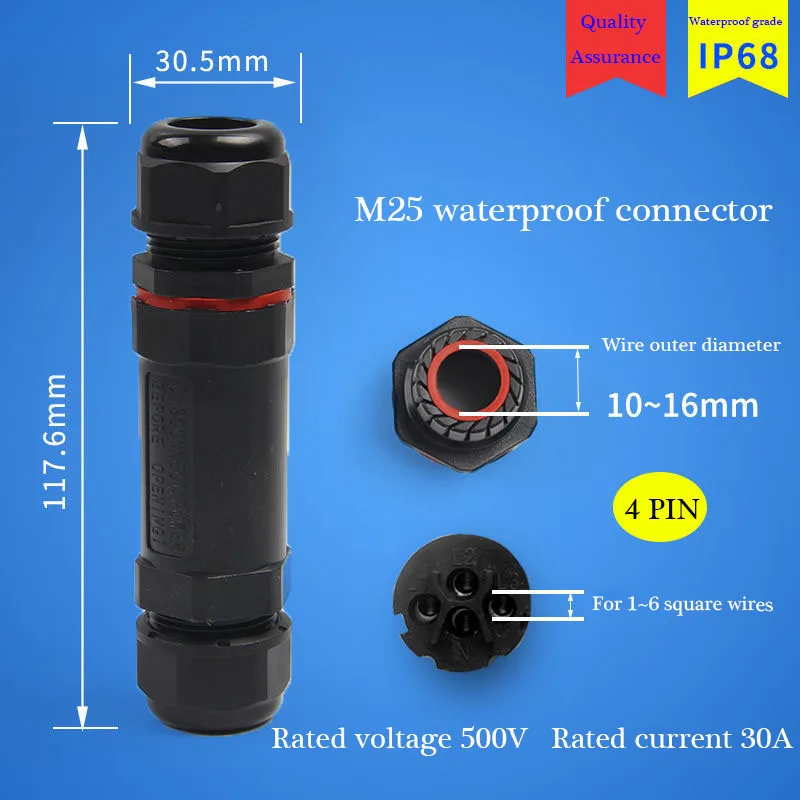

M20s3Pin0.3mm ⊃2;-4.0mm ⊃2; M25 4PIN1.0mm ⊃2;-6mm ⊃2;

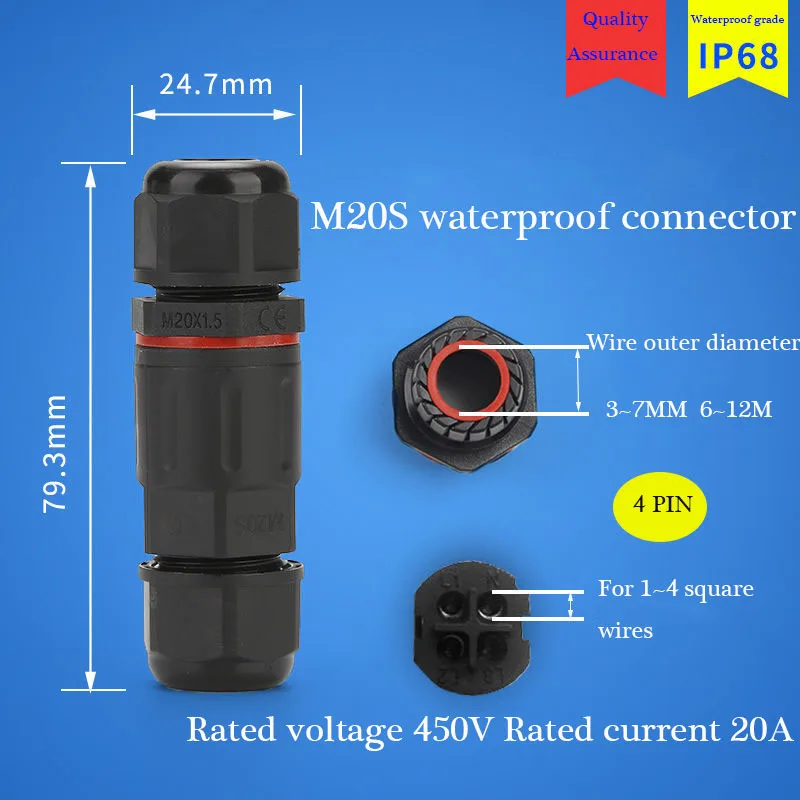

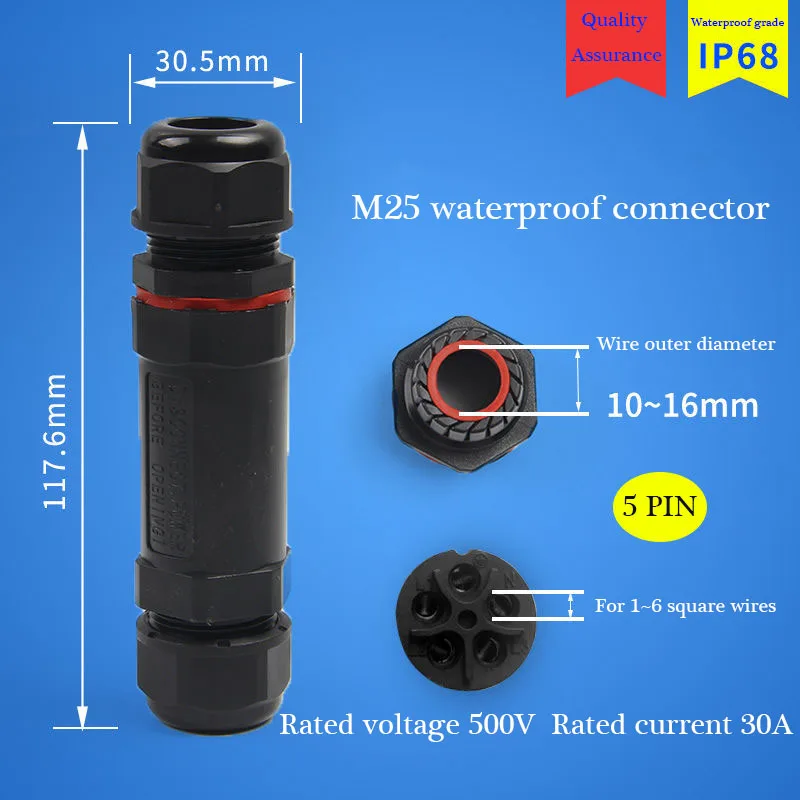

M20s4Pin0.3mm ⊃2;-2 , 5mm ⊃2; M25 5PIN0.75mm ⊃2;-6mm ⊃2;

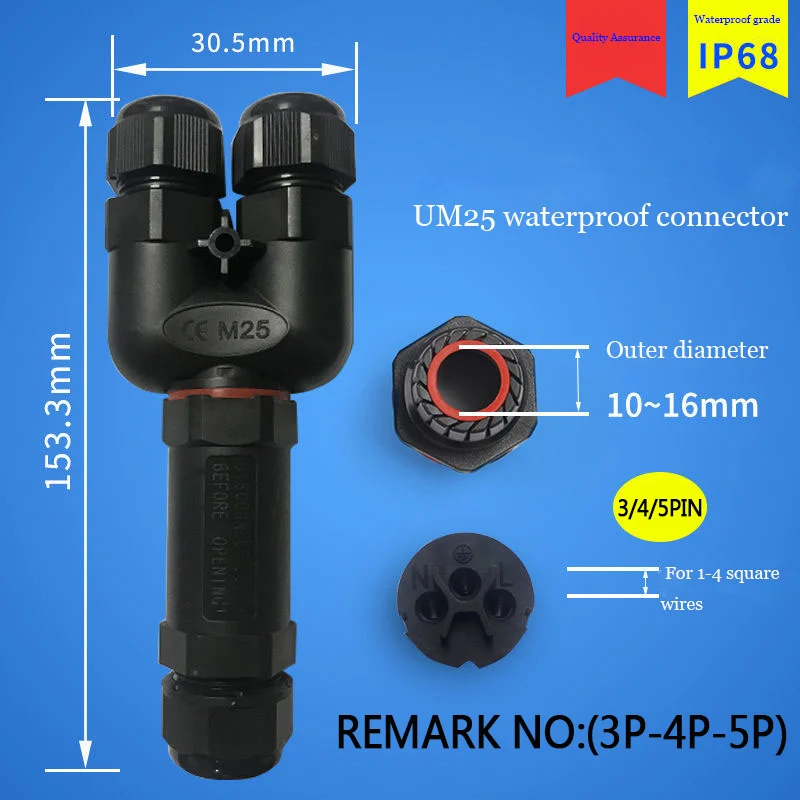

M202Pin0.3mm ⊃2;-4.0mm ⊃2; UM25 3PIN1.5mm ⊃2;-6mm ⊃2;
M203Pin0.3mm ⊃2;-4.0mm ⊃2; UM25 4PIN1.0mm ⊃2;-6mm ⊃2;
M204Pin0.3mm ⊃2;-2.5mm ⊃2; UM25 5PIN0.75mm ⊃2;-6mm ⊃2;
Scope of application:
Products are widely used in: park street lights, water pump wiring, engineering sites, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers…
Factory direct sales: please contact customer service for large quantities
