FUYU FSK40 V2.0 Linear Guide Stage Rail Motion Slide Table Ball Screw Actuator Nema 23 Motor Module for CNC 3d Printer Parts
198.35 € – 412.16 €
Description
FUYU FSK40 V2.0 Linear Guide Stage Rail Motion Slide Table Ball Screw Actuator Nema 23 Motor Module for CNC 3d Printer Parts

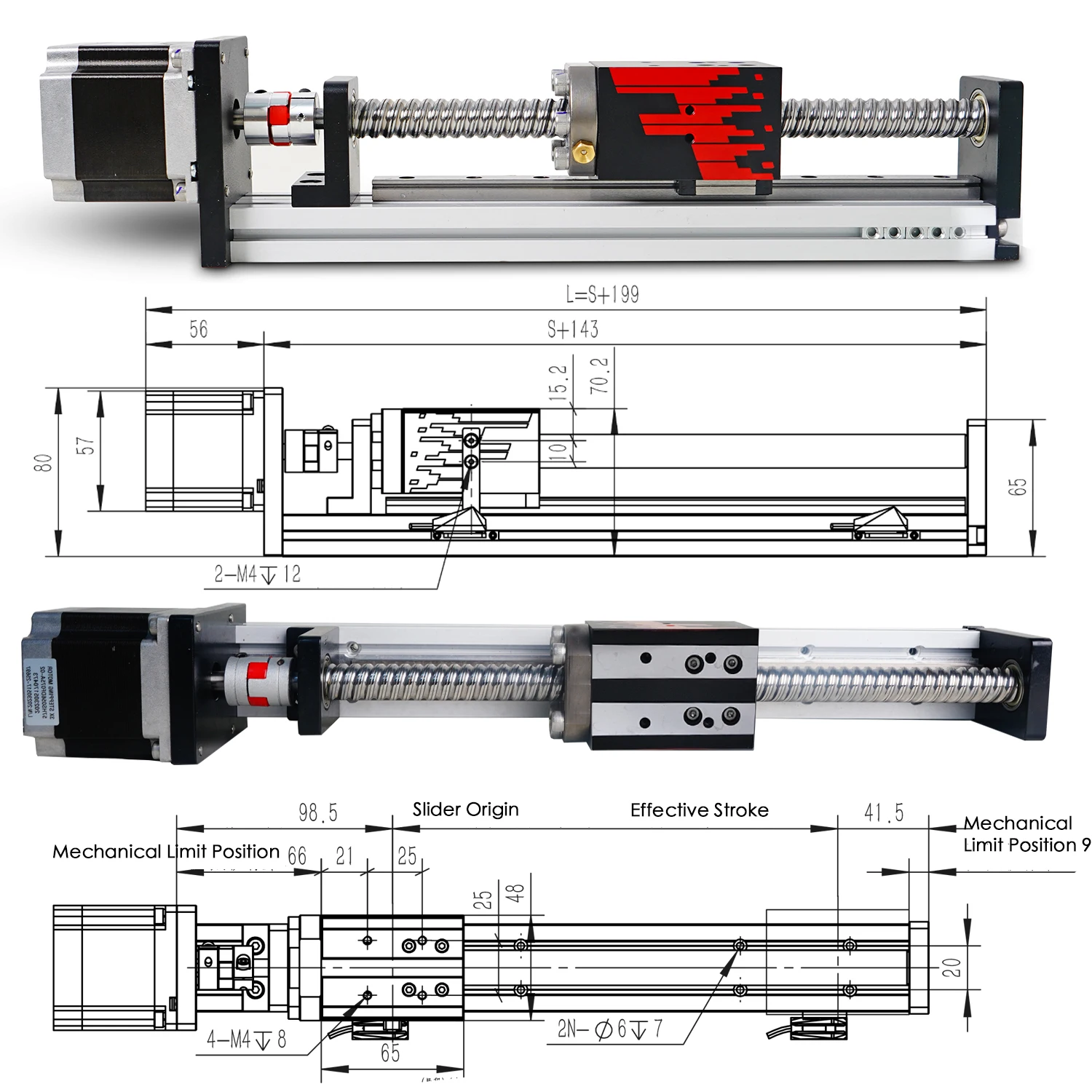

LINEAR Mechanical Dimensions
NOTE: This product is upgraded to version 2.0,the backplane is provided with fixed mounting holes for secure installation.
|
Effective Stroke L(mm) |
100~1000 |
| Overall Length (mm) | L+199 |
| Overall Height (mm) | 80 |
LINEAR Load Capacity
LINEAR Motor parameters
| Model No | Step angle | Motor flange size | Motor length | Holding torque | Current | Resistance | Inductance | Rotor Inertia | Lead wire |
| (°) | (mm) | L (mm) | ( N.m) | (A) | ( Ω) | ( mH) | (g.cm⊃2;) | (No.) | |
| FM5756SFD04 | 1.8 | 57 | 56 | 0.93 | 2.0 | 3.0±20% | 3.19 | 200 | 4 |
Detailed Images
How to use our linear guide

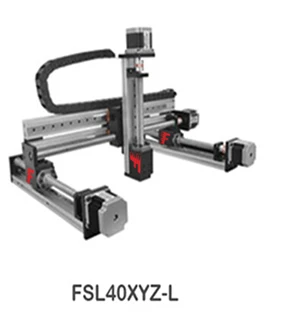

Related XYZ Stage Products
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 10 cm |
| Brand Name |
FUYU |
| Origin |
Mainland China |
| Model Number |
FSL40 |
| Guide Width or Diameter |
40mm |
| Certification |
FCC |
| Linear Guide Position Accuracy |
±0.03mm |
| Linear Guide Ball Screw |
G1610(defalut) |
| Linear Guide Belt Max Stroke |
1000mm |
| Linear Guide Max Horizontal Load |
20kg |
| Linear Guide Max Vertical Load |
10kg |
| Linear Guide Max Speed |
255mm/s |
| Linear Guide Max Horizontal Full Speed |
230mm/s |
| Linear Guide Max Vertical Full Speed |
50mm/s |
| Linear Table Storage Temperature |
-15–+60DegreesCelsius |
| Linear Guide Maximum Thrust |
188N |
