All Sizes Brand New AC220V Graphene PTC Heating Film Infrared Electric Warm Floor Heating System 240W/m2 Carbon Foil

Type: Graphene PTC heating film
Rated power: (240W±10%) per 1 square meter
Working voltage: 200~240V AC 50/60Hz
Width: 50cm, 80cm, 100cm
Infrared wave length: 9.3~10.1um
Thickness: 0.338mm
Cut line: each 12.5cm (can cut each 12.5cm per piece)
Feature: self regulating output power; energy saving; anti-overheat, healthy to human, full heating area heats more evenly.

What is PTC Heating Film?

The PTC means Positive Temperature Coefficient, it refers to kinds of special materials, the electrical resistance of the PTC materials will increase when the temperature of the material is raised, and also the electrical resistance of the material will reduce when the temperature is reduced.

The PTC heating film is a new type and updated warm floor product based on the ordinary heating film.
Temperature limiting function of electric heating film. The working principle is that if the temperature rises, the resistance will increase, so that the current will decrease, and the temperature will not increase endlessly. Conversely, if the temperature drops, the resistance will decrease, the current will increase, and the temperature will not decrease endlessly. Thus, the temperature is controlled within a safe and reasonable safety range. To achieve the effect of energy saving and power saving.

Compared with Ordinary Heating film

– Self regulating heating, no over heating risk.
– New energy graphene heating film. More energy saving than ordinary heating film, traditional water heating system.
– Economic heating with partial heating – unnecessary heating areas can be turned off.
– Easy to install and maintain. Clean, noiseless, maintenance-free operation and space-saving.
– Creates a healthy and comfortable environment, no electromagnetic radiation, the length of the far infrared wave is 9.5um, it’s good for human healthy.
– The heating film is suitable to use under various of floors: Composite Floor, Laminate Floor, Wooden Floor, Marble, Tiles, Carpet, PVC Flooring and so on.

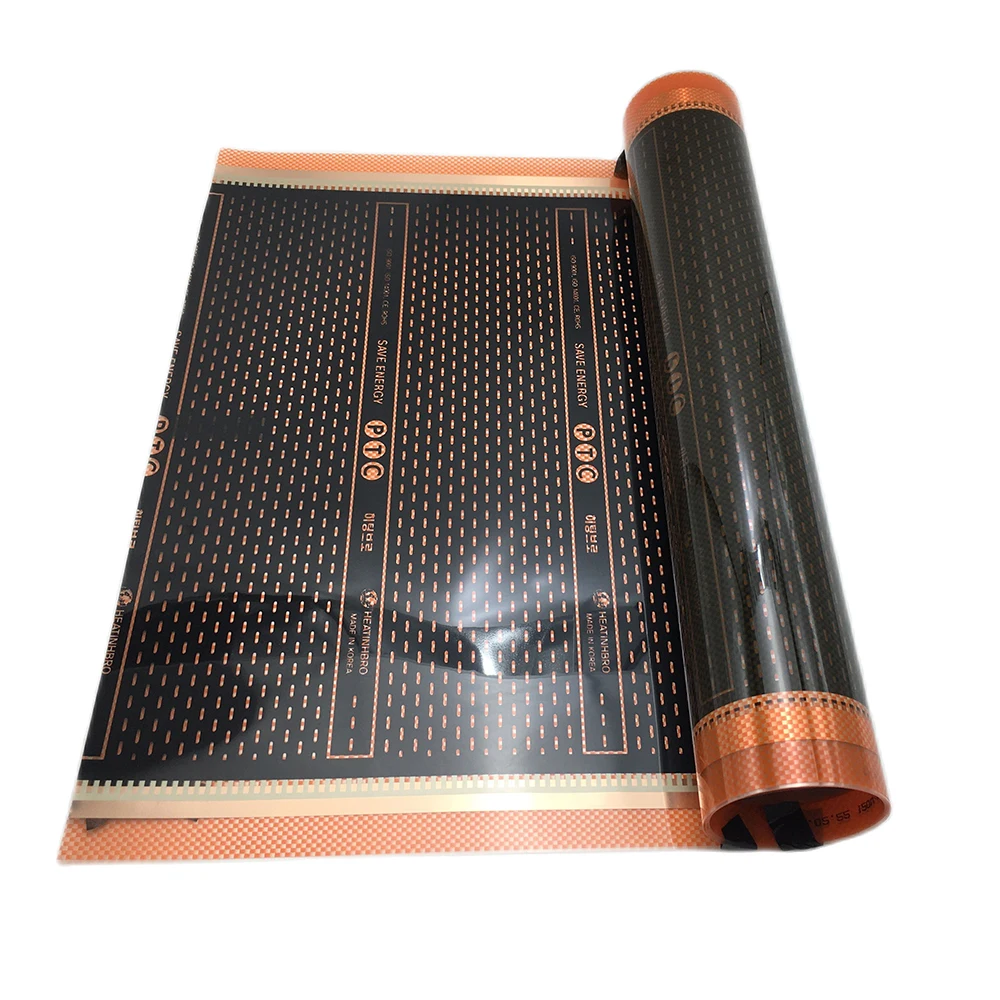

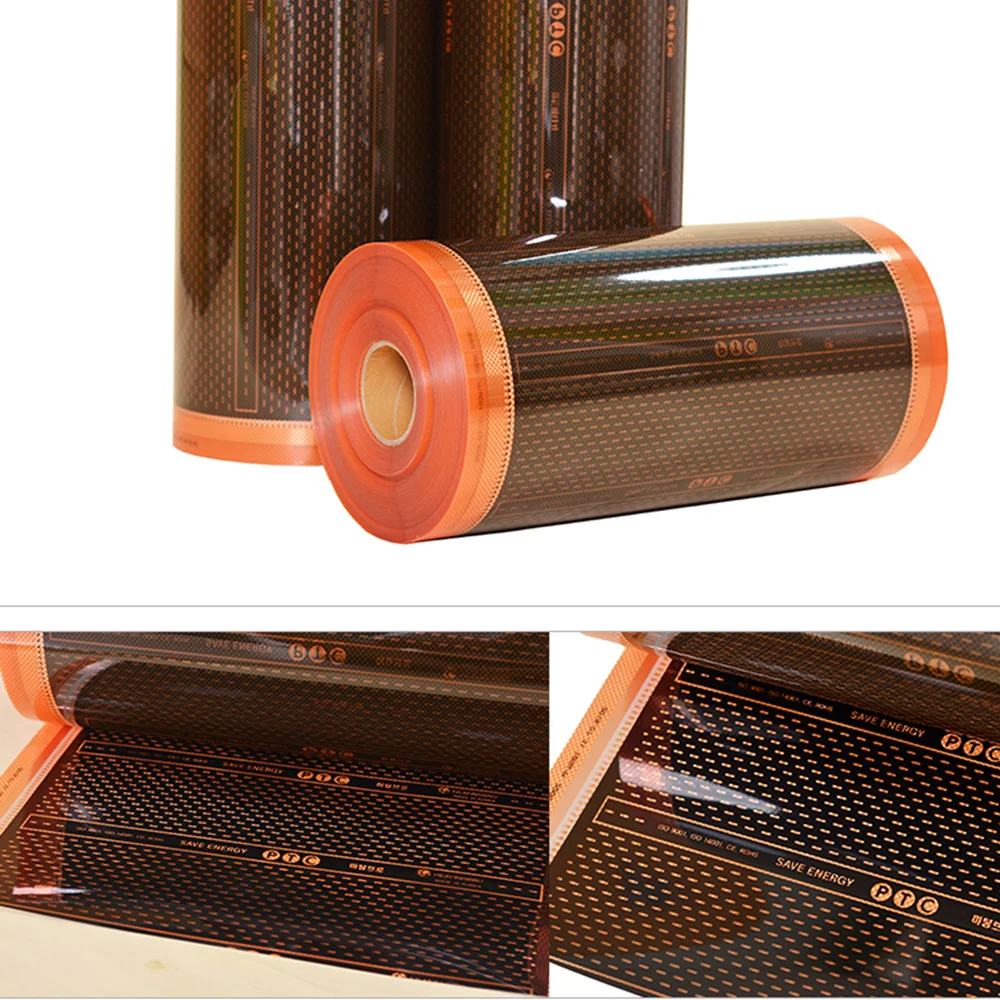

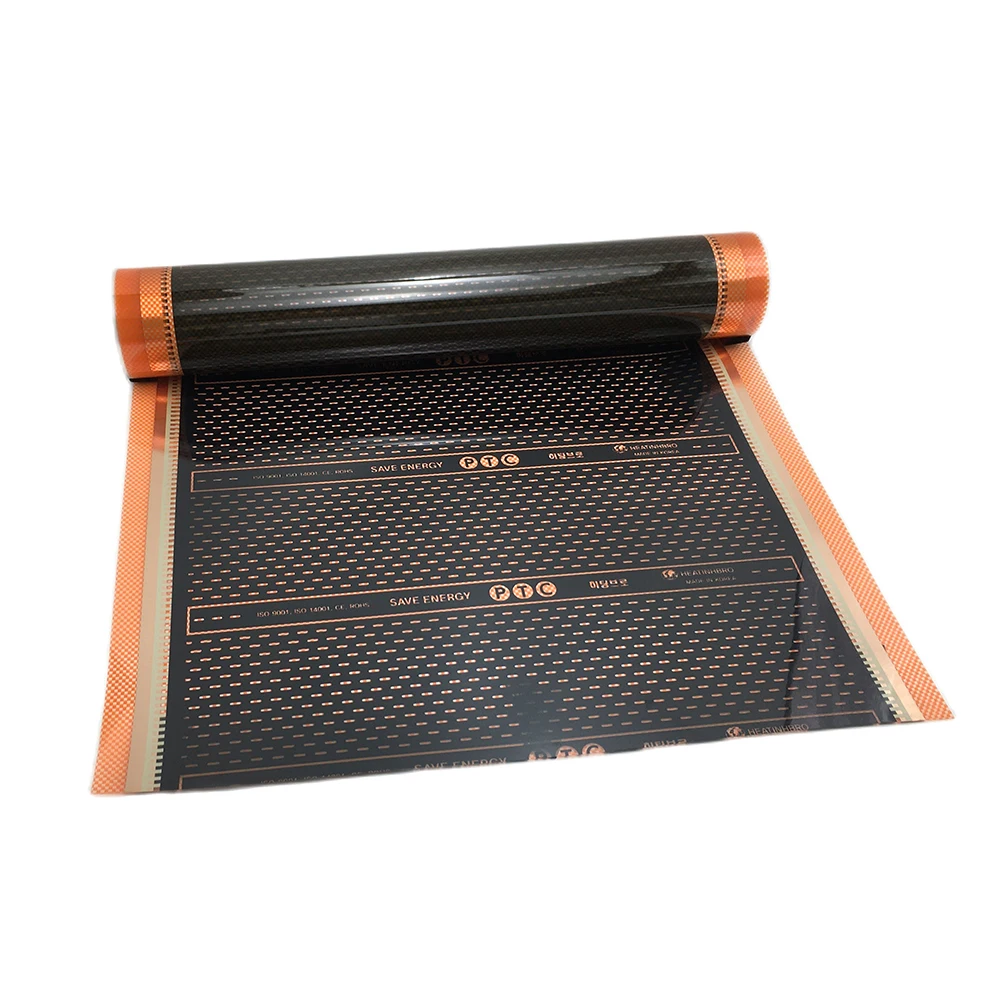

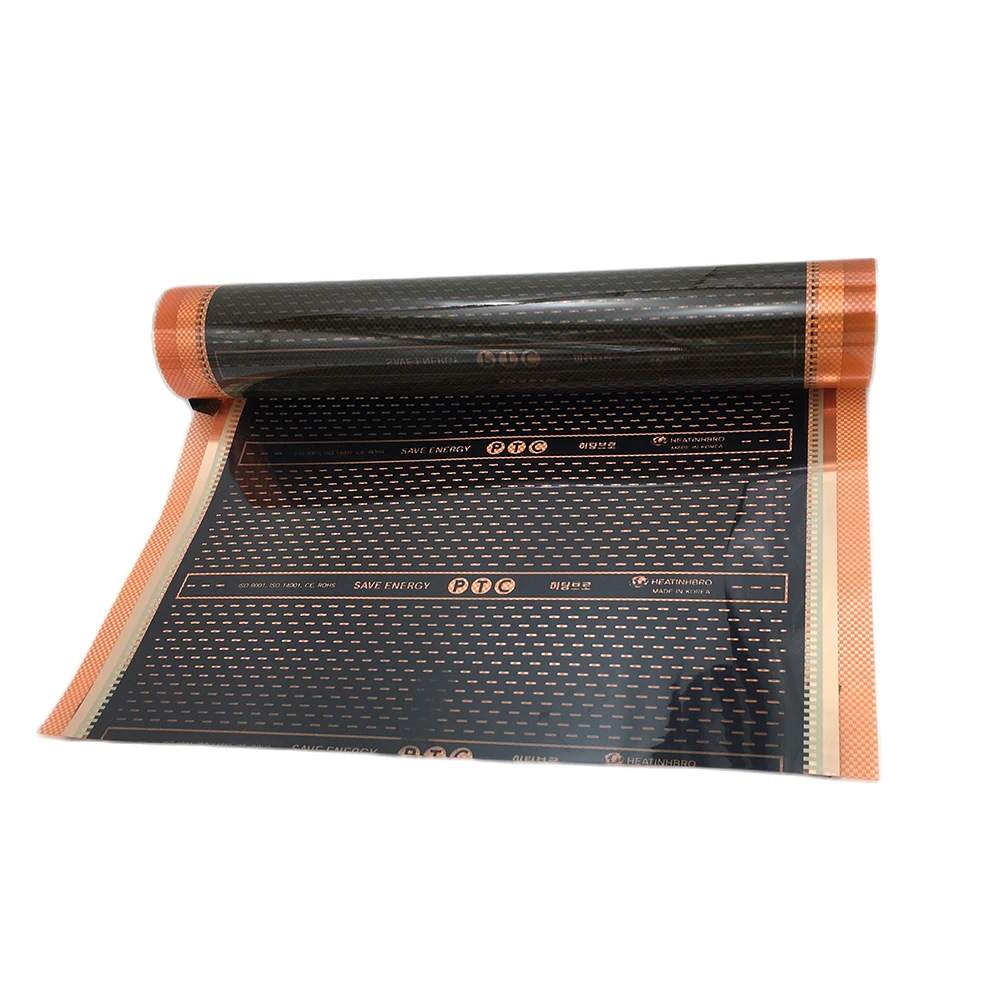

Graphene PTC Heating Film

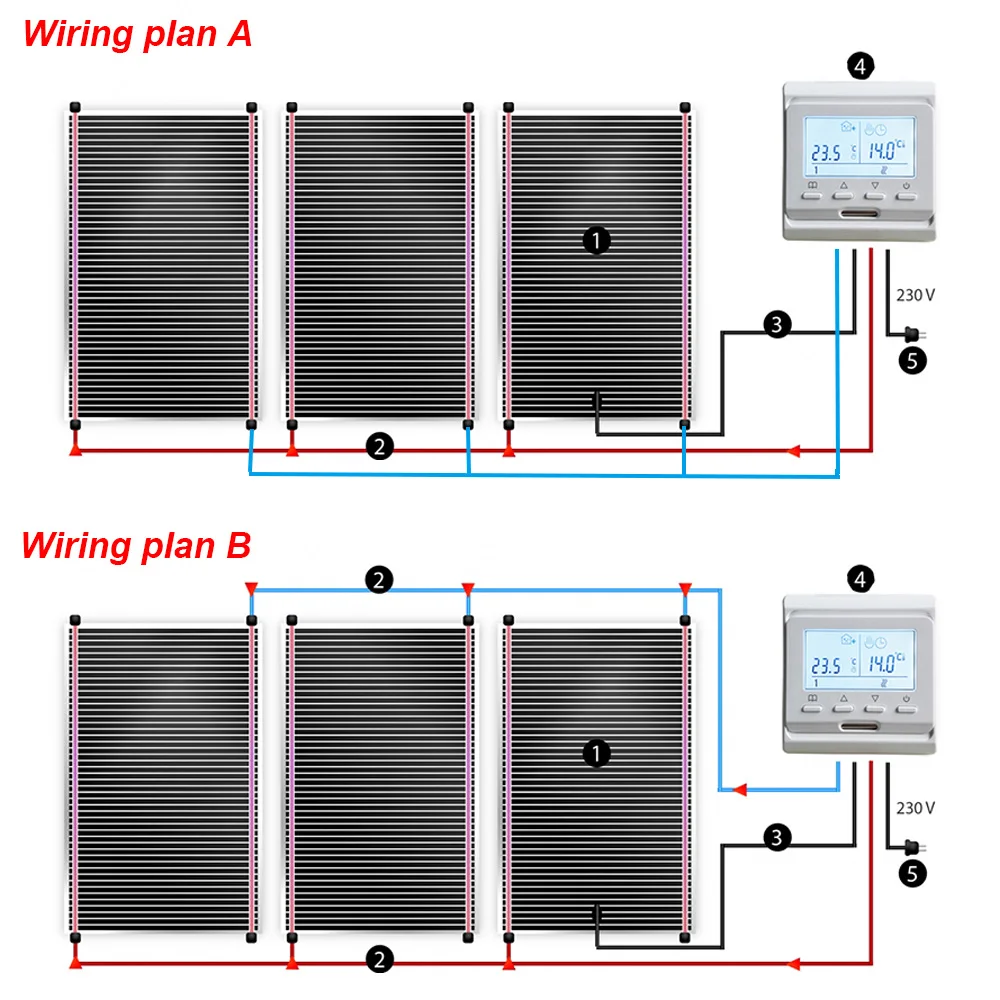

Wiring a Heating Film
