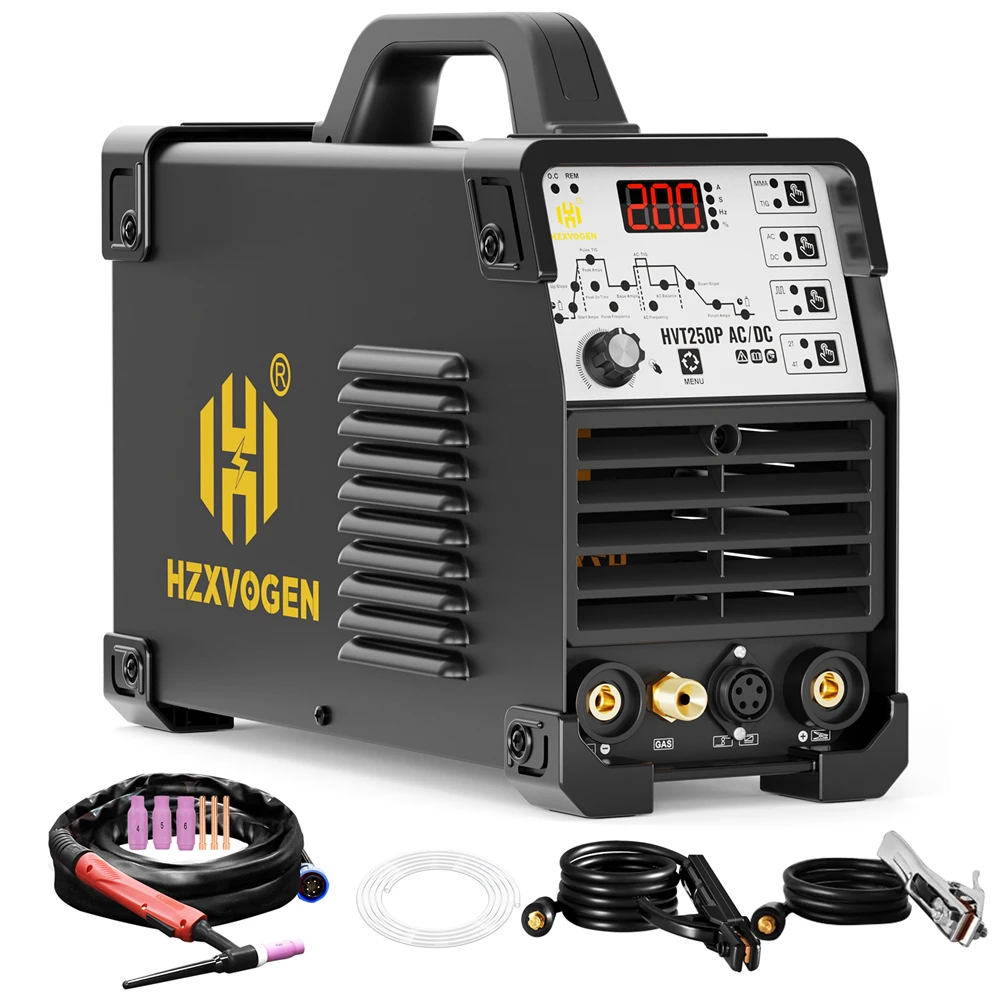

AC/DC HVT250P Aluminium TIG Welding Machine MMA, ARC Stick Welder Tools IGBT Inverter 2T, 4T Soldador With Pulse

Add to wishlist

SKU: 1005005266496672 Categories: Tig Welders, Tools and Industrial, Welding Equipment

Description

AC/DC HVT250P Aluminium TIG Welding Machine MMA, ARC Stick Welder Tools IGBT Inverter 2T, 4T Soldador With Pulse

HVT250P 200A AC DC Aluminium TIG Welder with DC Pulse TIG Stick MMA Welding Machine, IGBT Square Wave Inverter, 110/220V Dual Voltage, 20~200HZ Pulse Frequency, 10~90 Duty Cycle

Features:

1.The welding machine has the most advanced inverter technology.

2.Welding power source can offer stronger, more concentrated and more stable arc.

3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment What’s more, pulse frequency and pulse duty can also be adjusted independently It has the

characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for

shape and inner quality of the welding surface.

5.The machine can be for multi-use, and can weld stainless steel, carbon steel, copper and other color metal,

and also can use for traditional electric welding

Specifications:

Brand name: HZXVOGEN

Model:HVT250P ACDC

Rated Input Voltage(V) :AC220V:10%,50/60Hz

Rated Input Power(KVA)5.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-180

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class: IP21S

Insulation Class: F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel, titanium, stainless steel ,aluminium

Welding process :AC DC TIG/ARC

Package Content:

1* TIG Welding Machine

1* 17V Tig torch

1* Electrode holder

1* Earth clamp

1* Pack of tips and nozzles

2*Tungsten Electrodes

1*Manual

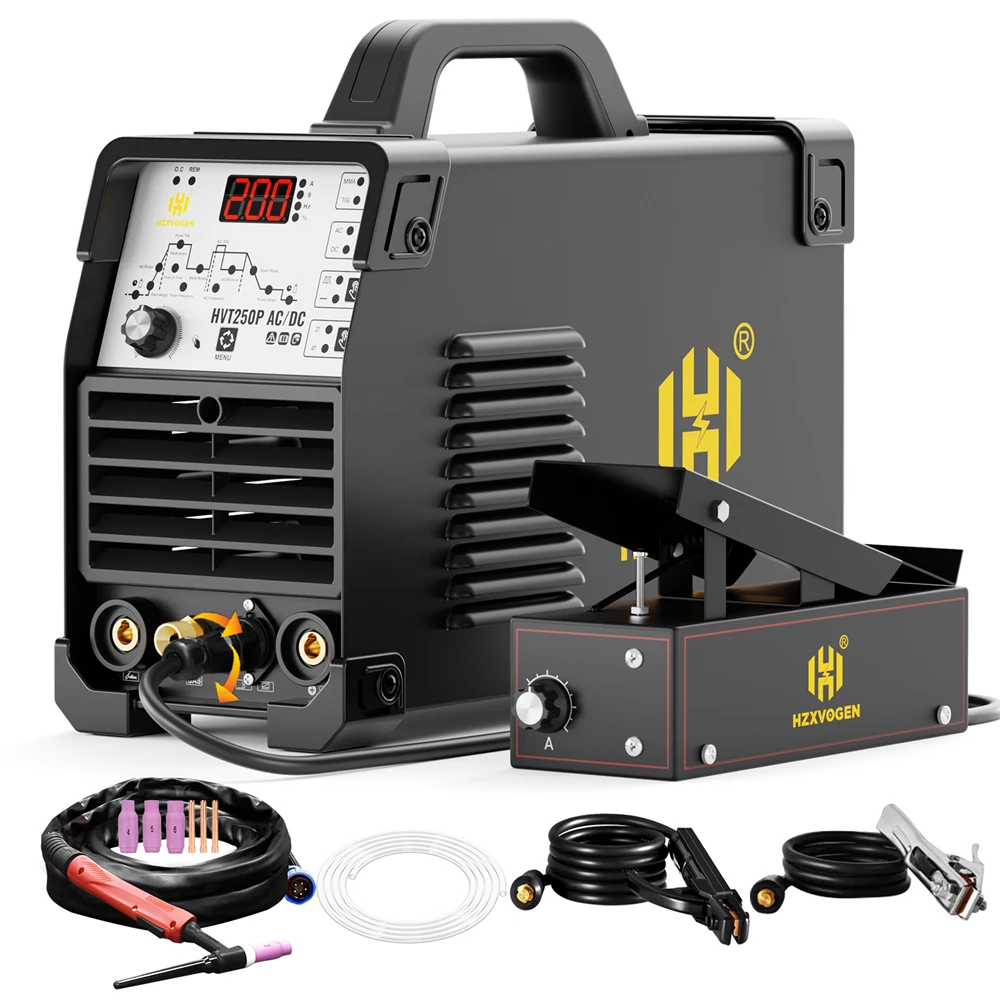

1*Pedal(selected option)

Notice: Please leave the note for Plug type: European plug, American plug, UK plug or AU plug.

Optional Accessories

Additional information

Weight	27 kg
Dimensions	35 cm
Brand Name	HZXVOGEN
Origin	Mainland China
Is Smart Device	no
Plug Type	EU Plug
Certification	CE
Model Number	HVT250P ACDC
Tig Welding Thickness	0.5mm-8mm
function 1	Tig ACDC welding machine
function 2	Arc MMA Stick welding machine
function 3	tig pulse welding
Rated Input Voltage (V)	AC 220V±10%,50/60Hz
Rated Input Power (KVA)	5.8
Rated Input Current (A)	26.3
ARC Rated Output Current & Voltage	180A/27.2V
TIG Rated Output Current & Voltage	200A/18V
