36V, 4.4Ah, 6.8A,h 48V, 6Ah, 10Ah Battery for Paralleling Extra Expansion FOR XiaoMi M365 1s Pro Mi3 Ninebot Max G30 With Battery Bag

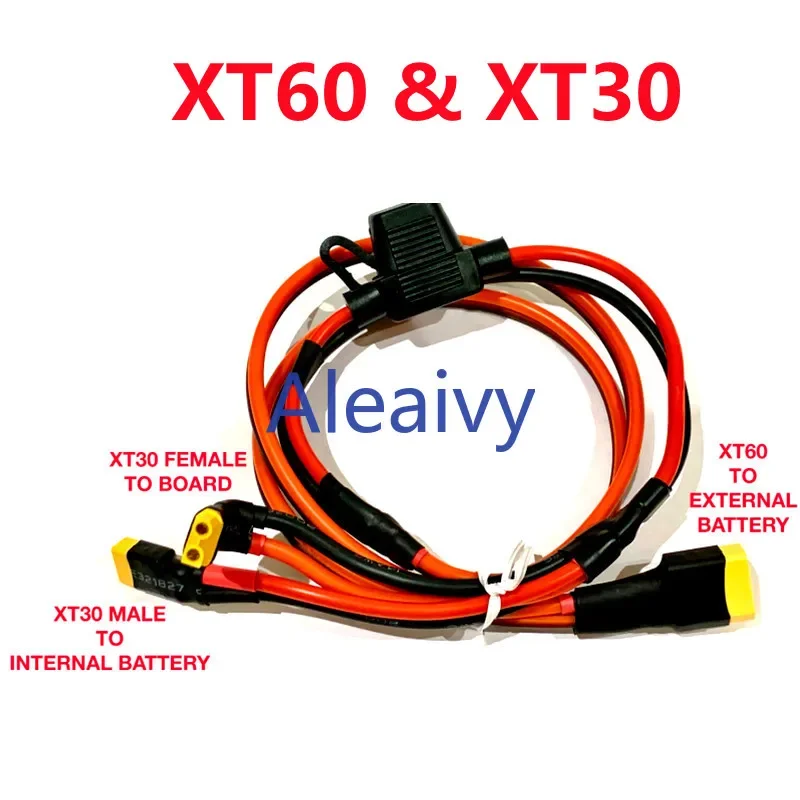

Send product list based on customer selection package:

1. 36v 4.4Ah 1 set(Cable Kit+1L Battery Bag+4.4Ah Battery)

2. 36v 5.2Ah 1 set(Cable Kit+1L Battery Bag+5.2Ah Battery)

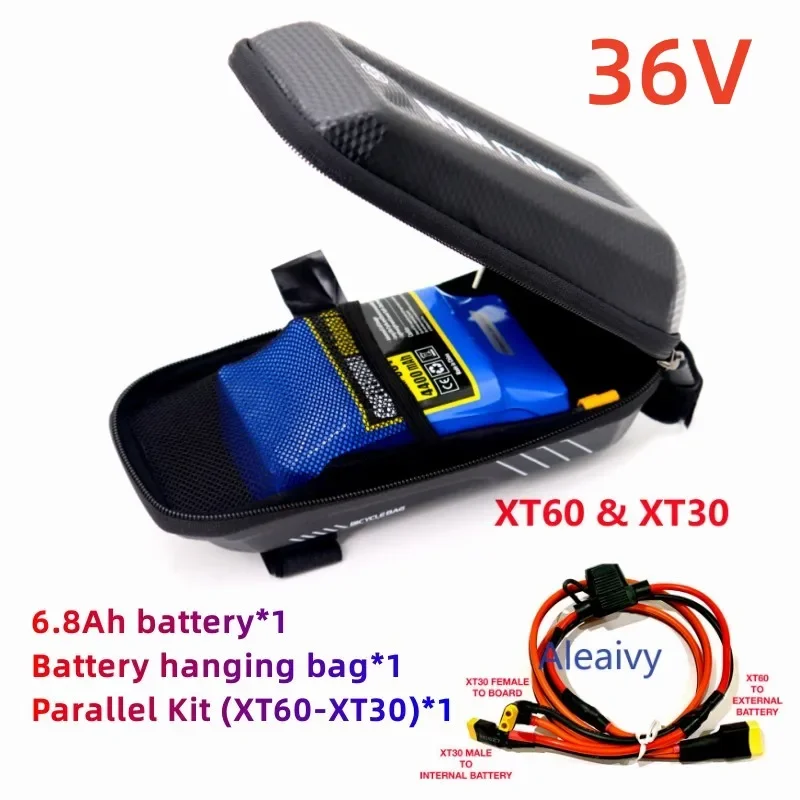

3. 36v 6.8Ah 1 set(Cable Kit+1L Battery Bag+6.8Ah Battery)

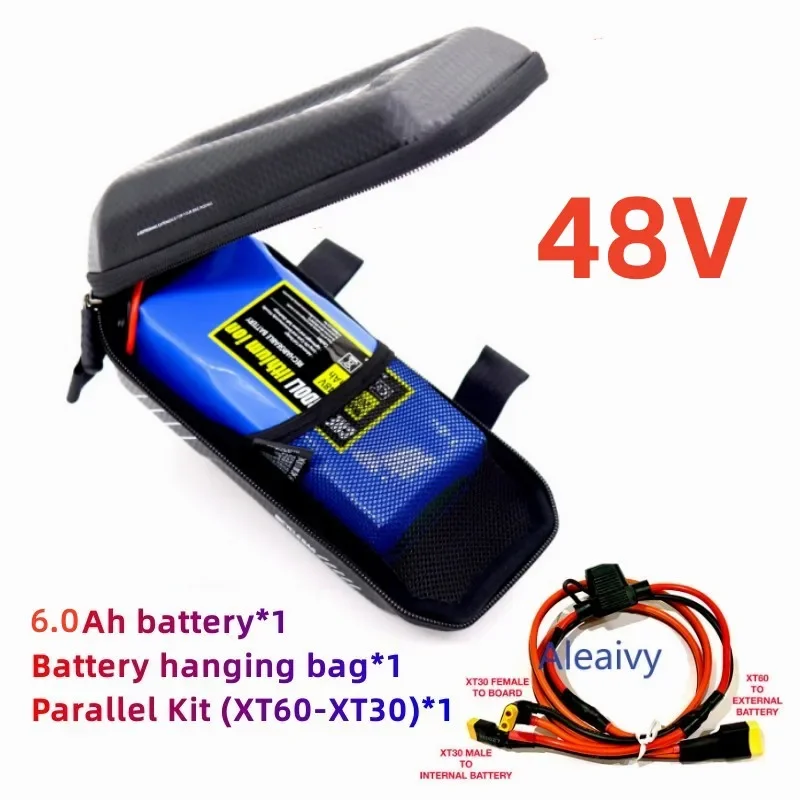

4. 48v 6.0Ah 1 set(Cable Kit+1L Battery Bag+6.0Ah Battery)

5. 48v 8.0Ah 1 set(Cable Kit+1L Battery Bag+8.0Ah Battery)

6. 48v 10 Ah 1 set(Cable Kit+1L Battery Bag+10Ah Battery)

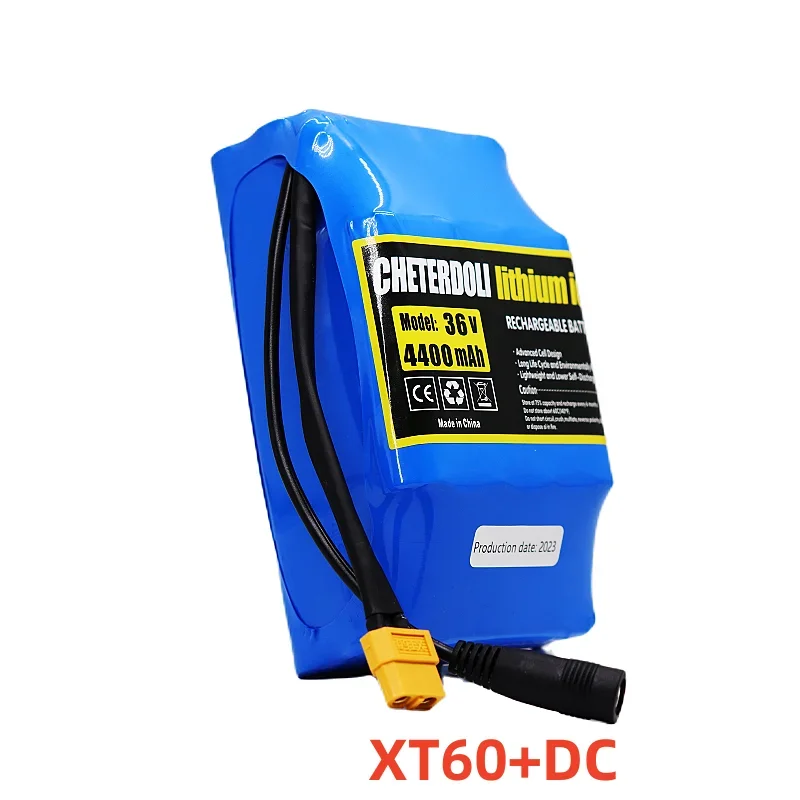

Specifications

Model: 36V102P

Cell type: 2200mAh

Cell count: 20 pieces(10S2P)

Nominal voltage: 36V

Charge voltage: 42V

Typical capacity: 4400mAh/4.4Ah

BMS rated current: 15A discharge and 5A charge

BMS function:Overcharge, over discharge, overcurrent, short circuit protection.

Connector: XT60 for discharge and Charge

Package: heat shrinkable PVC, random color

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charge method: CC-CV

Max. Charge current: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 1000 cycles

Size: 136 * 76 * 60 mm(±3mm)

Weight: 1000g(±50g)

The battery pack does not have a communication cable. If the original battery of your electric bicycle needs to communicate with the controller, this battery cannot be used to replace the original battery. It can only be used to extend the battery.

Warranty

– Period: 1year

– Coverage: Cells, other part are not covered by the warranty.

– Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.

Application

Suitable for less than 450W all 36V &48V DC equipment. E-bike, scooters, etc.
