12V, 300W Electric Winch Cable Truck Trailer Winch 1.8m/s Electric Rope Winch with Wire Control or Hand Control

This 12V electric winch boasts 2000 lbs pulling force, 5000 lbs floating pulling force and 6000lbs rolling force, which allows you to easily handle a variety of jobs that require a winch. It is made of high-quality steel and ABS, which boast high hardness and corrosion resistance and can adapt to the harsh marine environment. It boasts a 9.84ft long wire control and a hand-cranking control, ensuring that the winch can be used with or without electricity.

Key Features

High-quality Material: The high-quality steel and ABS with high hardness, strength, and good resistance to corrosion and rust make this winch sturdy and durable.

Powerful&Efficient: It boasts a 300W permanent magnet copper DC motor, which features high efficiency and large strength, giving the winch 6000lbs rolling force, 5000lbs floating pull force, and 2000lbs rated pull force for pulling your boat or car.

Effortless Installation: It comes with the appropriate mounting components, including the crank and mounting plate, so you can get it set up quickly.

Long Rope: The Φ0.19inch*29.53ft rope is long and sturdy enough for pulling heavy objects and is hard to break as if it is not overloaded.

Application

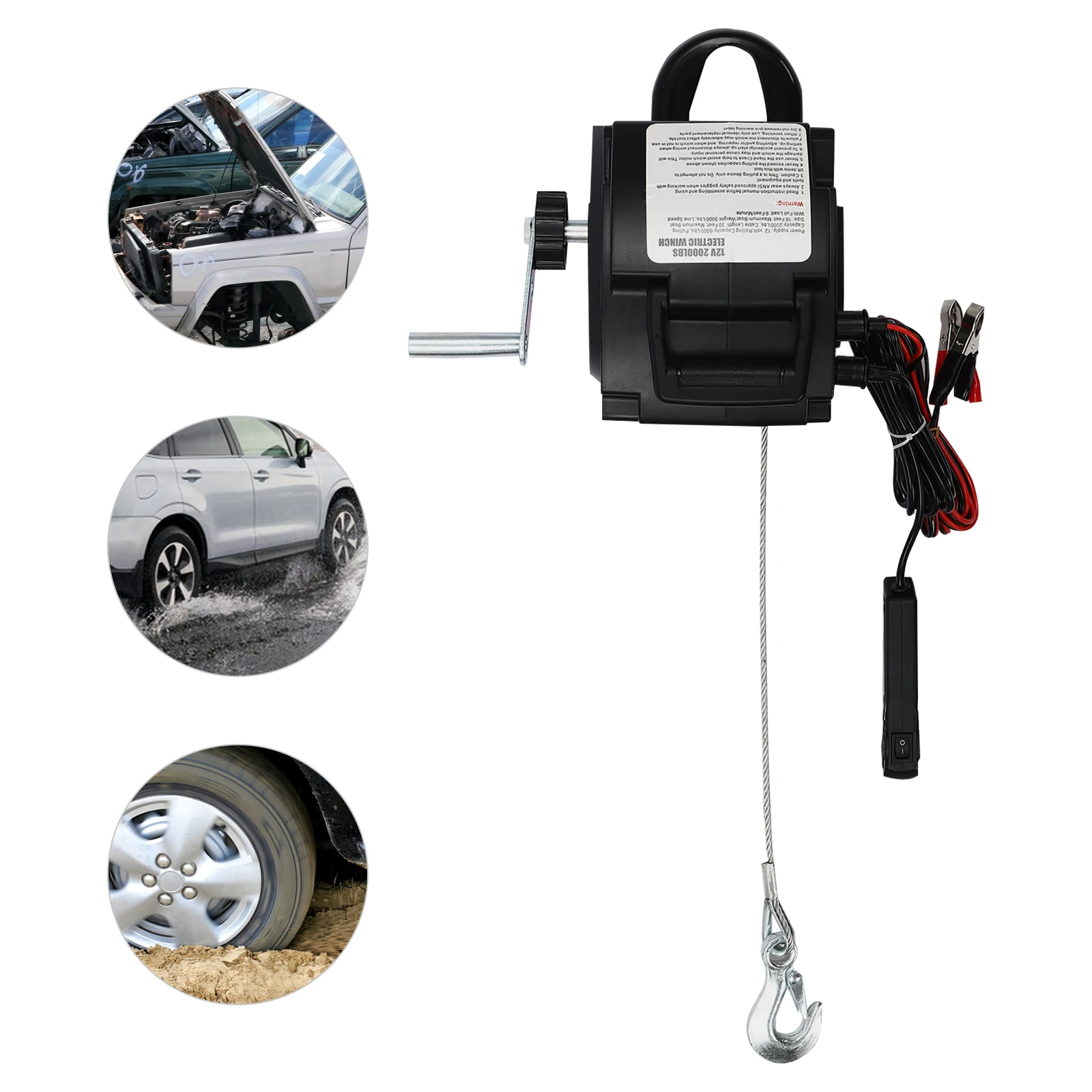

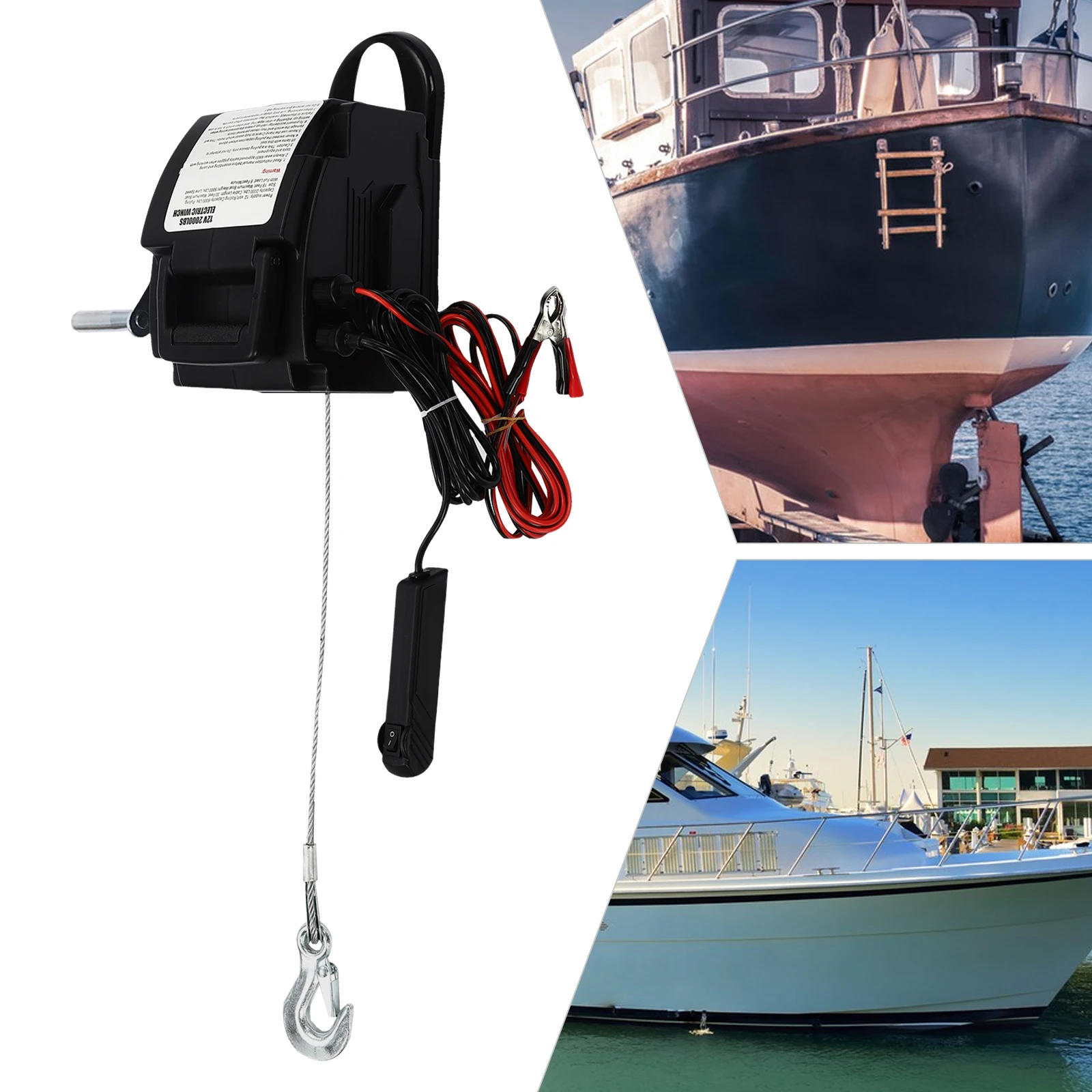

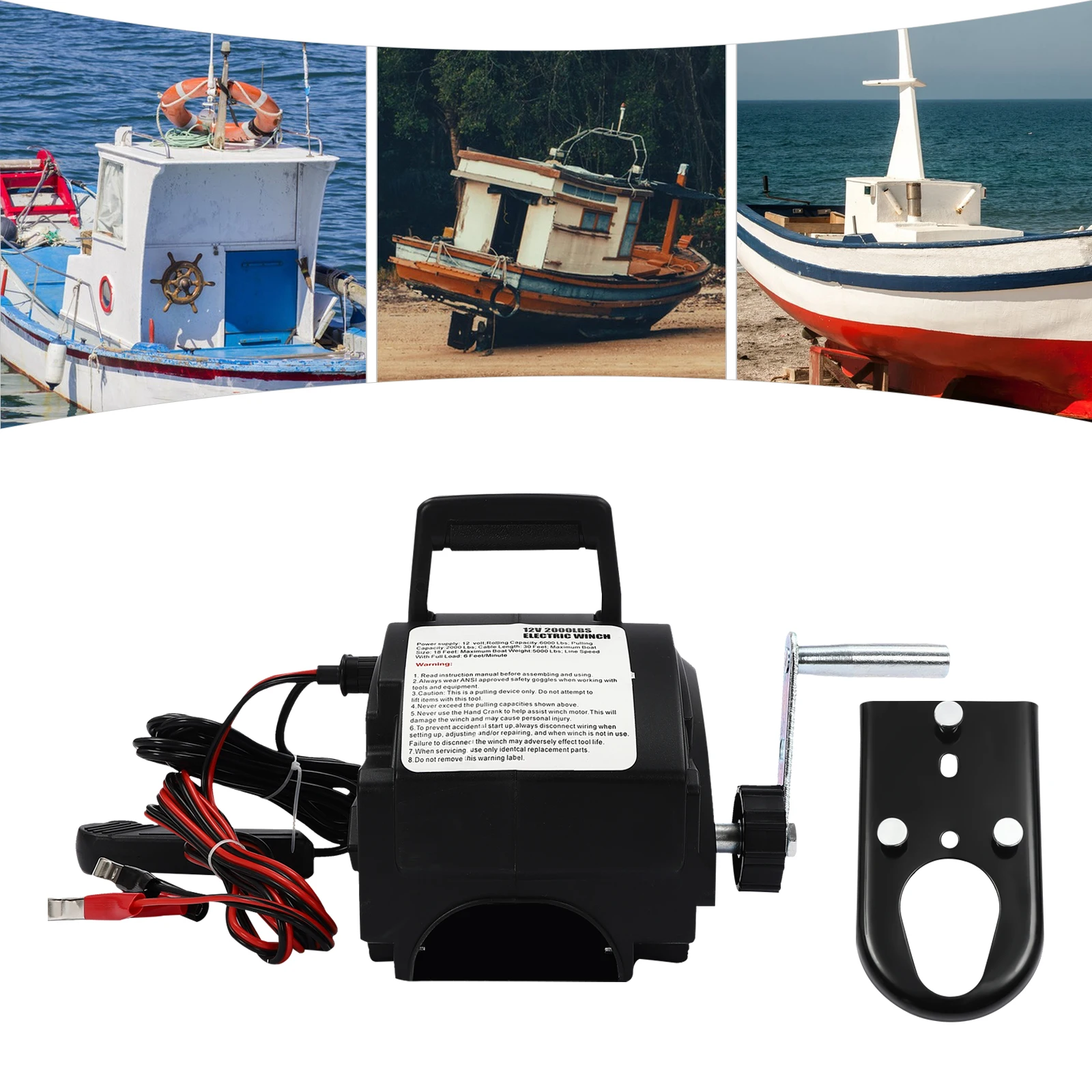

It is suitable for cars, trailers, trucks, yachts, ships, and marine winches.

Specifications

Color: Black

Material: Steel, ABS

Winch Direction: Unidirectional

Motor Type: Permanent Magnet Copper DC Motor

Control Mode: Wire Control, Hand Control

Assembly Required: Yes

Rolling Force: 2721.55/6000lbs

Floating Pull Force: 2267.96kg/5000lbs

Rated Pull Force: 907kg/2000lbs

Maximum Size of the Boat: 6m/19.68ft

Maximum Weight of the Boat: 2267.96kg/5000lbs

Motor Power: 300W, 12V

Gear Reduction Ratio: 465:1

No-load Speed: 1.8m/s

Wire Rope: Φ4.8mm*9.2m/Φ0.19inch*29.53ft

Power Cord Length: 3m/9.84ft

Switch Line Length: 3m/9.84ft

Mounting Plate Size: 22.23*12.54*0.48cm/8-3/4*4-15/16*3/16inch

Installation Size: 227*113*31.7mm/8.94*4.45*1.25inch

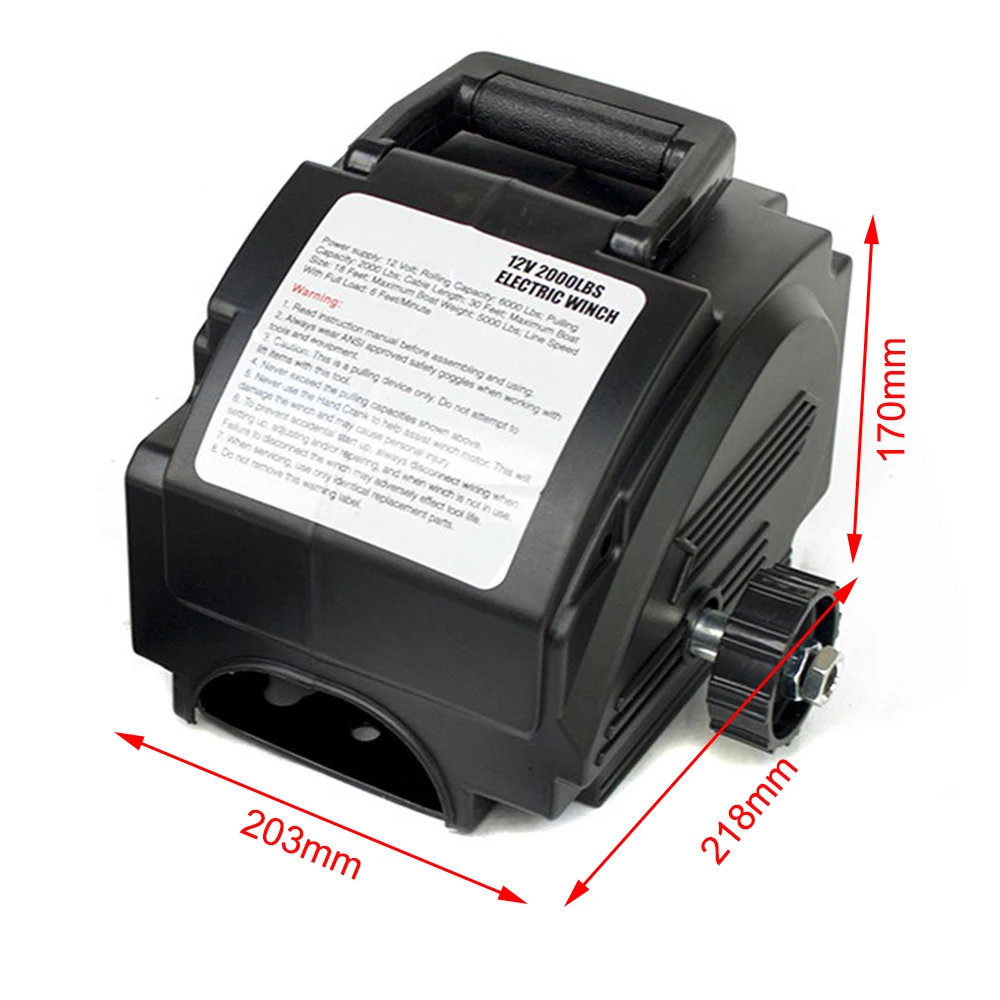

Product Size: 203*218*170mm/8*8.58*6.69inch

Weight: 16kg/35.27lbs

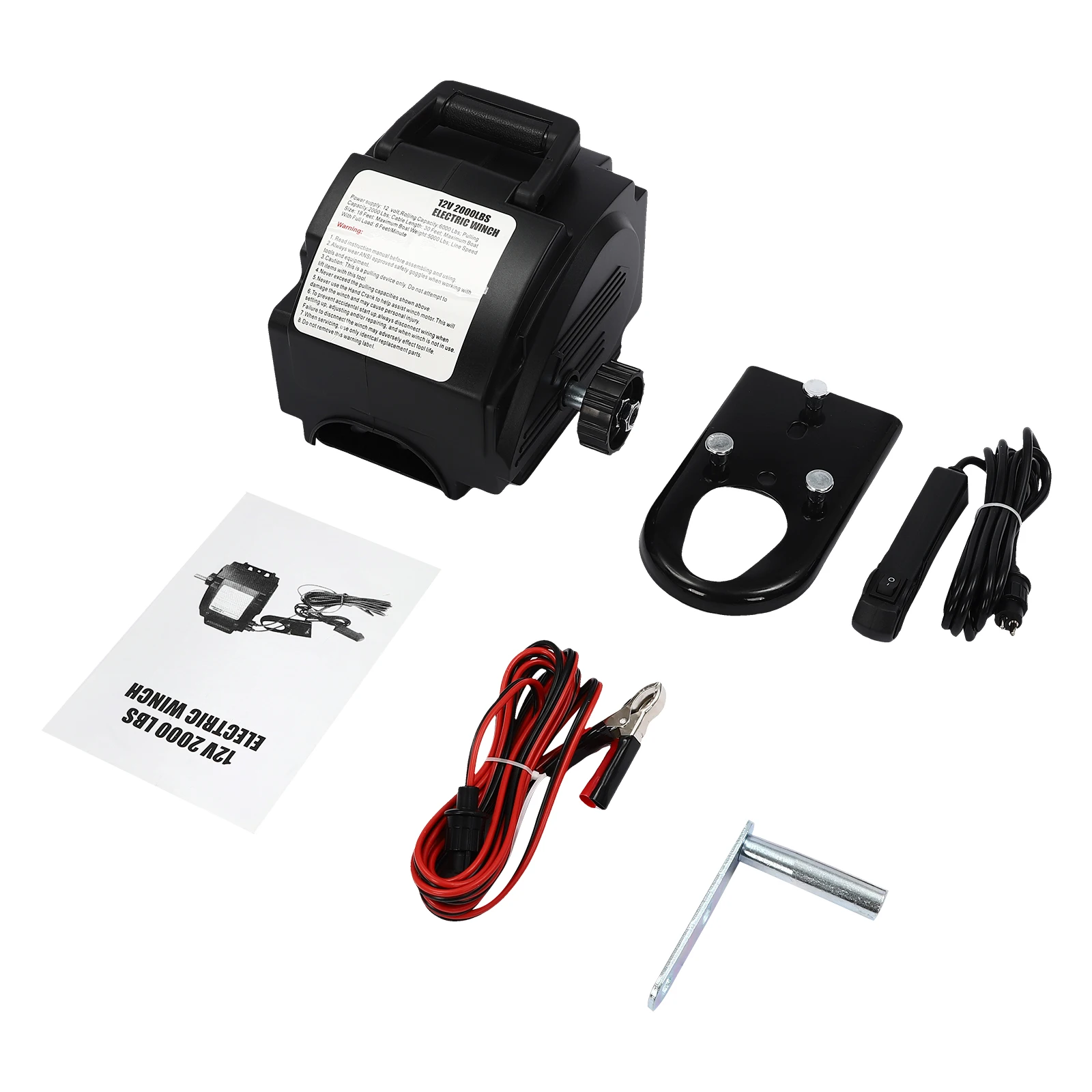

Package Included

1*Electric Winch

1*Mounting Plate

1*Hand Crank

Other Needed Accessories

Notes

1. Please check the size carefully before ordering.

2. Please do not overload the winch.

3. Please note that this winch is electric-powered rope retracting and manual rope releasing.

4. Do not use the crank to assist an operating winch, this will damage the winch and may cause personal injury.

5. Before pulling, the clutch must be tightened all the way clockwise. You may encounter a problem caused by the clutch not being tightened:

1) If the tension is too low, you cannot pull the boat. The machine will make the sound of gears falling off.

2) The marine winch will stop working regularly.

3) The cable will not be locked and the wires may slide out.

4) The winch may pull for a few seconds and then stop working.

6. Please do not pull the boat directly after tightening the clutch. After tightening the clutch, first, roll the cable all the way in to release tension. If this is not done, the winch can be restored to normal use.
