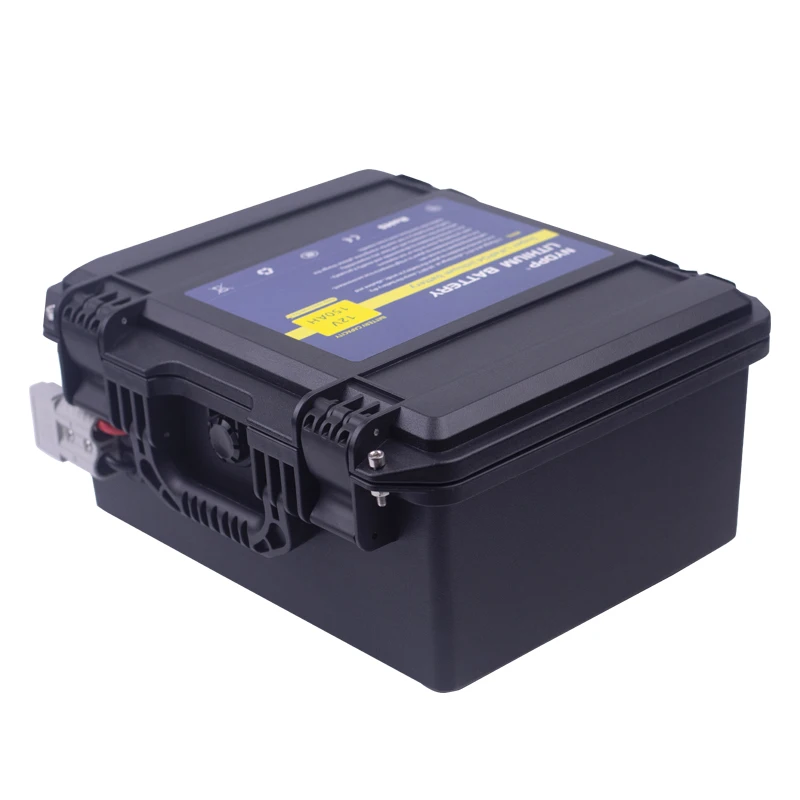

12V 150AH 200AH LiFePO4 Battery 12V lifepo4 150AH 200AH battery 12V Lithium iron phosphate for E-engine, fish detector sonar

12V 150AH 200AH LiFePO4 Battery (optional Bluetooth BMS)

EU buyers please note:
The following types of batteries are shipped from EU warehouses, while other types of batteries are shipped directly from China.

12V150AH : from EU shiping

Other countries/regions (non EU countries) ship directly from China.

Logistics time (direct delivery from China) :
1. European Union: 45-60 days.
2. Russia: 30-50 days.
3. US/Canada: 45-60 days.
4. Japan: 20-30 days

About customs duties and other taxes:
Except for buyers whose delivery address is France (French buyers need to pay VAT directly), buyers from other countries do not need to pay any other fees such as customs duties, thank you!

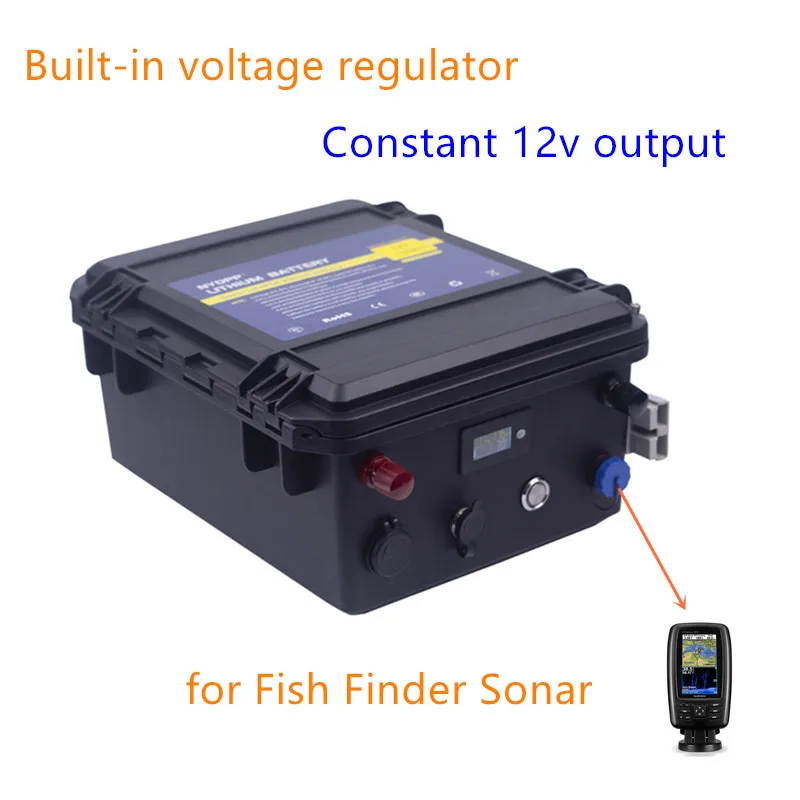

Stable 12V Voltage Output

The battery has two output plugs, which are stable 12V voltage output interfaces, and are specially designed for sounders (many sounders(FISH FINDER) need stable voltage, otherwise their work will be disturbed).

Generally, the output voltage of the battery is not always stable. It has a working voltage range. The more the remaining power of the battery, the higher the voltage. Therefore, the voltage slowly decreases during discharge and use.

Technical Parameters

Rated voltage 12V
Rated capacity: 150AH,200AH

Built in BMS / Bluetooth BMS

1. Battery cell type: LiFePO4 battery
2. Weight:
150AH:about 12.5 kg
200AH:about 15.5 kg

3. Size: 360*305*170 mm(150ah, 200ah are all in this size)

4. Nominal voltage: 12.8V
5. Operating voltage range: 10V~ 14.6V
6. Maximum charging current: 50A
7. Charging voltage: 14.6V

8. Continuous discharge current:
12V 150AH battery≤ 120A(120A BMS)
12V200AH (with Bluetooth BMS) battery≤ 120A(120A BMS)
12V 200AH battery≤ 150A (150A BMS)
12V200AH (with Bluetooth BMS) battery≤ 150A(150A BMS)

9 Instantaneous discharge current: ≤ 360A
10. Service life: more than 3000 cycles
11. Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
12. Battery storage period: 90% power (6 months)
13. Battery warranty: 12 months (free warranty)

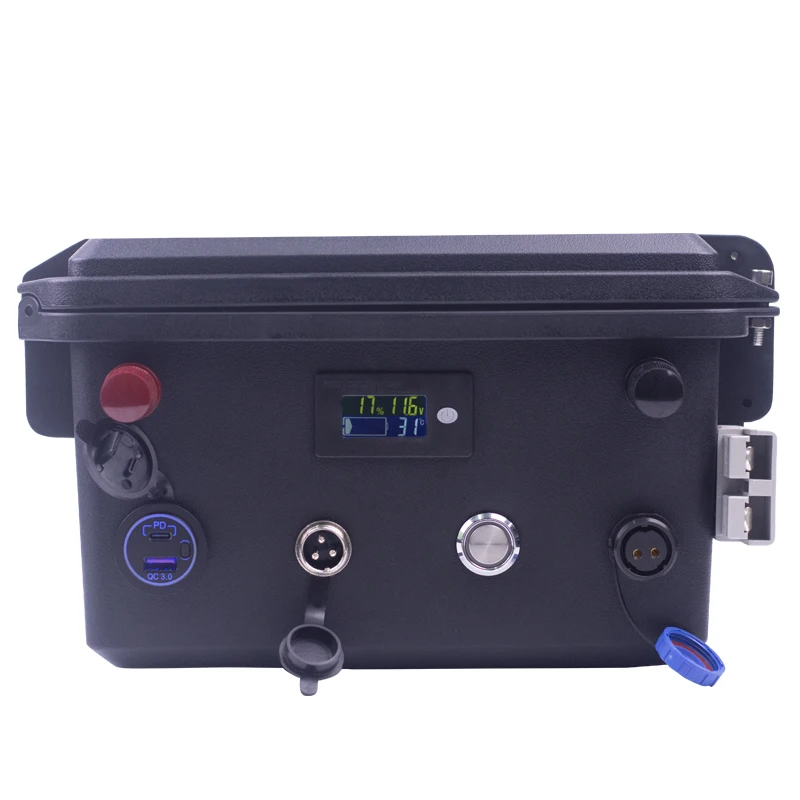

Interface Introduction

Note: ①,④,⑤⑥ can be charged and discharged!

① Charging socket (GX20)
This interface is used by the charger to charge the battery, Its overcurrent is less than 20A.

② Switch
It controls the ③ output (output port of the voltage regulator)

③Waterproof plug (20A, stable 12V output)

This waterproof plug is generally used to connect low-power load equipment such as fish detector(Sounder). Its overcurrent is less than 20A.

④ Anderson plug (120A)
Anderson plug (120A) is mainly used to connect low-power electric motor.

⑤⑥ 8mm terminal (Discharge/charge interface)
Its overcurrent is less than 150A, It is used for loads with power below 1800W.
Suitable for connection with 8 mm diameter copper nose.

⑦ USB3.0/PD
It can charge electronic and digital products such as mobile phones and Notebook computer.

⑧ Display
It can display voltage, power percentage and temperature.
Please note: The battery percentage displayed on the display is not accurate, only for reference!

Including 20A charger

20A charger with European standard or American standard or the British standard or Australia standard plug (according to buyer’s national standards).

1. Charging voltage: 14.6V
2. Charging current: 20A
3. Input voltage: 100v-240v
4. Charging time: about 12 hours

NOTE: The red indicator light indicates that the charging is in progress, and the green indicator light indicates that the charging is completed.

Built in BMS

Please note:
Our batteries are equipped with a BMS and an active equalizer.

The Bluetooth BMS for this battery configuration has been upgraded to the black BMS shown below, which is also from Daly and is configured with a separate active equalizer.

12V 150AH battery built in 120A BMS
12V150AH (with Bluetooth BMS) battery built in120A Bluetooth BMS

12V 200AH battery built in 150A BMS
12V200AH (with Bluetooth BMS) battery built in 150A Bluetooth BMS

Built-in BMS battery management system, functions:
1. over charge protection. 2. over current protection. 3. over voltage protection
4. discharge protection. 5. short circuit protection. 6. over power protection.
7. temperature protection.

Battery type（Cell Type）

Adopts large single high power LiFePO4 battery. The current output is more stable and stronger.
LiFePO4 battery have higher safety, longer service life and a wider operating temperature range.

Application

Boat propeller battery, Camper/scooter, golf trolley/carts, power tools…

Inverter, Solar and wind power system, RV, caravan…

Back-up system and UPS…

Torch LED light emergency light.

Better service

Contact the seller, know more products information.
Capacity and output interface can be customized.
