GreenYi 5 inch AHD Monitor 1920*1080P High Definition 170 Degree Starlight Night Vision Vehicle Camera Reverse For Car

$ 43.18$ 87.47

ChinaRussian Federation
add AHD1080P Cameraadd AHD720P CameraOnly AHD720P Cameraonly monitor
Clear
SKU: 4000464137558 Categories: , ,

Description

AHD (Analog High Definition Technology)

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD’s surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

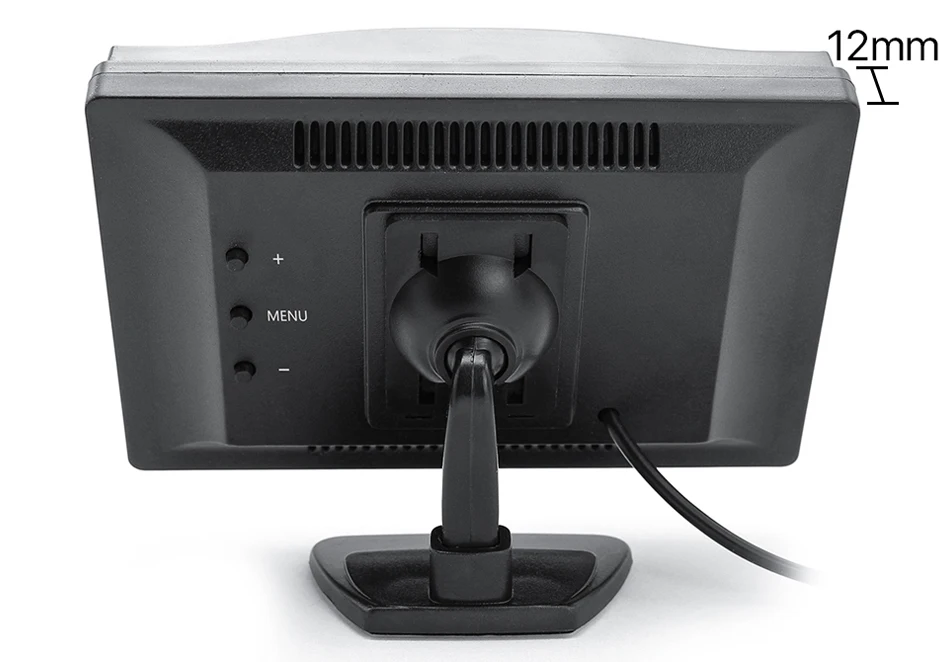

AHD 5 inch Monitor:

• Video signal: Supports AHD and CVBS signals.
• Screen size: 5-inch screen
• Format: 16:9
• Screen brightness: 500CD / M2
• Screen contrast: 300:1
• EWV screen: Support
• Effective pixels of the screen: 1024*600
• Signal format: PAL / NTSC
• Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.
• Power supply voltage: 12V-30V (Not recommended for trucks)
• Power consumption: <= 6W
• Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes
• Support screen flip and mirror function
• Support adjustment of brightness, contrast and saturation
• Support English, Russian, Korean, Chinese, Japanese
• Recommend using our AHD camera, the display effect is very good, just like the effect of video demonstration.

Key Description

Long press +: Turn screen off or on
Long press-: Switch video signal (AHD1 / AHD2)
Click MENU: Open menu / back key
Long press MENU: OK / Next option

Support screen flip and mirror function

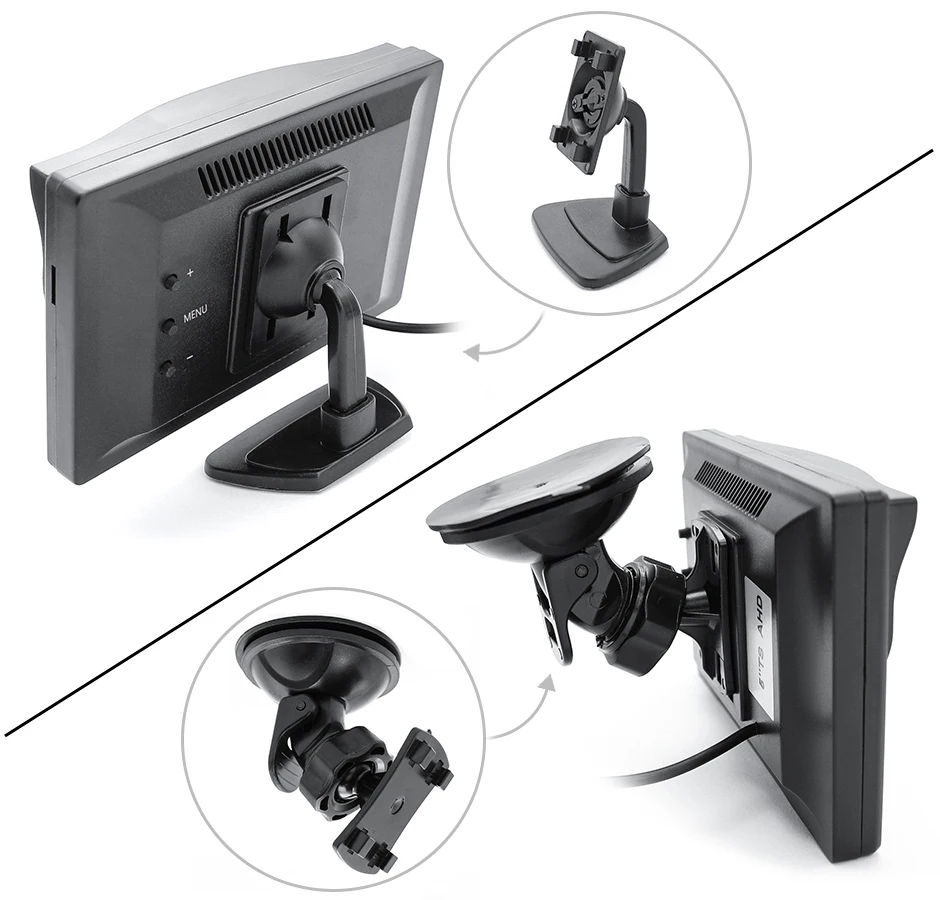

Two Way of Installation:

AHD cameras:

Tips:

The AHD camera only support AHD Monitor.

AHD Car Camera:

• AHD 2053 imaging sensor.
• Video output: AHD Video Signal (1280*720P or 1920*1080P Optional)
• High-definition and 170 degree wide viewing angle. Fisheye lens
• Support parking reference line switch on/off
• Support NTSC/PAL Video system.
• High grade of waterproofing: IP68.
• Low-light Level Night Vision, 15m visible distance for night.
• 6M RCA Video connector.
• New body material:
High quality stainless steel, aluminium alloy.
Anti Scratch.
Waterproof.

Support parking reference line switch on/off

Some monitors come with a parking reference line that coincides with the camera’s reference line and interferes with the line of sight.

Installation Guide:

If the monitor is android dvd or stereo radio, you need 6m cable red trigger wire “A” and “B”:
“A” connect reverse lights power DC 12V+.
“B” connect to radio trigger wire.
The 4 pin to RCA cable is a dedicated cable and cannot be replaced; 6m video cable can be replaced.

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to contact us and give us chance to solve your problem.
• This link support “no reason to return goods within 15 days”. The goods returned by the buyer shall not affect the secondary sales of the merchants.For the expenses incurred in returning and returning goods, the principle of responsibility shall be followed.

Additional information

Brand Name

GreenYi

Certification

RoHS

Origin

CN(Origin)

Item Size

5inch

Model Name

AT501-AHD818

Placement

In-Dash

Display Size

5"

Material Type

Plastic display and metal camera

Resolution

1024*600

Item Type

Car Monitors

Item Weight

460g

Screen dimensions

5 inchs

Power

DC12V/24V

EWV Screen

Support

Screen brightness

500CD / M2

Monitor Contrast

300:1

Digital Image

No Color Cast

Starlight night vision

Support

Camera Angle

170 Angle

Camera Pixel

1280*720/1920*1080

Camera Waterproof

IP68

SKU

AT501
