GreenYi 170 Degree 1080P AHD Vehicle Rear View Camera for VW Passat Golf Polo Jetta Tiguan Touareg B6 B7 Audi A3 A4 A5 A6 S5

$ 36.50$ 55.00

ChinaRussian Federation
A-680x480-120degB-720x480-155degC-Dynamic TrajectoryD-CVBS720P-AHD720PE-AHD1080P-175deg
Clear

Description

5 Cameras Optional

Tips, About E options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

Tip: Please check if the size suits

Support trunk button

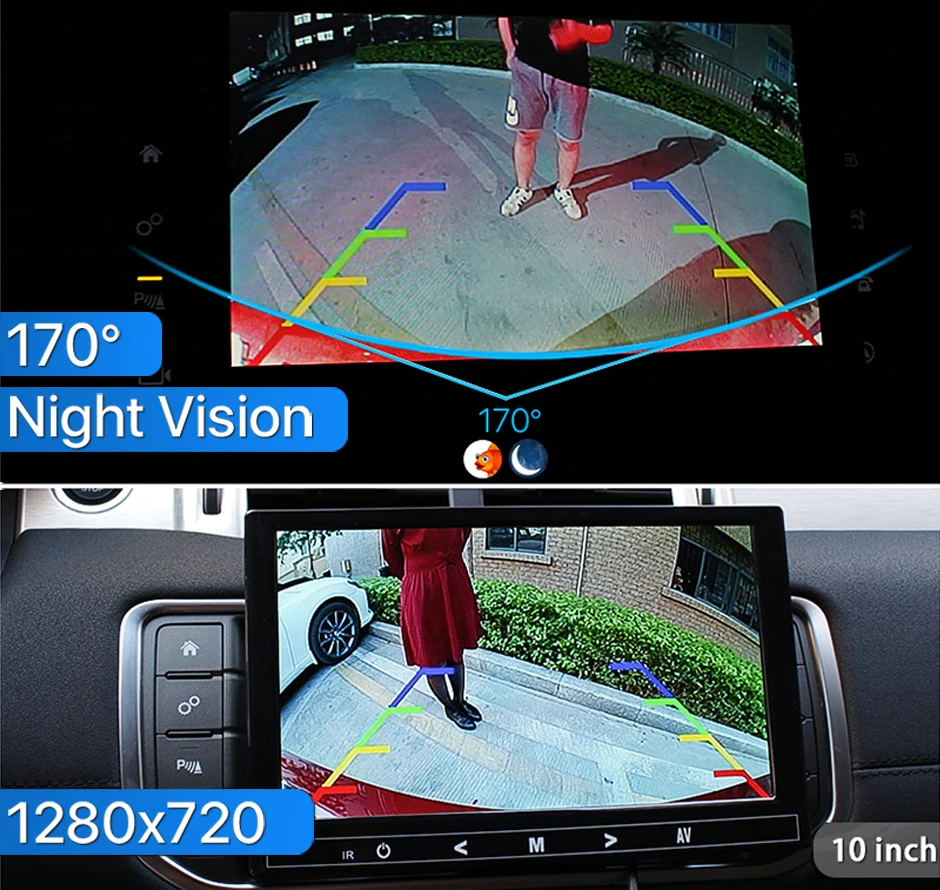

↓↓ 170° View Angle (Option D, E)

• Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

↓↓ 1280*720P Top Starlight Night Vision (Option D, E )

• Low-light Level Night Vision, 15m visible distance for night. Exclusive military low-light camera, the industry’s most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

↓↓ 2020 AHD Camera, Analog High Definition Technology (Option D,E)

• AHD1080P / AHD720P Optional
• If AHD1080P cannot be selected, AHD1080P cameras are not supported!
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

↑↑ Support video signal control AHD/CVBS (Option D, E)

Through signal control, it can support CVBS and AHD displays.
• D camera
( CVBS )+( 1280×720 )+( 170° )
Cut the white cable→( AHD )+( 1280×720 )+( 170° )
• E camera
( AHD1080P )+( 1920×1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280×720 )+( 125° )

↑↑ Support parking reference line switch on/off (Option A, B, D, E)

Some monitors come with a parking reference line that coincides with the camera’s reference line and interferes with the line of sight.

↓↓ Support Intelligent Dynamic Trajectory (Option C)

• Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power.
• Not support steering wheel control.
• Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier.
• 155° wide viewing angle.

Support Waterproof

Display effect

Package list

1. Rear camera
2. Package box
3. Video cable (6m)
4. Power cable
5. Manual

Installation Diagram

Tip: If your monitor is android stereo radio, you need to connect the 6M cable’s red trigger wire “A” and “B”:
“A” connect reverse lights power DC 12V+.
“B” connect to radio trigger wire.

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to contact us and give us chance to solve your problem.
• This link support “no reason to return goods within 15 days”. The goods returned by the buyer shall not affect the secondary sales of the merchants.For the expenses incurred in returning and returning goods, the principle of responsibility shall be followed.

Additional information

Brand Name

GreenYi

Certification

RoHS

Origin

CN(Origin)

Guiding Line

Yes

Material Type

Abs

Length of Video Cable

6M

Lens Material

Glass

Wire or Wireless

Wire

Alarm Type

Rear Side

Shell Material

Plastic

Pixels

1080P Optional

View Angle

170 degree Optional

Night Vision

Top Starlight Night Vision

Waterproof

Support

Power

DC 12V

White Balance

Auto

TV System

NTSC or PAL

Model Number

FA903
